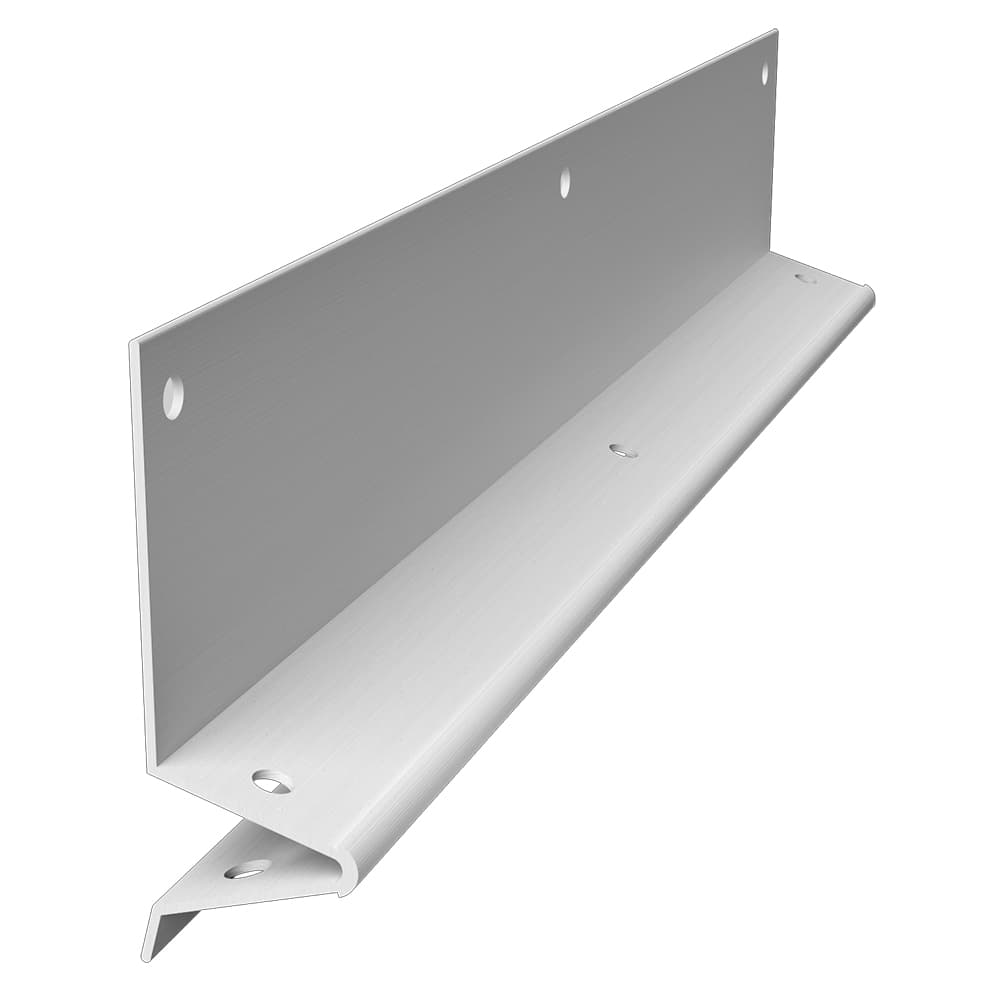

1-3/4" Weep Screeds (Unperforated Flange)
Designed to direct moisture from stucco and to act as a stop
Install on frame construction where stucco and foundation walls meet.
Quick Actions:
Designed to direct moisture from stucco and to act as a stop. Install on frame construction where stucco and foundation walls meet.
Product Data & Ordering Information

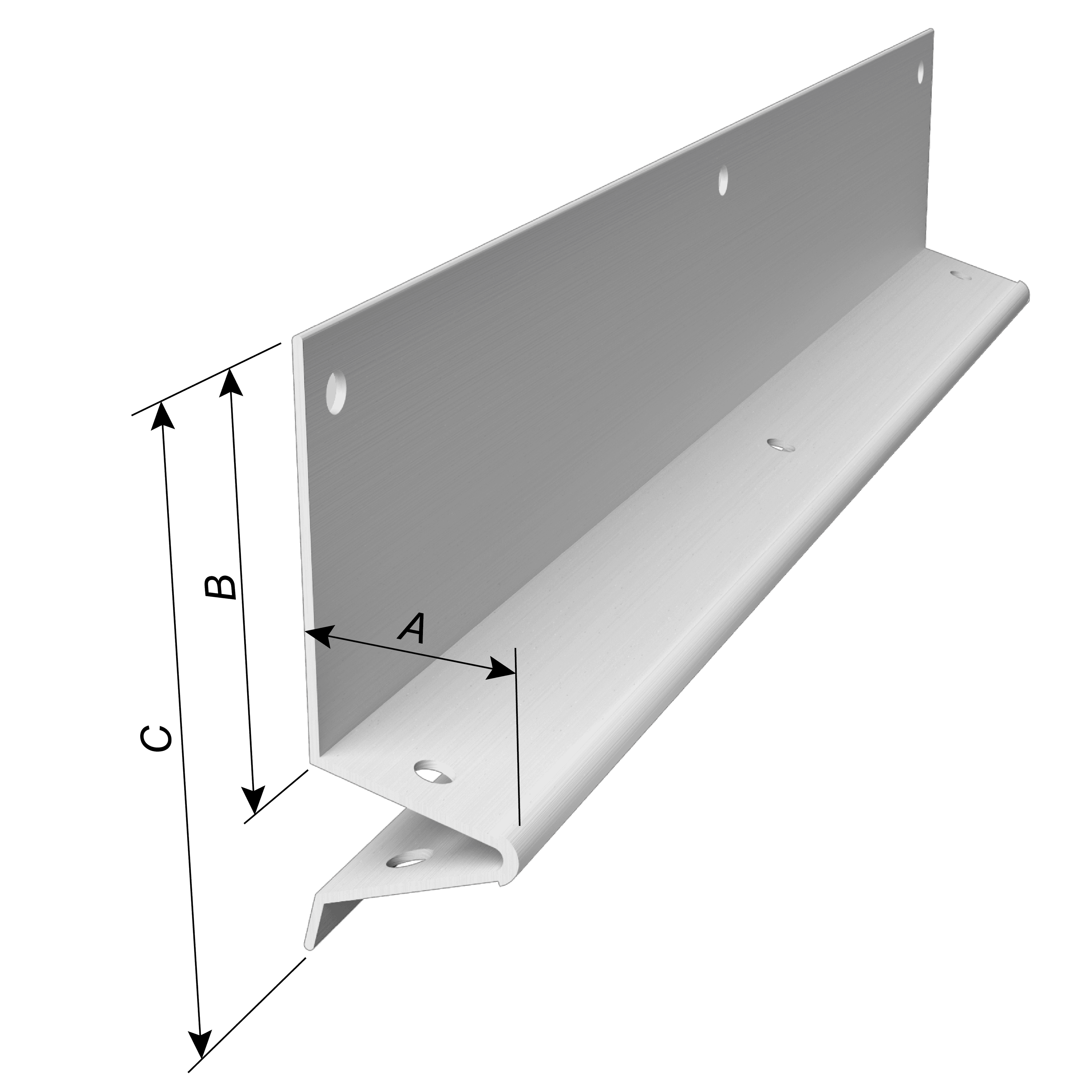

| Product code | Ground (A) | Flange (B) | Overall height (C) | Length | Pcs./Box |
|---|---|---|---|---|---|
| WS38-250U | 3/8" | 1-3/4" | 2-1/2" | 10' | 70 |
| WS50-250U | 1/2" | 1-3/4" | 2-1/2" | 10' | 70 |
| WS58-250U | 5/8" | 1-3/4" | 2-1/2" | 10' | 70 |
| WS75-250U | 3/4" | 1-3/4" | 2-1/2" | 10' | 70 |
| WS78-250U | 7/8" | 1-3/4" | 2-1/2" | 10' | 60 |
Note: Also available with a perforated back flange. To order, remove U from the product code, example: WS38-250.
Colors available: Standard color White or Tan, Brown, Gray and Black. Call for pricing.
