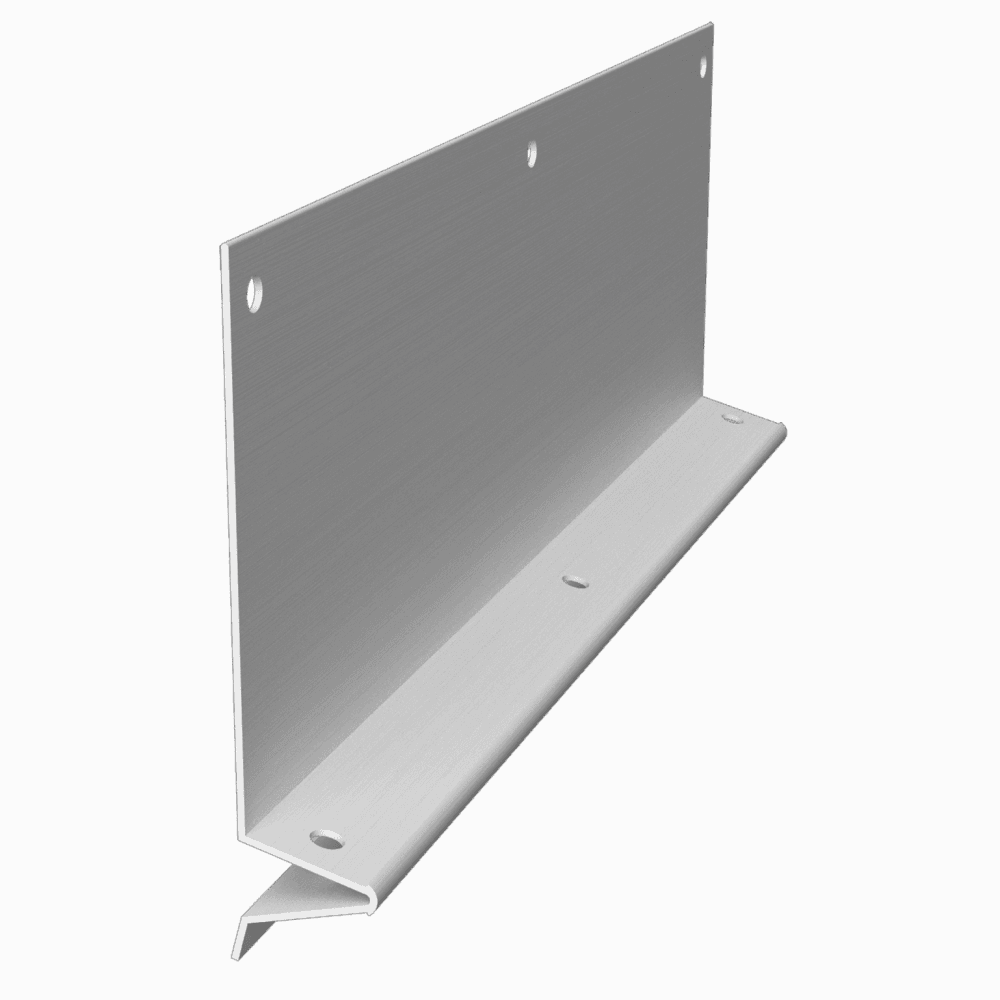

3-1/2" Weep Screeds
Designed to direct moisture from stucco and to act as a stop

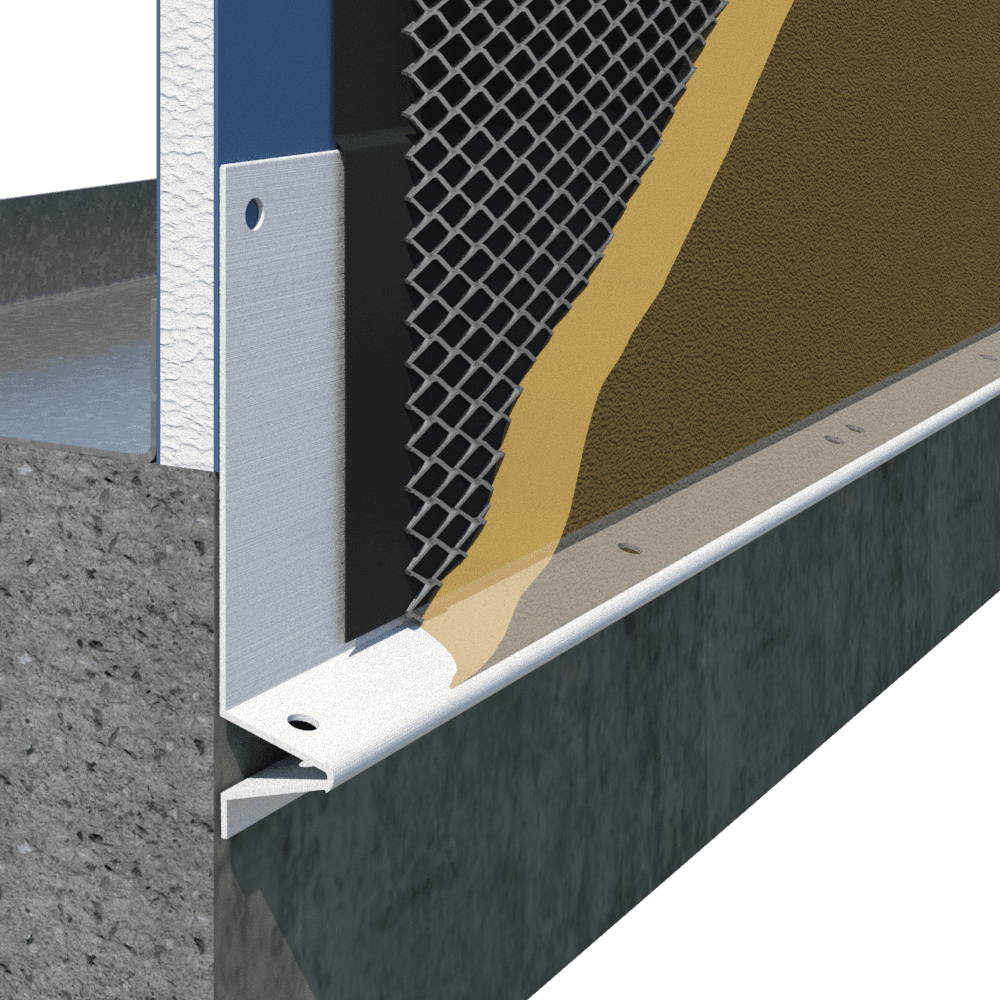

Install on frame construction where stucco and foundation walls meet.
Quick Actions:
Designed to direct moisture from stucco and to act as a stop. Install on frame construction where stucco and foundation walls meet.
The 3-1/2" solid attachment flange makes this style weep screed ASTM C1063, IBC and IRC code compliant.
Product Data & Ordering Information

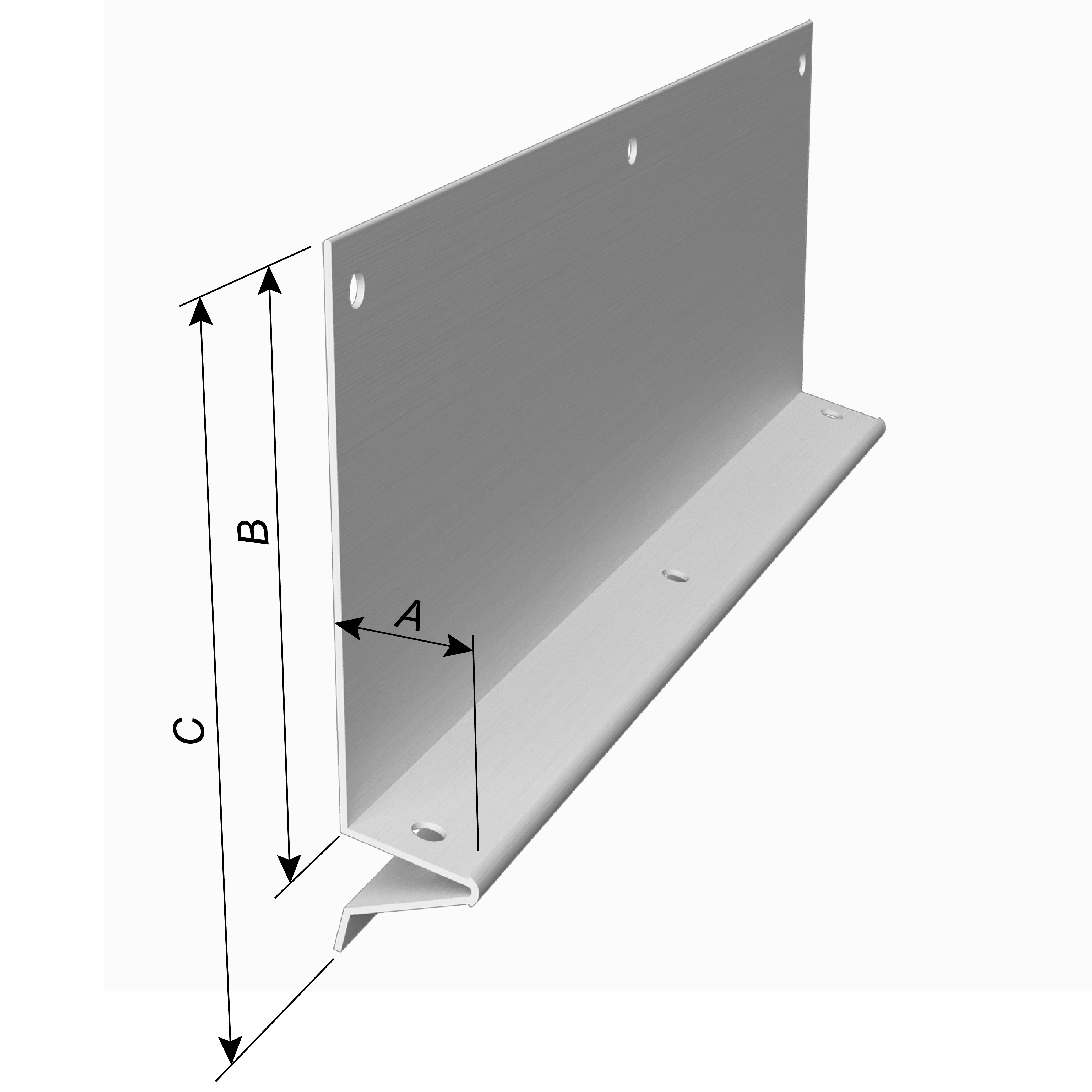

| Product code | Ground (A) | Flange (B) | Overall Height (C) | Length | Pcs./Box |
|---|---|---|---|---|---|
| WS38-350U | 3/8" | 3-1/2" | 4" | 10' | 50 |
| WS50-350U | 1/2" | 3-1/2" | 4" | 10' | 50 |
| WS58-350U | 5/8" | 3-1/2" | 4" | 10' | 40 |
| WS75-350U | 3/4" | 3-1/2" | 4" | 10' | 40 |
| WS78-350U | 7/8" | 3-1/2" | 4" | 10' | 30 |
| WS138-350U | 1-3/8" | 3-1/2" | 4" | 10' | 30 |
Caulk all intersections, butt joints, ends, and corners at time of installation.
