3/8" Rib Lath
The most rigid of all expanded metal lath products

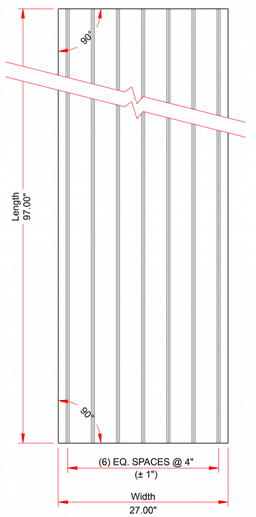

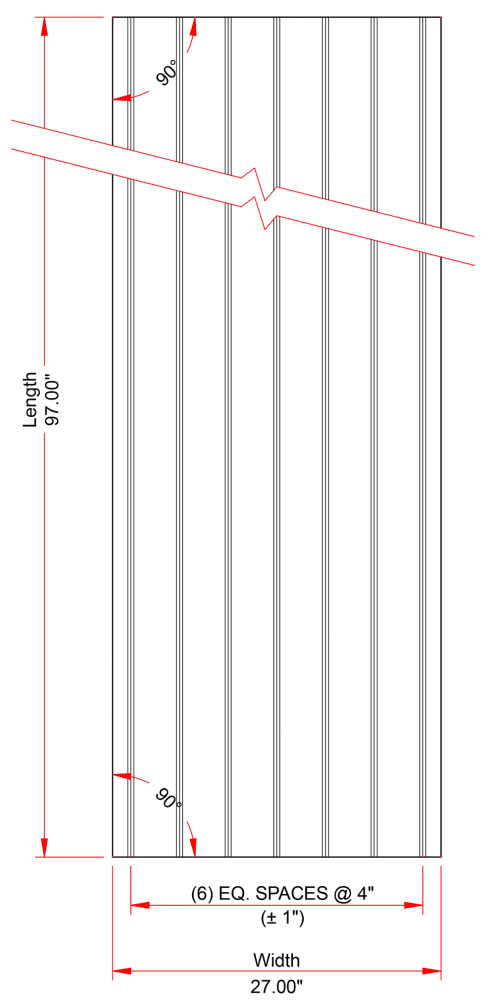

A High-Rib Metal Lath with a herringbone mesh pattern and seven, 3/8" deep, longitudinal, solid steel ribs at intervals of 3-7/8" across the sheet. These ribs provide the superior strength and exceptional rigidity required when framing is more than 16" on center but does not exceed 24" on center.
Quick Actions:
Commonly used for soffits and ceilings under steel or wood joists construction.
The heavy ribs enable use on ceiling spans at 24" compliant to Table 3 of ASTM C1063. This reinforced lath product is also used on 2” stud-less partitions and as reinforcement for concrete floor and roof slabs.
Product Data & Ordering Information
Material: G60 Galvanized Steel
Packaged: 25 bundles or 250 pieces per pallet
| Product Code | Wt. per Sq. Yd. | Sheet Size | Sheets/Bundle | Bundles/Pallet |
|---|---|---|---|---|
| LAR | 3.4 lbs. | 27" x 97" | 10 | 25 |
