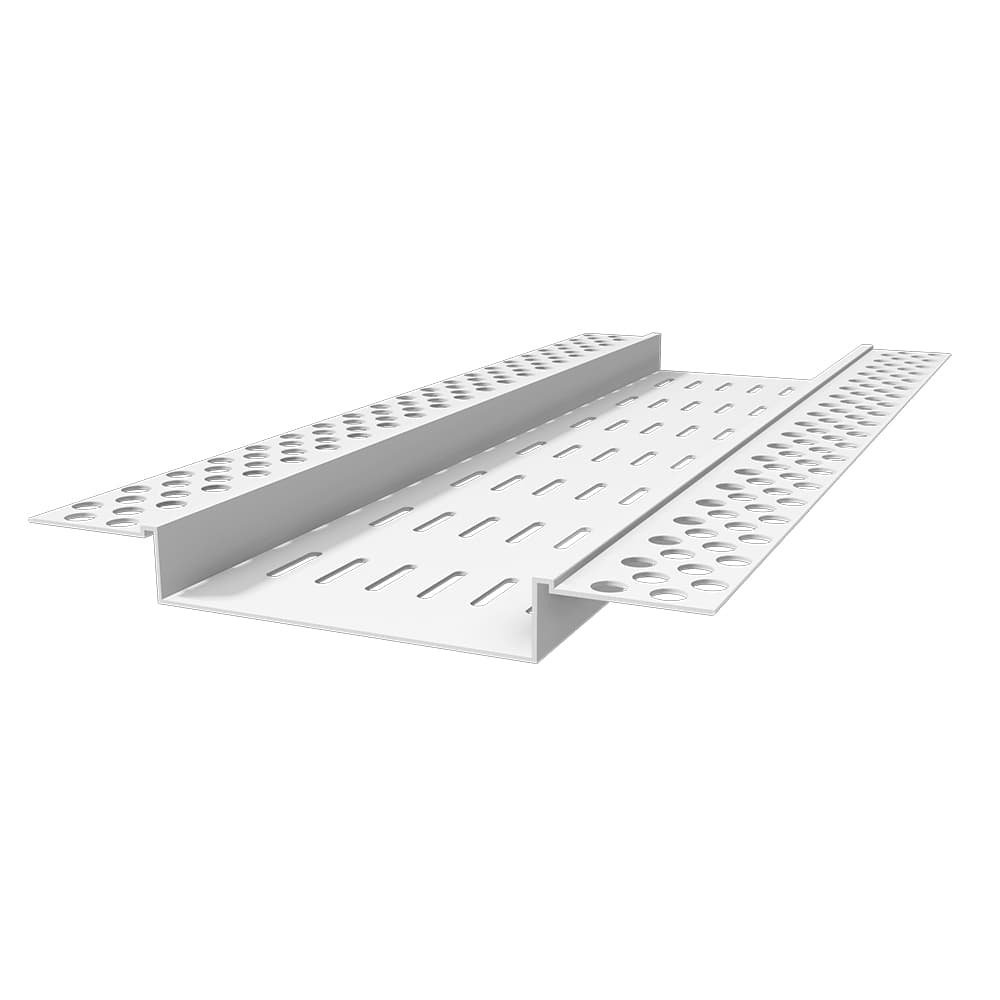

Architectural Vented Channel Reveal - Surface Mount
A variation on the vented channel reveal for when the design style calls for a different aesthetic
The slots function in the same way as the holes on a standard Vented Channel Reveal, allowing air to flow around the perimeter to assist with temperature control and moisture management. Always use a rigid backing or blocking material behind surface-mounted reveal. Has 3/4" elongated vent holes.
Perforated flanges allow the base coat mixture to easily flow through and bond with the substrate.
Quick Actions:
A variation on the vented channel reveal for when the design style calls for a different aesthetic. The slots function in the same way as the holes, allowing air to flow around the perimeter to assist with temperature control and moisture management. Always use a rigid backing or blocking material behind surface-mounted reveal. Has 3/4" elongated vent holes. Perforated flanges allow the base coat mixture to easily flow through and bond with the substrate. Vent clips are provided with vented channel reveals to connect reveal sections and assist in alignment.
Caulk all intersections, butt joints, ends, and corners at the time of installation.
Not to be used in lieu of control joints or expansion joints. Factory fabricated intersections are also available for all ClarkDietrich channel reveals.
Product Data & Ordering Information
| Product code | Finish thickness | Minimum board thickness (a) | Reveal width (b) | Perforated flanges (C) | Pcs./Box |
|---|---|---|---|---|---|
| ADCV50-150SE | 1/16" - 3/32" | 1/2" | 1-1/2" | 1-1/8" | 25 |
| ADCV50-200SE | 1/16" - 3/32" | 1/2" | 2" | 1-1/8" | 25 |
| ADCV50-300SE | 1/16" - 3/32" | 1/2" | 3" | 1-1/8" | 20 |
| ADCV50-400SE | 1/16" - 3/32" | 1/2" | 4" | 1-1/8" | 20 |
| ADCV58-150SE | 1/16" - 3/32" | 5/8" | 1-1/2" | 1-1/8" | 20 |
| ADCV58-200SE | 1/16" - 3/32" | 5/8" | 2" | 1-1/8" | 20 |
| ADCV58-300SE | 1/16" - 3/32" | 5/8" | 3" | 1-1/8" | 20 |
| ADCV58-400SE | 1/16" - 3/32" | 5/8" | 4" | 1-1/8" | 20 |
Notes: Has 3/4" elongated vent holes.
Vented Area: 1-1/2" reveal = 5 sq. in. per LF
2" reveal = 7 sq. in. per LF
3" reveal = 8 sq. in. per LF
4" reveal = 9 sq. in. per LF
