Archmaker™ Casing Bead

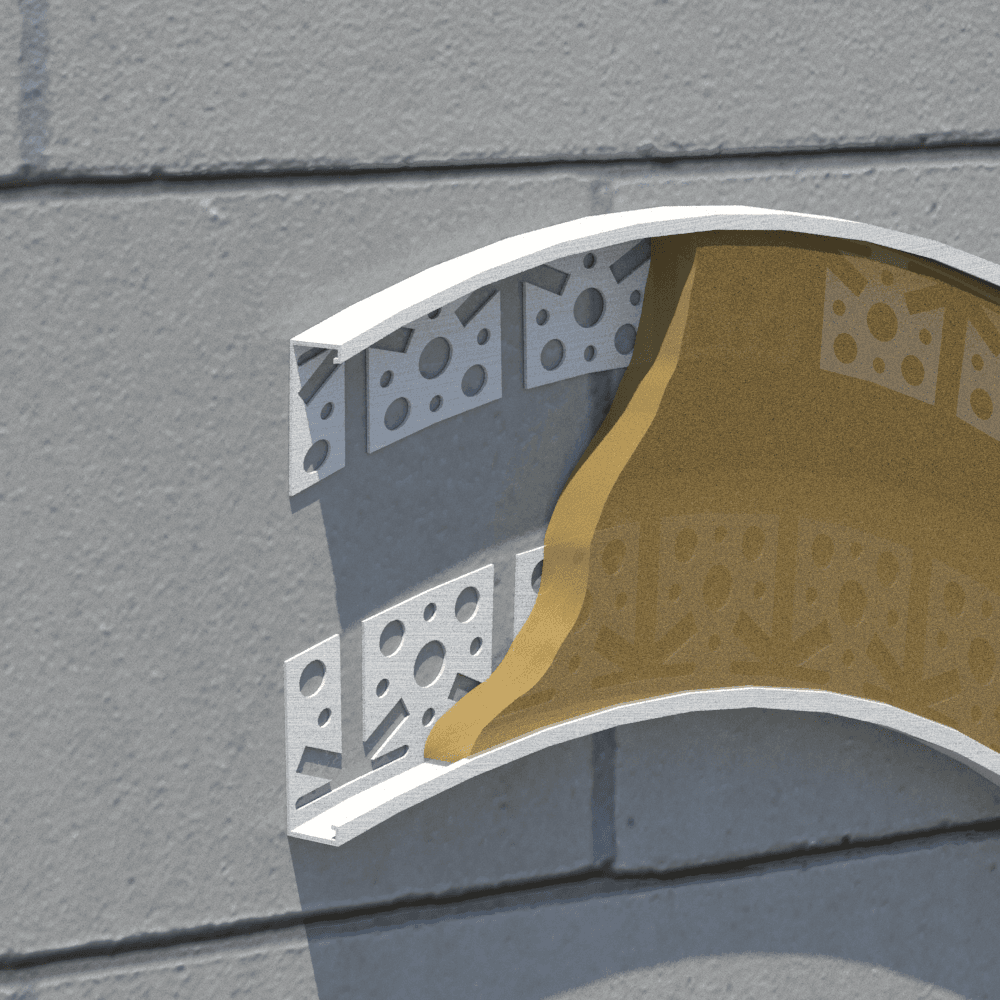

Designed to easily conform to most arched and curved designs
Works for curved bands on walls as well.
Quick Actions:
Designed to easily conform to most arched and curved designs. Works for curved bands on walls as well.
Product Data & Ordering Information

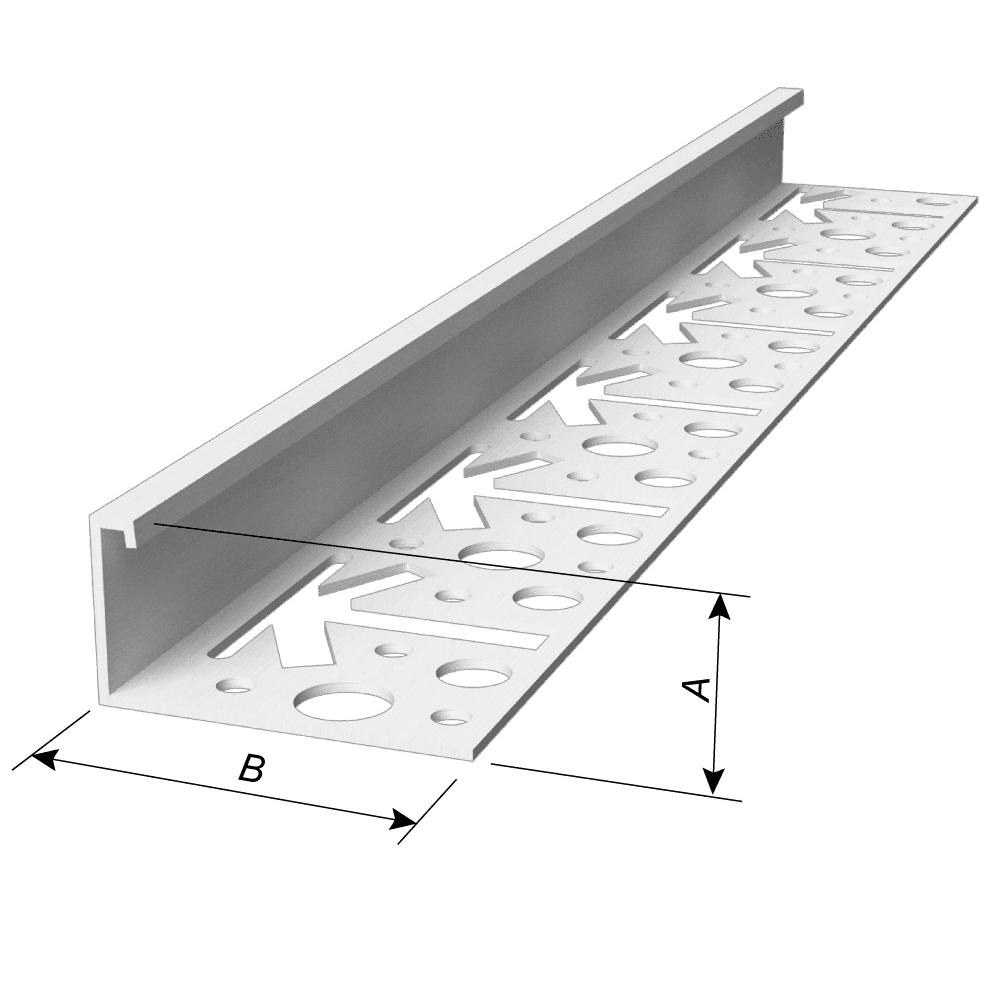

| Product code | Ground (A) | Flange (B) | Length | Pcs./Box |
|---|---|---|---|---|
| 6625A | 1/4" | 1-3/4" | 10' | 100 |
| 6638A | 3/8" | 1-3/4" | 10' | 100 |
| 6650A | 1/2" | 1-3/4" | 10' | 100 |
| 6658A | 5/8" | 1-3/4" | 10' | 100 |
| 6675A | 3/4" | 1-3/4" | 10' | 75 |
| 6678A | 7/8" | 1-3/4" | 10' | 75 |
| 66100A | 1" | 1-3/4" | 10' | 75 |
Note: If weep holes are required, add W to the product code, example: 6625A-W.
