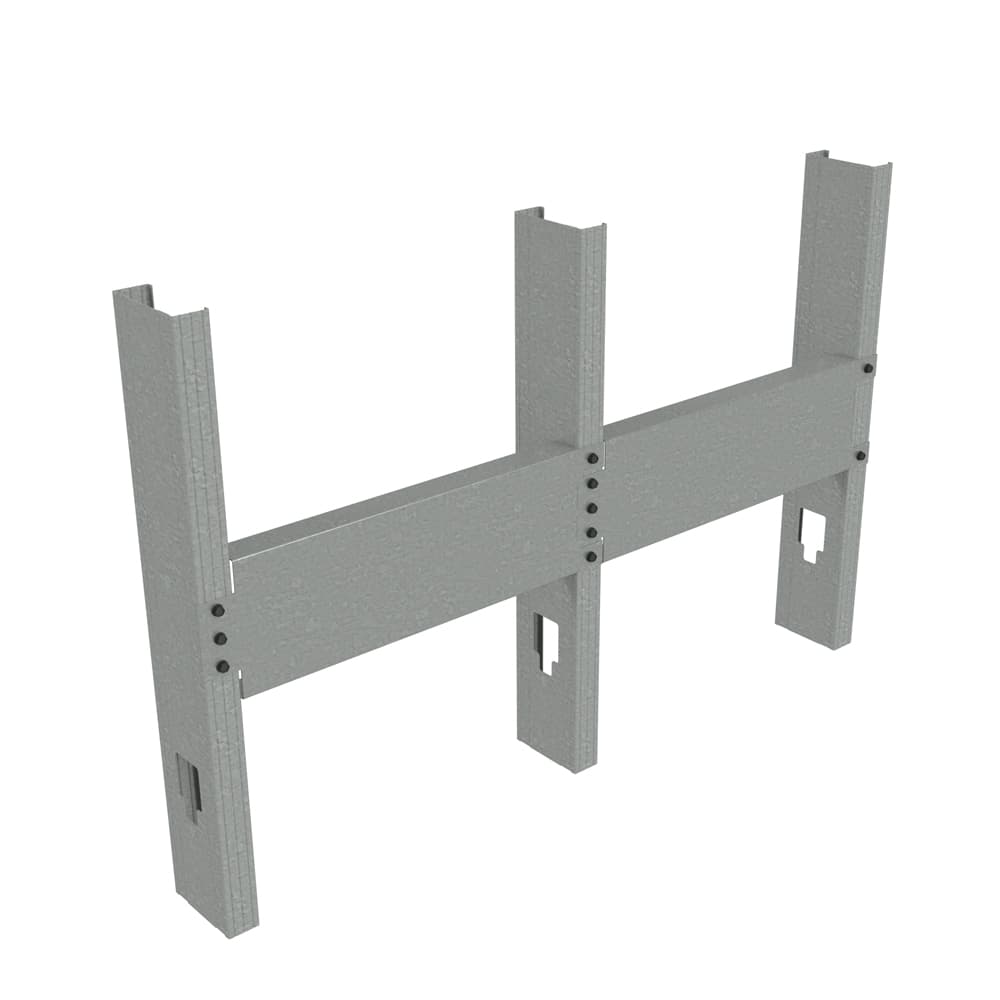

Backer Bar

Quick, Easy Installation

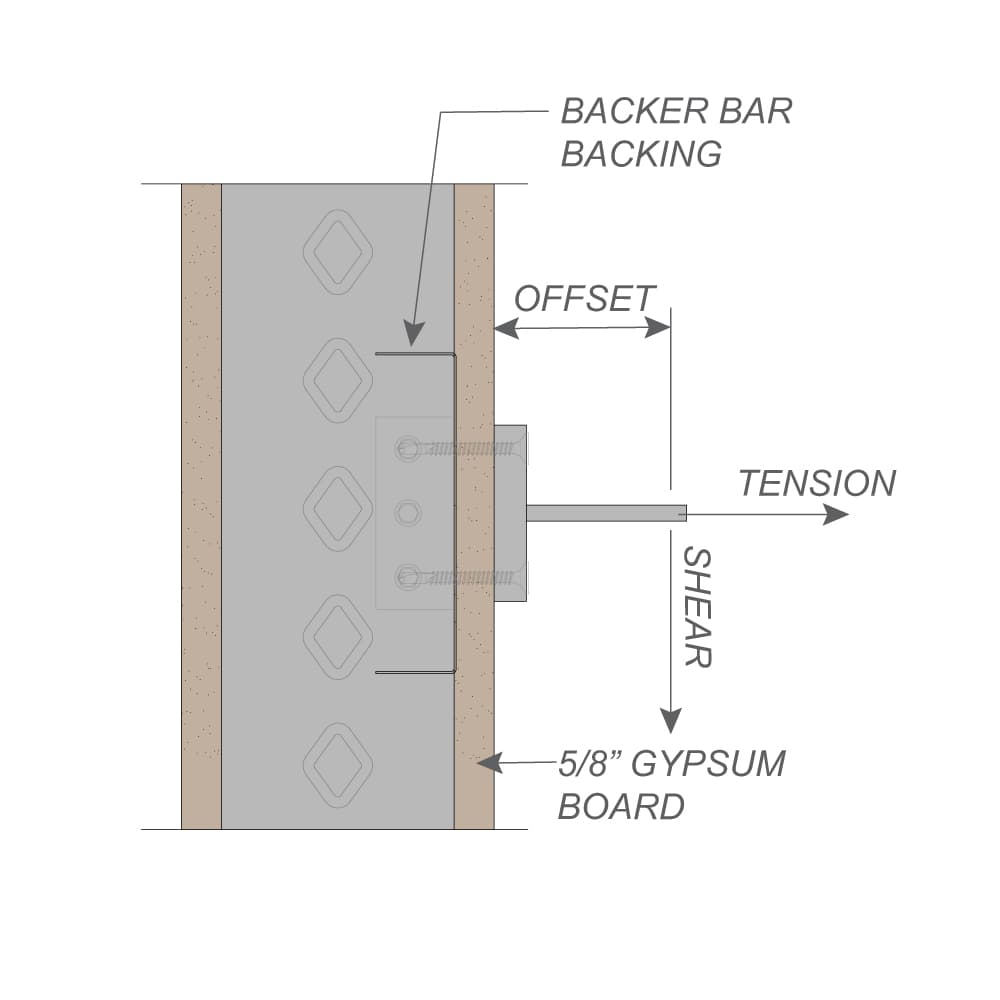

The Backer Bar was specifically designed to meet the demand for the attachment of multiple items and heavier items to interior partitions. Provides superior connection shear and pullout strength for handrails, shelves and other wall fixtures.

Designed and patented by Bailey®. Manufactured, tested and distributed in the USA by ClarkDietrich®.

Quick Actions:

Architectural Specs
AIA / CEU
Sustainability

Today’s building professionals require solutions to allow the attachment of such products and accessories to the interior partition walls. Traditionally, backing systems have been costly, time-consuming and not necessarily performing to the required code specified load requirements. Backer Bar, designed for use on non-structural and structural studs.

Typical Applications:

  • Wall-Mounted Televisions
  • Hospital Handrails
  • Towel and Shower Bars
  • Cabinets and Shelves


Features and Benefits:

  • Installs quickly and easily
  • Available in 12", 16" and 24" spacing
  • For use on non-structural and structural studs

Canada Patent Pending – 2,811,362
USA Patent – 9,062,455



Product Data & Ordering Information

Material: Grade 50ksi min. yield strength, G90
33mils: 20ga STR, 0.0346” Design Thickness, 0.0329“ Min. Thickness

Dimensions:
Leg: 1-1/4”
Width: 5”
Lengths: For 12”, 16" and 24”o.c spacing
