BlazeFrame® Shield
33mil, 43mil or 54mil Fire Shield System
ClarkDietrich’s BlazeFrame Shield is specifically designed for use in conjunction with approved fireblocking materials per section 718 of the IBC.
Quick Actions:

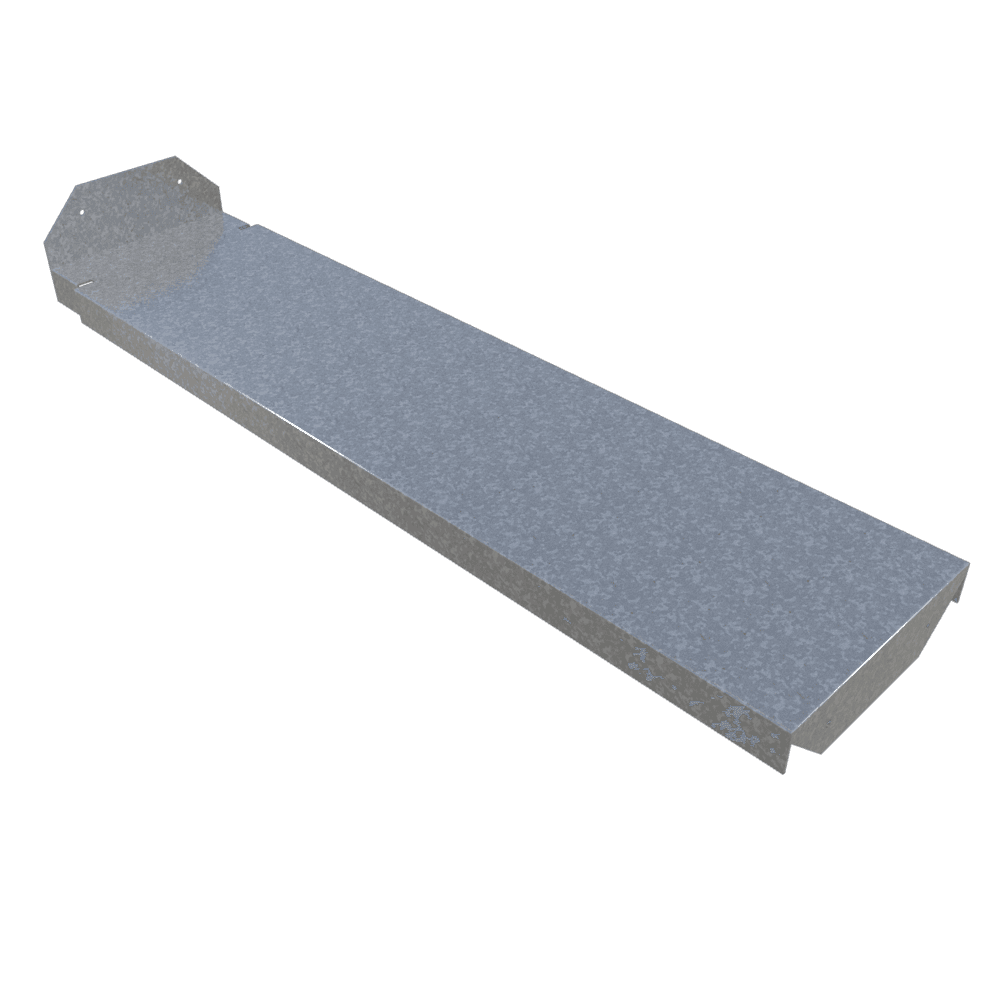

BlazeFrame Shield simply installs by twisting into stud flanges and screwing into stud webs. The one piece preformed assembly eliminates cutting, notching and attaching clips.
- Installs quickly and easily without clips
- Available for 16" and 24" stud spacing
- Three available widths
- Available in 33mil (20ga), 43mil (18ga) or 54mil (16ga)
- Pre-notched for use on structural studs (1-5/8" flange only)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information:
| Thickness | |
| 33mils (20ga STR) | 0.0346” design thickness, 0.0329” minimum thickness |
| 43mils (18ga) | 0.0451” design thickness, 0.0428” minimum thickness |
| 54mils (16ga) | 0.0566” design thickness, 0.0538” minimum thickness |
Yield Strength: 33ksi for 33mils & 43mils, 50ksi for 54mils
Coating: CP60
Dimensions:
Horizontal leg: 1”
Connection tabs: Top: 2”, Bottom: 1-1/2”
Width: 3-5/8”, 4” or 6”
Lengths: For 16" and 24”o.c stud spacing
