Casing Bead with Reveal
Designed to terminate stucco and plaster
At window or door openings to create a reveal.
Quick Actions:
Designed to terminate stucco and plaster at window or door openings to create a reveal.
Product Data & Ordering Information

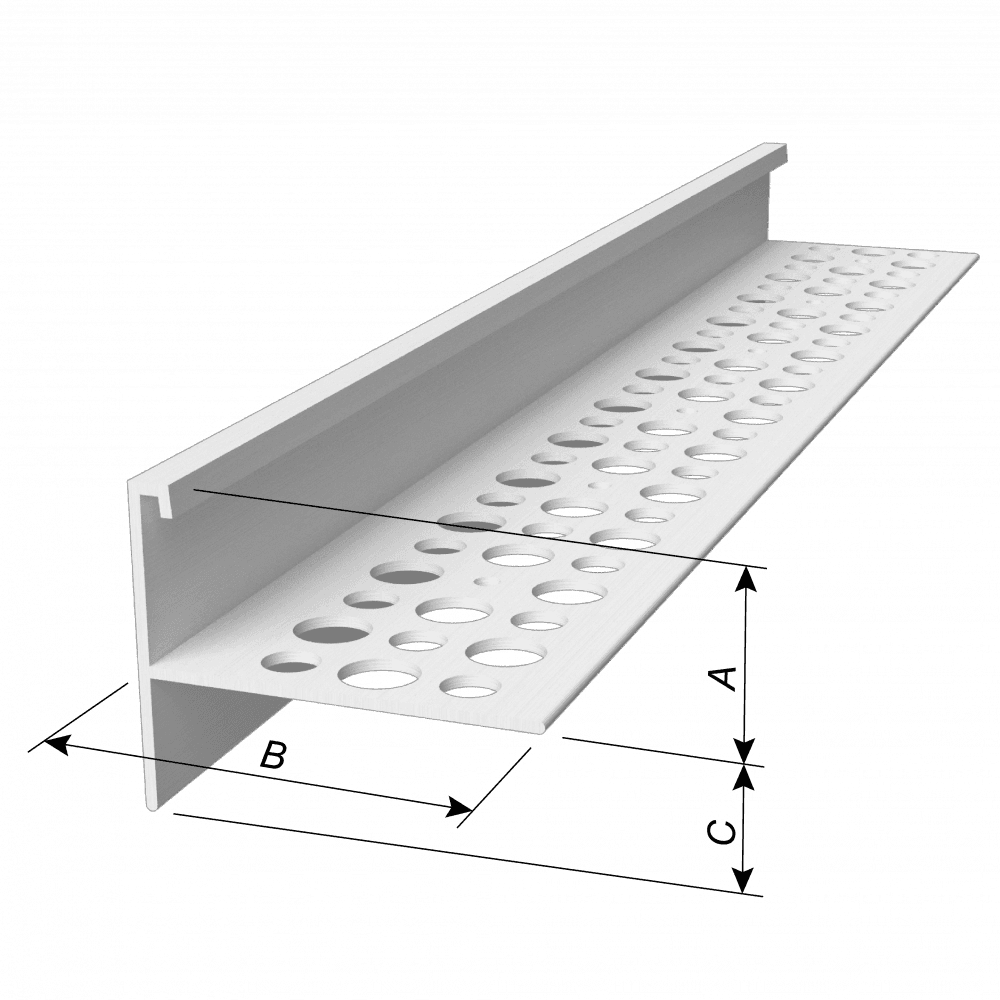

| Product code | Ground (A) | Flange (B) | Board (C) | Pcs./Box |
|---|---|---|---|---|
| RS6650-50 | 1/2" | 1-3/4" | 1/2" | 20 |
| RS6658-50 | 5/8" | 1-3/4" | 1/2" | 20 |
| RS6658-75 | 5/8" | 1-3/4" | 3/4" | 20 |
| RS6658-100 | 5/8" | 1-3/4" | 1" | 20 |
| RS6658-125 | 5/8" | 1-3/4" | 1-1/4" | 20 |
| RS6678-58 | 7/8" | 1-3/4" | 5/8" | 20 |
Note: If weep holes are required, add W to the product code, example: RS6650-50W.
