Channel Reveal - Surface Mount
Create clear surface channels in exterior wall and ceiling systems
Perforated flanges allow the base coat mixture to easily flow through and bond with the substrate.
Quick Actions:
A channel reveal designed for surface-mount applications. Always use a rigid backing or blocking material behind surface-mounted reveal. Vent clips are provided with vented channel reveals to connect reveal sections and assist in alignment. Caulk all intersections, butt joints, ends, and corners at the time of installation. Not to be used in lieu of control joints or expansion joints. Factory-fabricated intersections are also available for all ClarkDietrich channel reveals.
Product Data & Ordering Information

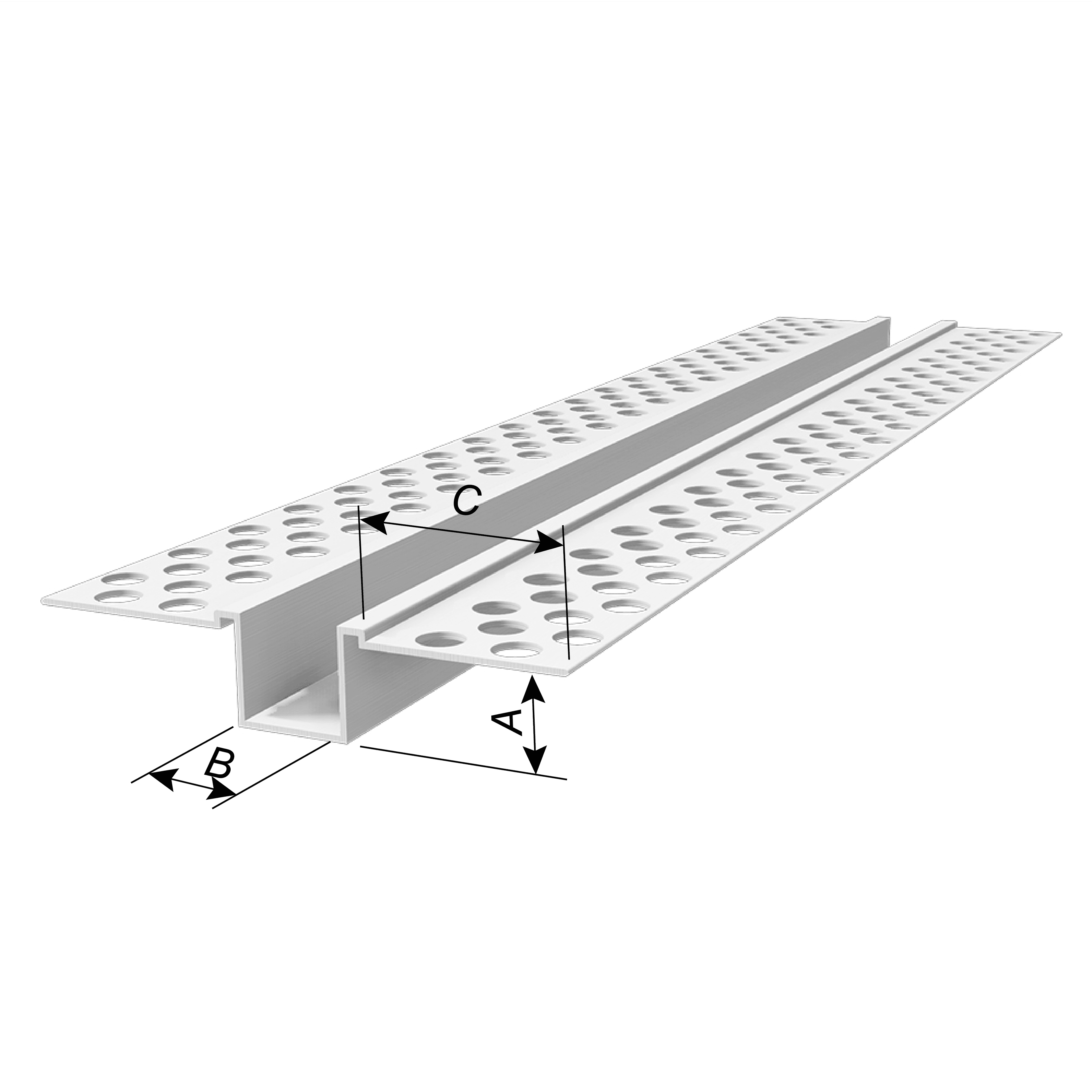

| Product code | Finish thickness | Minimum board thickness (A) | Reveal width (B) | Perforated flanges (C) | Pcs./Box |
|---|---|---|---|---|---|
| DC50-25SE | 1/16" - 3/32" | 1/2" | 1/4" | 1-1/8" | 40 |
| DC50-38SE | 1/16" - 3/32" | 1/2" | 3/8" | 1-1/8" | 40 |
| DC50-50SE | 1/16" - 3/32" | 1/2" | 1/2" | 1-1/8" | 35 |
| DC50-75SE | 1/16" - 3/32" | 1/2" | 3/4" | 1-1/8" | 30 |
| DC50-100SE | 1/16" - 3/32" | 1/2" | 1" | 1-1/8" | 30 |
| DC50-150SE | 1/16" - 3/32" | 1/2" | 1-1/2" | 1-1/8" | 25 |
| DC50-200SE | 1/16" - 3/32" | 1/2" | 2" | 1-1/8" | 25 |
| DC58-25SE | 1/16" - 3/32" | 5/8" | 1/4" | 1-1/8" | 35 |
| DC58-38SE | 1/16" - 3/32" | 5/8" | 3/8" | 1-1/8" | 35 |
| DC58-50SE | 1/16" - 3/32" | 5/8" | 1/2" | 1-1/8" | 30 |
| DC58-75SE | 1/16" - 3/32" | 5/8" | 3/4" | 1-1/8" | 25 |
| DC58-100SE | 1/16" - 3/32" | 5/8" | 1" | 1-1/8" | 25 |
| DC58-150SE | 1/16" - 3/32" | 5/8" | 1-1/2" | 1-1/8" | 20 |
| DC58-200SE | 1/16" - 3/32" | 5/8" | 2" | 1-1/8" | 20 |
