Control Joint and Reveal Combinations
Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings
Also creating 1/4" to 1-1/2" reveal in Stucco.
Quick Actions:
Designed to relieve stress and assist in controlling cracking in large areas of walls and ceilings, also creating 1/4" to 1-1/2" reveal in Stucco. Surface connector clips are provided for alignment and as a base for sealants.
Control Joints help with the embedment of the lath and flange while assisting with tying requirements of discontinuous lath to the joint.
Product Data & Ordering Information

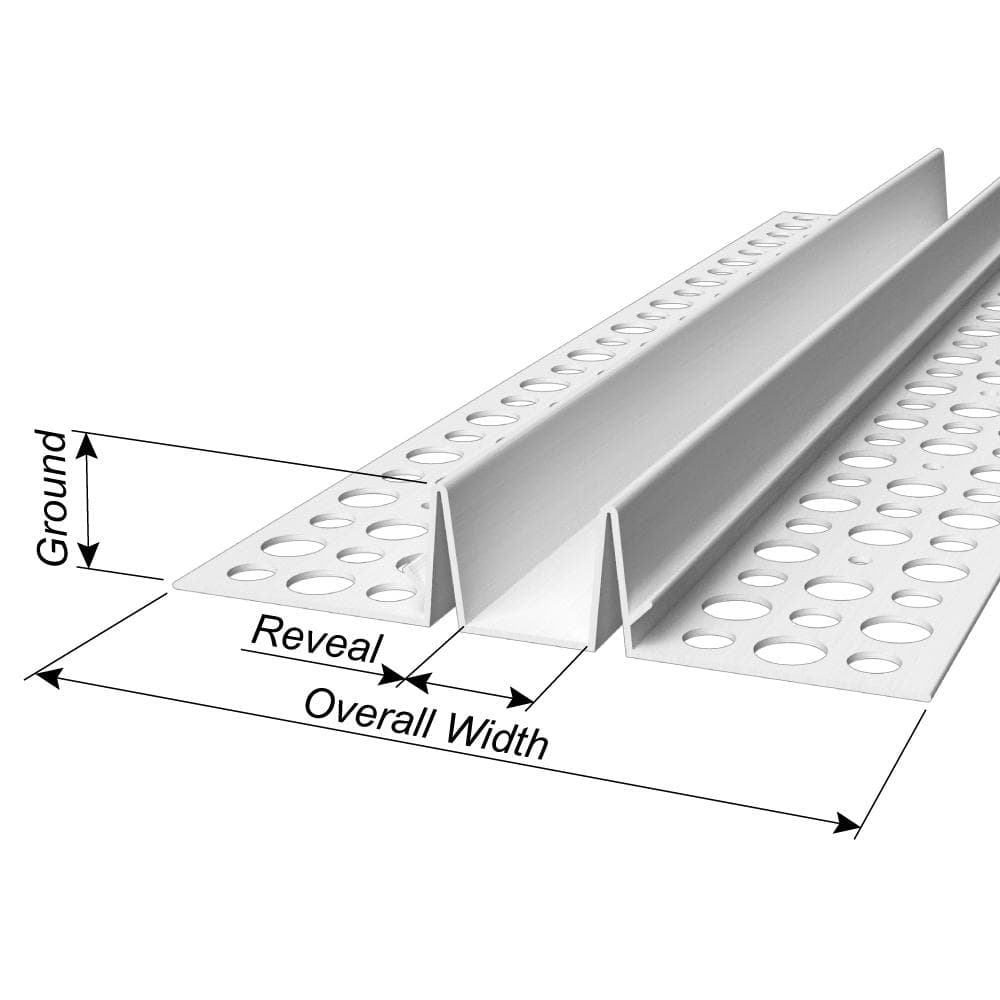

| Product code | Ground | Reveal | Overall width | Pcs./Box |
|---|---|---|---|---|
| 1538R-25 | 3/8" | 1/4" | 4" | 25 |
| 1550R-25 | 1/2" | 25 | ||
| 1558R-25 | 5/8" | 20 | ||
| 1575R-25 | 3/4" | 20 | ||
| 1578R-25 | 7/8" | 15 | ||
| 15100R-25 | 1" | 15 | ||
| 1538R-50 | 3/8" | 1/2" | 4-1/2" | 25 |
| 1550R-50 | 1/2" | 25 | ||
| 1558R-50 | 5/8" | 20 | ||
| 1575R-50 | 3/4" | 20 | ||
| 1578R-50 | 7/8" | 15 | ||
| 15100R-50 | 1" | 15 | ||
| 1538R-75 | 3/8" | 3/4" | 4-3/4" | 25 |
| 1550R-75 | 1/2" | 25 | ||
| 1558R-75 | 5/8" | 20 | ||
| 1575R-75 | 3/4" | 20 | ||
| 1578R-75 | 7/8" | 15 | ||
| 15100R-75 | 1" | 15 | ||
| 1538R-100 | 3/8" | 1" | 5" | 18 |
| 1550R-100 | 1/2" | 18 | ||
| 1558R-100 | 5/8" | 15 | ||
| 1575R-100 | 3/4" | 15 | ||
| 1578R-100 | 7/8" | 14 | ||
| 15100R-100 | 1" | 14 | ||
| 1538R-150 | 3/8" | 1-1/2" | 5-1/2" | 18 |
| 1550R-150 | 1/2" | 18 | ||
| 1558R-150 | 5/8" | 15 | ||
| 1575R-150 | 3/4" | 15 | ||
| 1578R-150 | 7/8" | 14 | ||
| 15100R-150 | 1" | 14 |
