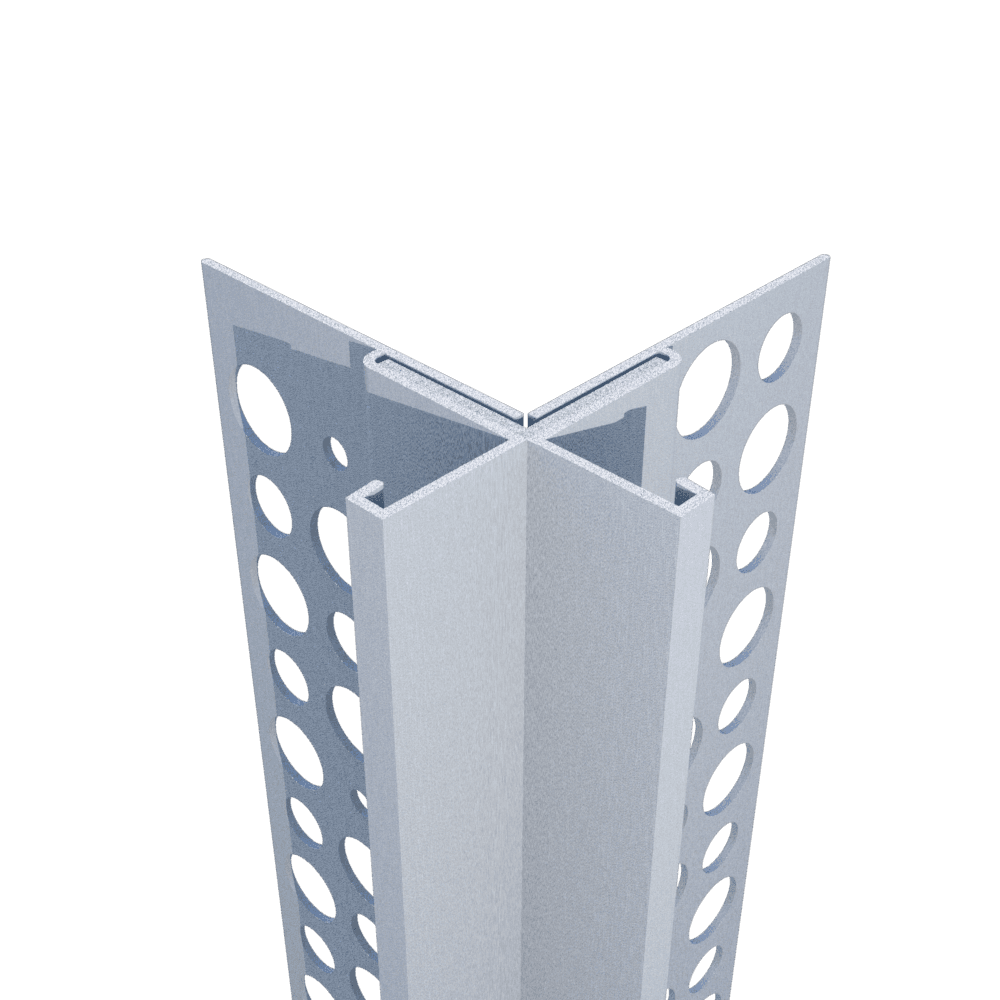

Corner Expansion Joint (Outside Corner)

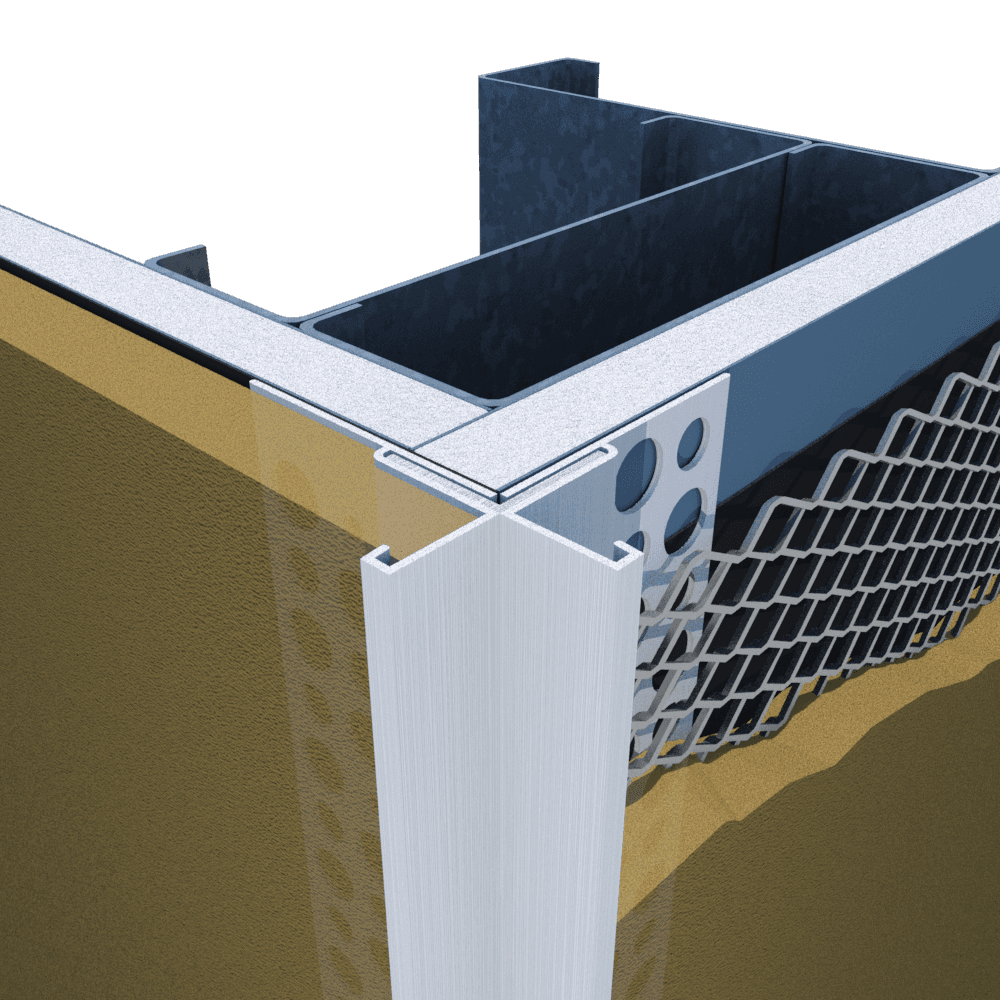

For conditions where the project requires expansion joint movement on outside corners
Parts come preassembled, and may require field alignment.
Quick Actions:
For those conditions where the project requires expansion joint movement on outside corners. These parts come pre-assembled and may require field alignment.
Product Data & Ordering Information

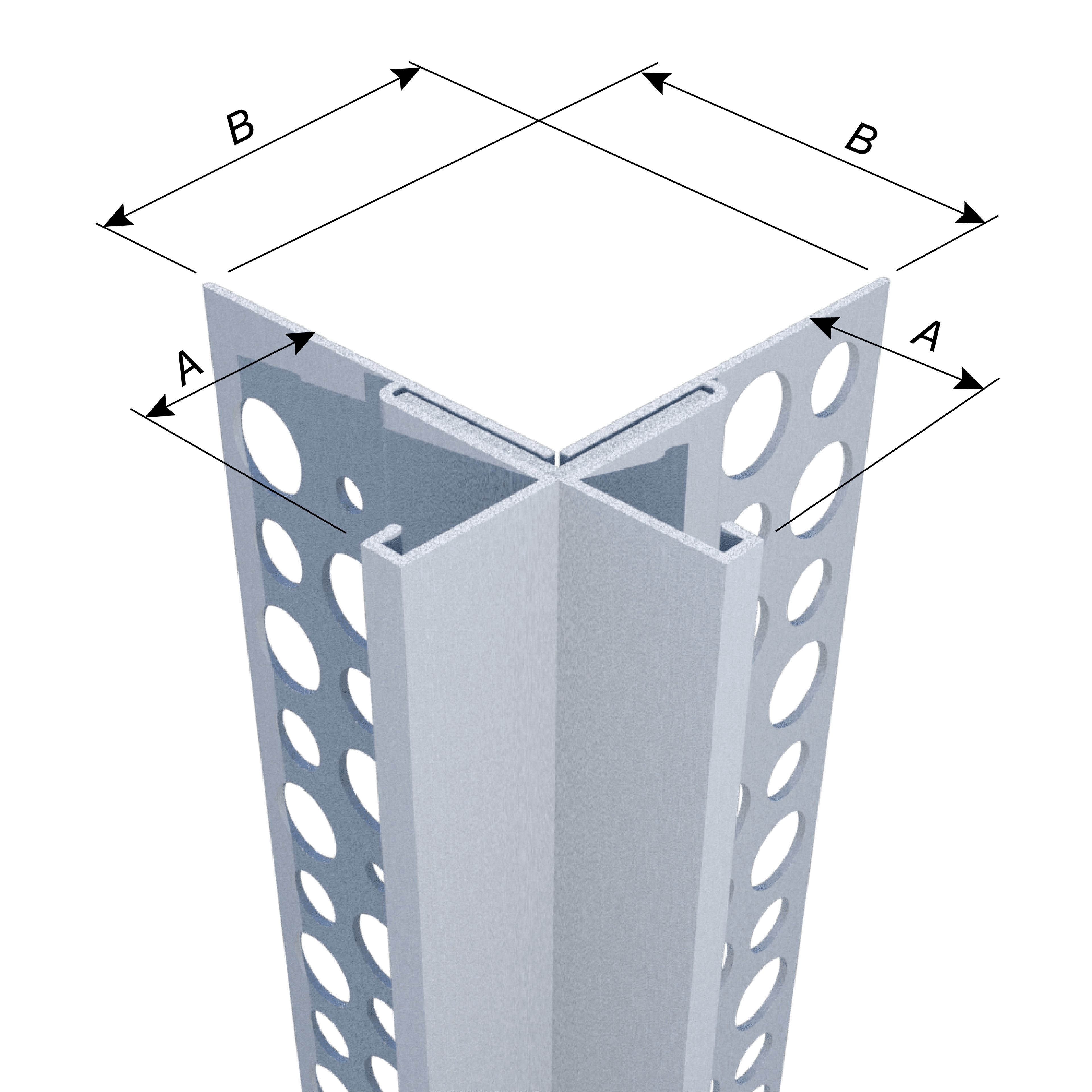

| Product code | Ground (A) | Overall width (B) | Length | Pcs./Box |
|---|---|---|---|---|
| CXJ-38X | 3/8" | 2" x 2" | 10' | 15 |
| CXJ-50X | 1/2" | 2" x 2" | 10' | 15 |
| CXJ-58X | 5/8" | 2" x 2" | 10' | 15 |
| CXJ-75X | 3/4" | 2" x 2" | 10' | 15 |
| CXJ-78X | 7/8" | 2" x 2" | 10' | 12 |
| CXJ-100X | 1" | 2" x 2" | 10' | 12 |
