Diamond Mesh Lath
Galvanized, Expanded Steel Plaster aND Stucco Base
A superior, multi-purpose expanded steel substrate for Portland cement or widely used for interior and exterior gypsum plaster and stucco & stone reinforcement. Applications include ceilings, soffits, and fascia surfaces, and under ceramic tile in wall, ceiling, and floor applications. Metal lath is useful in general purpose applications and is the best lath available for ornamental work and for flat or contoured surfaces as well as for use as a reinforcing underlay for spray-applied fireproofing.
Quick Actions:

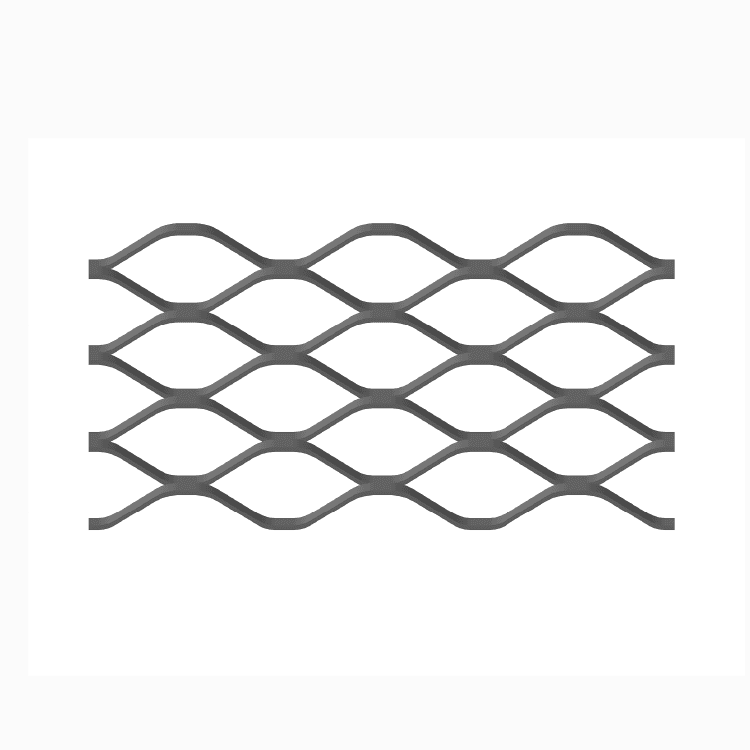

Expanded metal lath is formed from sheet steel that has been slit and expanded to form hundreds of “keys” per square yard. It is proven over time to possess exceptional strength and flexibility, making it the preferred metal base requested by contractors and design professionals.
2.5# and 3.4# metal lath are available in G90 coating with a special order and lead time. Diamond metal lath are also available with a 60-Minute Grade-D asphalt paper-backing (APB) weather resistant barrier.
Product Data & Ordering Information
Material: G60 Galvanized Steel
Packaged: 25 bundles or 250 pcs/pallet
| Product Code | Weight per Sq. Yd | Sheet Size | Pcs./Bdl. | Yds./Bdl. | Yds./Pallet |
|---|---|---|---|---|---|
| LAM | 2.5 lbs. | 27" x 97" | 10 | 20 | 500 |
| 3.4 lbs. | 27" x 97" | 10 | 20 | 500 |
