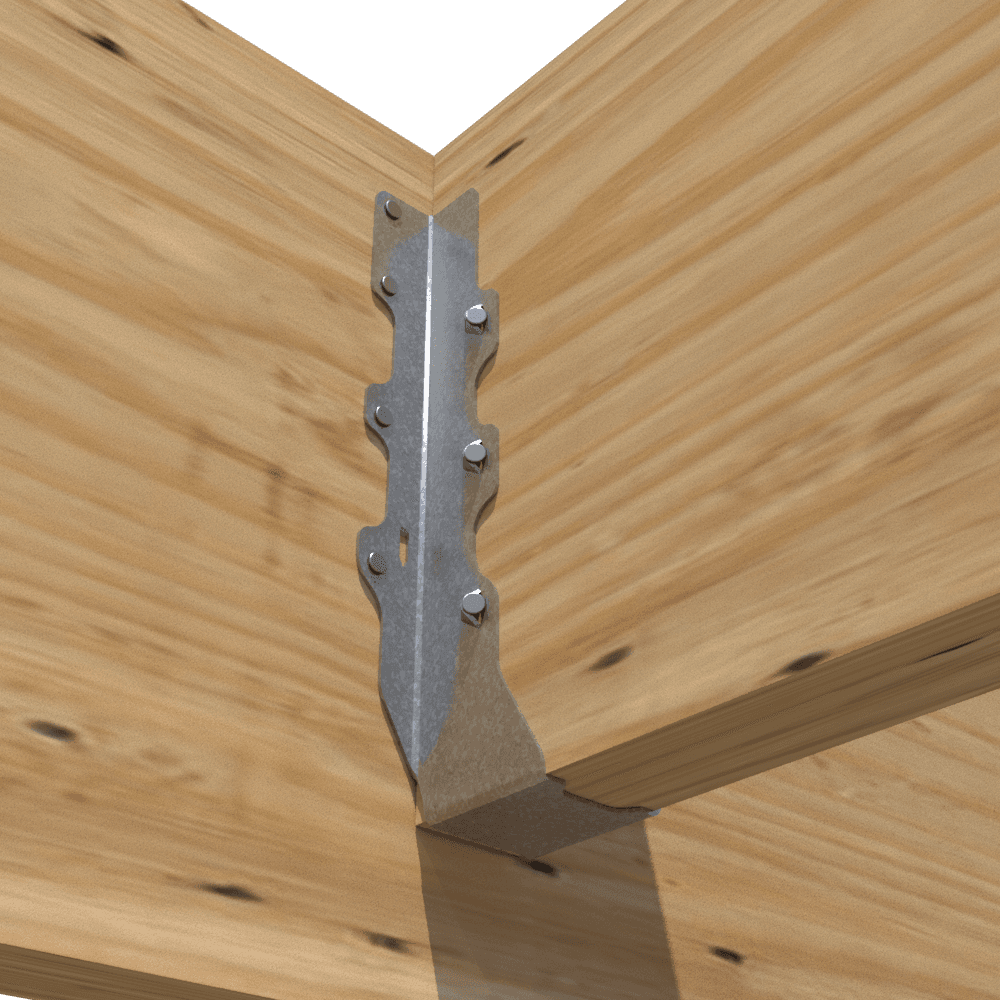

LDS_App
LDS-2_App
LDS-3_App
LDS_App
LDS-2_App
LDS-3_App

double shear face-mount hangers

Double shear nailing distributes loads at two points across the joist nails, reducing the number of nails and enabling quicker installation.

Quick Actions:

Double shear nailing distributes loads at two points across the joist nails, reducing the number of nails and enabling quicker installation. CDLDS utilizes a placement tooth to ease installation. Use the enhanced nailing schedule for greater load carrying capacities.

Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
