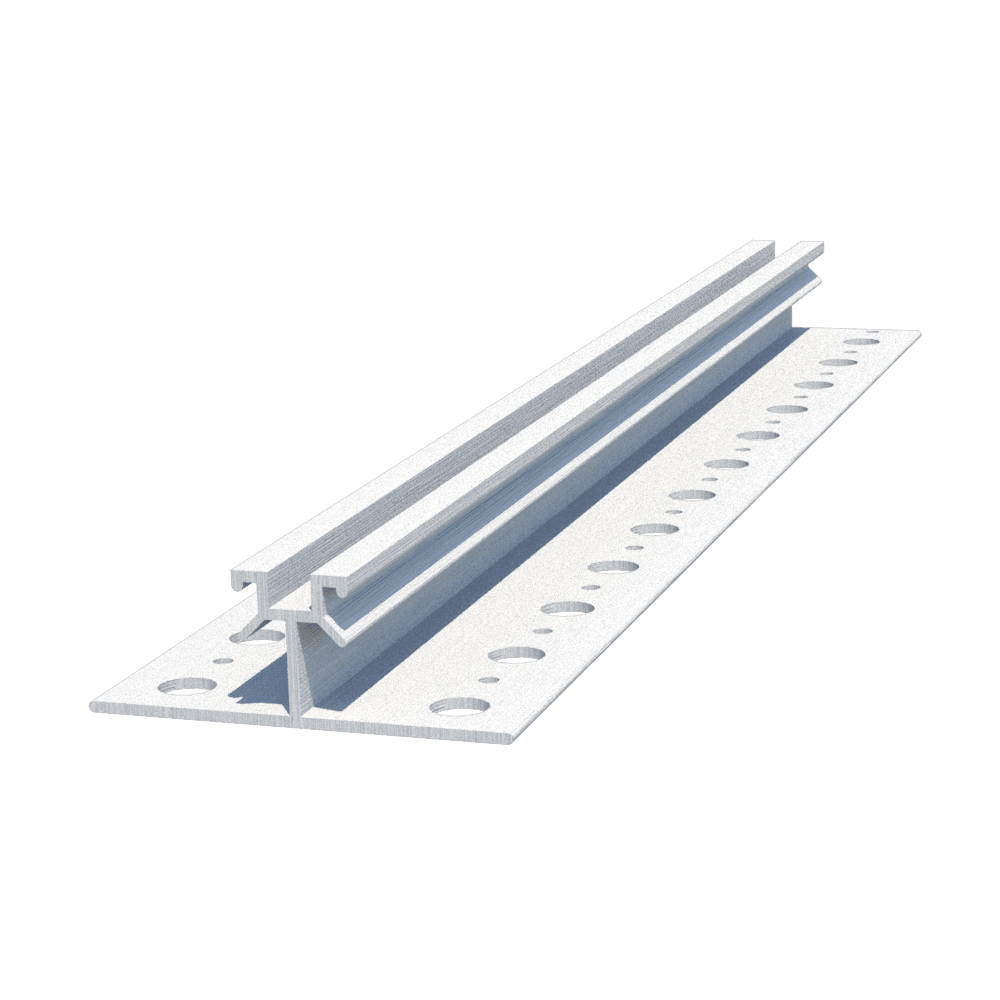

Drum Channel Reveal (with perforated flanges)
Creates narrow 1/4" reveals in stucco and plaster surfaces
Quick Actions:

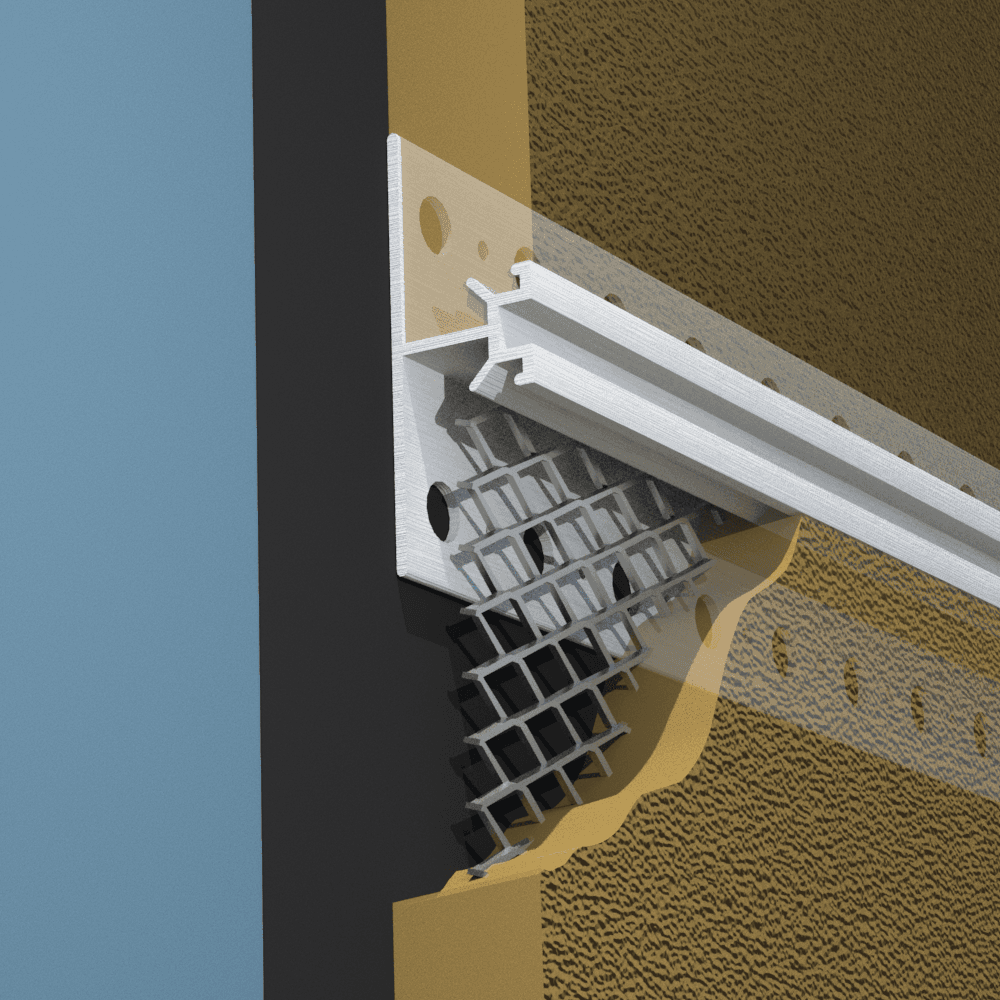

The Drum Channel Reveal is a plaster reveal leaving a narrow line on the wall surface and getting away from the monotony of large plaster surface.
Product Data & Ordering Information

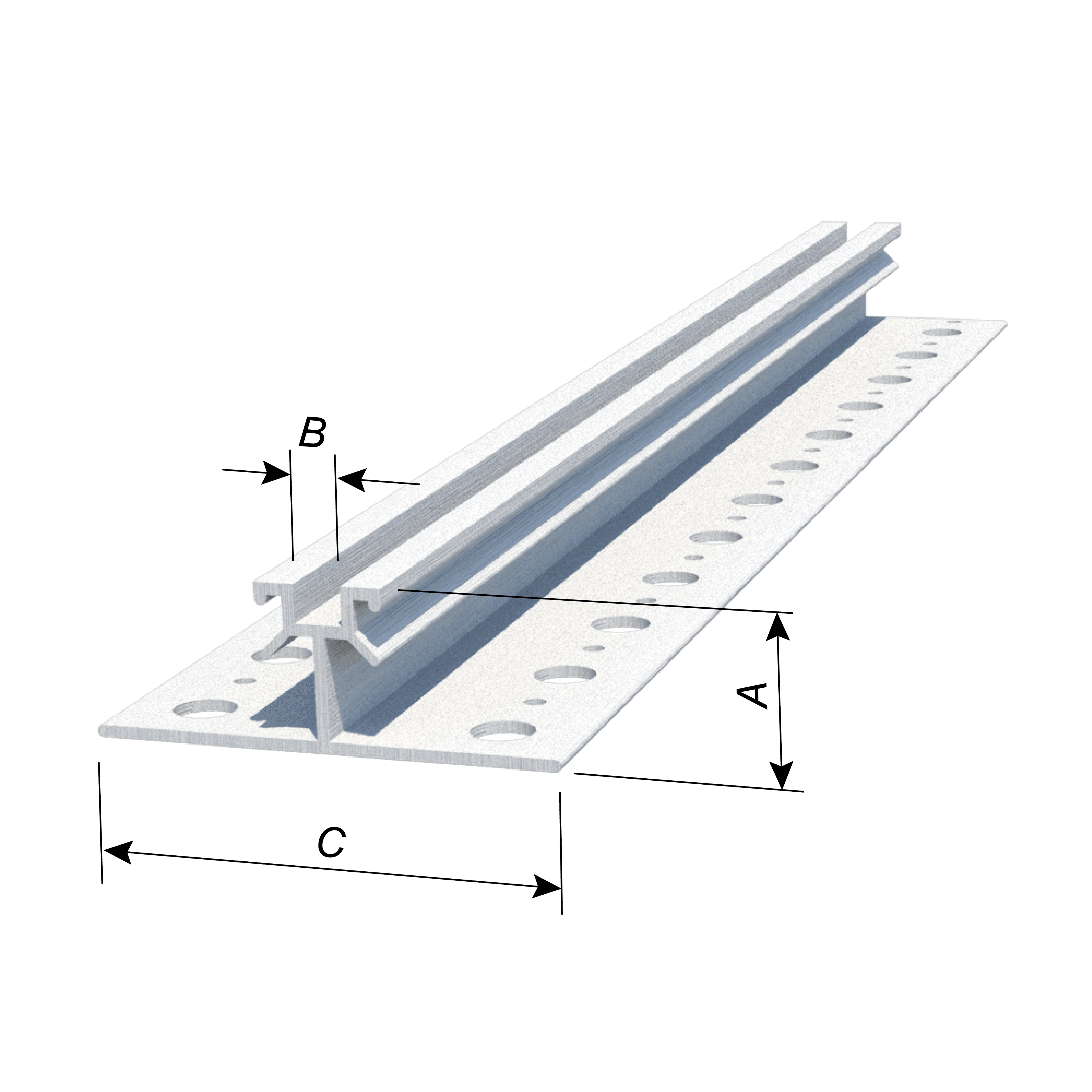

| Product code | Ground (A) | Reveal (B) | Overall Width (C) | Pcs./Box |
|---|---|---|---|---|
| CSH-75-25R | 3/4" | 1/4" | 2-1/2" | 25 |
| CSH-78-25R | 7/8" | 1/4" | 2-1/2" | 25 |
Notes:
All profiles are provided in 10'-0" lengths.
