EasyClip™ Quick Twist Web Stiffener
Provide reinforcement at critical load points to prevent web crippling
(QTWS) EasyClip™ Quick Twist Web Stiffeners are used to provide reinforcement of joist webs to prevent crippling.
Quick Actions:

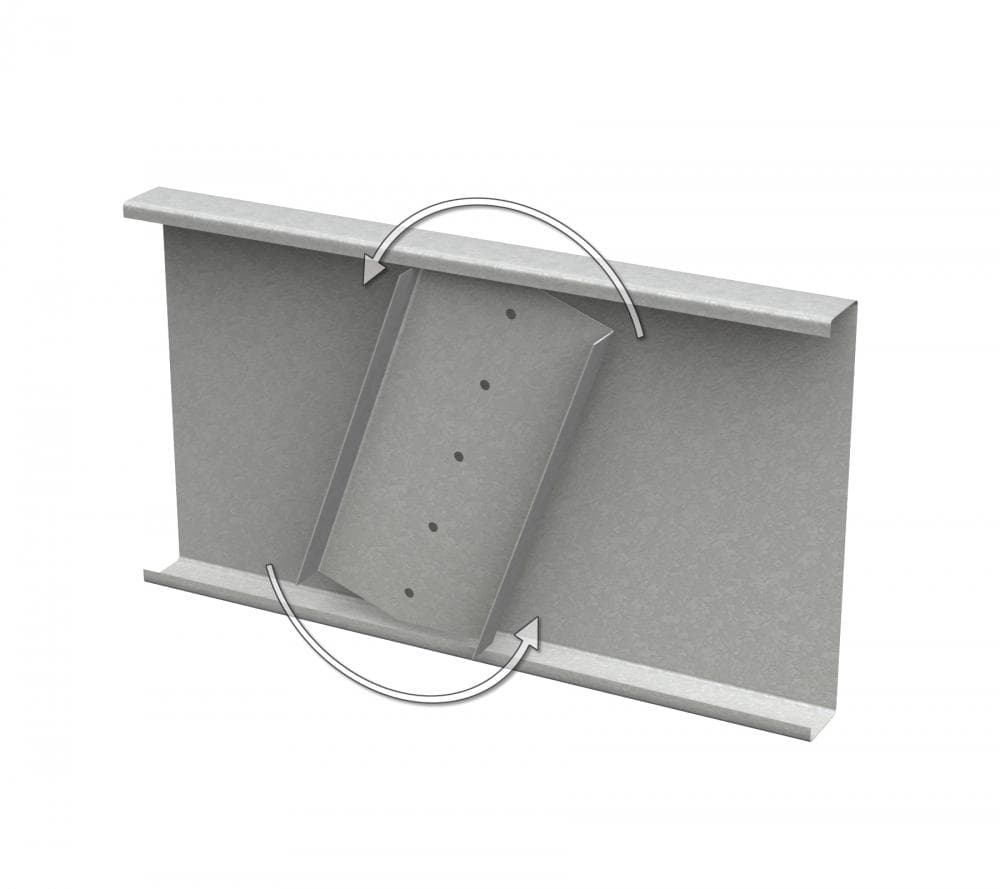

Web reinforcement is often required by design to enhance the load capacity of joists. The unique design of this web stiffener allows the installer to insert the stiffener on the inside of the joist after the joist is installed. This stiffener eliminates the need to pre-insert traditional web stiffeners prior to joist installation. The one-piece assembly is easily rotated in-place for a tight fit.
- Simple, post installation assembly
- Easily rotated in-place for a tight fit
- Pre-punched for easy installation of fasteners
- Solid 12 gauge construction
- One-piece assembly
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Size (in) Width | Mils (Gauge) | Design thickness | Size* (in) Length |
|---|---|---|---|---|
| QTWS | 3-1/2 or 6 | 97mils (12ga) | 0.1017 | 6** |
| 7-1/4 | ||||
| 8 | ||||
| 9-1/4 | ||||
| 10 | ||||
| 11-1/4 | ||||
| 12 | ||||
| 14 |
*Dimension is nominal size. Actual product is shorter to fit inside joist.
**Load data is not available for 6" length
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights.
Note: The QTWS is designed to work with all floor joist flanges but the length of the QTWS clip shall match the depth of the supporting floor joist.
