Expansion Joints (Slip Joint)
Designed to relieve stress in wall and ceiling areas
Where excessive horizontal and vertical movements might occur.
Quick Actions:
Designed to relieve stress in wall and ceiling areas, where excessive horizontal and vertical movements might occur. Includes an additional design feature of a reveal.

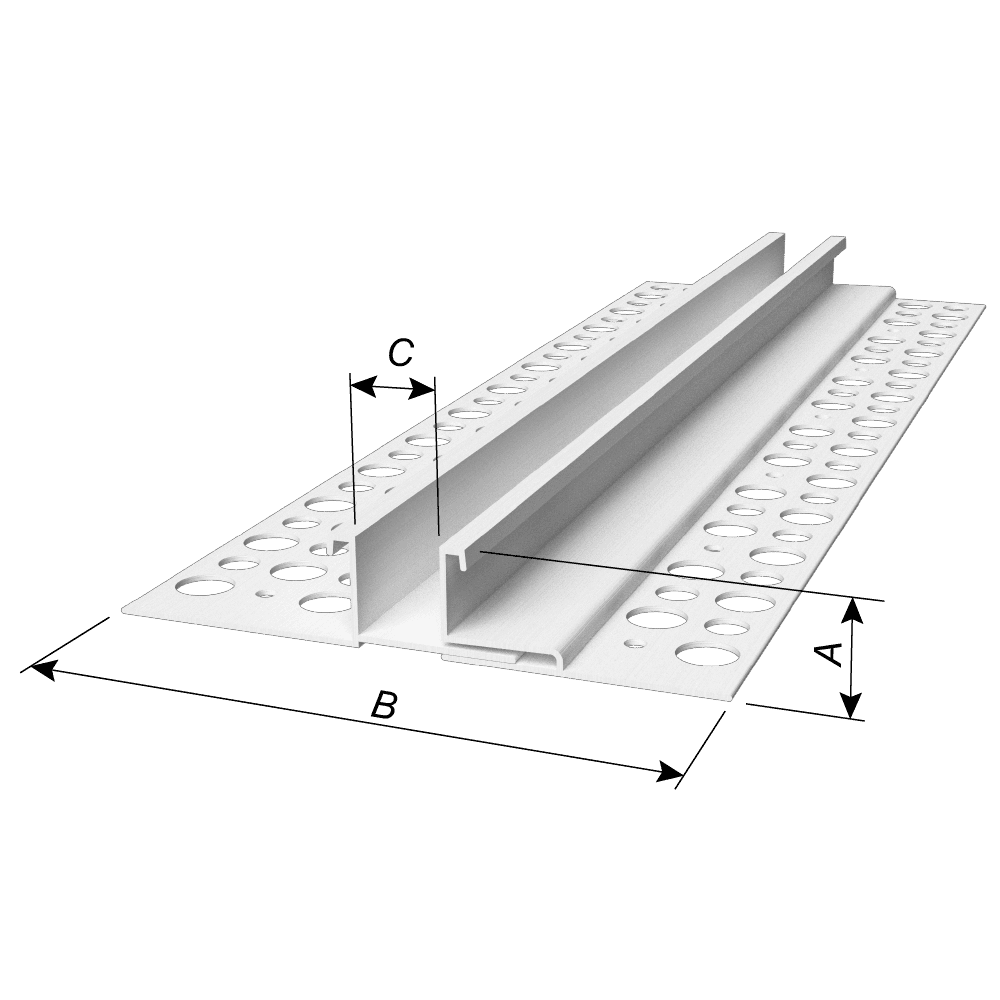

Product Data & Ordering Information
| Product code | Ground (A) | Overall width (B & C) | Pcs./Box |
|---|---|---|---|
| 4038-50 | 3/8" | 1/2" reveal (adj. 1/4" to 5/8"), 4" to 4-3/8" overall width, perforated flanges | 25 |
| 4050-50 | 1/2" | 25 | |
| 4058-50 | 5/8" | 25 | |
| 4075-50 | 3/4" | 25 | |
| 4078-50 | 7/8" | 20 | |
| 40100-50 | 1" | 20 | |
| 4038-100 | 3/8" | 1" reveal (adj. 3/4" to 1-1/8"), 4-1/2" to 4-7/8" overall width, perforated flanges | 20 |
| 4050-100 | 1/2" | 20 | |
| 4058-100 | 5/8" | 20 | |
| 4075-100 | 3/4" | 20 | |
| 4078-100 | 7/8" | 15 | |
| 40100-100 | 1" | 15 | |
| 4038-150 | 3/8" | 1-1/2" reveal (adj. 1-1/4" to 1-5/8"), 5" to 5-3/8" overall width, perforated flanges | 15 |
| 4050-150 | 1/2" | 15 | |
| 4058-150 | 5/8" | 15 | |
| 4075-150 | 3/4" | 15 | |
| 4078-150 | 7/8" | 12 | |
| 40100-150 | 1" | 10 |
