"F" Channel Reveals
Forms 1/2" to 2" reveals in wall and ceiling designs
Formed at the juncture of dissimilar materials.
Quick Actions:
Forms 1/2" to 2" reveals in wall and ceiling designs at the juncture of dissimilar materials.
Product Data & Ordering Information

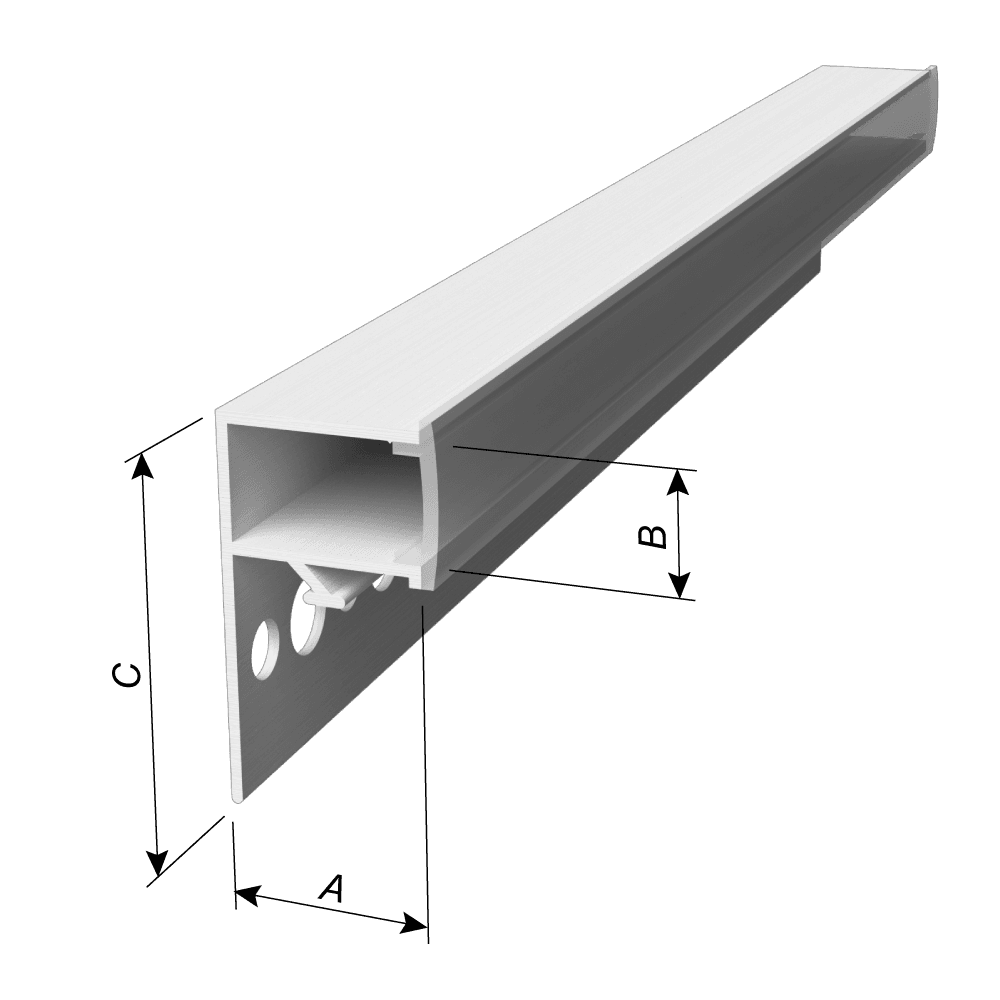

| Product code | Ground (A) | Reveal (B) | Overall Width (C) | Pcs./Box |
|---|---|---|---|---|
| FCS25-50 | 1/4" | 1/2" | 1-3/8" | 50 |
| FCS38-50 | 3/8" | 35 | ||
| FCS50-50 | 1/2" | 35 | ||
| FCS58-50 | 5/8" | 25 | ||
| FCS75-50 | 3/4" | 25 | ||
| FCS78-50 | 7/8" | 25 | ||
| FCS100-50 | 1" | 20 | ||
| FCS25-75 | 1/4" | 3/4" | 2" | 50 |
| FCS38-75 | 3/8" | 35 | ||
| FCS50-75 | 1/2" | 35 | ||
| FCS58-75 | 5/8" | 25 | ||
| FCS75-75 | 3/4" | 25 | ||
| FCS78-75 | 7/8" | 18 | ||
| FCS100-75 | 1" | 15 | ||
| FCS25-100 | 1/4" | 1" | 2-1/8" | 50 |
| FCS38-100 | 3/8" | 35 | ||
| FCS50-100 | 1/2" | 35 | ||
| FCS58-100 | 5/8" | 25 | ||
| FCS75-100 | 3/4" | 25 | ||
| FCS78-100 | 7/8" | 18 | ||
| FCS100-100 | 1" | 15 | ||
| FCS25-150 | 1/4" | 1-1/2" | 2-1/8" | 50 |
| FCS38-150 | 3/8" | 20 | ||
| FCS50-150 | 1/2" | 20 | ||
| FCS58-150 | 5/8" | 20 | ||
| FCS75-150 | 3/4" | 20 | ||
| FCS78-150 | 7/8" | 17 | ||
| FCS100-150 | 1" | 12 | ||
| FCS25-200 | 1/4" | 2" | 3" | 40 |
| FCS38-200 | 3/8" | 20 | ||
| FCS50-200 | 1/2" | 15 | ||
| FCS58-200 | 5/8" | 14 | ||
| FCS75-200 | 3/4" | 14 | ||
| FCS78-200 | 7/8" | 12 | ||
| FCS100-200 | 1" | 12 |
Note: All with removable caps (except 1/4" and 3/8" grounds) and 2-1/2", 3" and 4" reveals. All with connector clips (except 1/4" grounds).
