Fast Top™ Clip (FTC)
Used in head-of-wall deflection conditions for exterior curtain wall and interior, nonload-bearing walls
ClarkDietrich Fast Top™ Clips are used in head-of-wall deflection conditions for in-fill curtain-wall assemblies to provide for vertical movement. These clips are used in place of or in combination with deflection track.
Quick Actions:
They provide a positive attachment and do not require bridging installed continuously throughout the upper most punchouts.

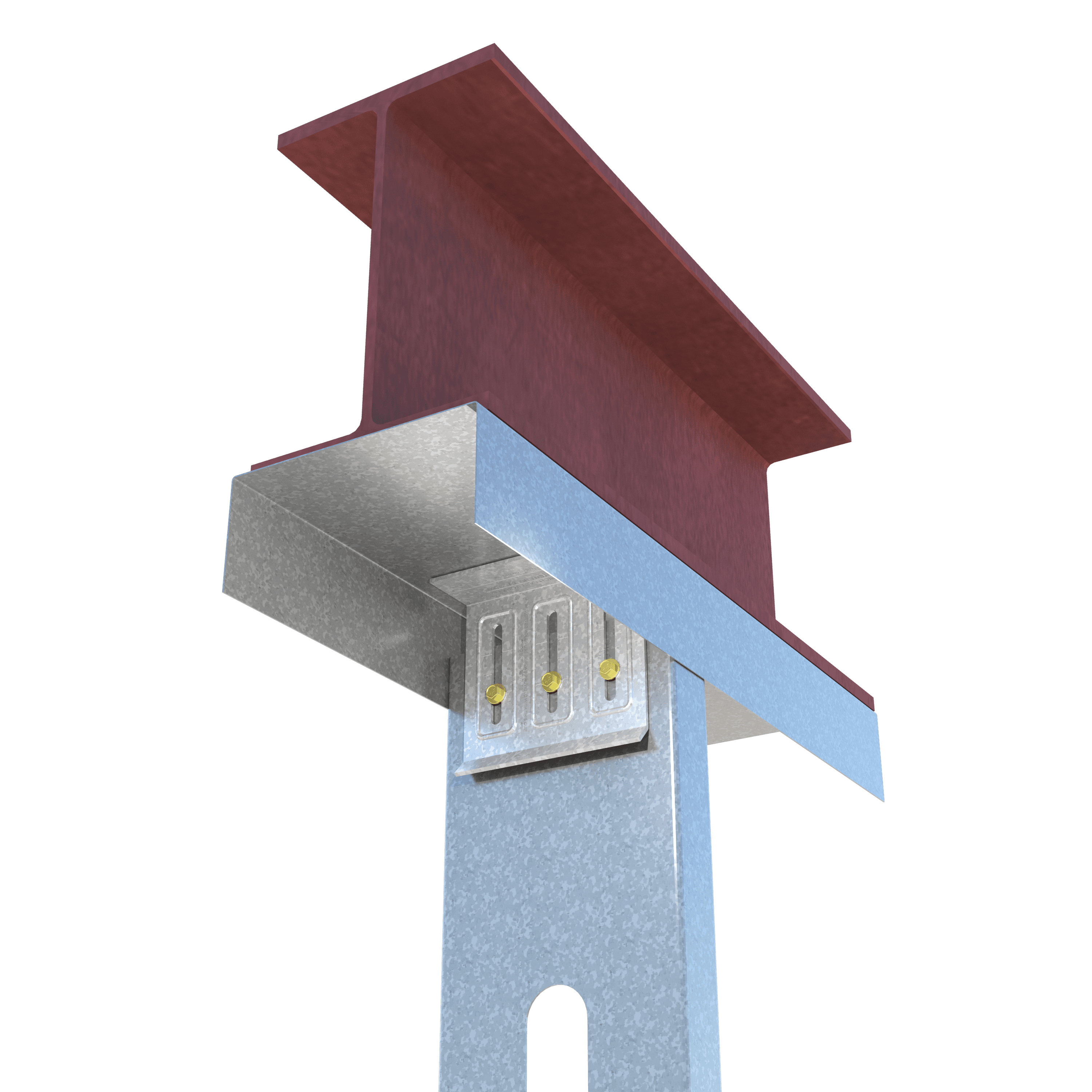

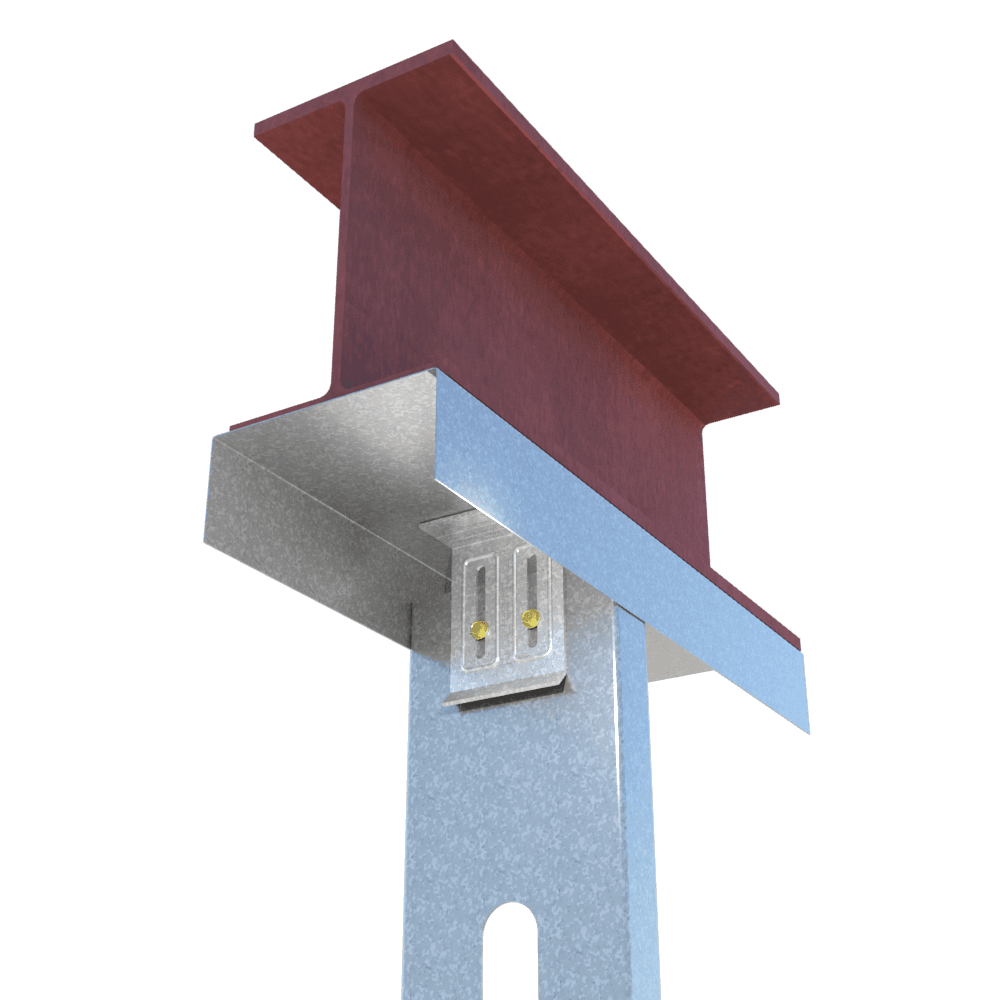

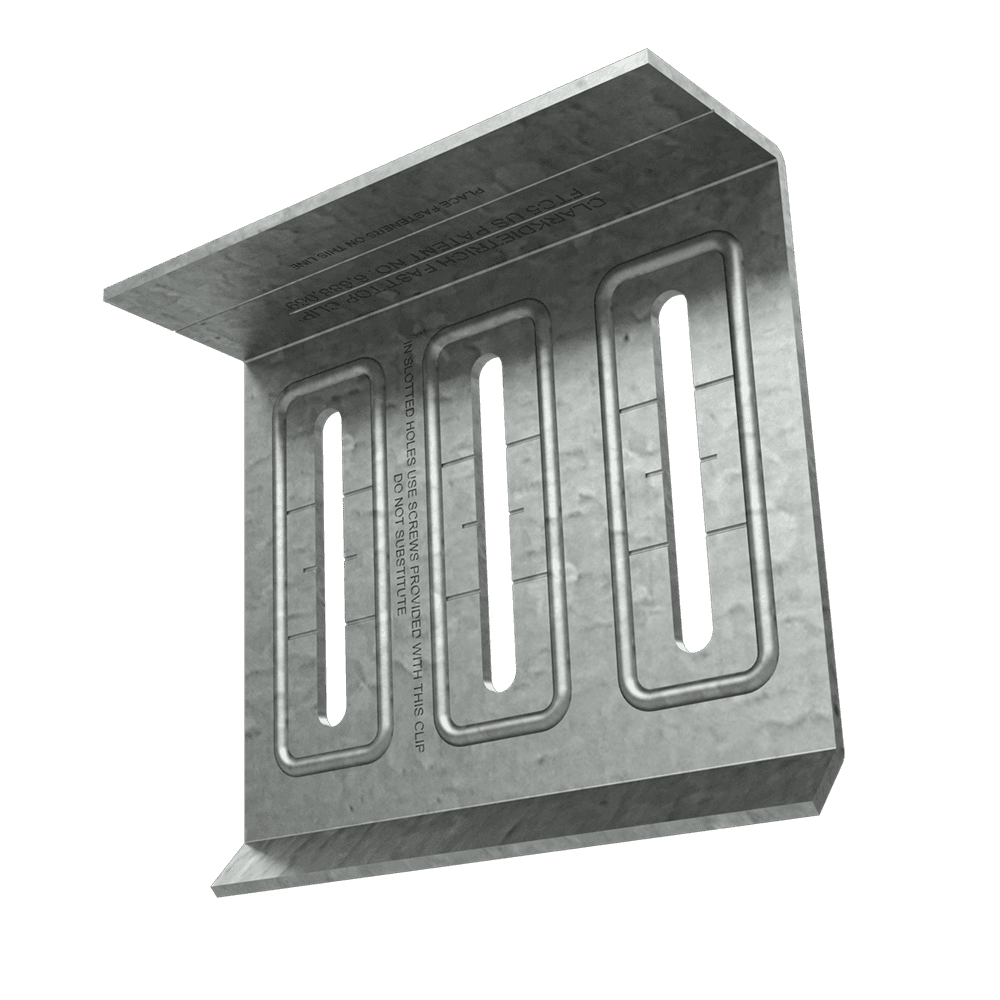

The Fast Top™ clip can be attached to the underside of structural members, concrete decks or floor assemblies. Studs must be cut less than full height to enable vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down). Fast Top™ Clips install quickly with welds, screws, or powder actuated fasteners. Proprietary deflection screws are used to attach the clip to the cold-formed framing and to ensure frictionless deflection. These clips are also embossed with fastening patterns to ensure accurate placement of fasteners.
- Vertical movement up to 2-1/2" (1-1/4" up and 1-1/4" down).
- Proprietary deflection screws (included) provide frictionless slip connection.
Alternative products:
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product code | Gauge | Mils | Design thickness (in) | Size (in) | Packaging Pcs./Carton |
|---|---|---|---|---|---|

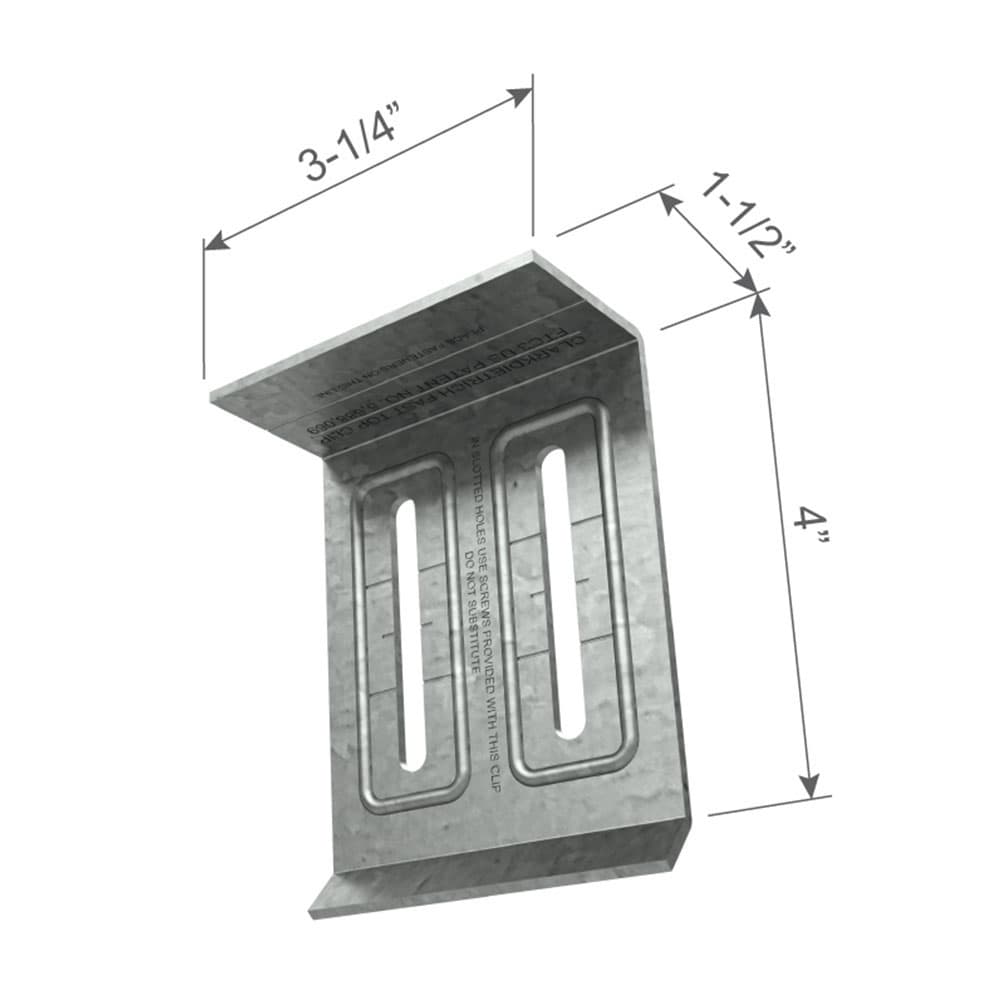

| FTC3 | 14 | 68 | 0.0713 | 1-1/2 x 4 x 3-1/4 | 25 |

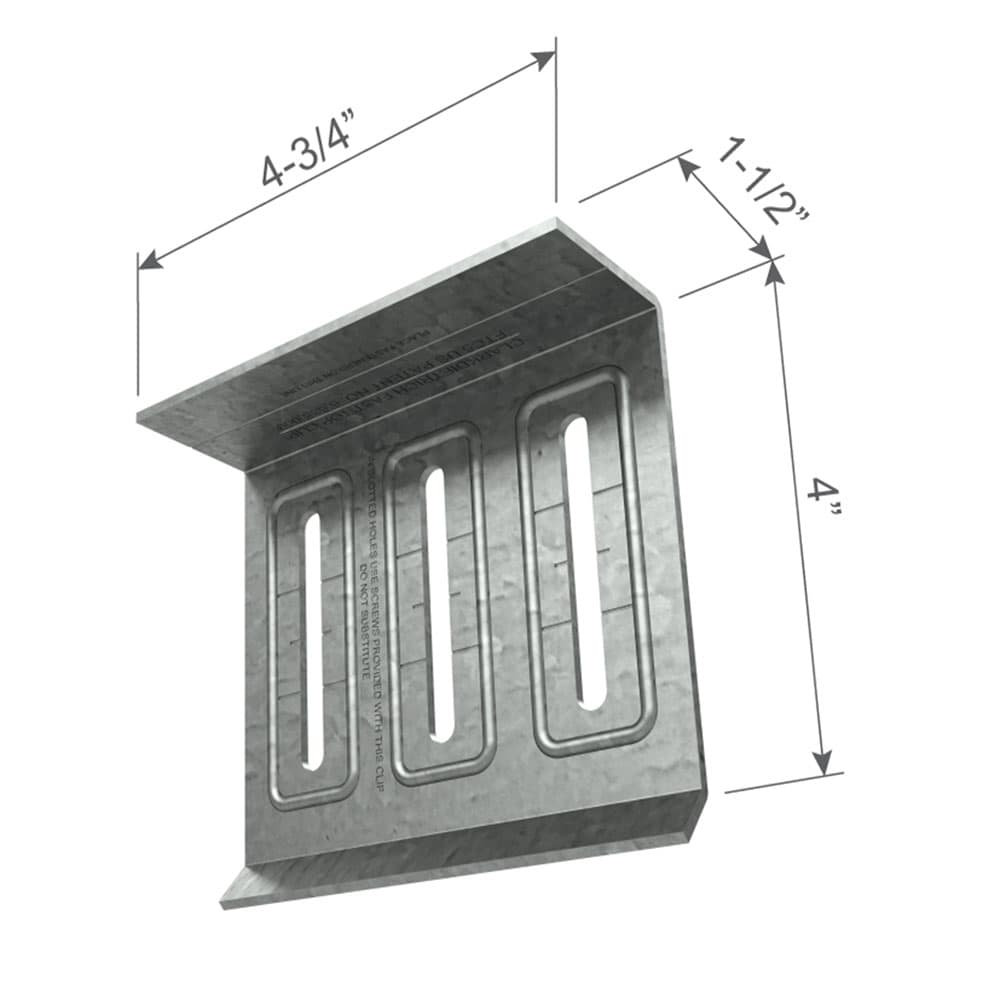

| FTC5 | 14 | 68 | 0.0713 | 1-1/2 x 4 x 4-3/4 | 30 |

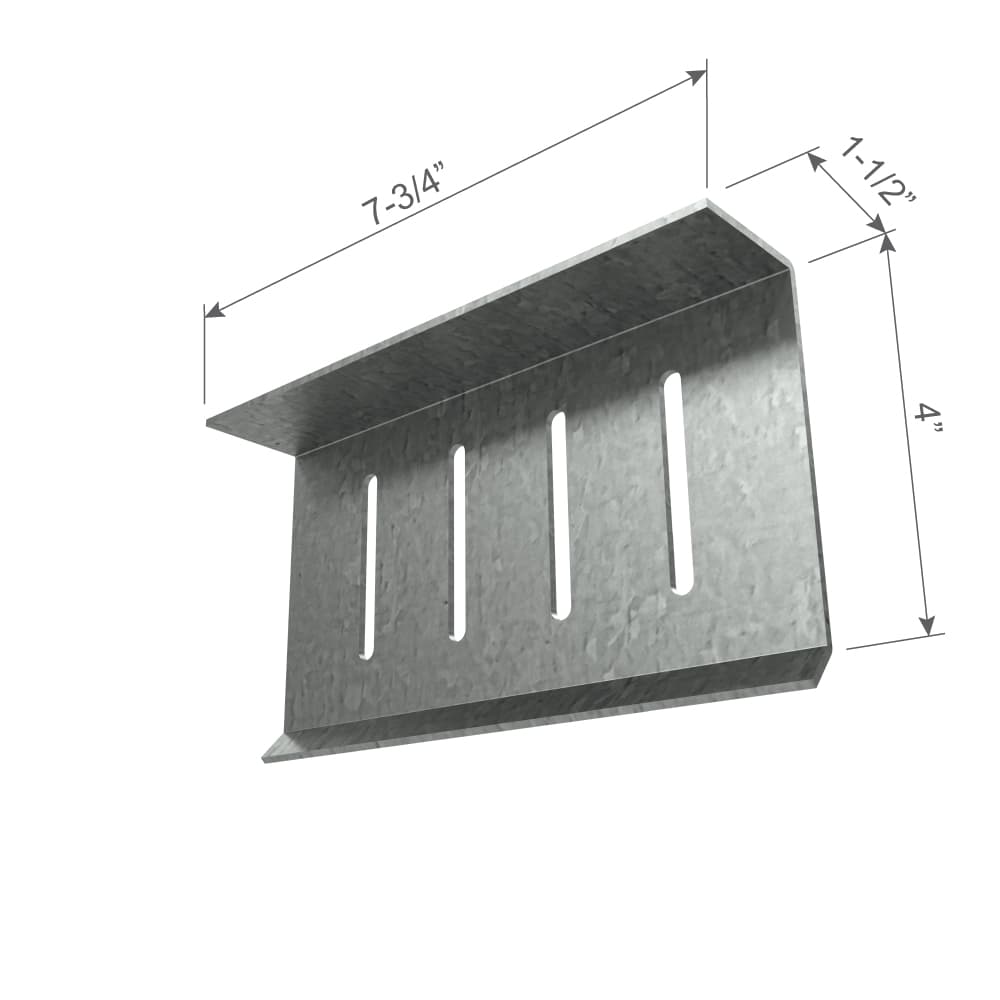

| FTC8 | 14 | 68 | 0.0713 | 1-1/2 x 4 x 7-3/4 | 25 |
| FTC10 | 14 | 68 | 0.0713 | 1-1/2 x 4 x 9-3/4 | 25 |
| FTC12 | 14 | 68 | 0.0713 | 1-1/2 x 4 x 11-3/4 | 25 |
FTC3 includes 55 proprietary deflection screws per carton
FTC5, FTC8, FTC10 & FTC12 includes 110 proprietary deflection screws per carton
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
