Fixed Universal Slip Clip (FUS)
10 and 12 Gauge FIXED universal slip clip
Ideal for curtain wall/bypass conditions.
Quick Actions:

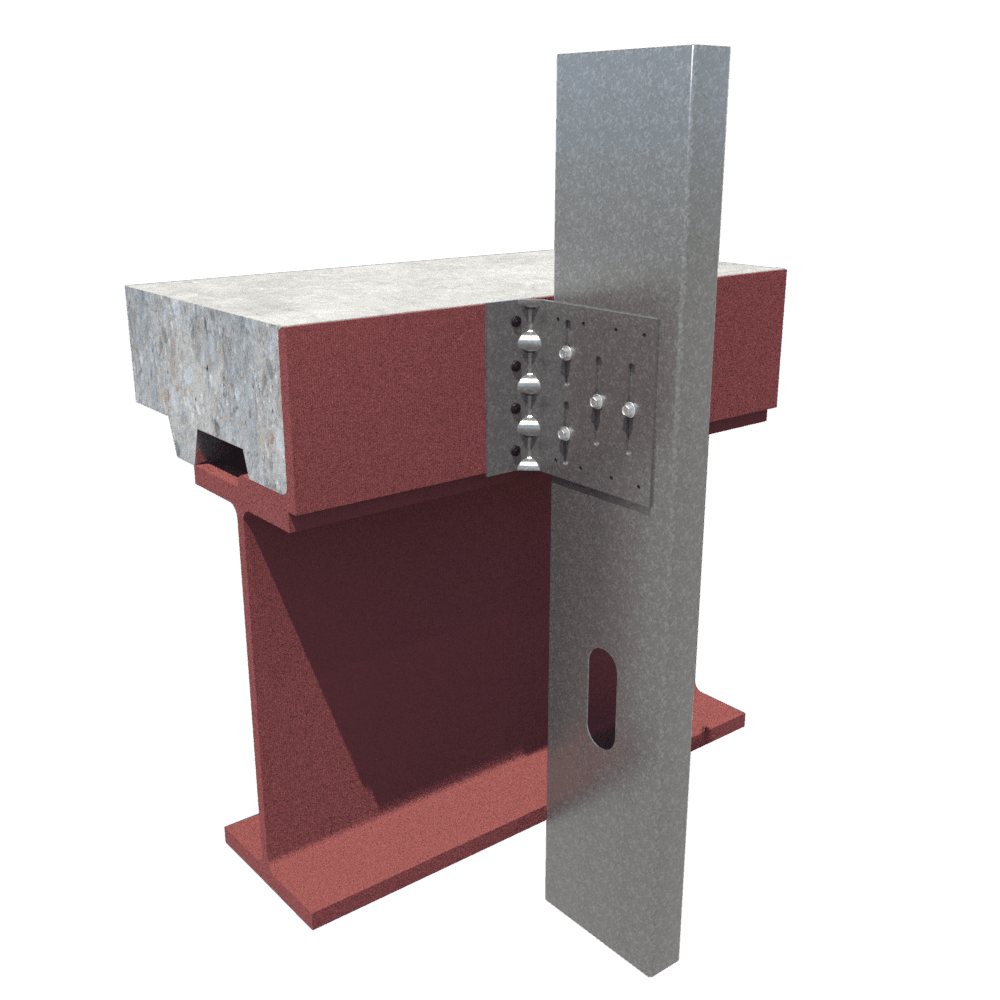

The FUS clips are available in standard lengths of 6" and 8” in 12ga and 10ga. They are ideal for curtain wall/bypass conditions. FUS clips install quickly and provide adjustable standoff to ensure a plumb wall plane. For deflection application, proprietary heavy duty deflection screws are provided with each clip to ensure friction-free sliding.
U.S. Patent No. 11,905,700
- Eliminates shims and scabs.
- Provides vertical movement up to 1” when installed as a deflection application
- Fast, one-piece universal installation. No left- or right-handed clips.
- Higher capacities when used in applications where significantly higher capacities are required.
- Proprietary heavy duty deflection screws provide frictionless slip connections. One bag (80 screws) included
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information
| Product Code | Gauge | Mils | Design Thickness (in) | Clip length (in) | Packaging Pcs./Box |
|---|---|---|---|---|---|
| FUS6-97 | 12 | 97 | 0.1017 | 6 | 10 |
| FUS8-97 | 12 | 97 | 0.1017 | 8 | 10 |
| FUS6-118 | 10 | 118 | 0.1242 | 6 | 10 |
| FUS8-118 | 10 | 118 | 0.1242 | 8 | 10 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
