GUSSET CLIPS
A one-piece design provides 3-way connection (top-bottom-side) for a variety of applications.
Quick Actions:
A one-piece design provides 3-way connection (top-bottom-side) for a variety of applications. Erection nail holes are provided to speed up installation.

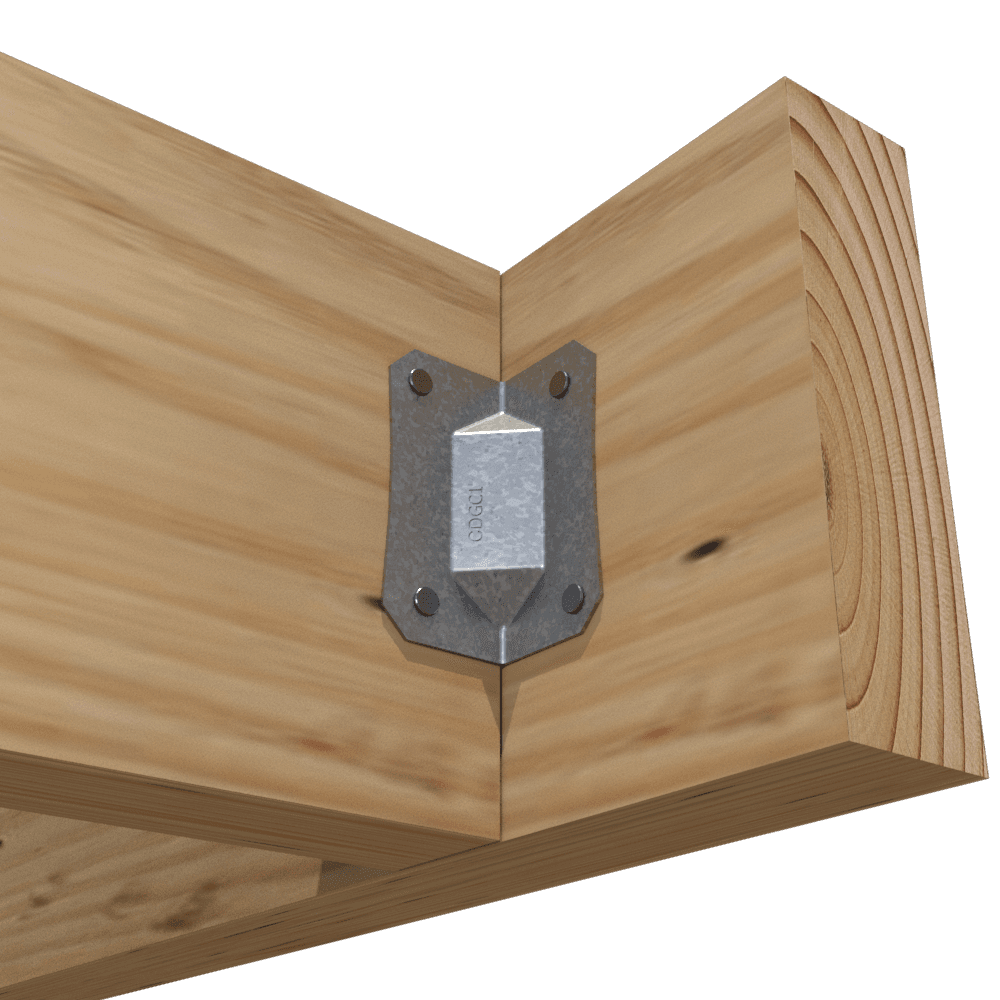

The CDGC1 and CDGC2 attaches to truss gables and can be installed into wood. This provides greater lateral wind resistance.
Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

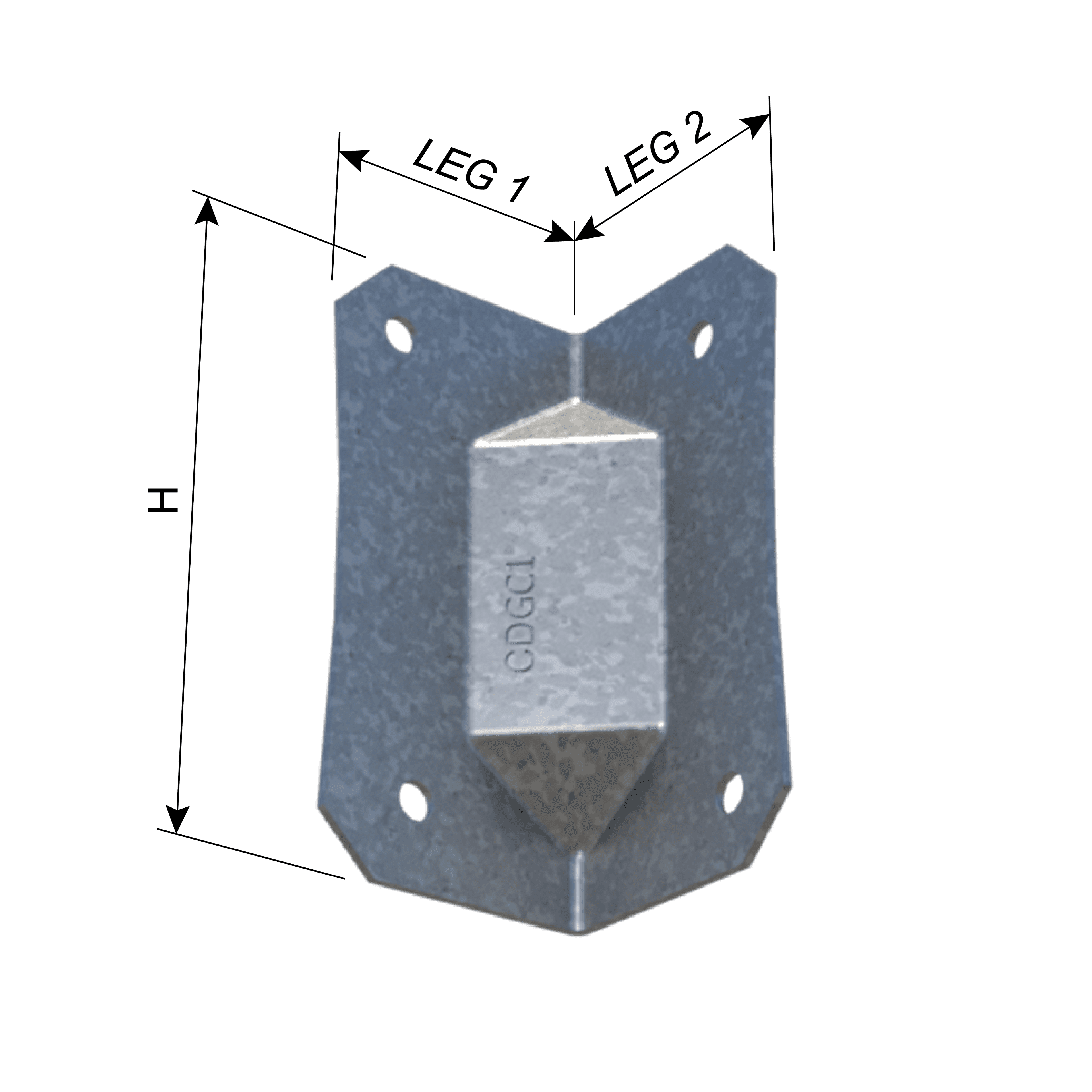

| Product Code | Gauge | Dimension | ||
|---|---|---|---|---|
| L1 | L2 | H | ||

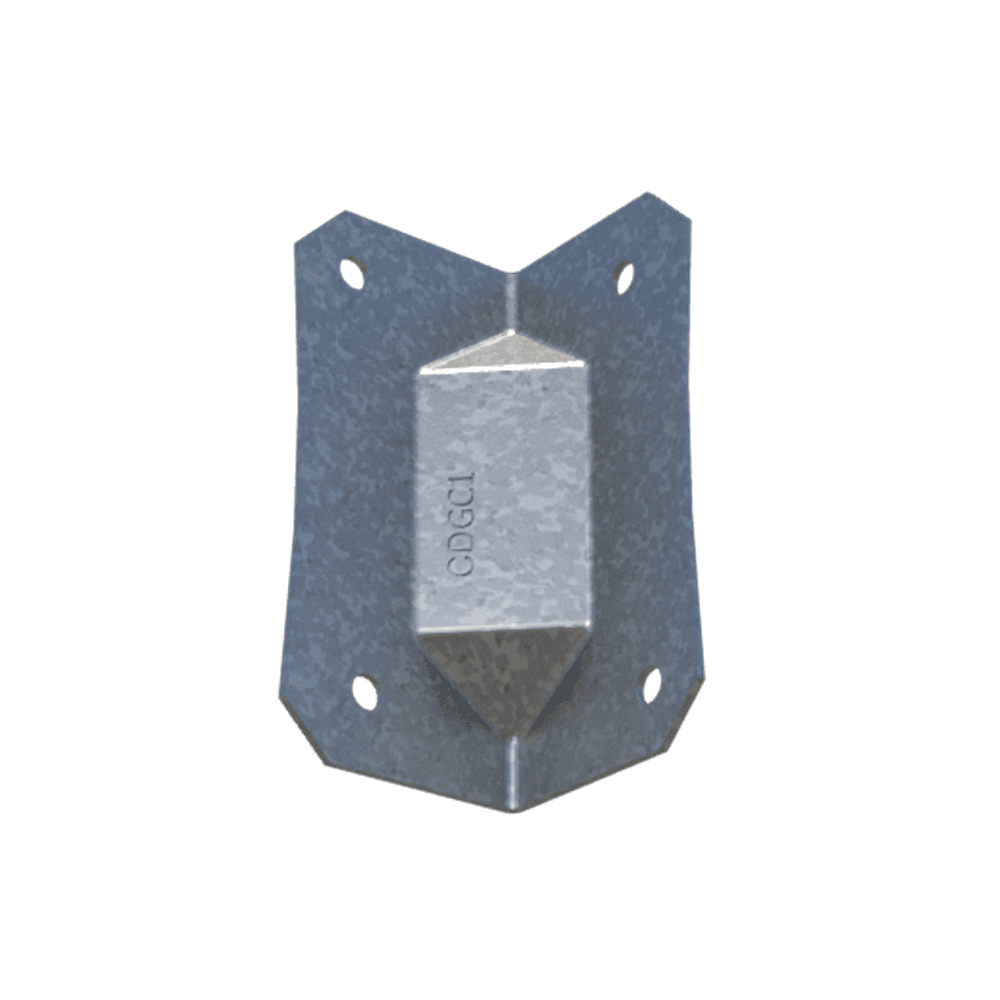

| CDGC1 | 18 | 1-1/64" | 1-1/64" | 2-25/32" |

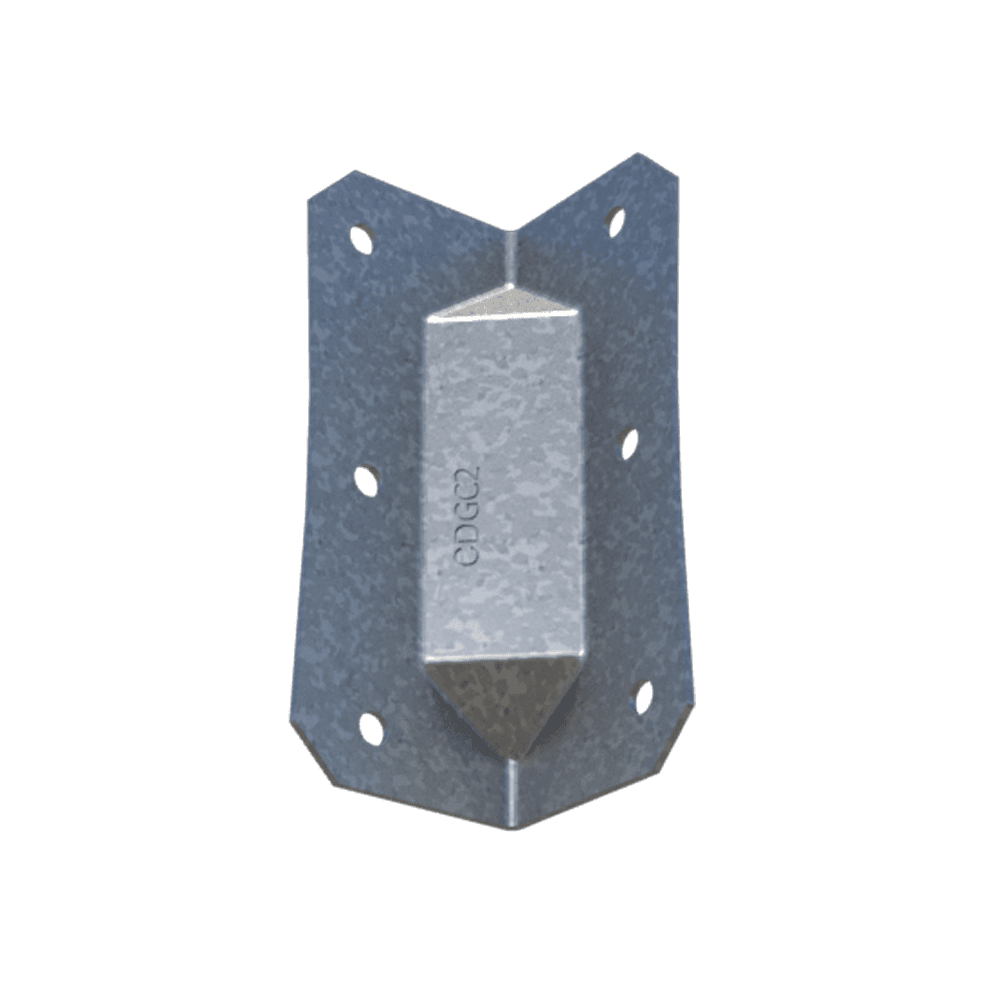

| CDGC2 | 18 | 1-19/64" | 1-19/64" | 3-5/16" |
