Heavy Duty Joist and Truss Hangers

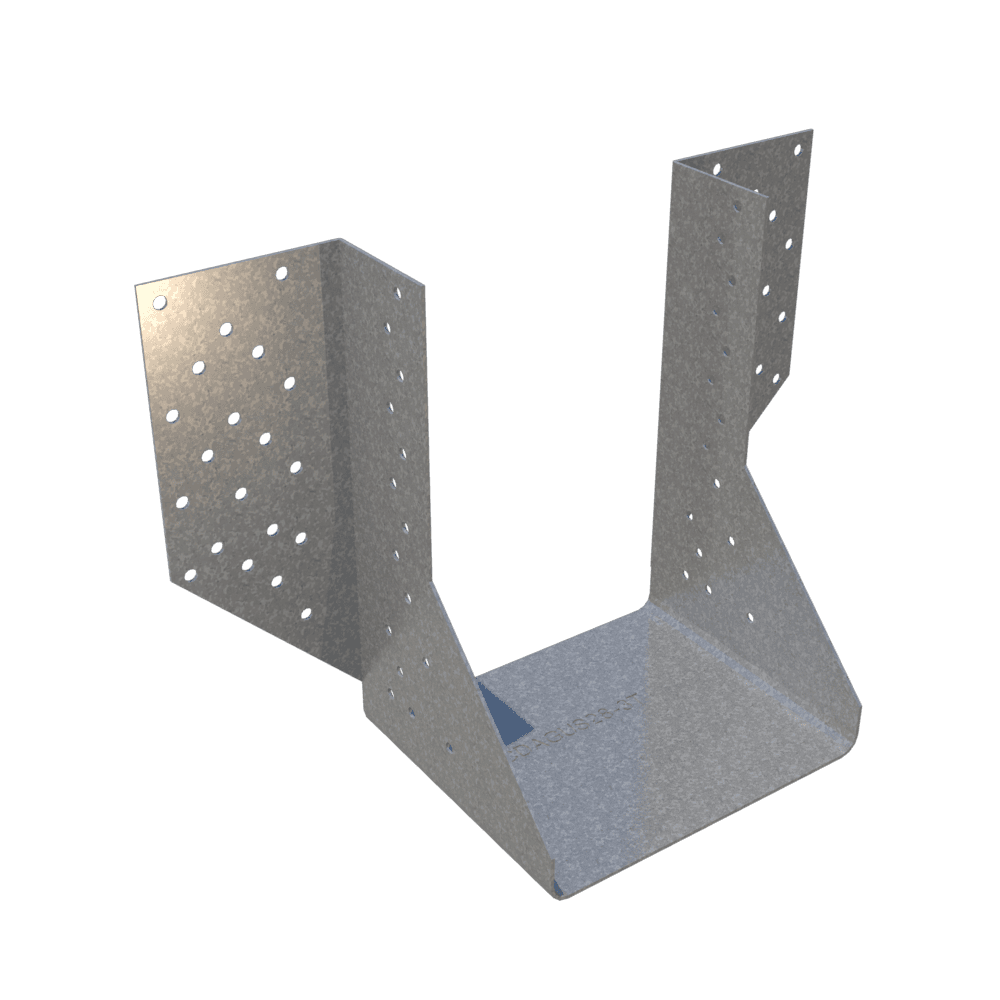

CDAGUS283T
CDAGUS - Dims
CDAGUS283T
CDAGUS - Dims

heavy duty joist and truss hangers

CDAGUS universal face-mount hanger is designed for wood plate trusses and heavily loaded members.

Quick Actions:

CDAGUS universal face-mount hanger is designed for wood plate trusses and heavily loaded members. 4" seat dimension provides greatest bearing area of any hanger available. Super capacity design loads are the highest of any universal face-mounted hanger. Larger header flange and joist seat make this hanger very easy to install with common nails.

PRODUCT DIMENSIONS

Joist and Truss Sizes: 2xs, double 2xs, triple 2xs
Material: 12ga (97mil), 0.1017" Design thickness, 0.0966" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
