HURRICANE ANCHOR CLIPS
The CDHTHA anchor series is manufactured to attach metal plate connected trusses, framing members and wall members, made of solid sawn or structural composite lumber; to solid sawn or structural composite lumber wall members.
Quick Actions:
The CDHTHA anchor series is manufactured to attach metal plate connected trusses, framing members and wall members, made of solid sawn or structural composite lumber; to solid sawn or structural composite lumber wall members.
The CDHTHA anchors resists upward load, lateral load perpendicular to the supported truss or framing member.

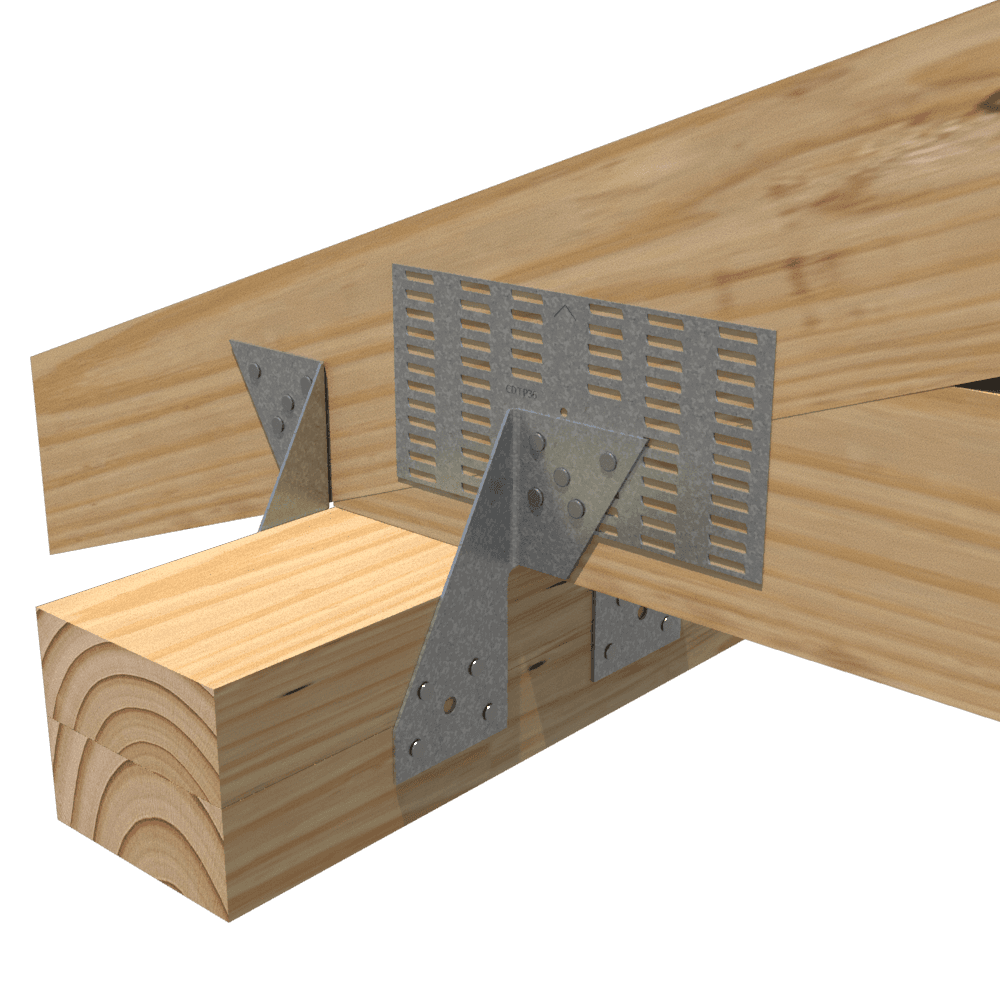

The CDHTHA2.5 product may be used on either or both sides for the supported member. Attachment is required to the lower portion of the supported truss or framing member, and the top plates of the supporting wall, or wall stud and anchored sill (bottom) plate(s).
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available on CDHTHA2.5)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
PRODUCT DIMENSIONS
| Product Code | Width (W) | Height (H) |
|---|---|---|

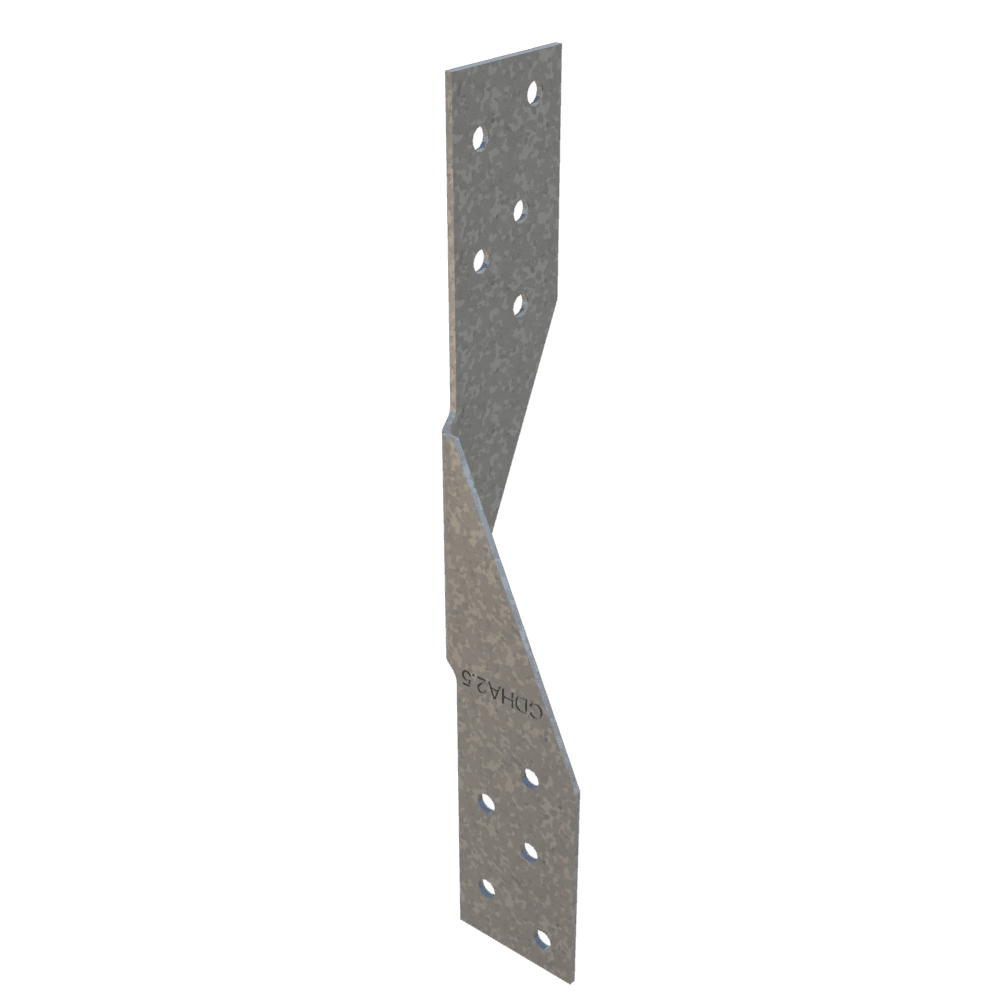

| CDHTHA2.5 | 1" | 6" |

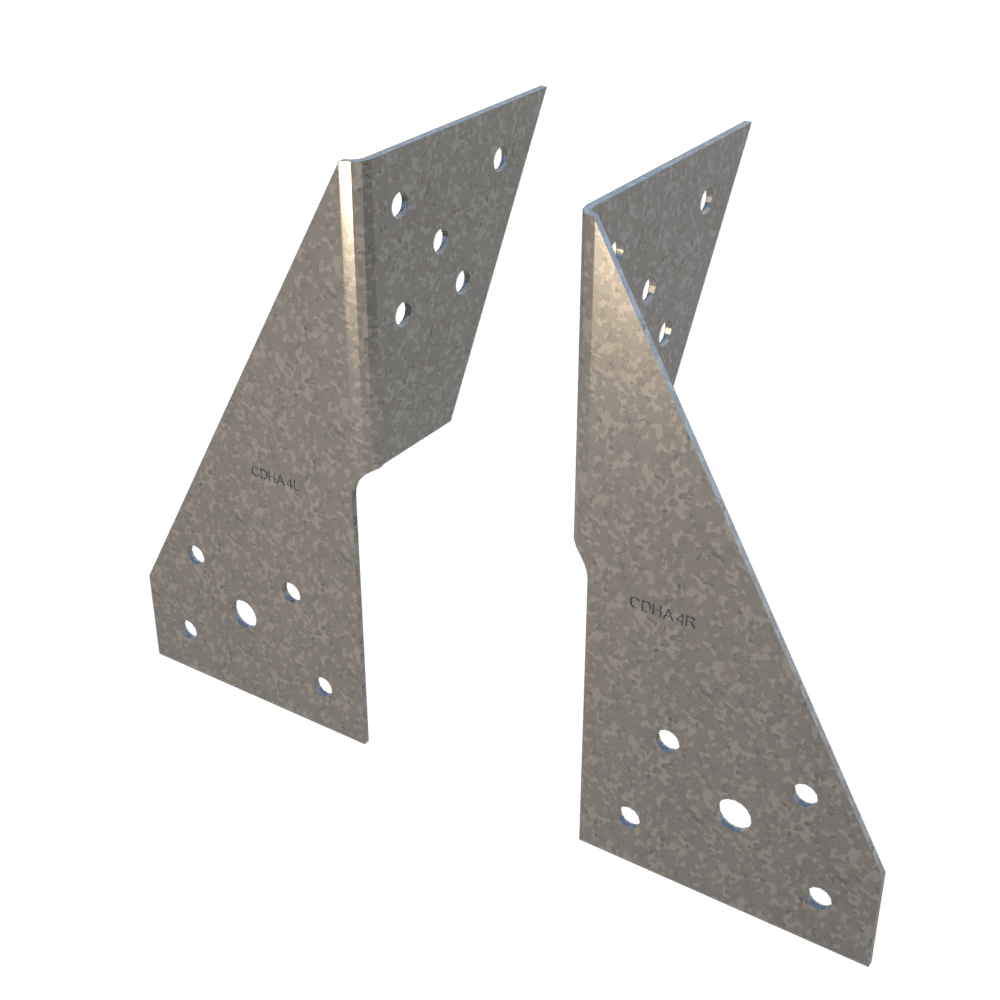

| CDHTHA4 | 2.125" | 4.5" |
