Hurricane Tie (CDHT2A, 2.5A, 2.5T, 3)
HURRICANE tie

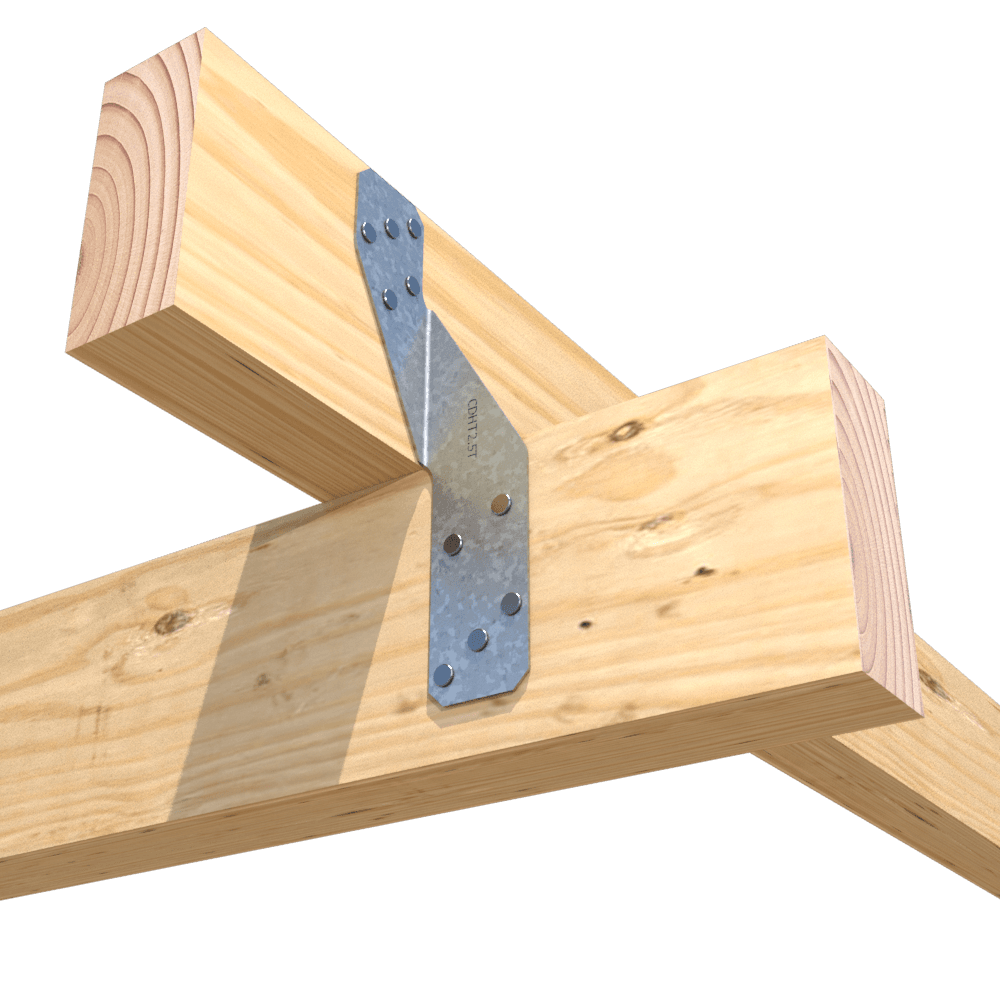

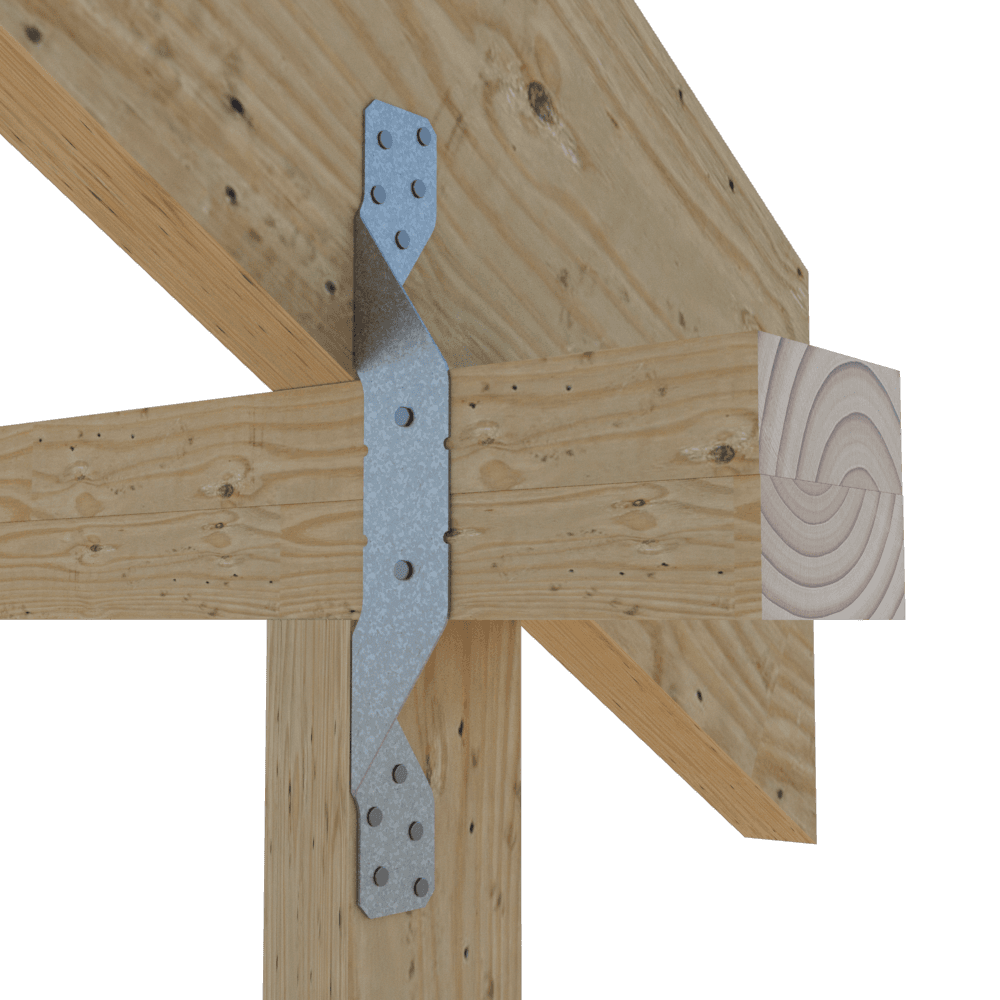

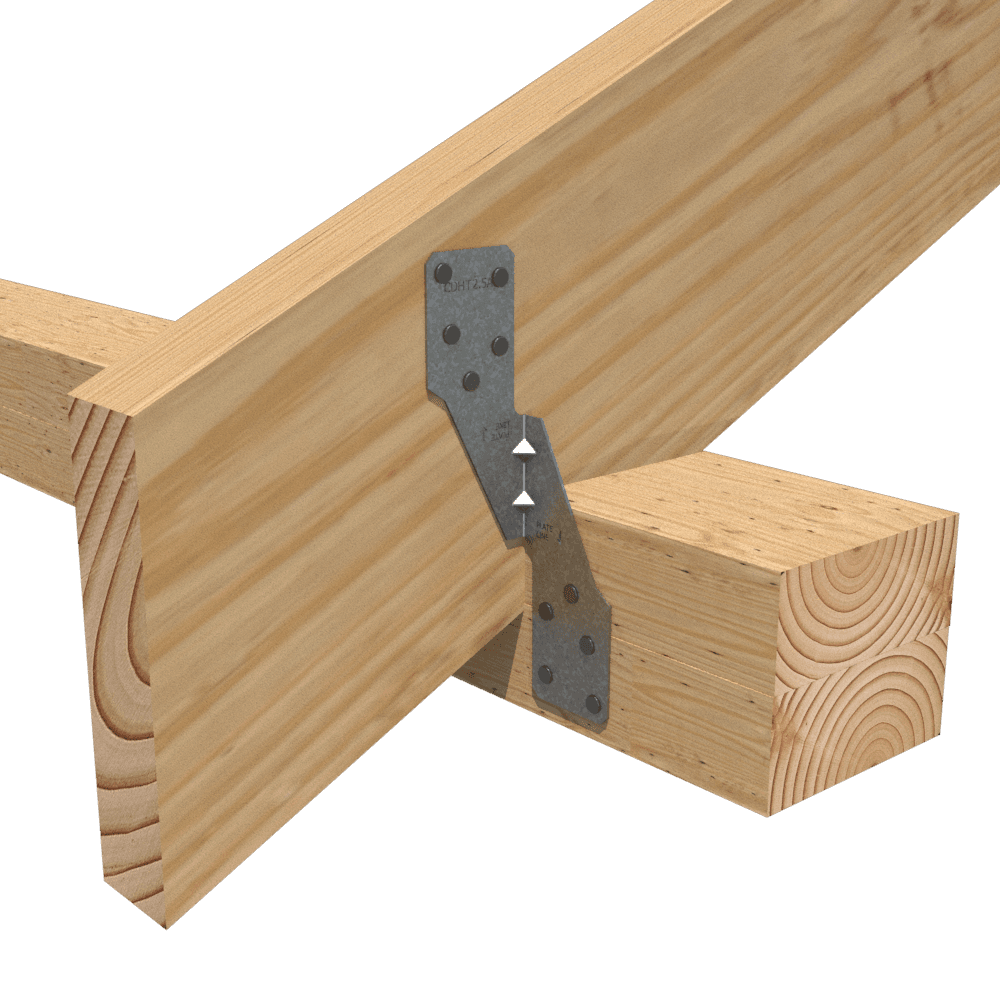

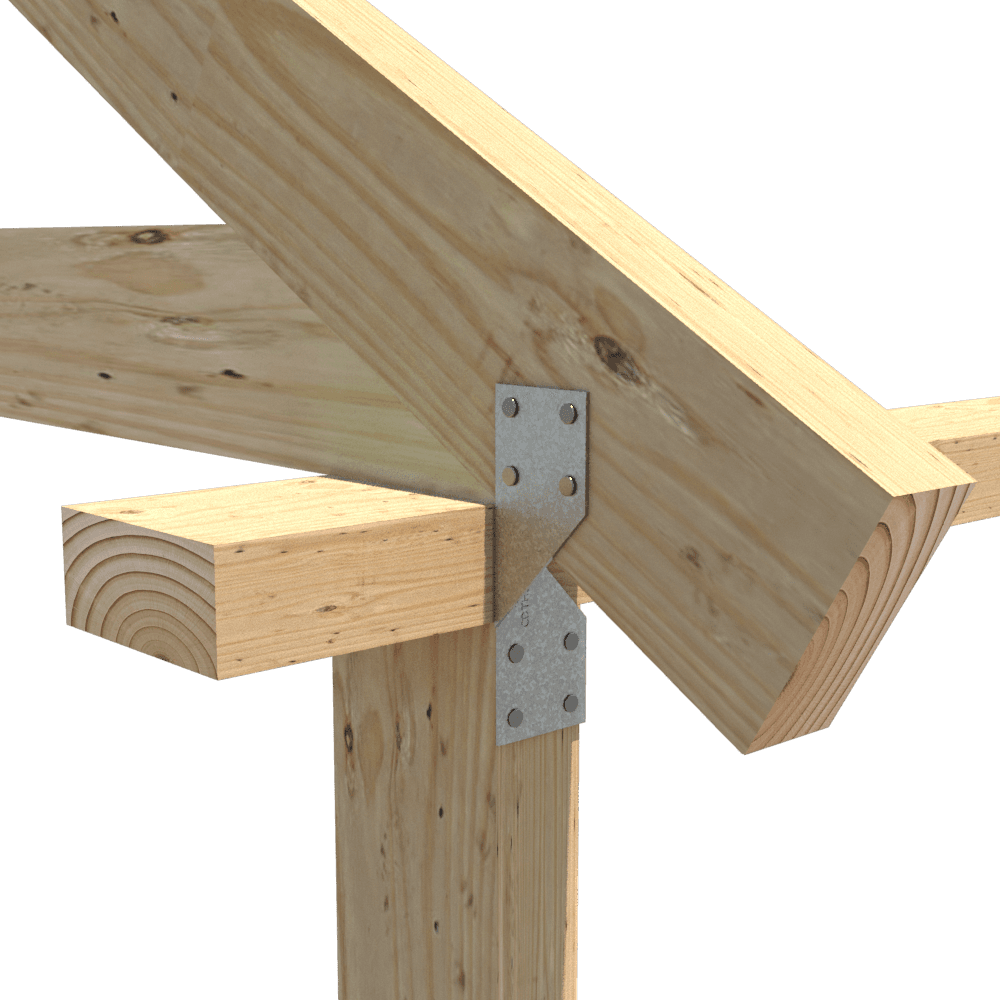

Used as a connection between truss/rafters and walls to resist lateral and uplift conditions.
Quick Actions:
Used as a connection between truss/rafters and walls to resist lateral and uplift conditions.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available on CDHT2A, CDHT2.5A & CDHT3 only)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
PRODUCT DIMENSIONS
| Product Code | Size |
|---|---|

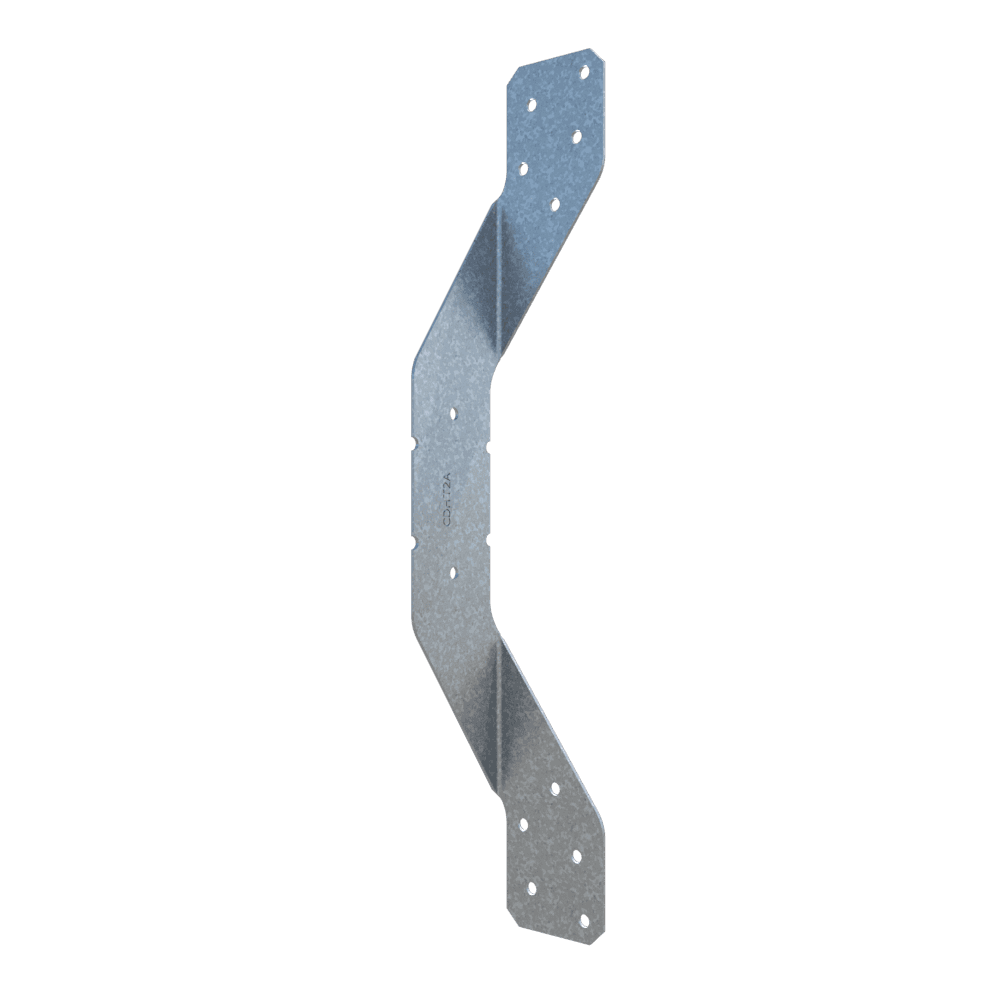

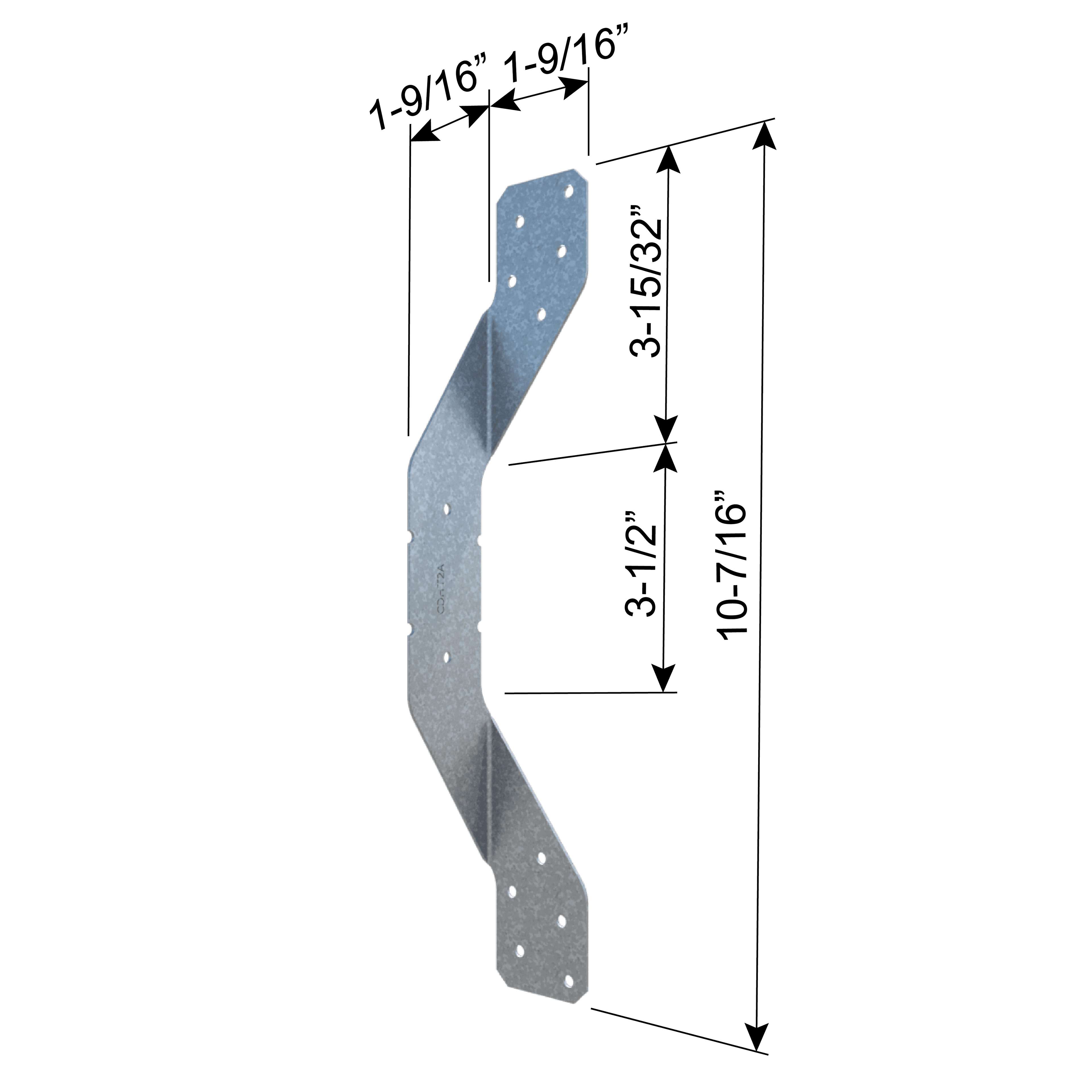

| CDHT2A | 1-37/64" x 10-7/16" |

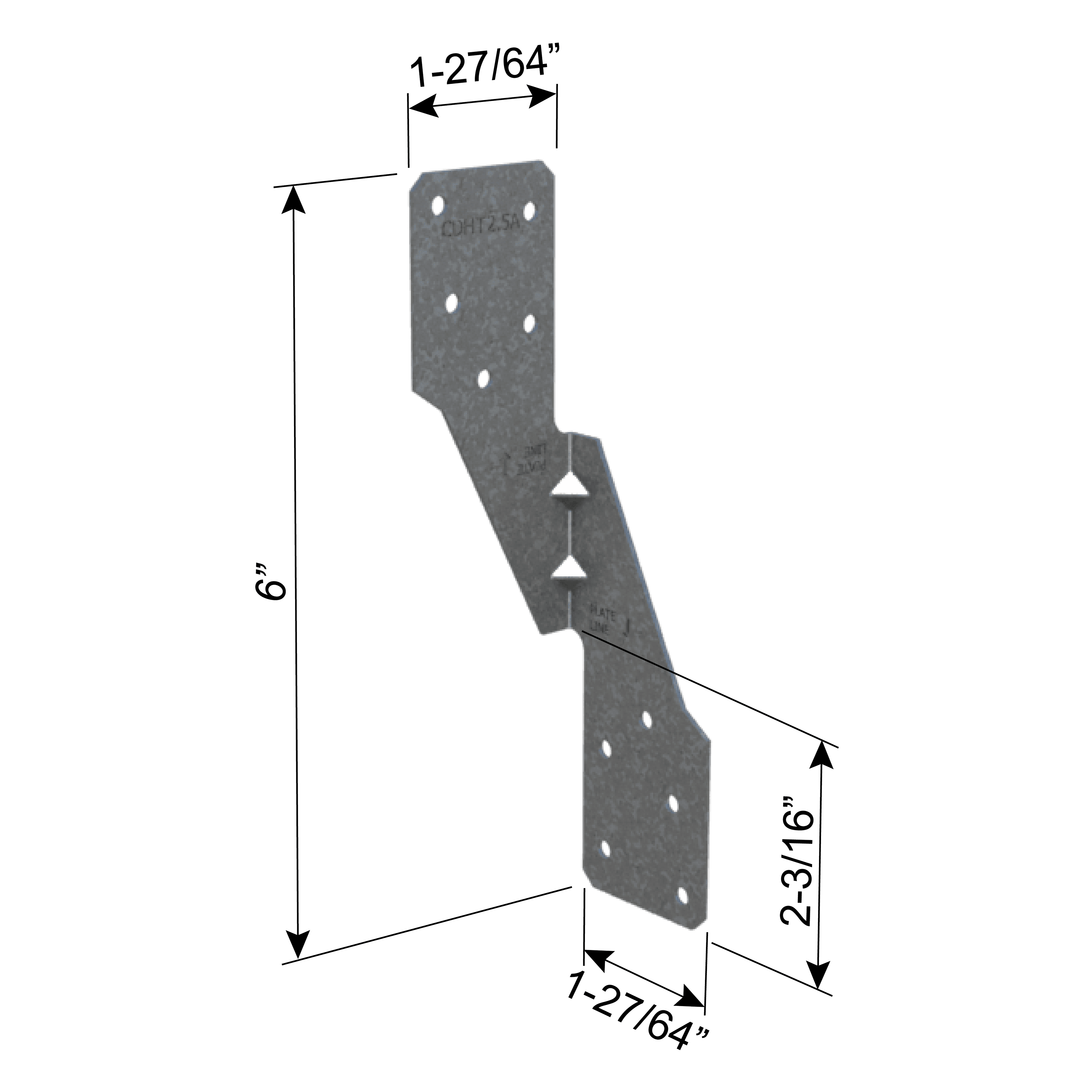

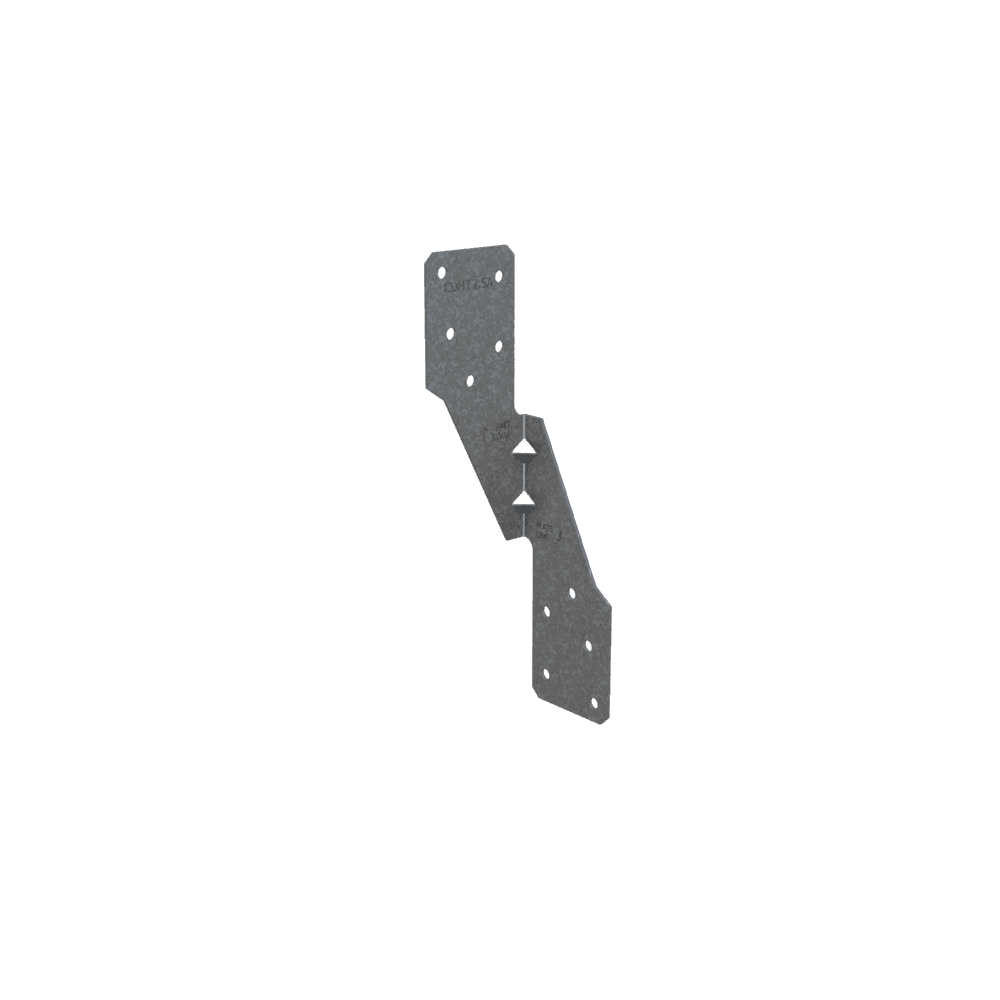

| CDHT2.5A | 1-5/8" x 6" |

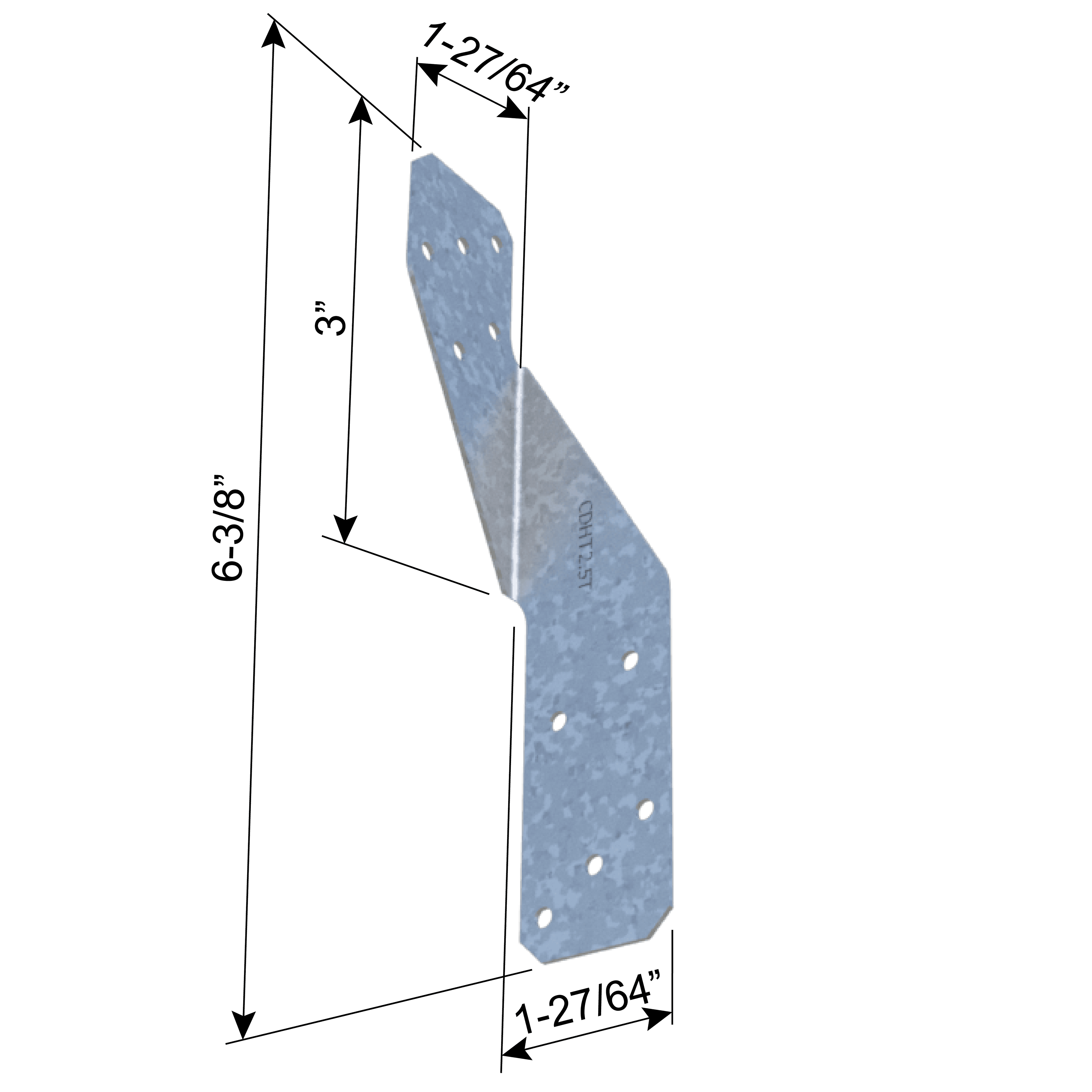

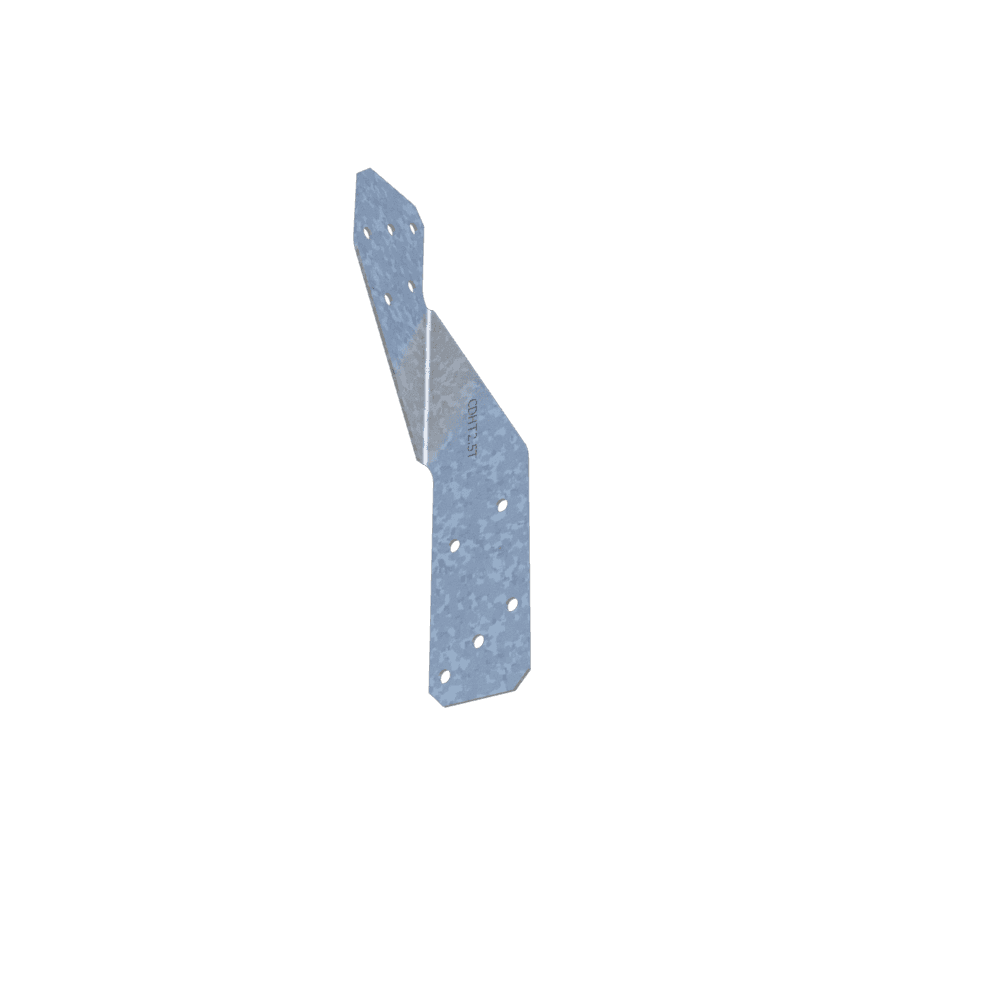

| CDHT2.5T | 1-27/64" x 6-3/8" |

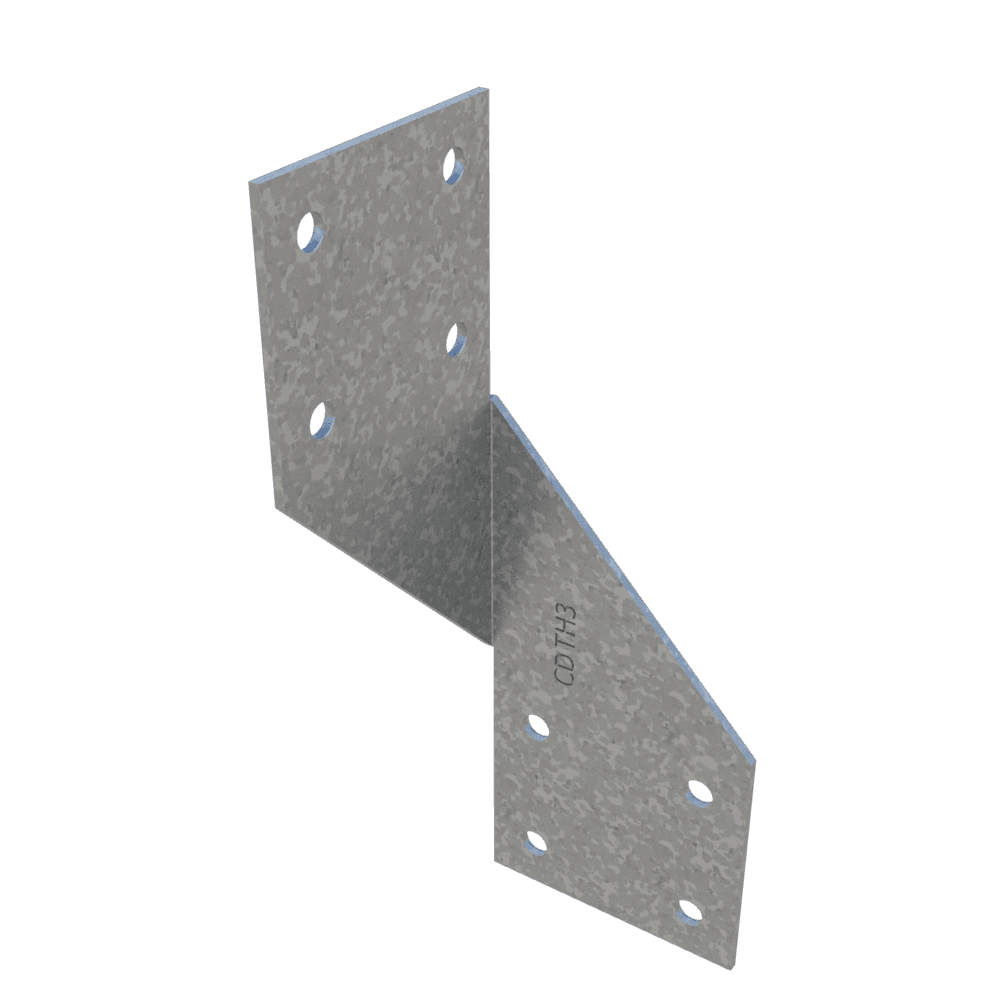

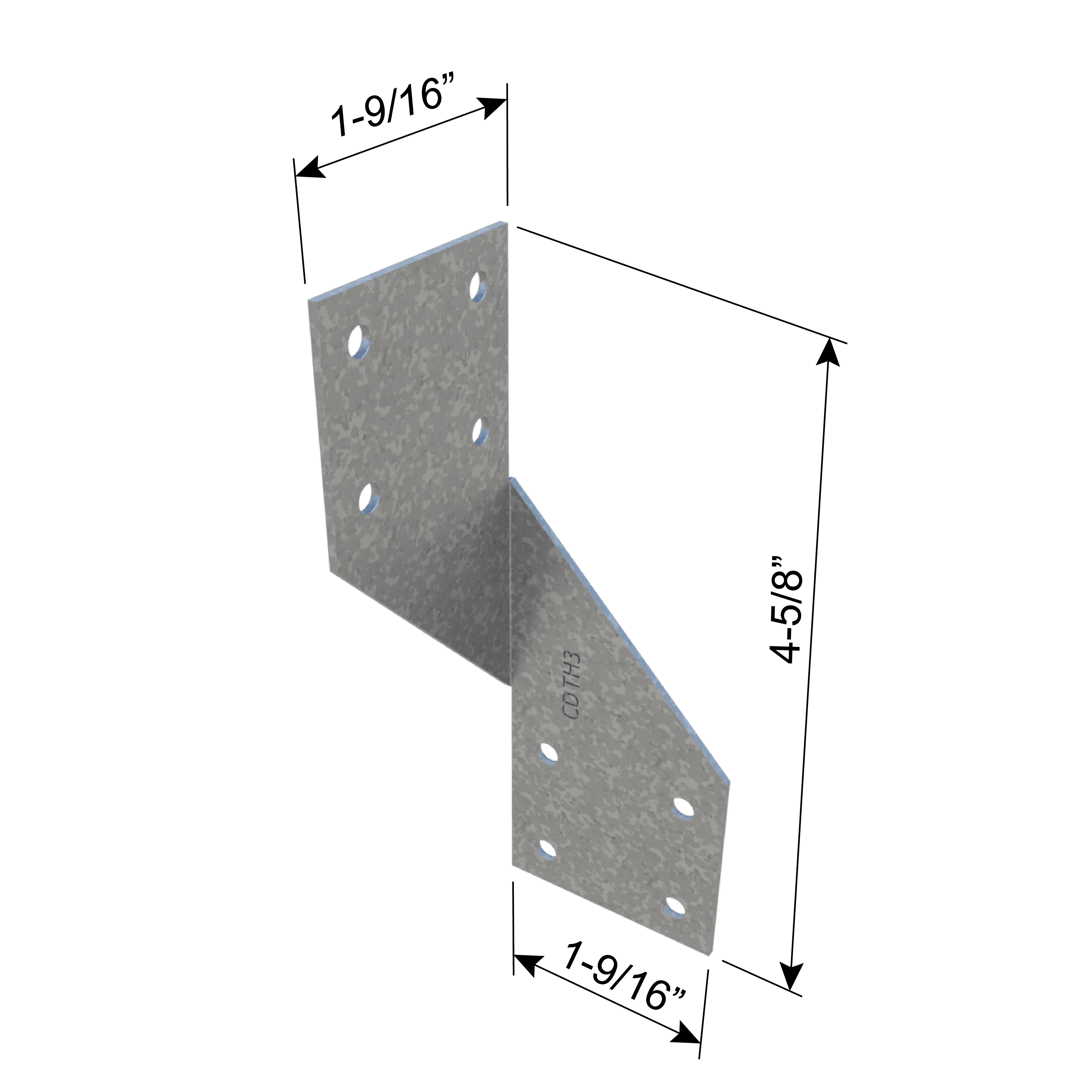

| CDHT3 | 1-5/8" x 4-5/8" |
