Hurricane Tie (CDHT6, 8)
HURRICANE tie
Used as a connection between truss/rafters and walls to resist lateral and uplift conditions.
Quick Actions:

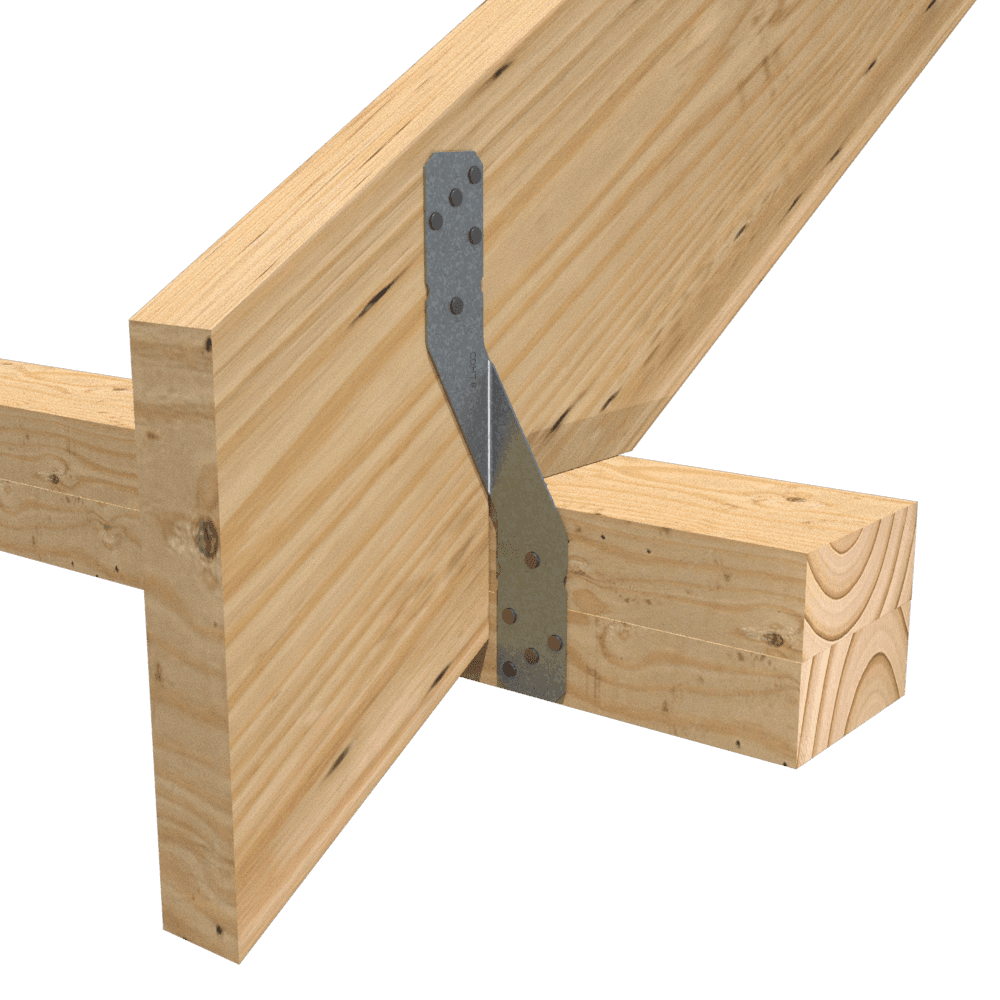

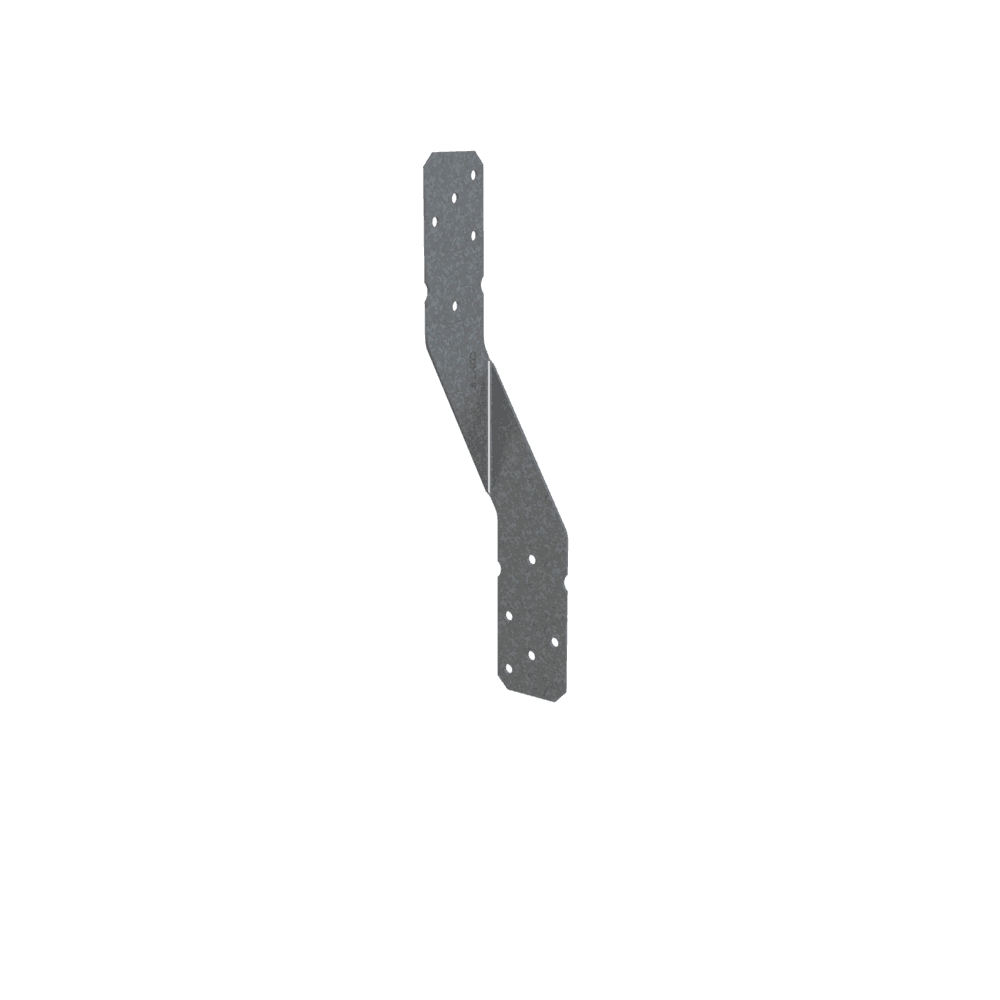

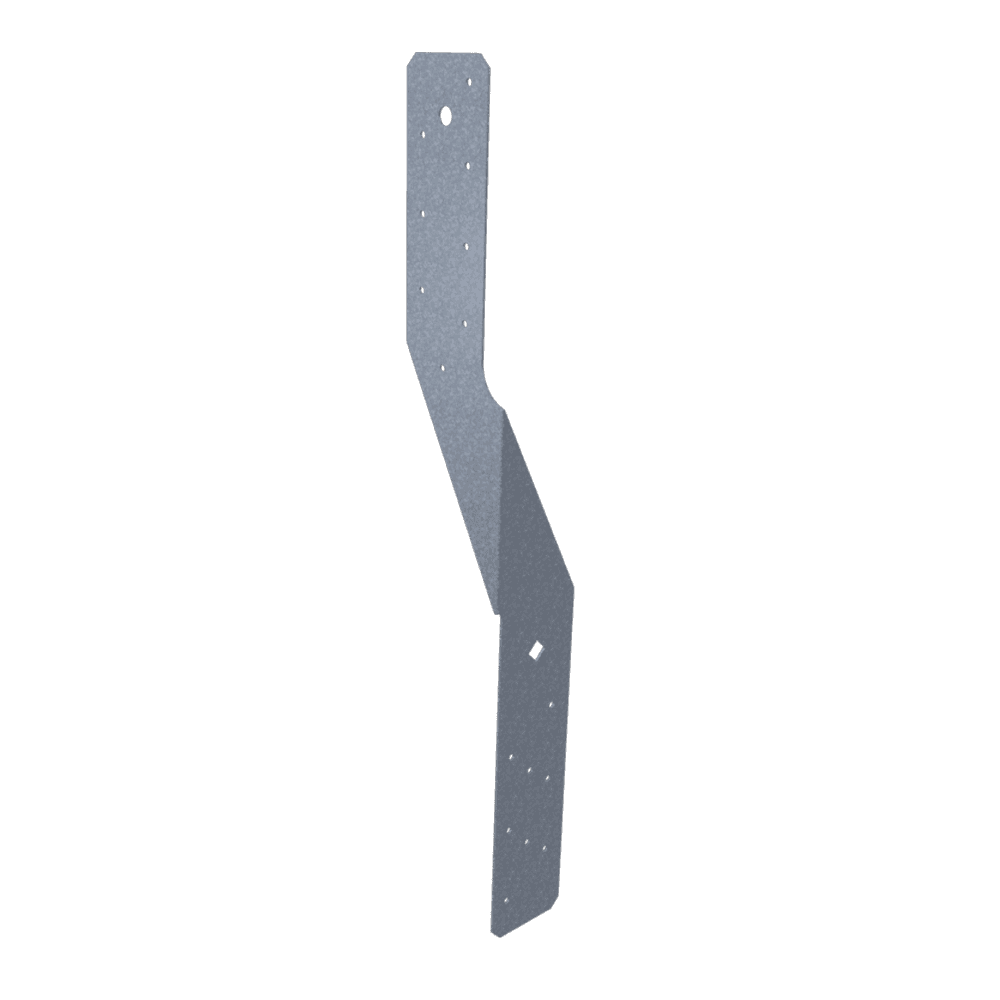

CDHT6 and CDHT8 are high capacity hurricane ties that connect trusses to the top of wall plates in wood framing walls.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
PRODUCT DIMENSIONS
| Product Code | Size |
|---|---|
| CDHT6 | 2-7/16" x 19-3/16" |

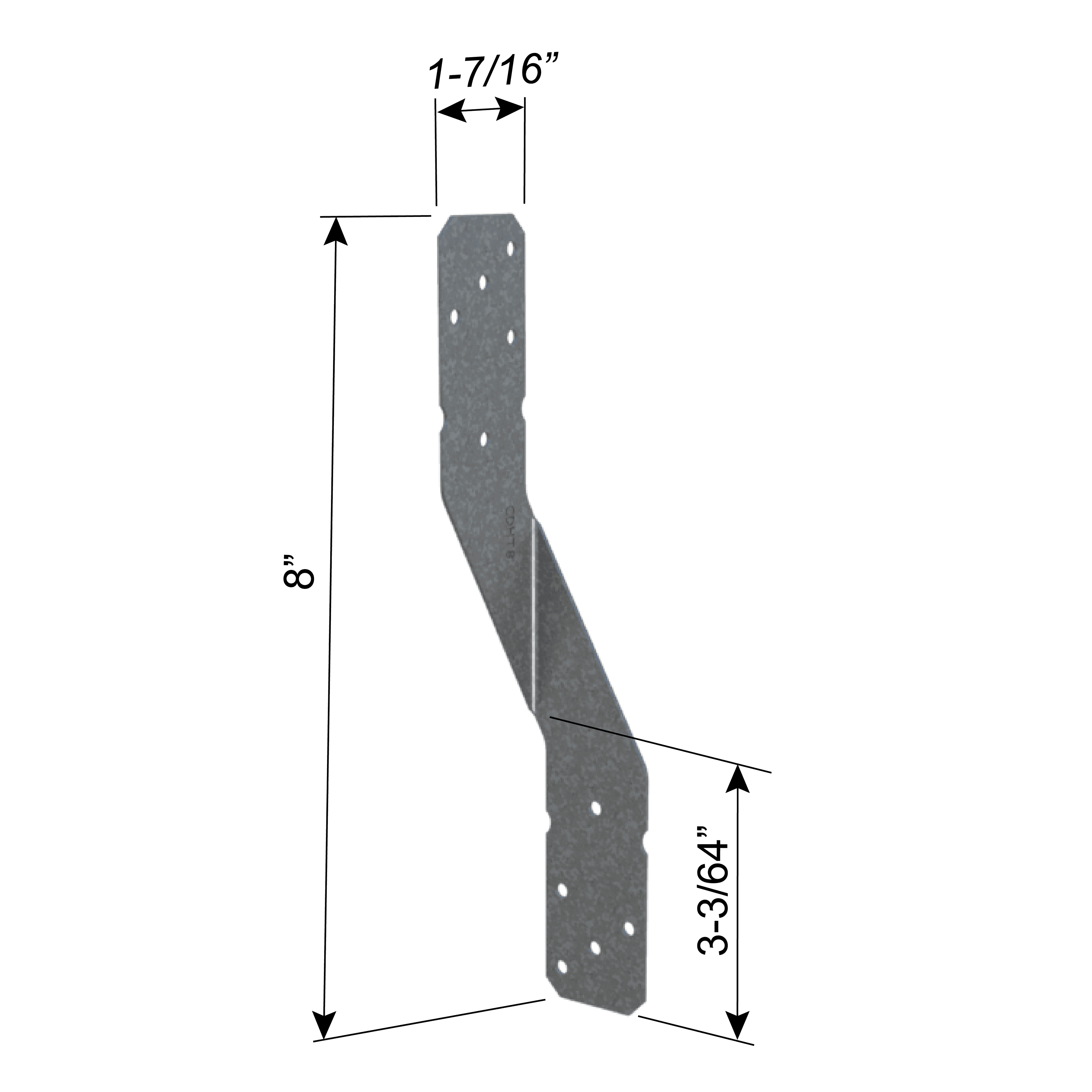

| CDHT8 | 1-7/16" x 8" |
