Light Truss End/Hip Jack Hanger
light truss end/hip jack hanger

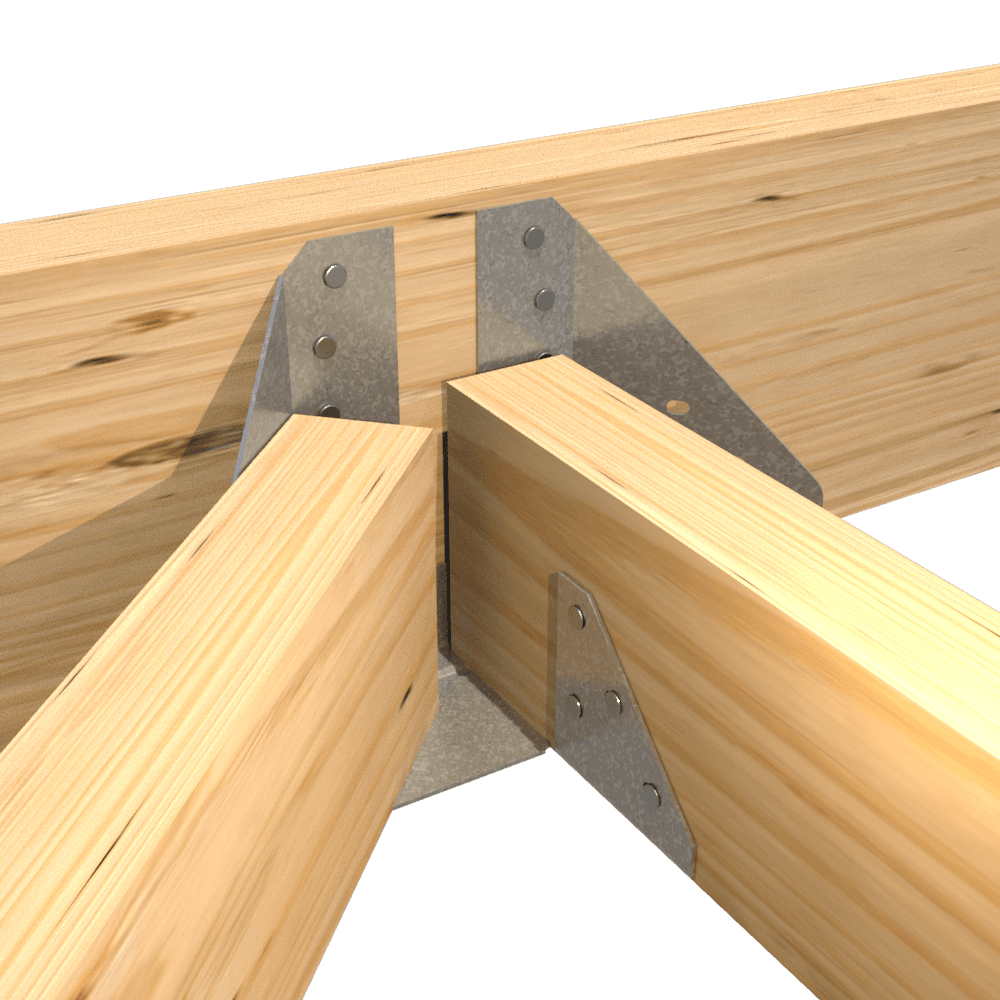

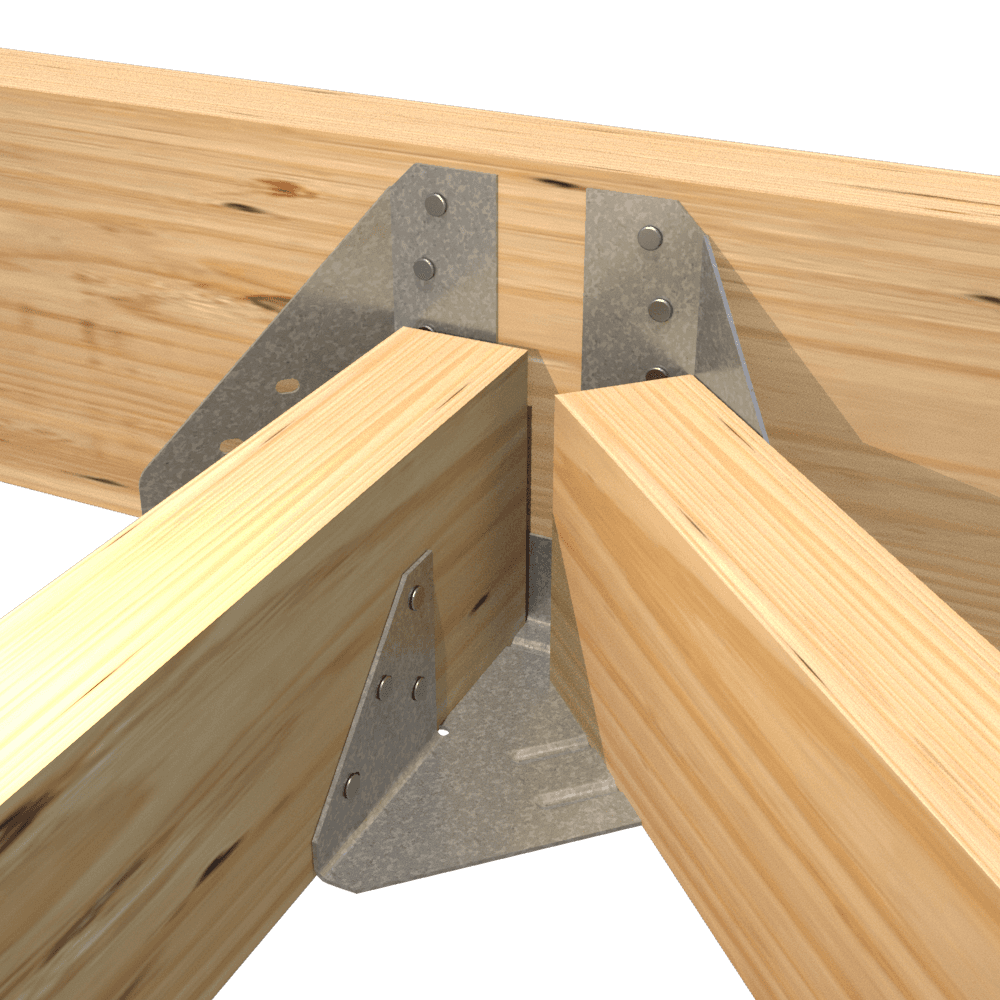

The CDLEHJ accommodates an end jack and a right or left hip jack.
Quick Actions:

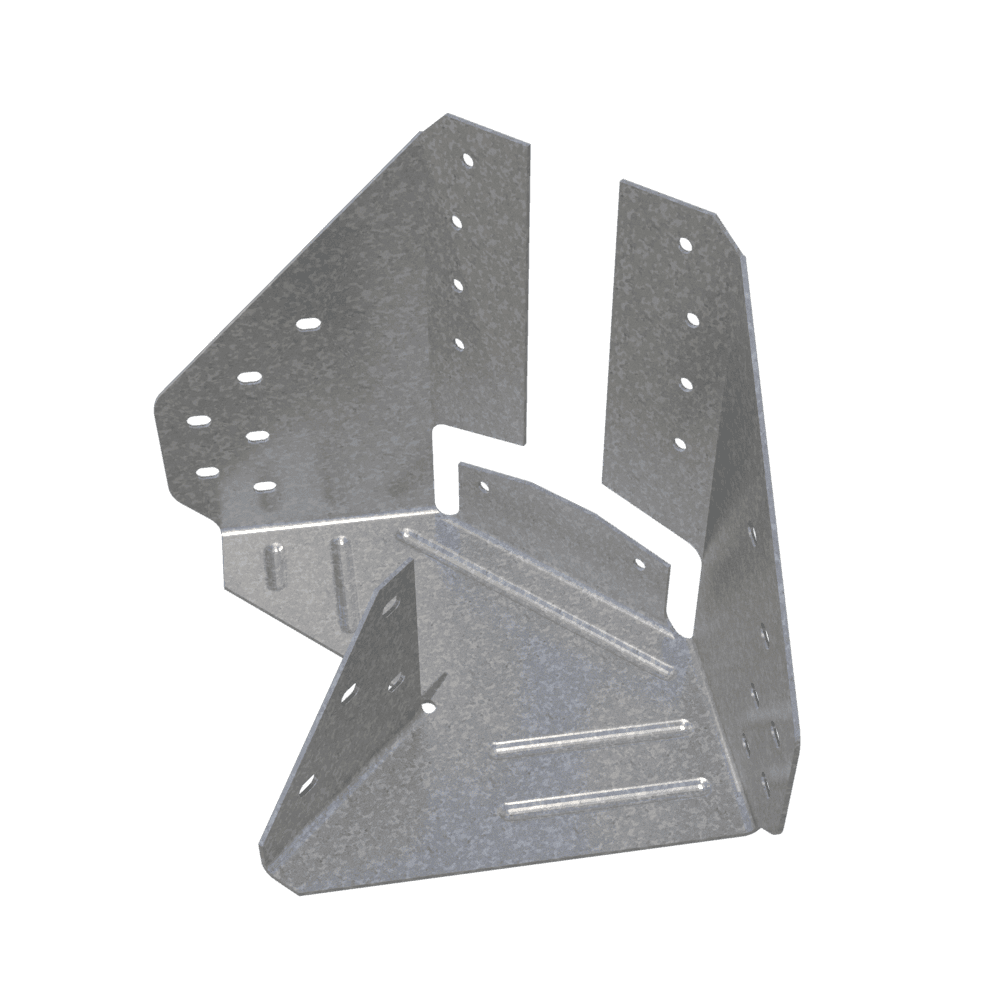

The CDLEHJ accommodates an end jack and a right or left hip jack. Made from high strength steel, this hanger offers a high load capacity while requiring only half as many fasteners in the header. It is designed to be installed with the same length fastener in all members (10d x 1-1/2") unlike competitive products which require 3" fasteners in the header to achieve the stated loads.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
| Overall Dimensions (in) | Common Nail Type Fasteners | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Code | Min. Supporting Member | Min. Supported End and Hip Jack Height | Width | Height | Depth | Size (in) | End Jack Qty | Hip Jack Qty. | Header Qty. |
| CDLEHJ | 2 x 6 | 3.50 | 7.76 | 5.25 | 4.875 | 10d x 1.5 | 4 | 6 | 10 |
Note: For SI: 1in. = 25.4mm, 1lb. = 4.45 N
1 See images for hanger dimensions.
2 Refer to section 3.2.3 of ESR-5062 code report for nail sizes and the required minimum physical properties.
