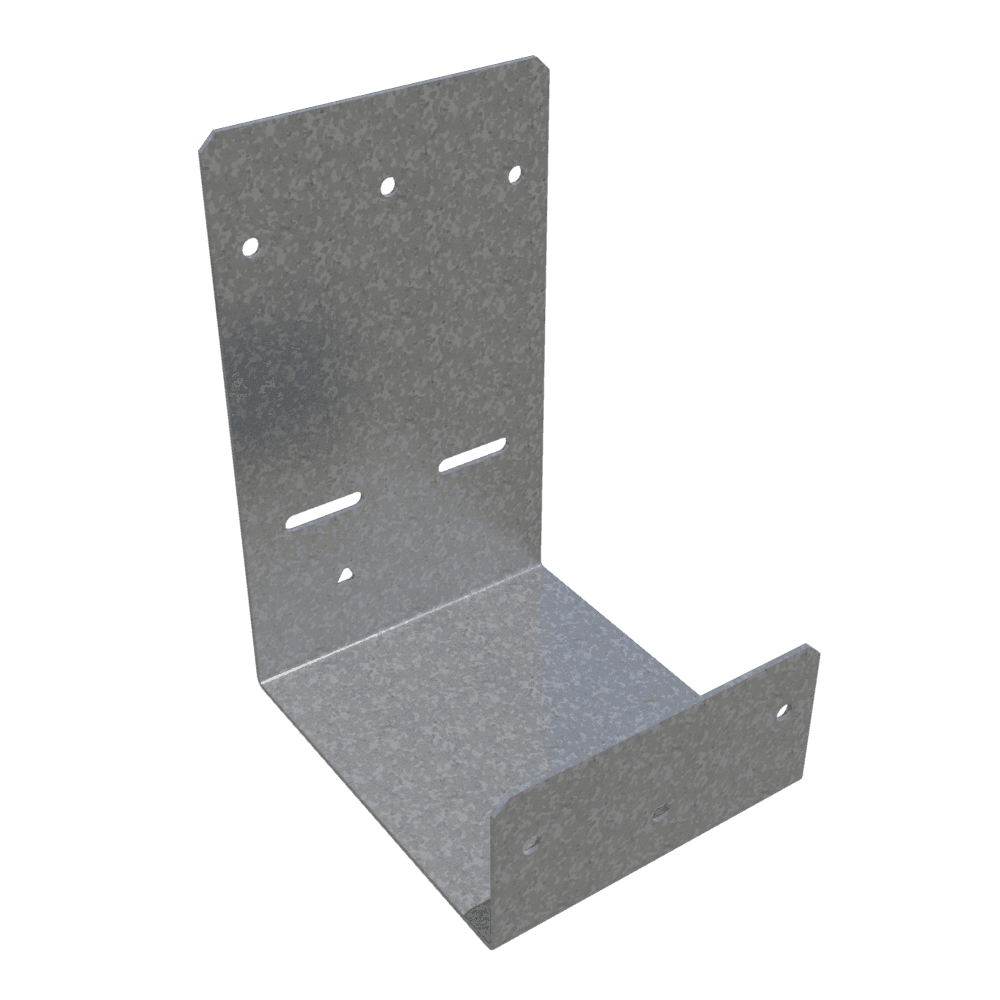

Load Share Clip (CDLSC)
LOAD SHARE CLIP

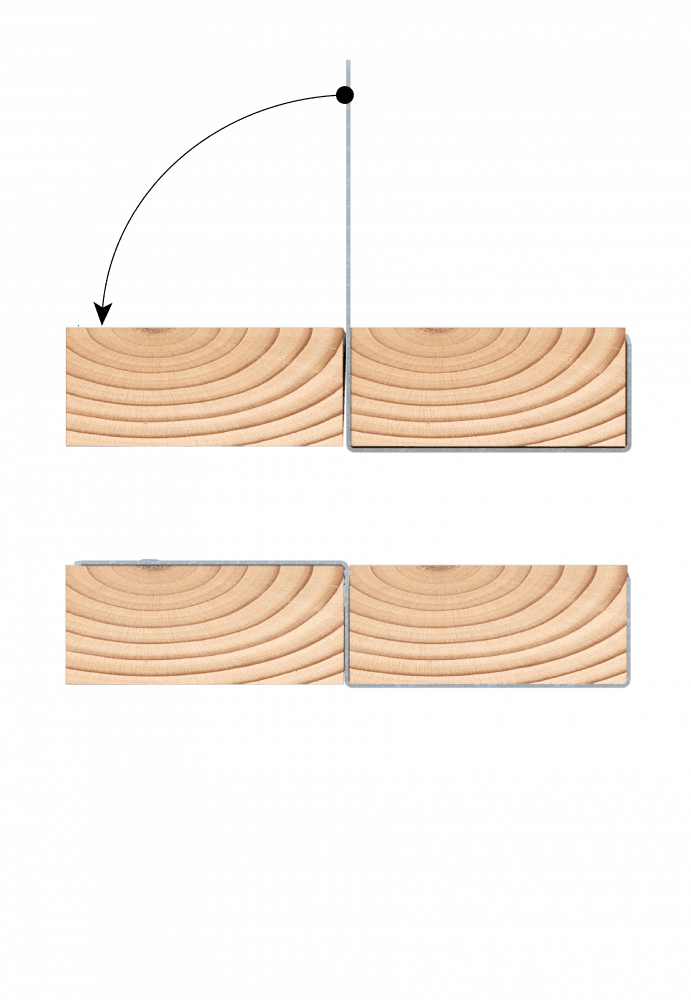

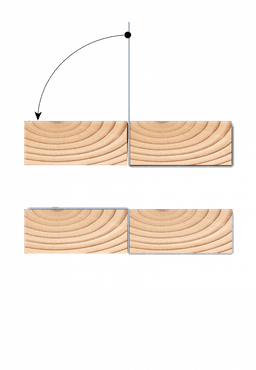

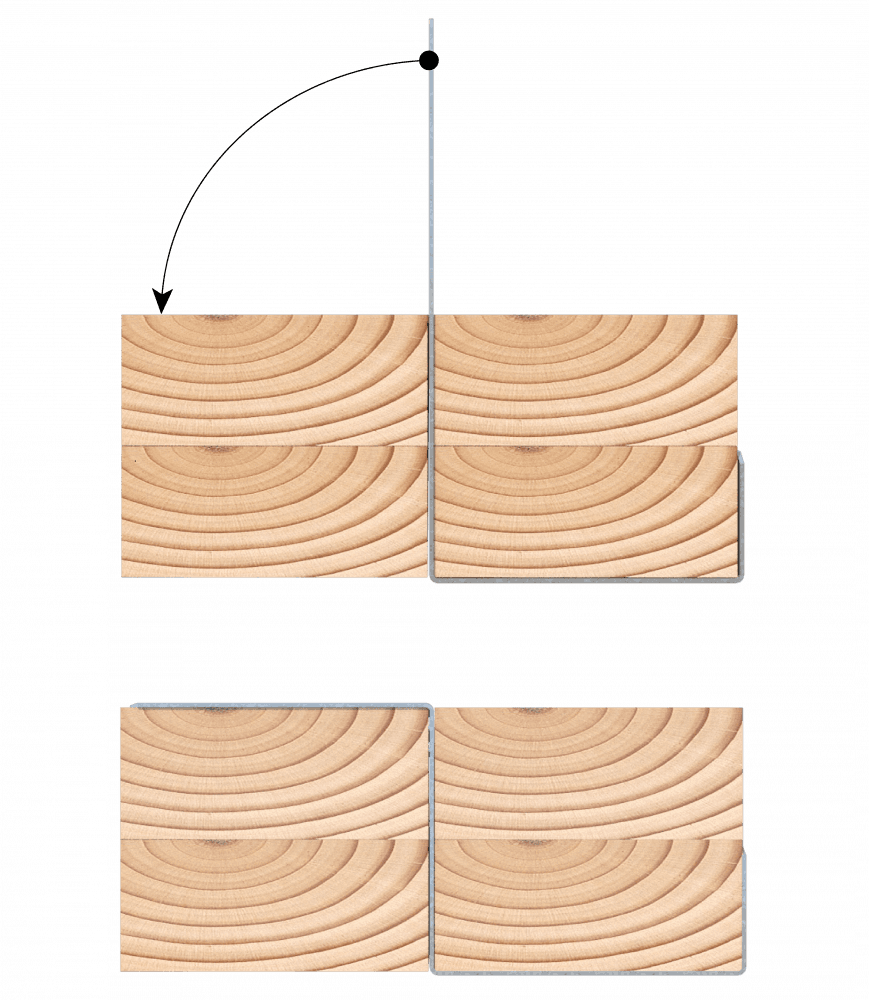

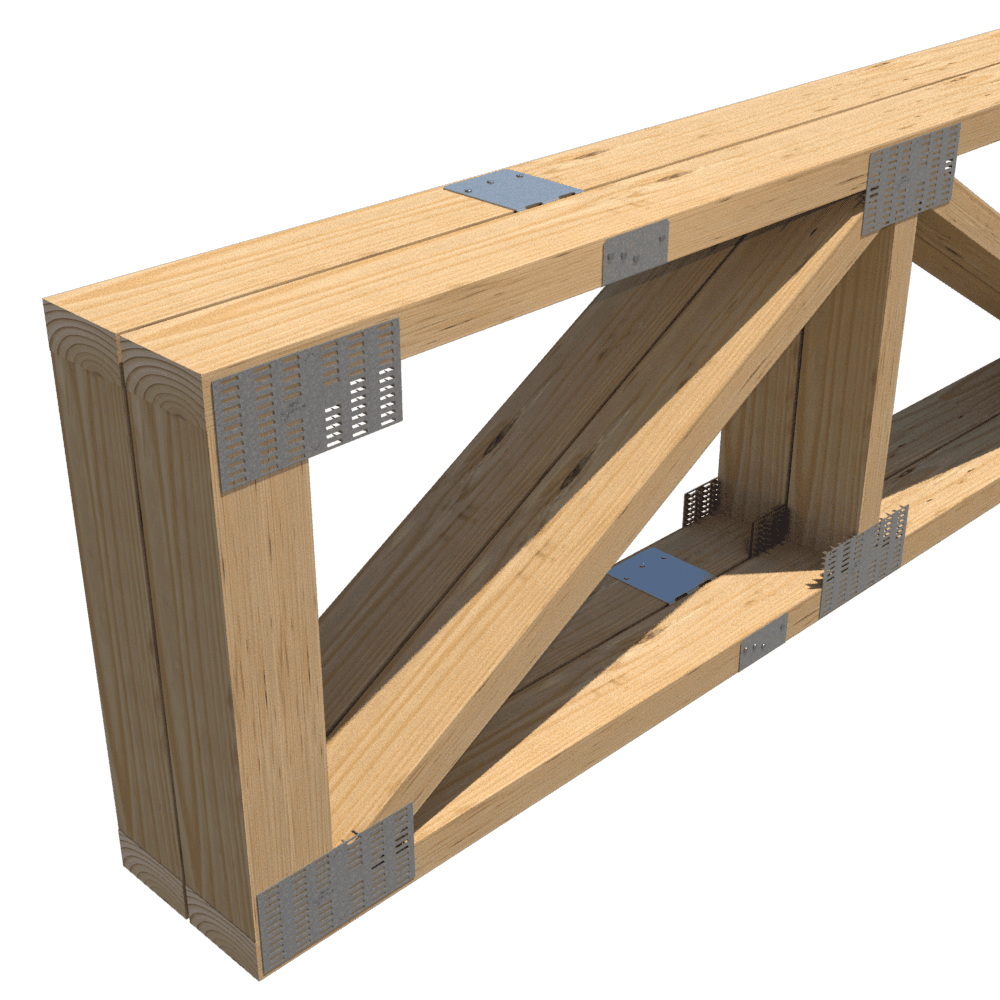

The CDLSC load share clip series is manufactured to transfer loads between two truss or framing ply members made of solid sawn or structural composite lumber.
Quick Actions:
The CDLSC load share clip series is manufactured to transfer loads between two truss or framing ply members made of solid sawn or structural composite lumber.
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
| Overall Dimensions (in) | ||||
|---|---|---|---|---|
| Product Code | W | H1 | H2 | D |
| CDLSC32 | 3 | 2-7/16 | 1-1/2 | 2-1/2 |
| CDLSC32-2 | 3 | 2-7/16 | 3 | 2-1/2 |
| CDLSC42 | 3 | 3-7/16 | 1-1/2 | 3-1/2 |
| CDLSC42-2 | 3 | 3-7/16 | 3 | 3-1/2 |
