M40 (Male Casing Expansion Joint Component)
Male casing bead, used as a component expansion joints
May be used as a drip reveal or a slotted reveal, etc.
Quick Actions:
Male casing bead, used as a component expansion joints. May be used as a drip reveal or a slotted reveal, etc.
Product Data & Ordering Information

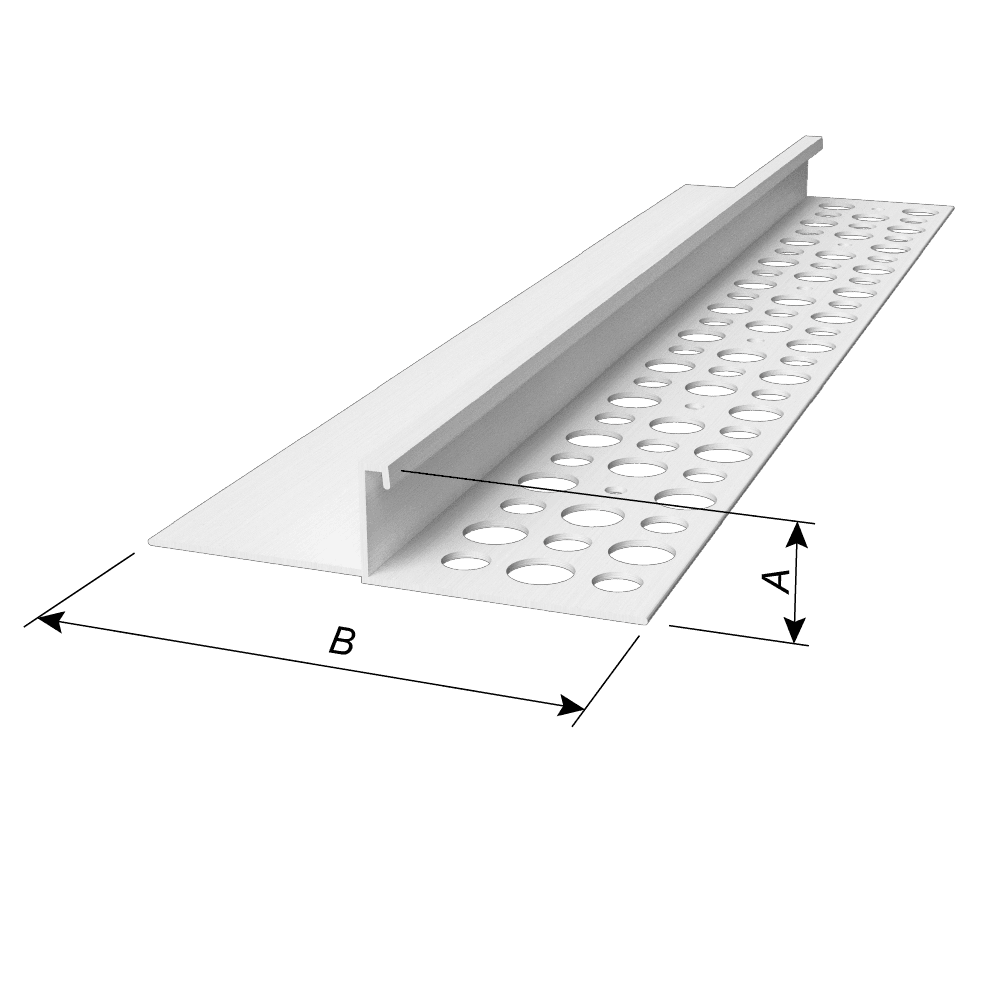

| Product code | Ground (A) | Overall width (B) | Length | Pcs./Box |
|---|---|---|---|---|
| M40-38 | 3/8" | 1-3/4" | 10' | 50 |
| M40-50 | 1/2" | 1-3/4" | 10' | 40 |
| M40-58 | 5/8" | 1-3/4" | 10' | 40 |
| M40-75 | 3/4" | 1-3/4" | 10' | 30 |
| M40-78 | 7/8" | 1-3/4" | 10' | 30 |
| M40-100 | 1" | 1-3/4" | 10' | 30 |
