Medium Duty Joist and Truss Hangers
medium duty joist and truss hangers

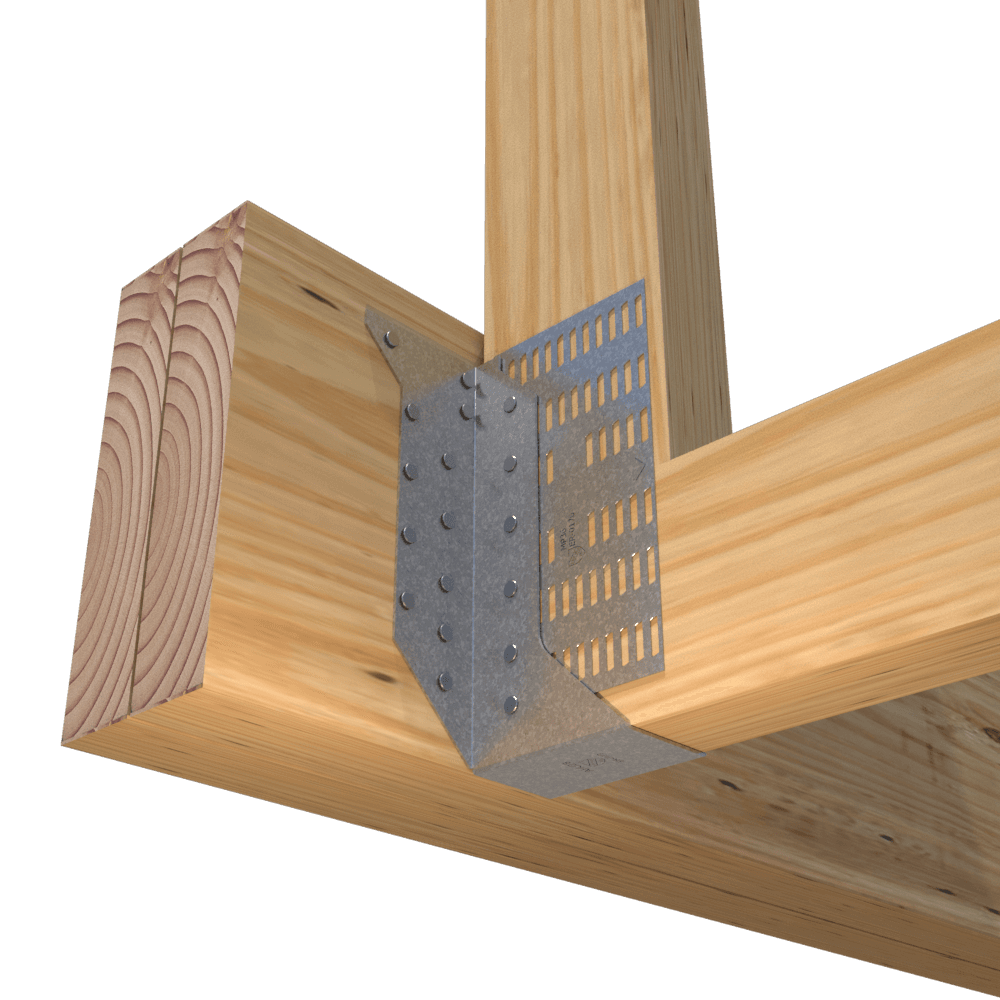

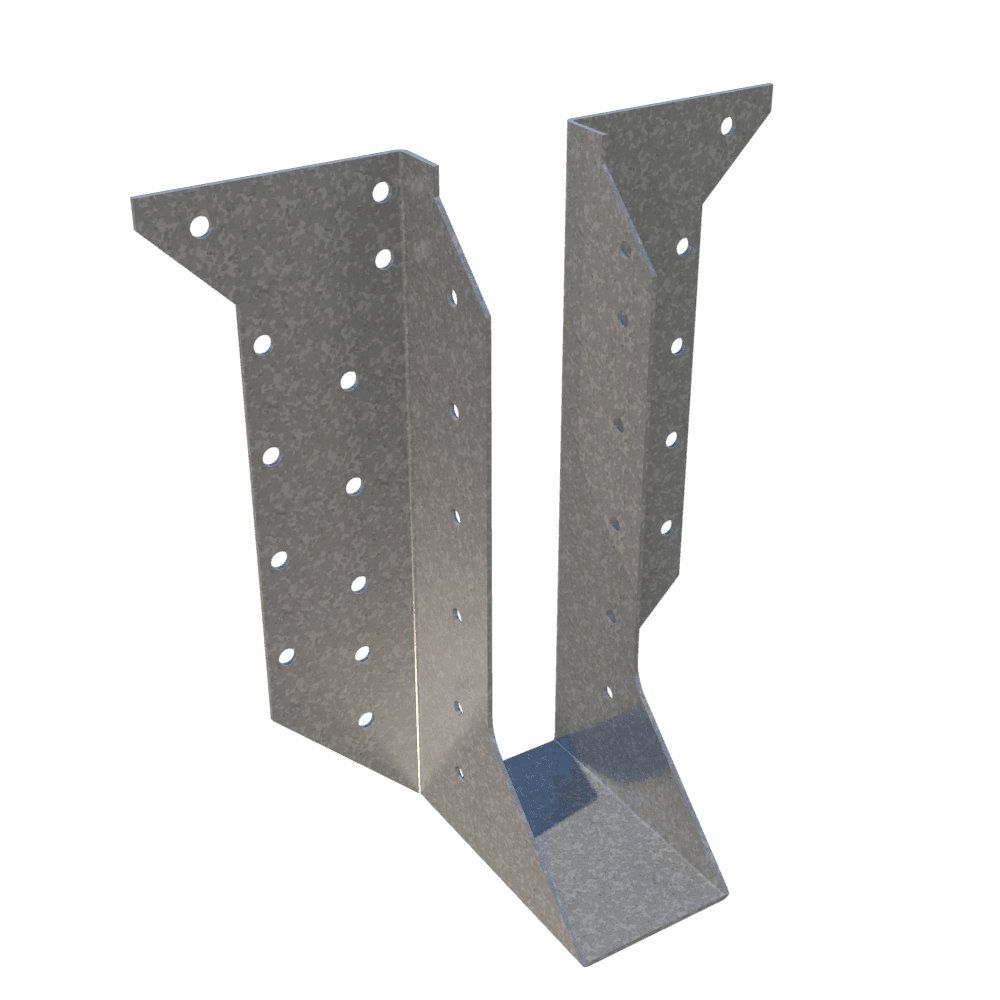

CDAHU is a face-mount hanger designed for wood plate trusses and heavily loaded members with a 2-3/4" seat dimension.
Quick Actions:
CDAHU is a face-mount hanger designed for wood plate trusses and heavily loaded members with a 2-3/4" seat dimension.
PRODUCT DIMENSIONS
Joist Sizes: Singles and Doubles, 2x4, 2x6, 2x8
Material: 18ga (43mil), 0.0451" Design thickness, 0.0428" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com

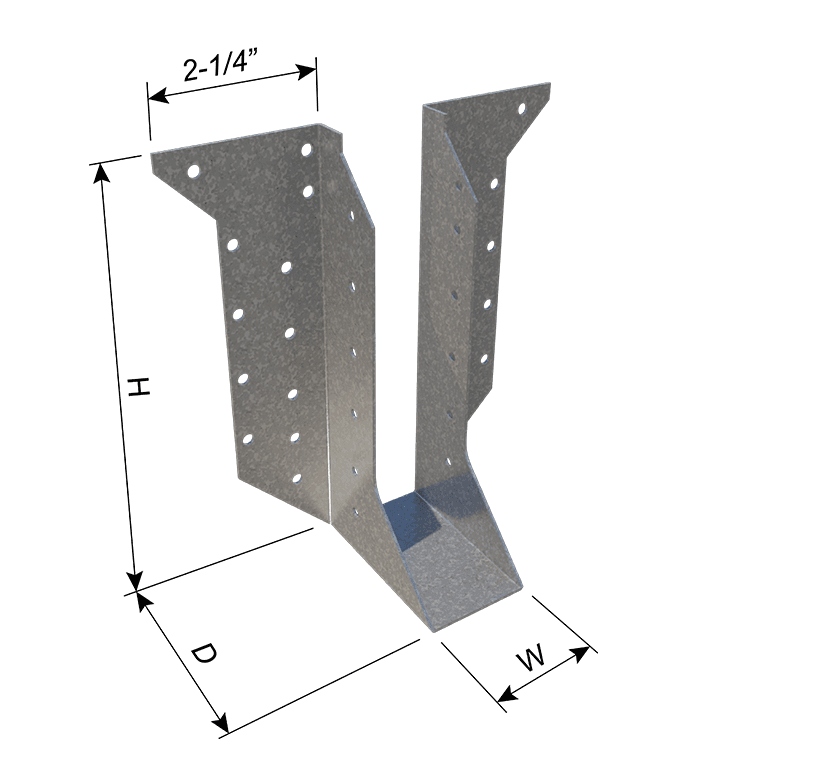

| Product Code | Clear Width | Overall Height | Overall Depth |
|---|---|---|---|
| CDAHU26 | 1-9/16" | 5-1/2" | 2-3/4" |
| CDAHU28 | 1-9/16" | 6-1/2" | 2-3/4" |
| CDAHU210 | 1-9/16" | 8-1/2" | 2-3/4" |
| CDAHU26-2 | 3-7/16" | 5-1/2" | 2-3/4" |
| CDAHU46 | 3-9/16" | 5-1/2" | 2-3/4" |
