Mending Tie Plate
MENDING TIE PLATES
Versatile and easy-to-use mending plates for wood-to-wood connections.
Quick Actions:
Versatile and easy-to-use mending plates for wood-to-wood connections. No nails or notching of wood required. For non-structural applications only.
Material: 20ga (33mil), 0.0346" Design thickness, 0.0329" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
| Product Code | Size |
|---|---|

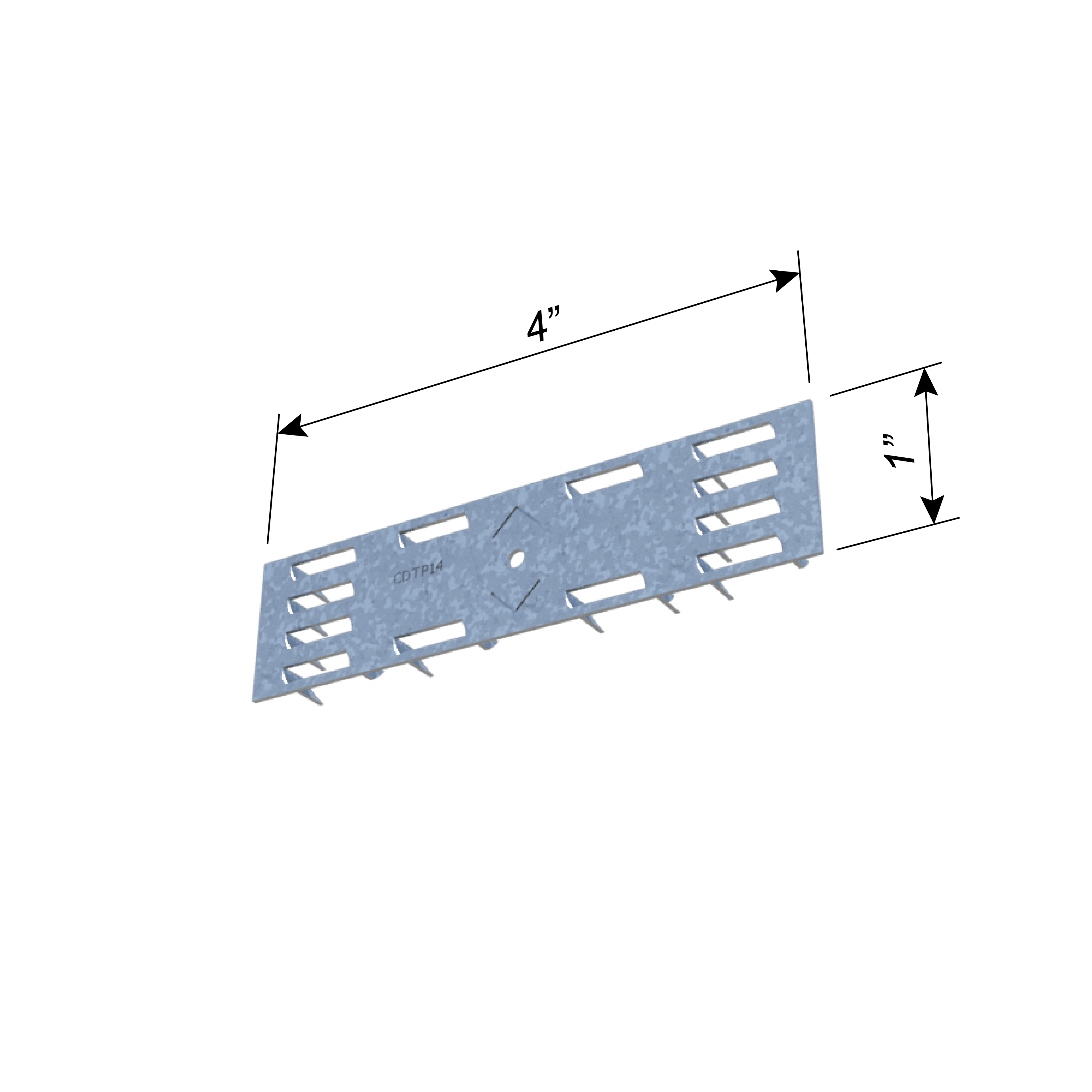

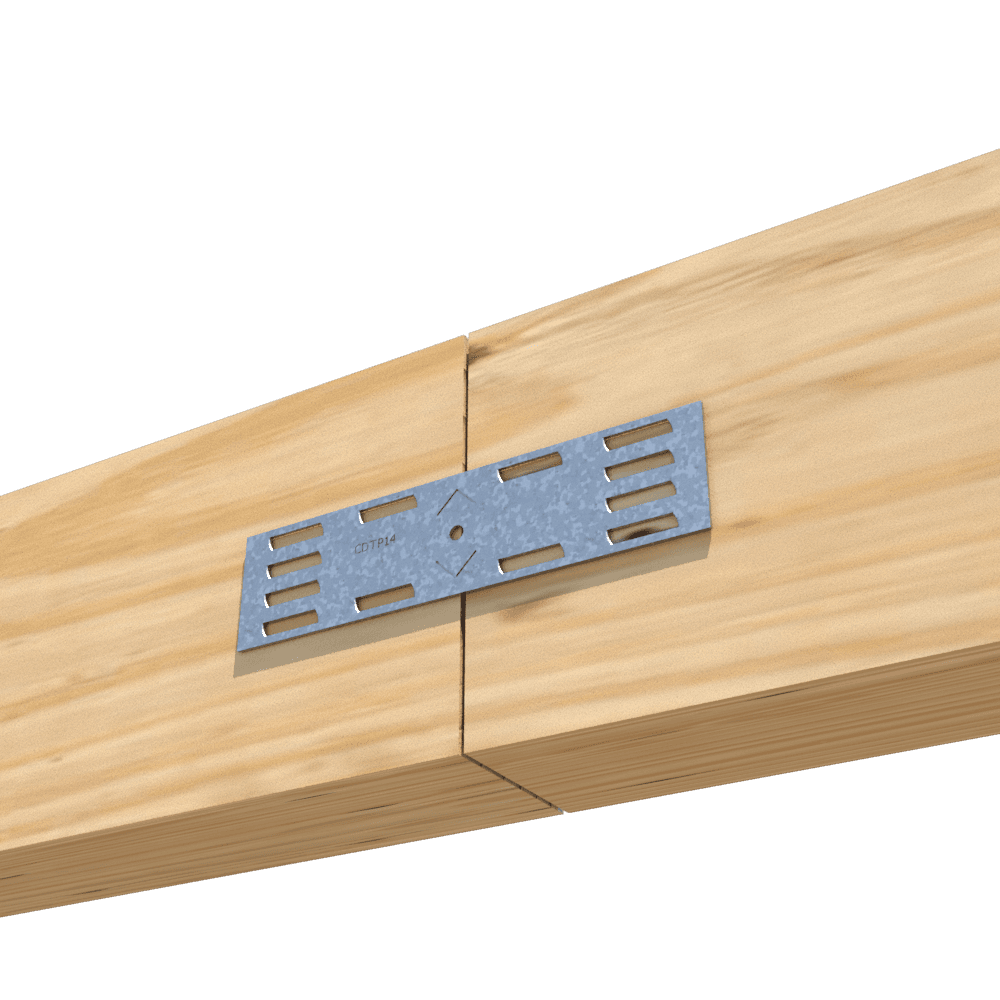

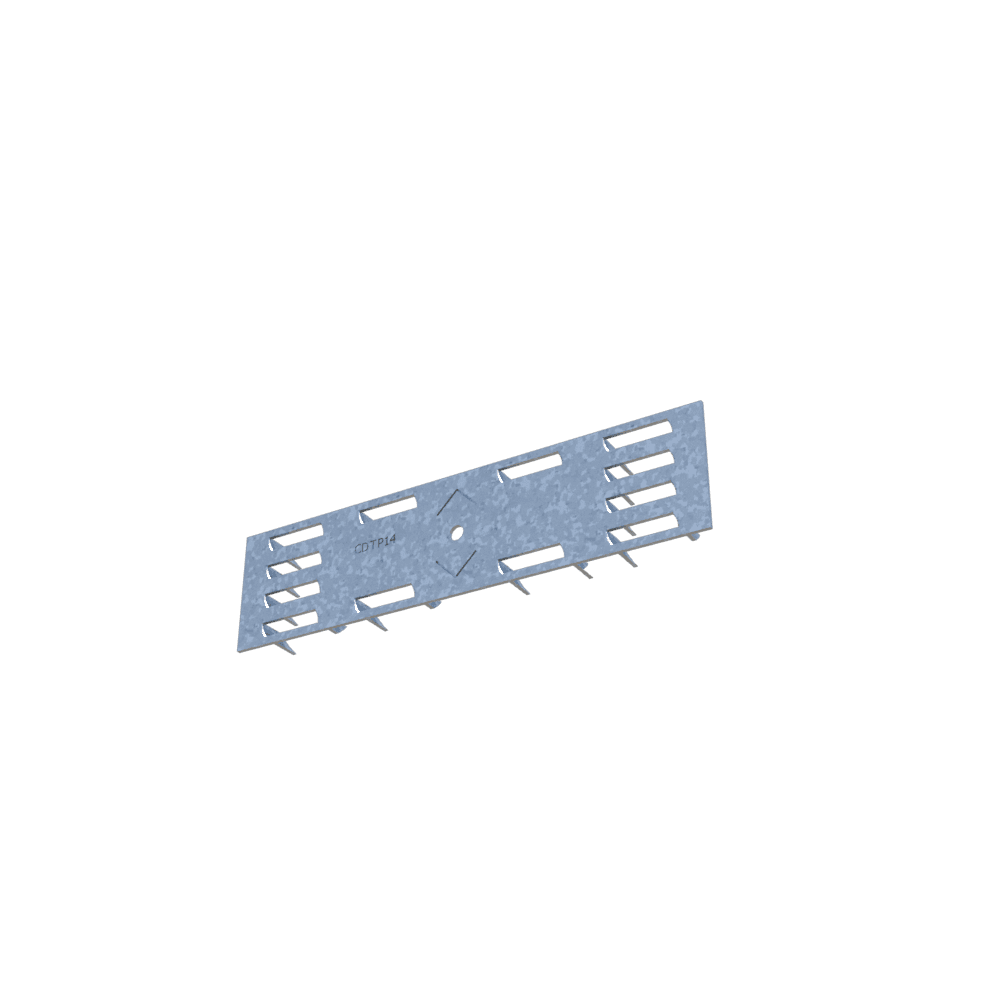

| CDTP14 | 1" X 4" |

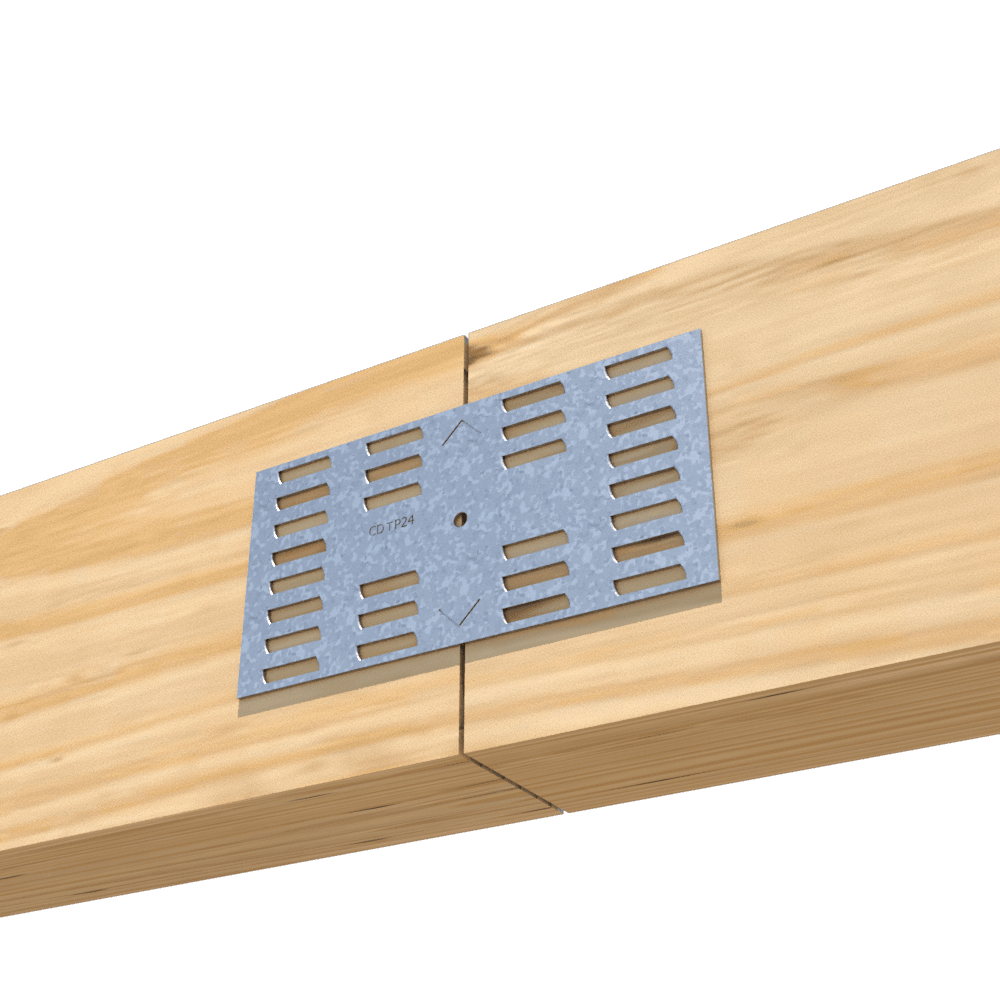

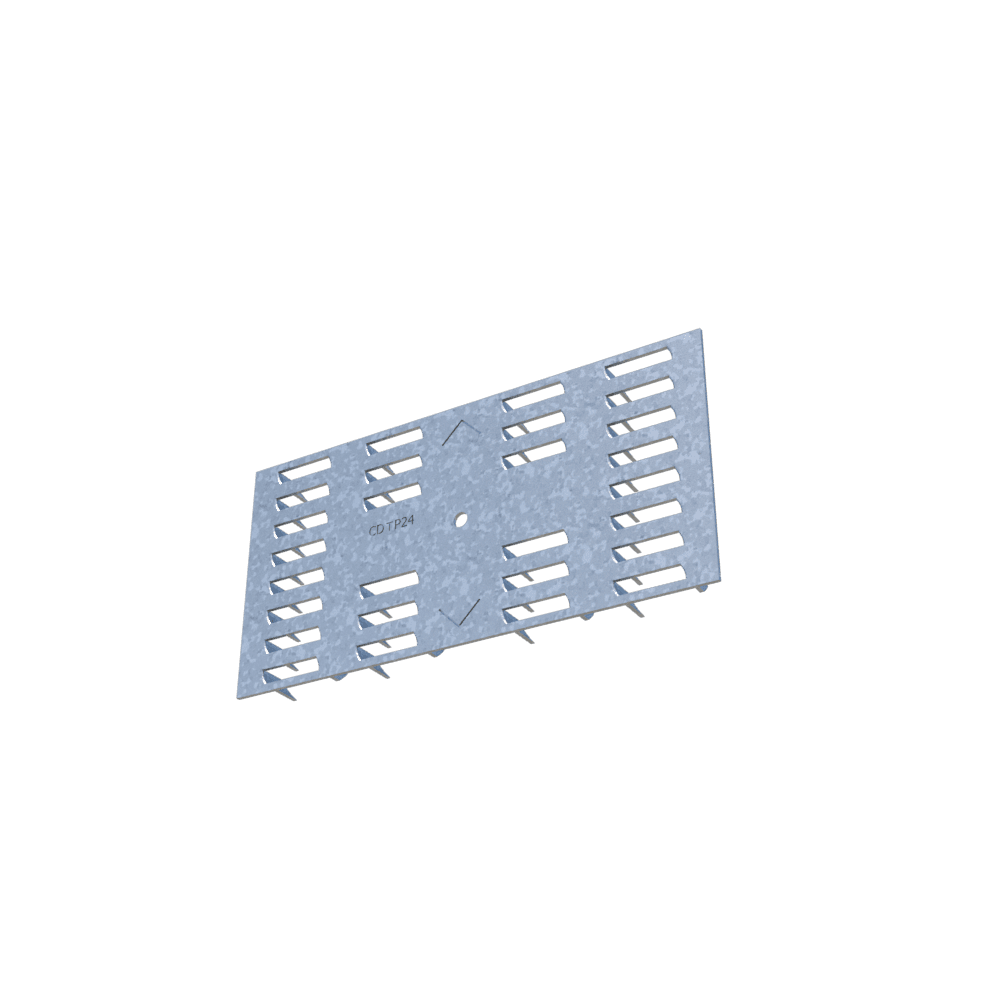

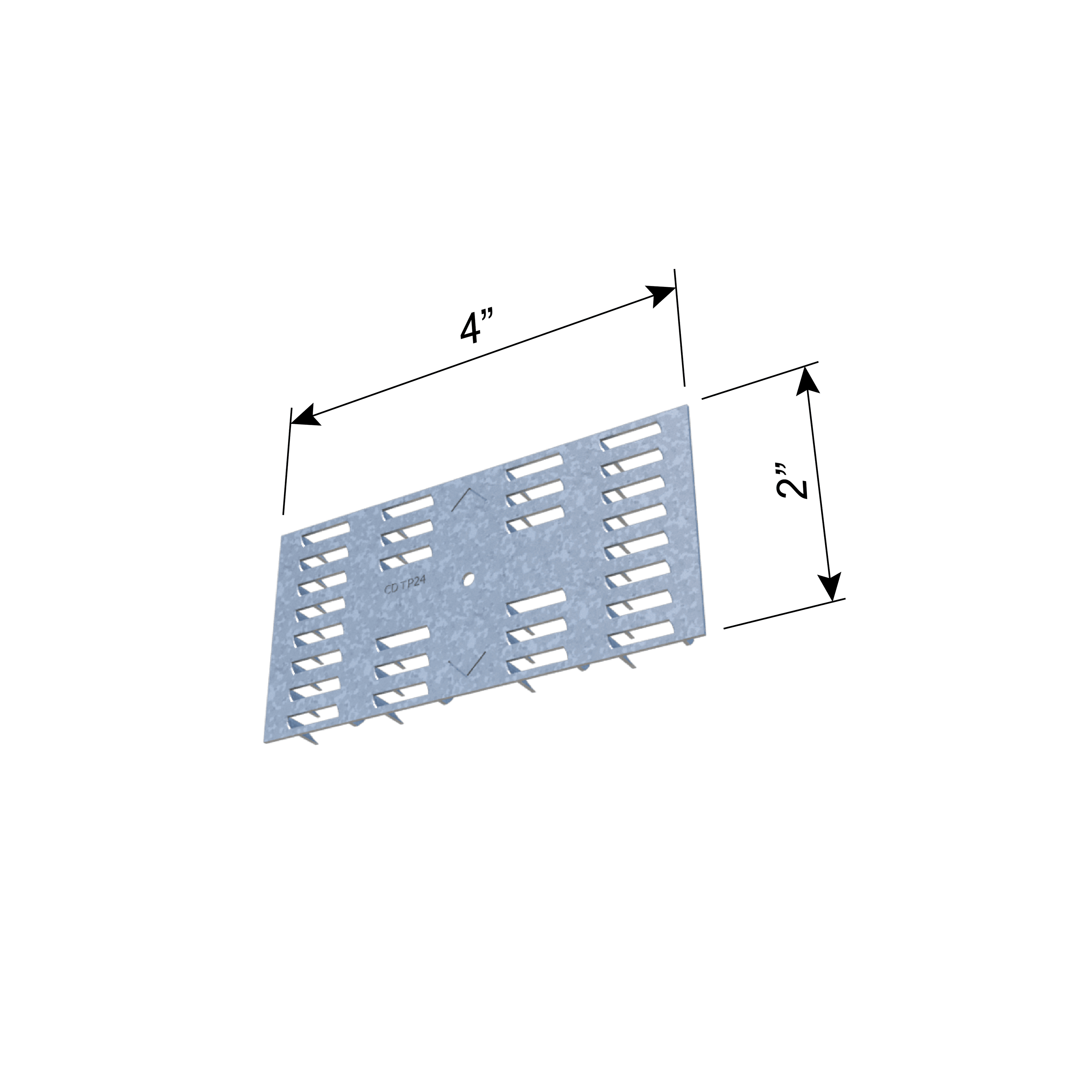

| CDTP24 | 2" X 4" |

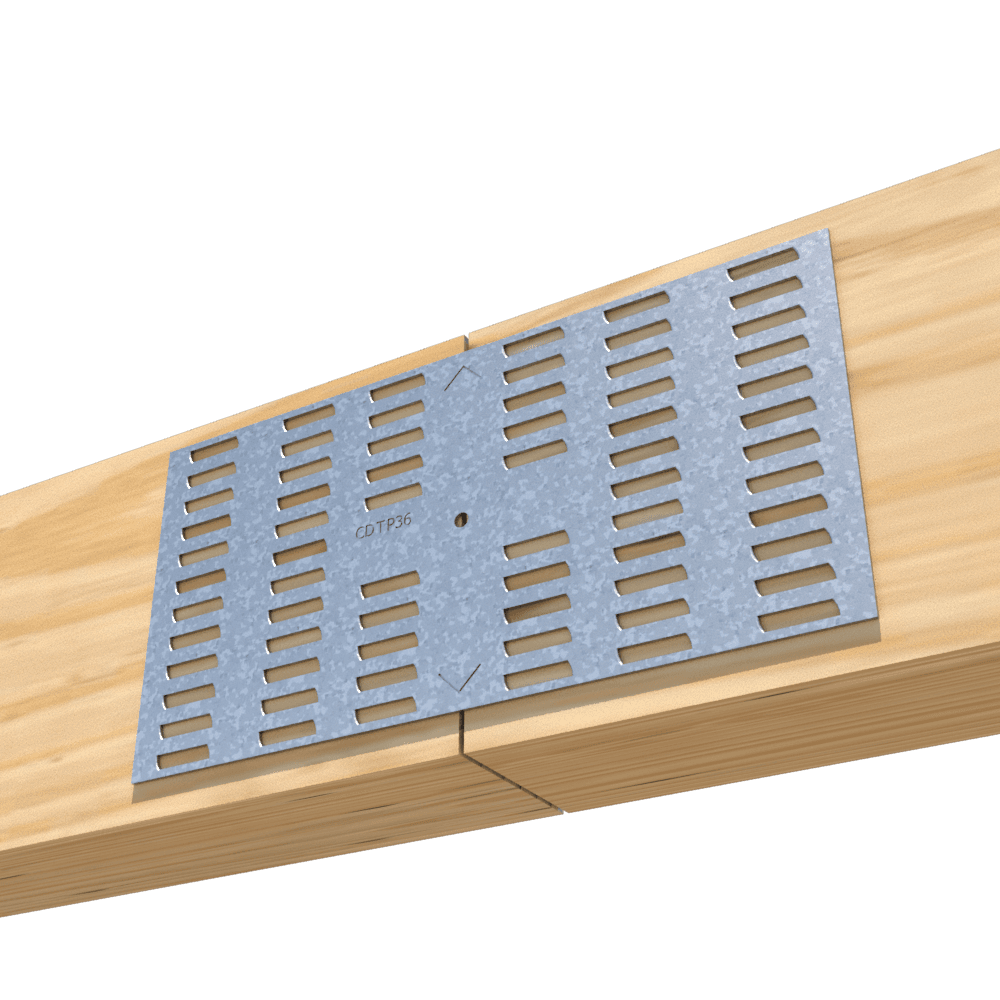

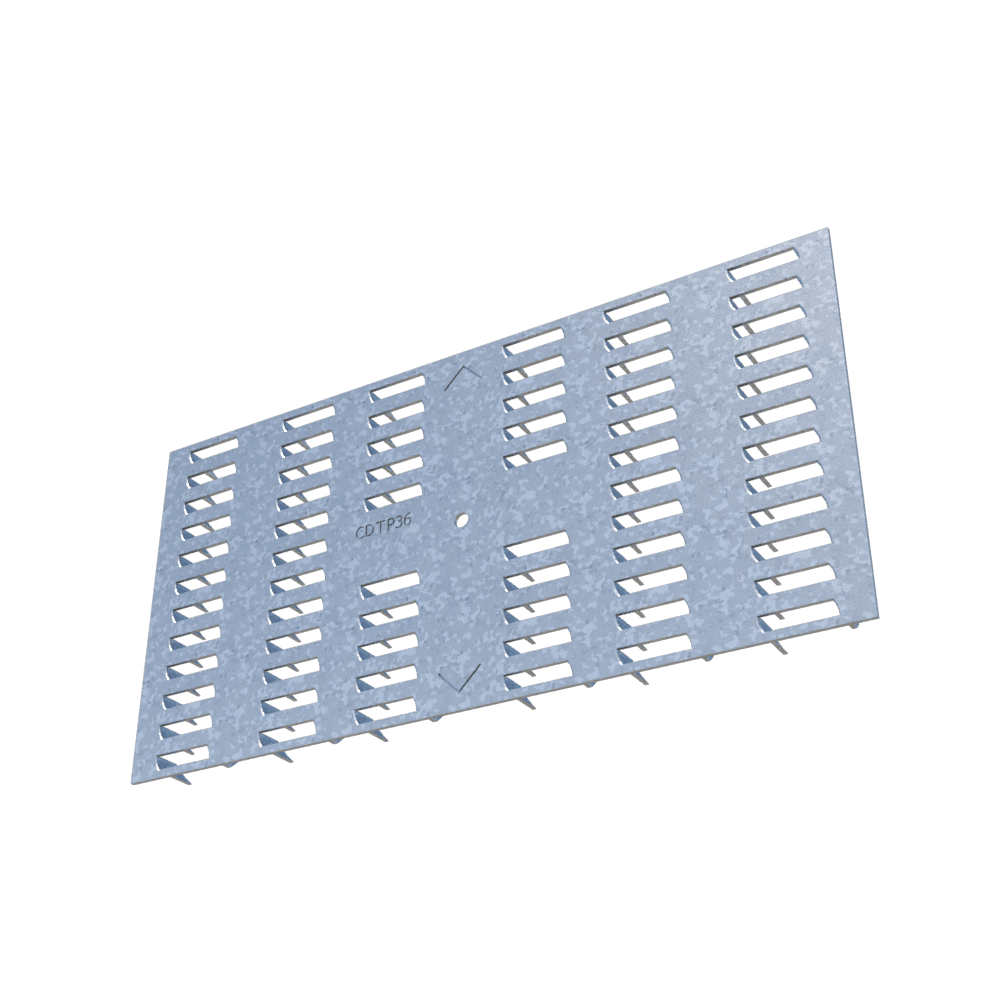

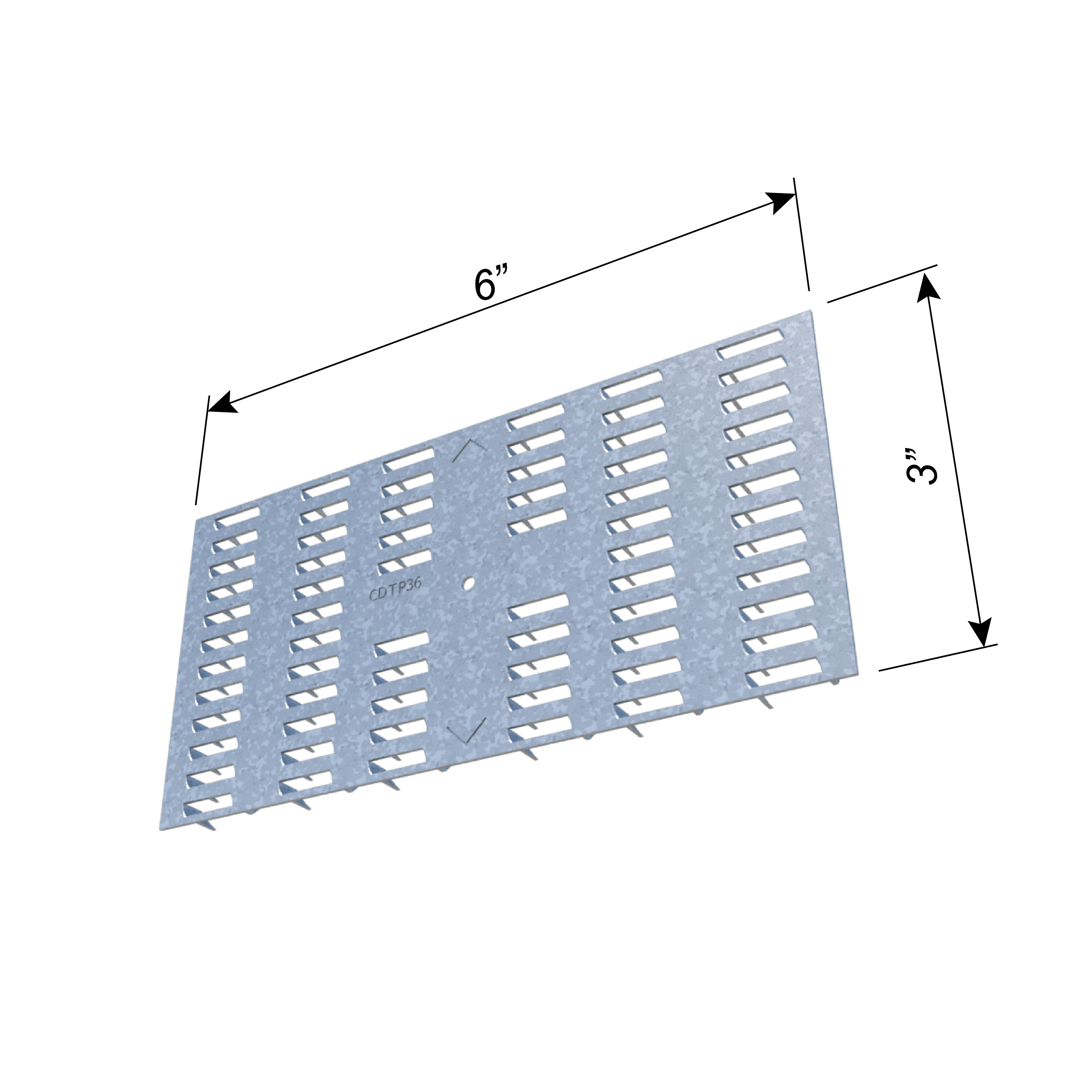

| CDTP36 | 3" X 6" |
