Nail Plates
nail PLATES
Nail Plates are used for attaching wooden members together in a non-structural connection.
Quick Actions:
Nail Plates are used for attaching wooden members together in a non-structural connection.
Material: 20ga (33mil), 0.0346" Design thickness, 0.0329" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
| Product Code | Size |
|---|---|

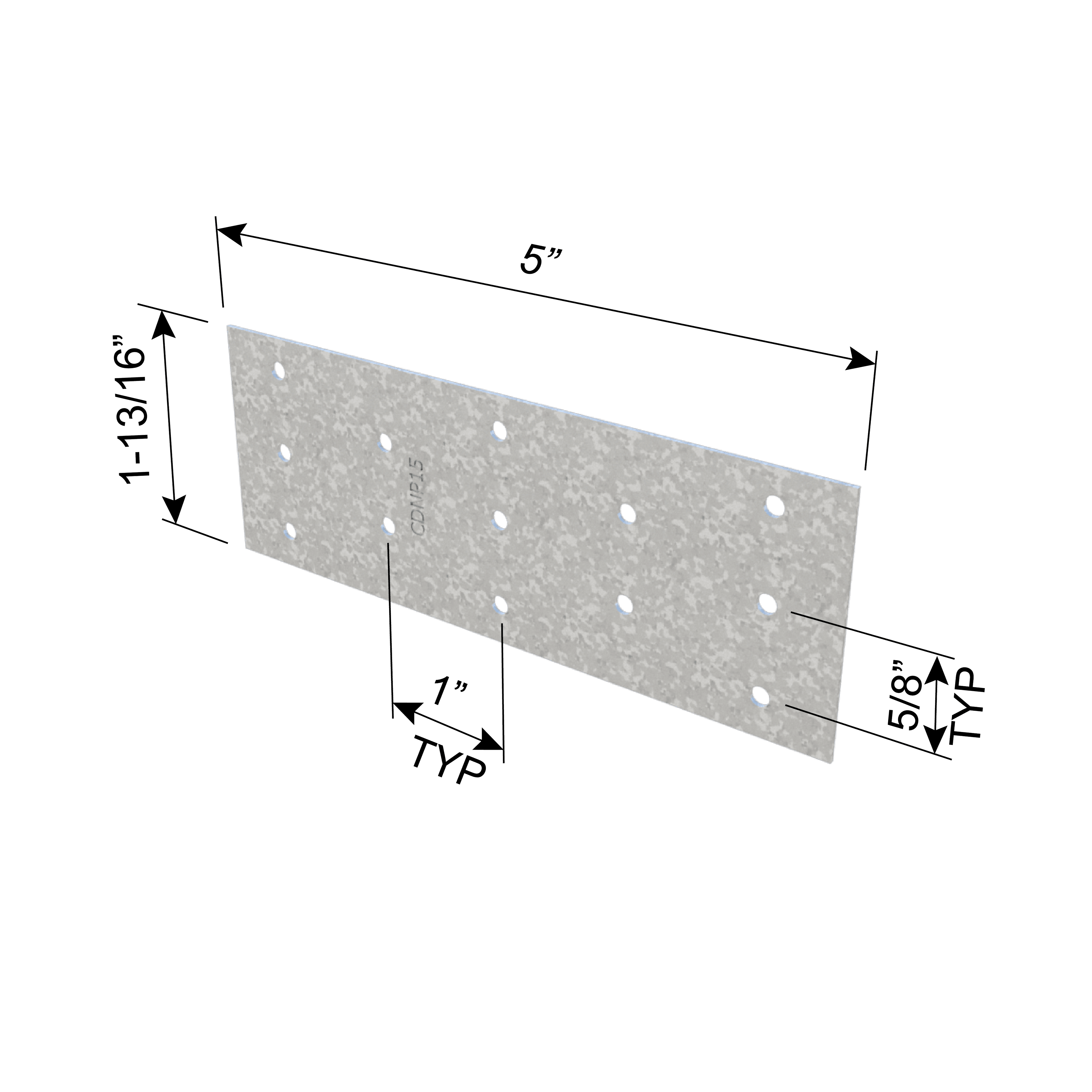

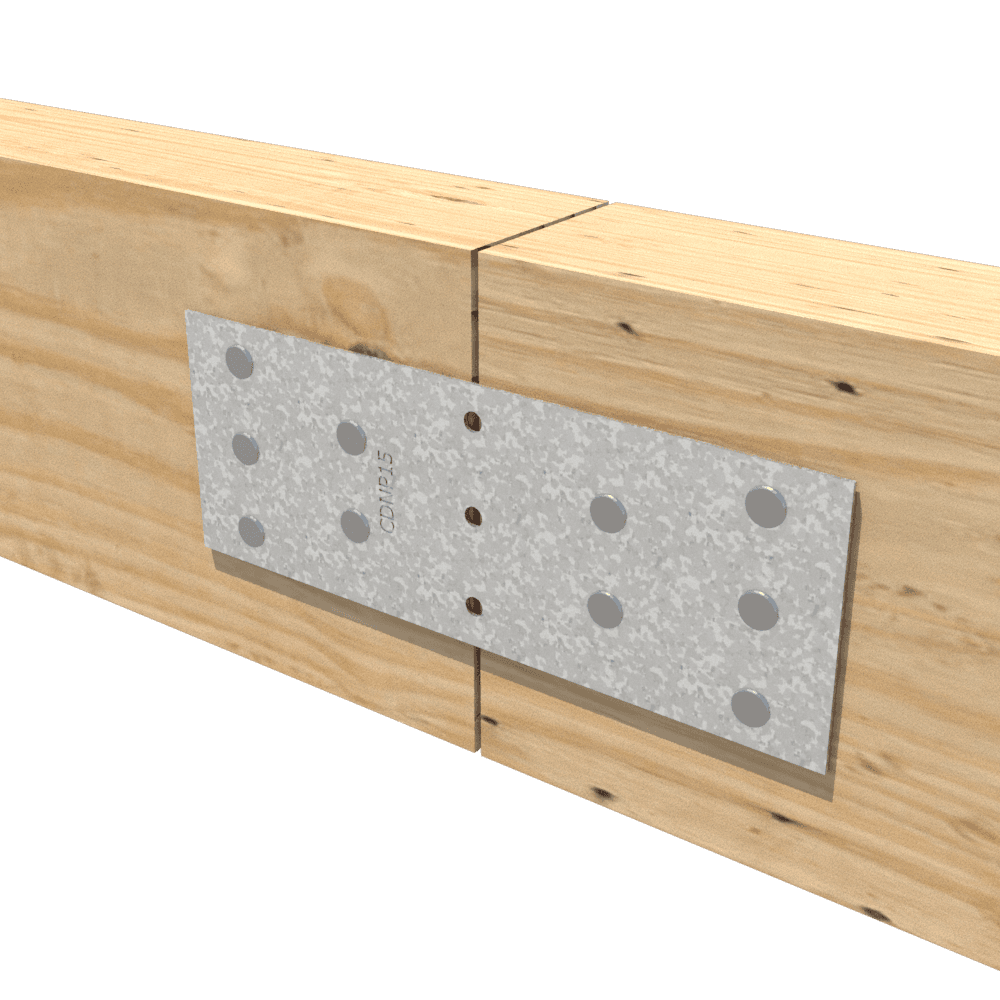

| CDNP15 | 2" X 5" |

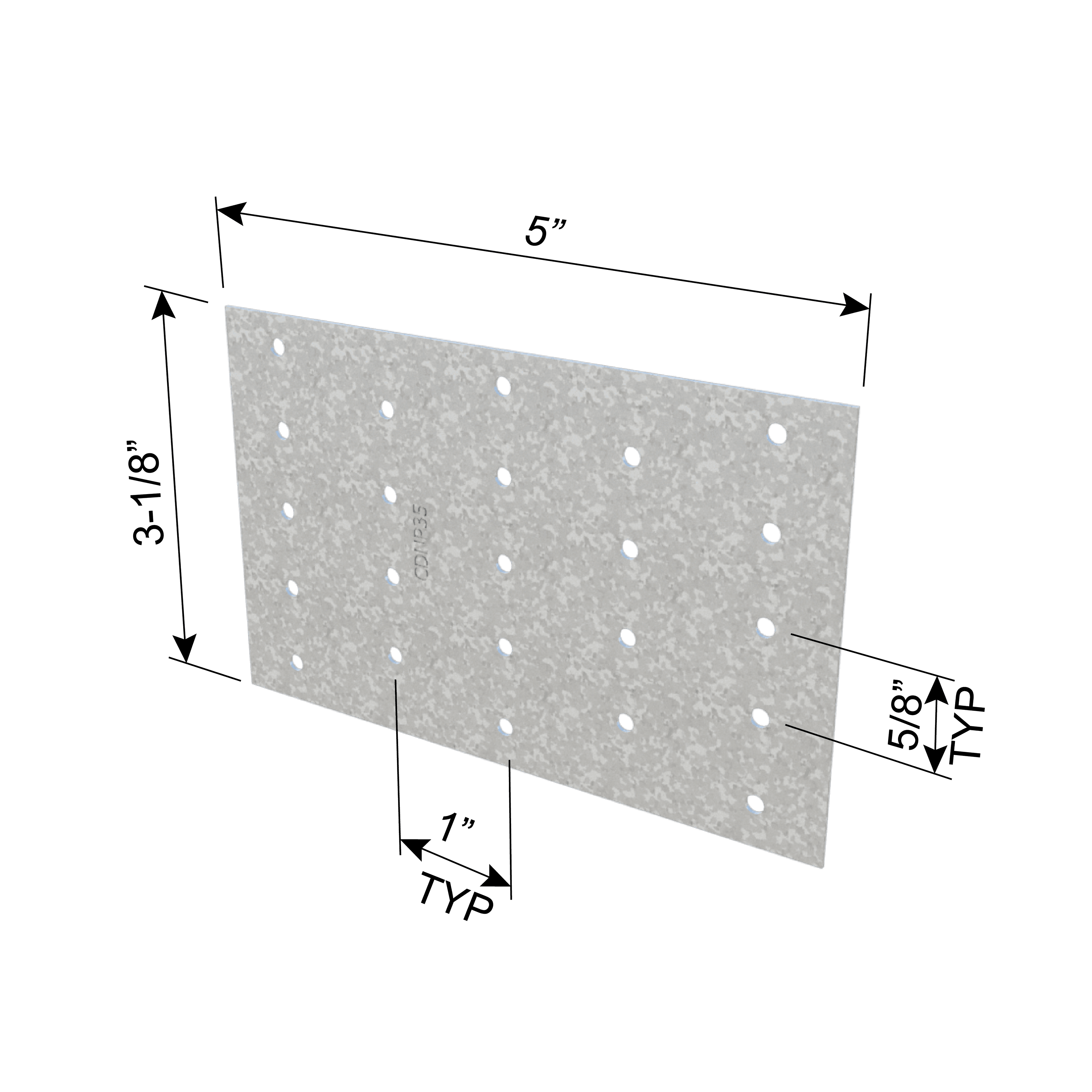

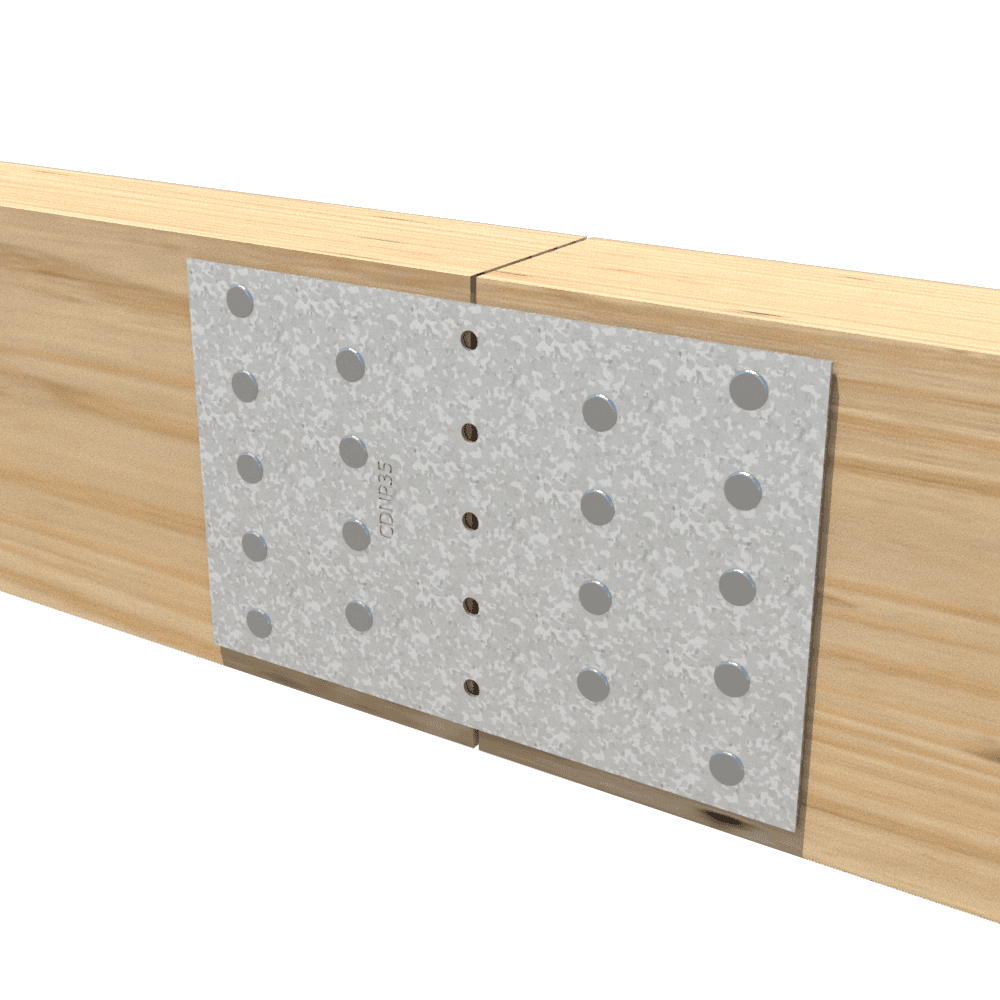

| CDNP35 | 3" X 5" |

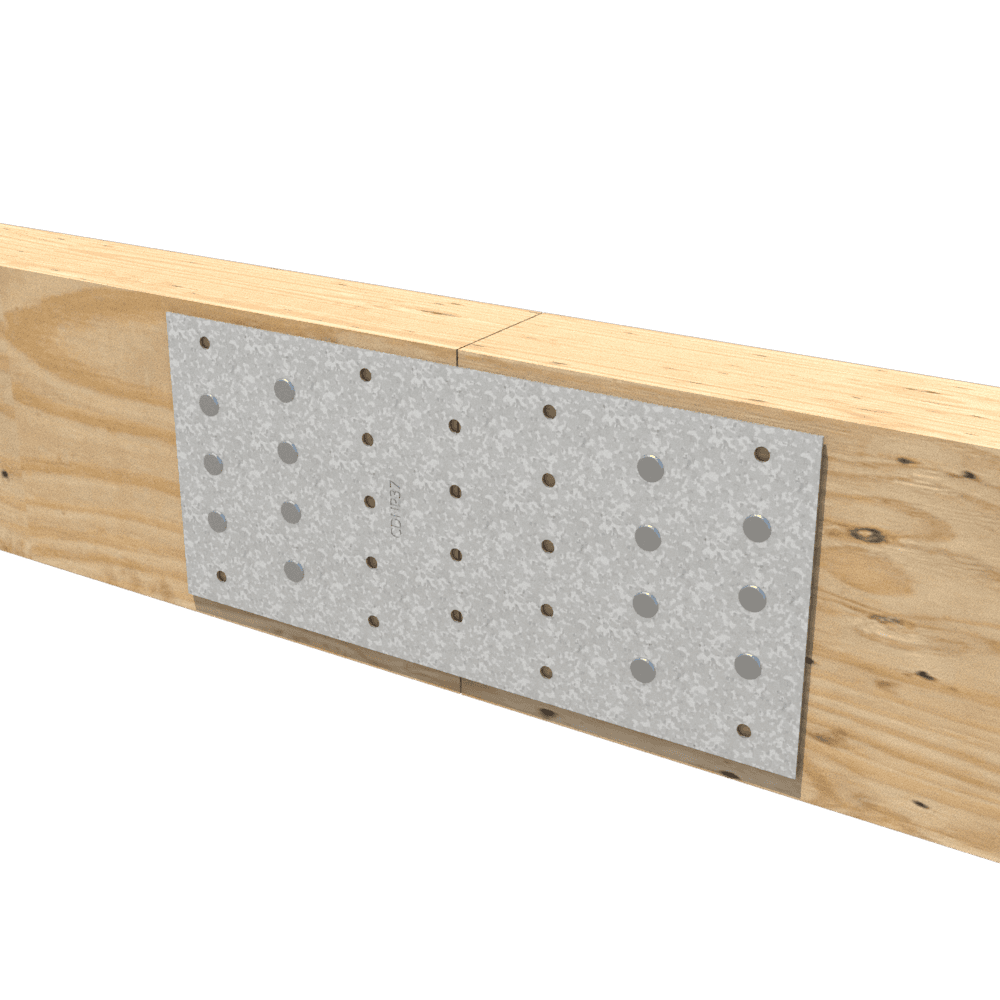

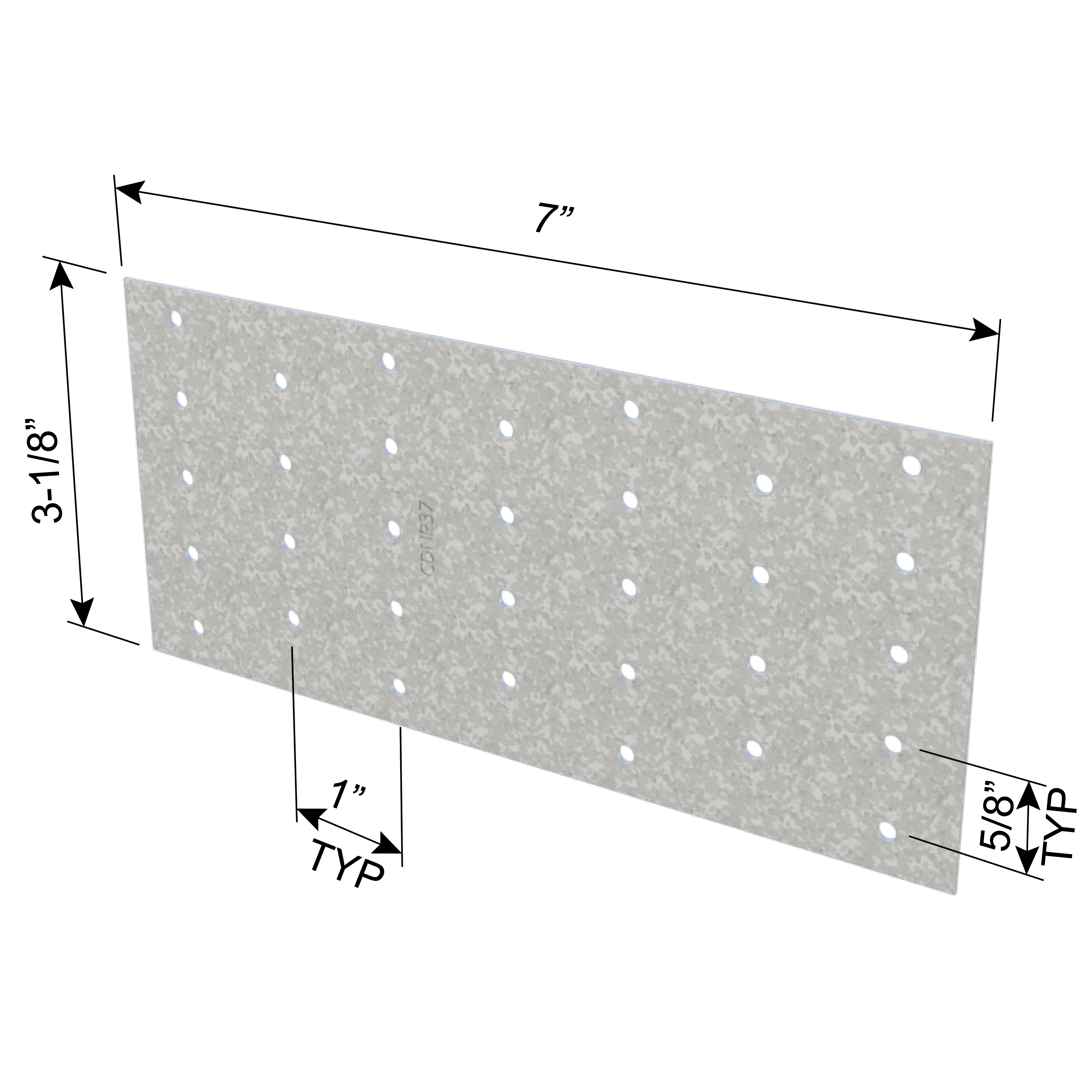

| CDNP37 | 3" X 7" |

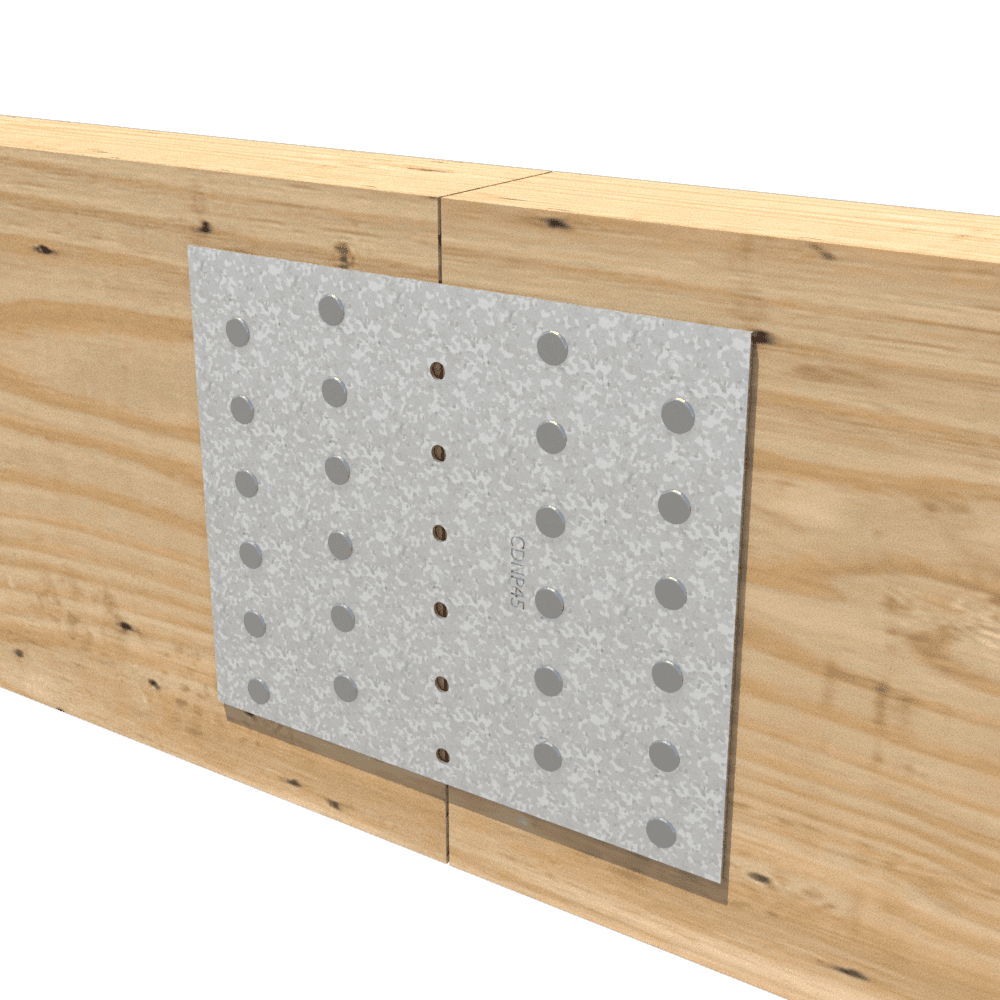

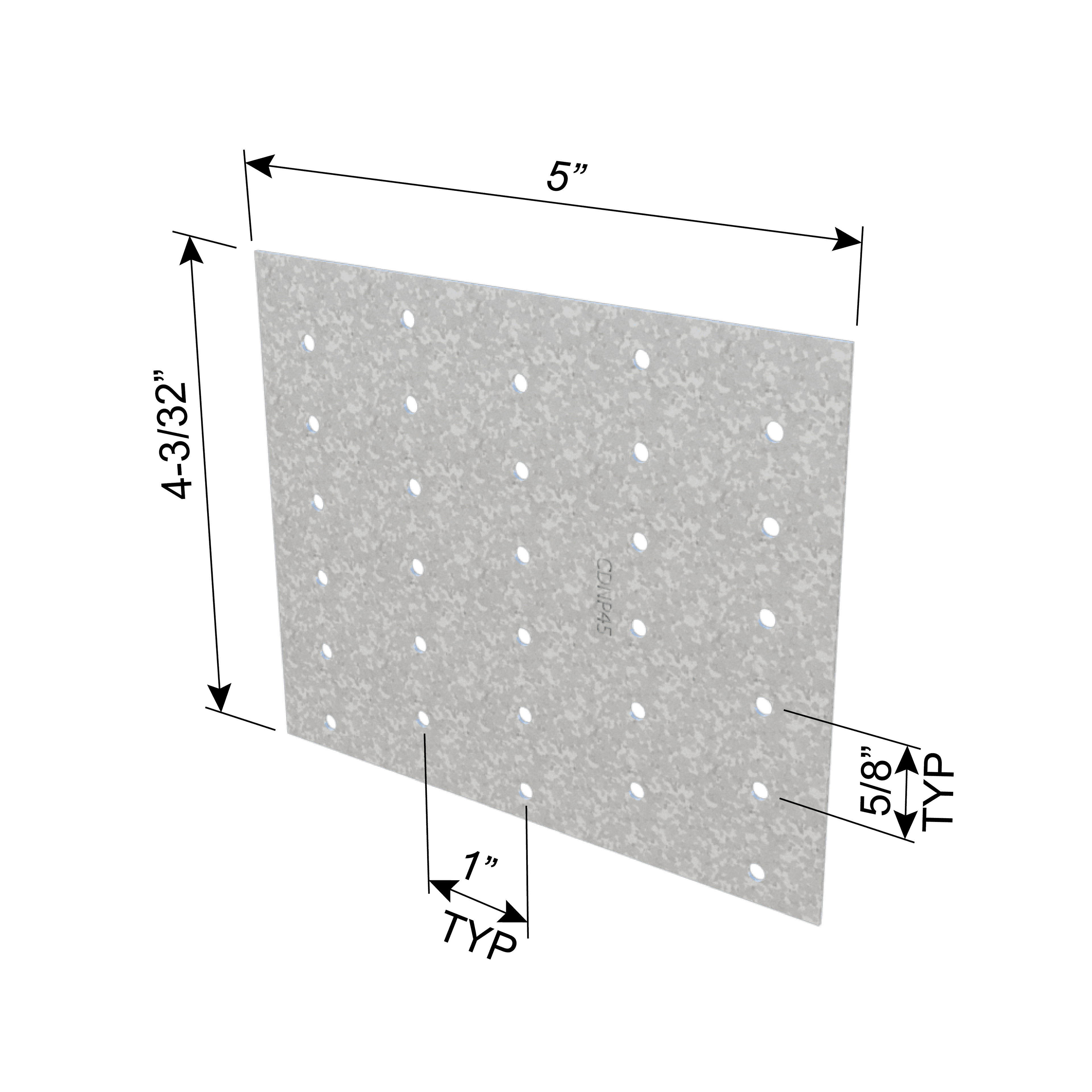

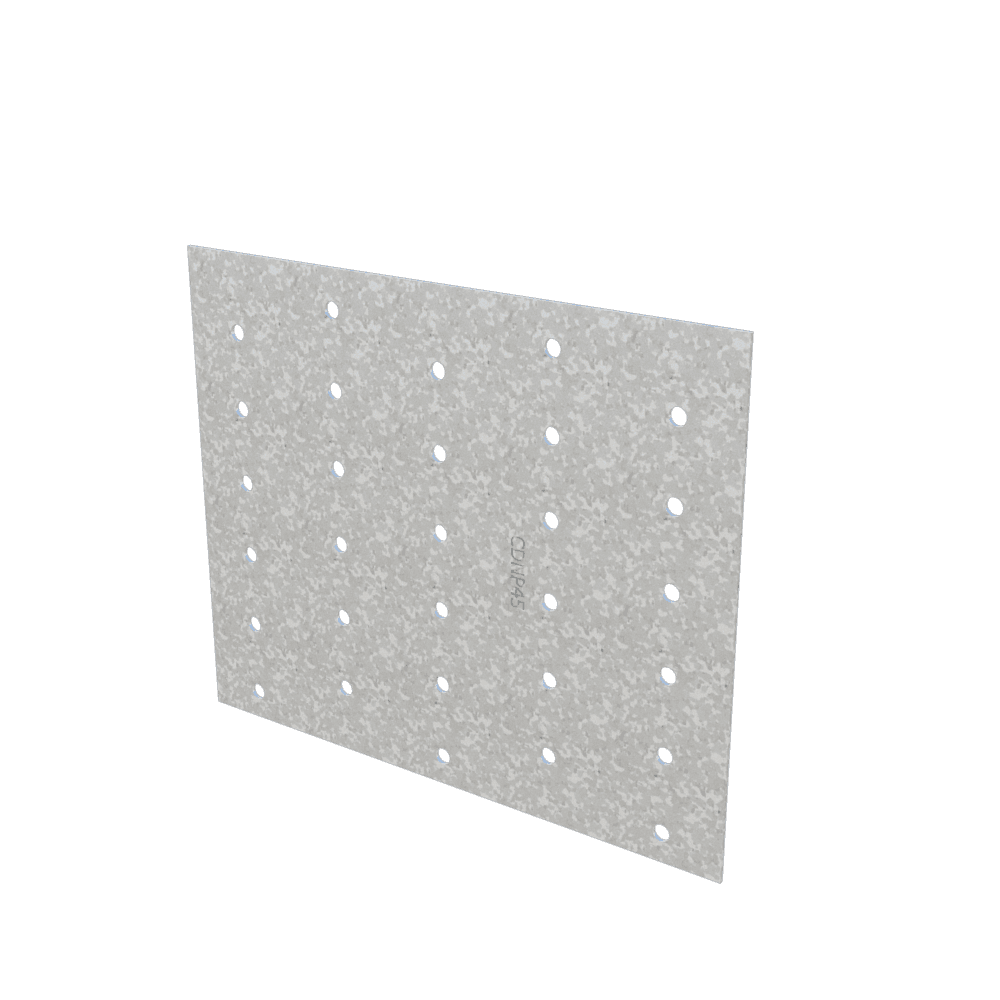

| CDNP45 | 4" X 5" |

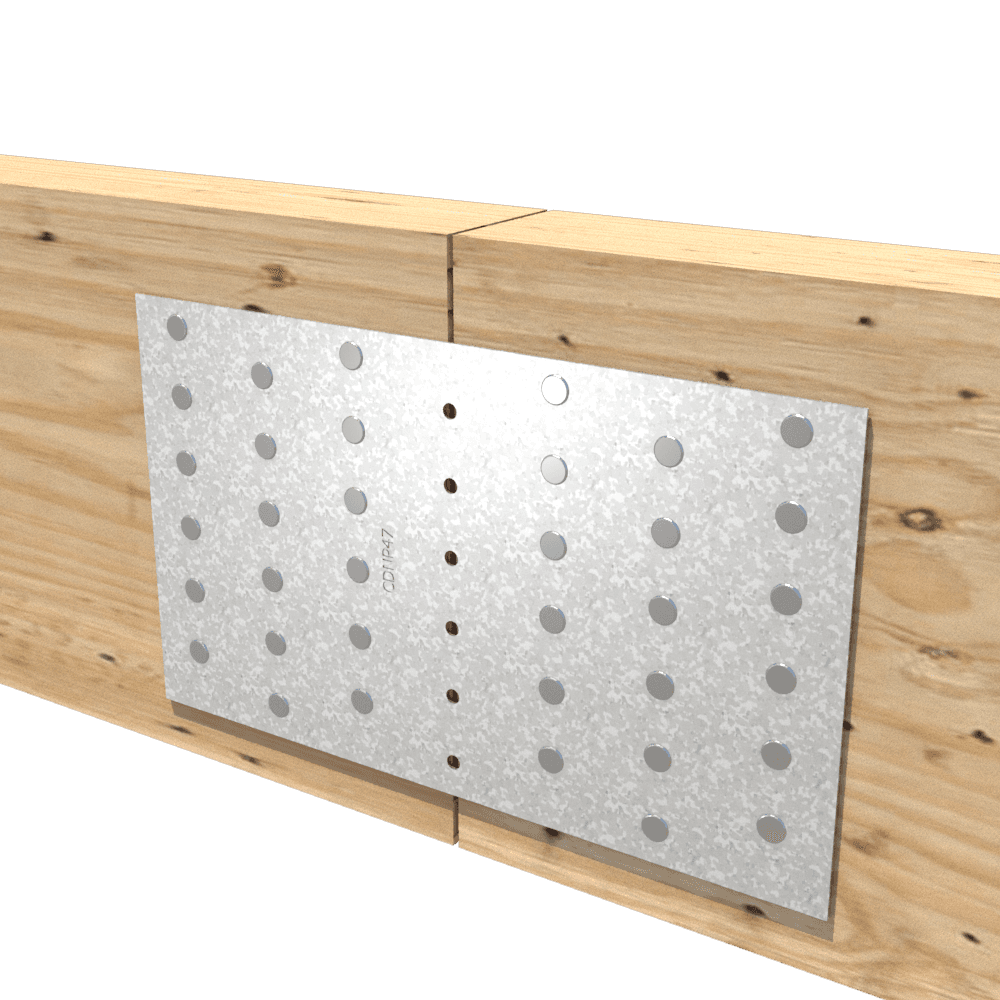

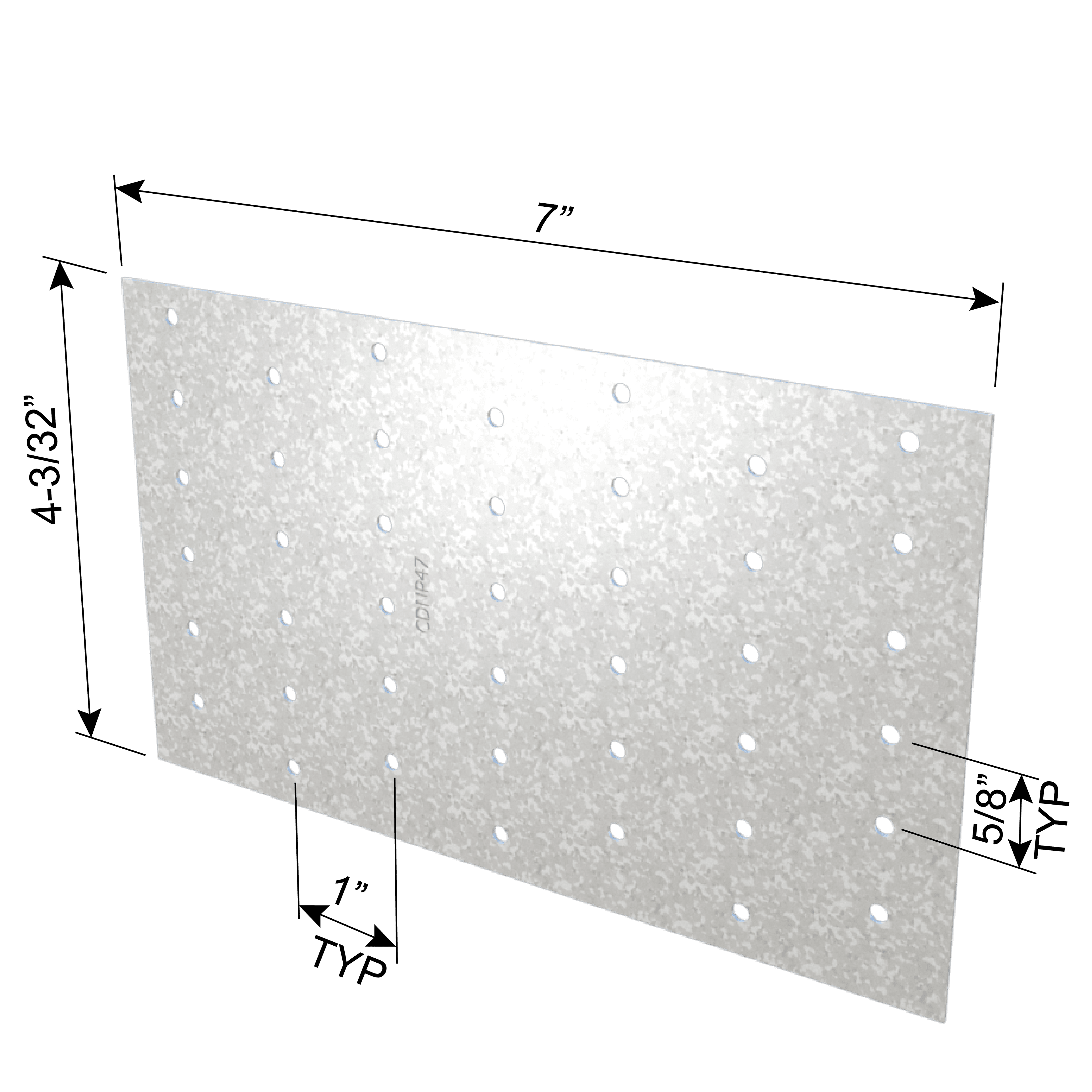

| CDNP47 | 4" X 7" |

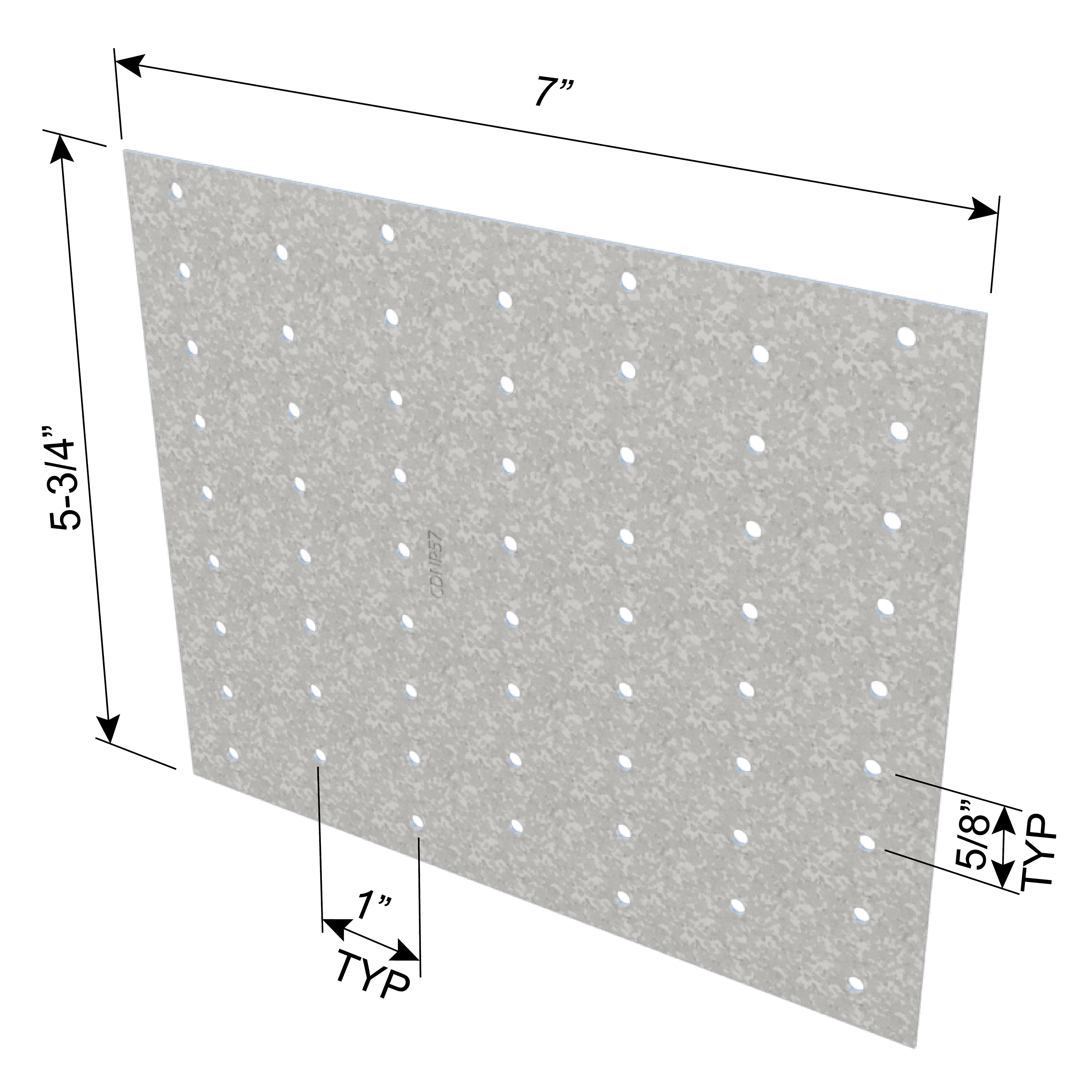

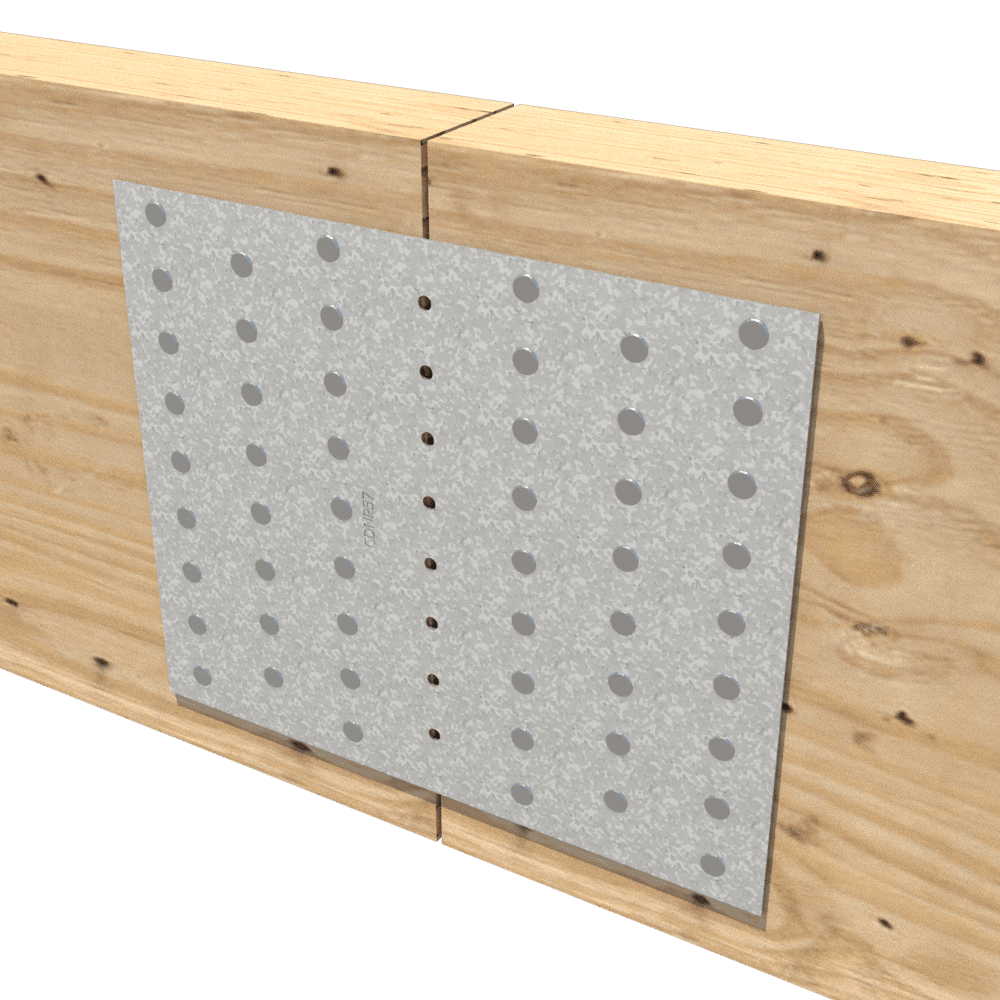

| CDNP57 | 5" X 7" |
