Nail Stop Plates
nail stop PLATES
Designed to prevent nails from piercing and damaging mechanical, electrical and plumbing pipes and lines.
Quick Actions:

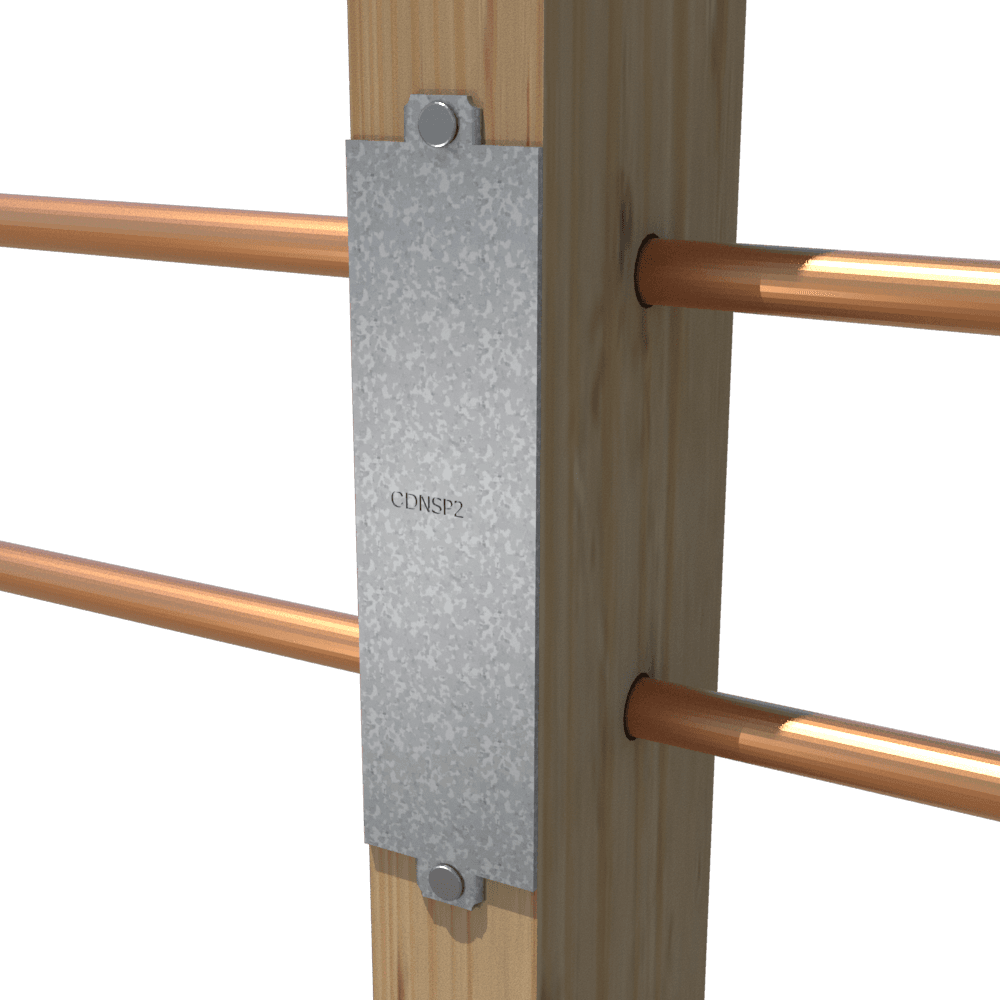

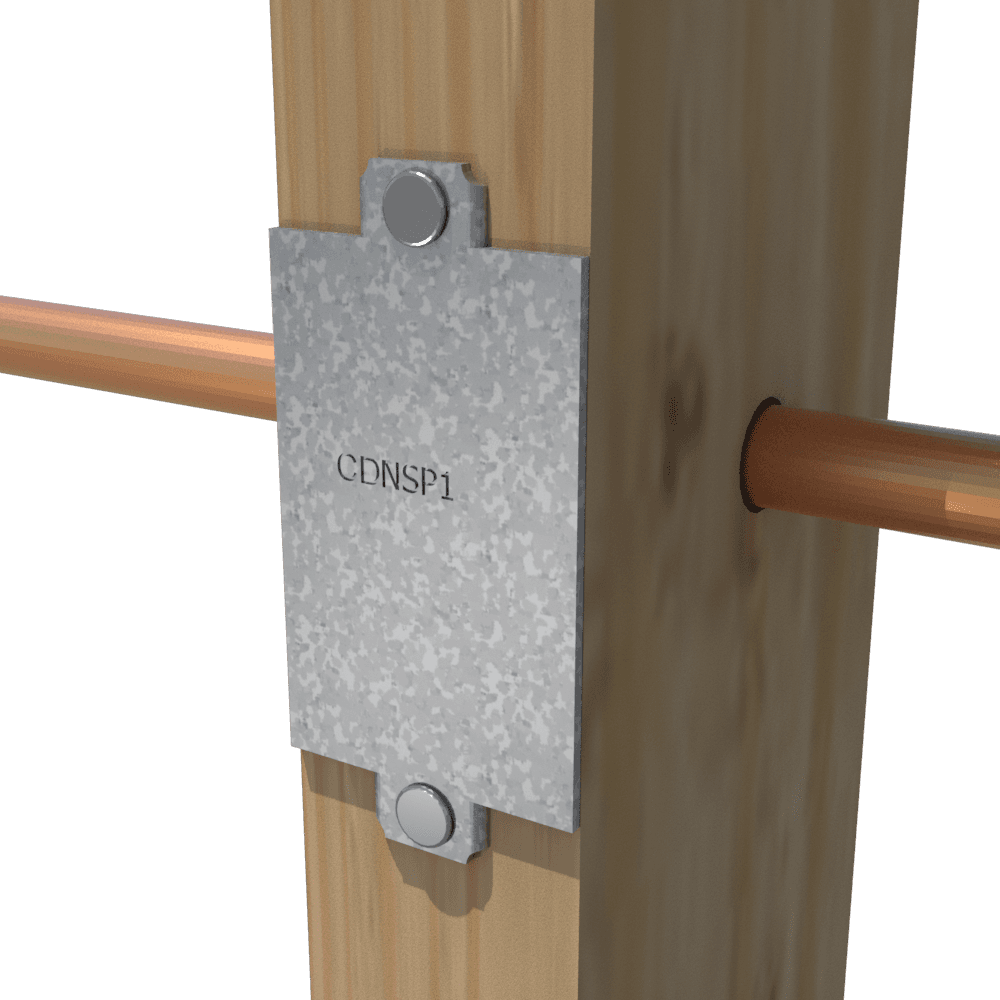

Designed to prevent nails from piercing and damaging mechanical, electrical and plumbing pipes and lines. To protect supply lines, the nail stopper is installed over each point where utilities pass through framing members.
Material: 16ga (54mil), 0.0566" Design thickness, 0.0538" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)
| Product Code | Size |
|---|---|

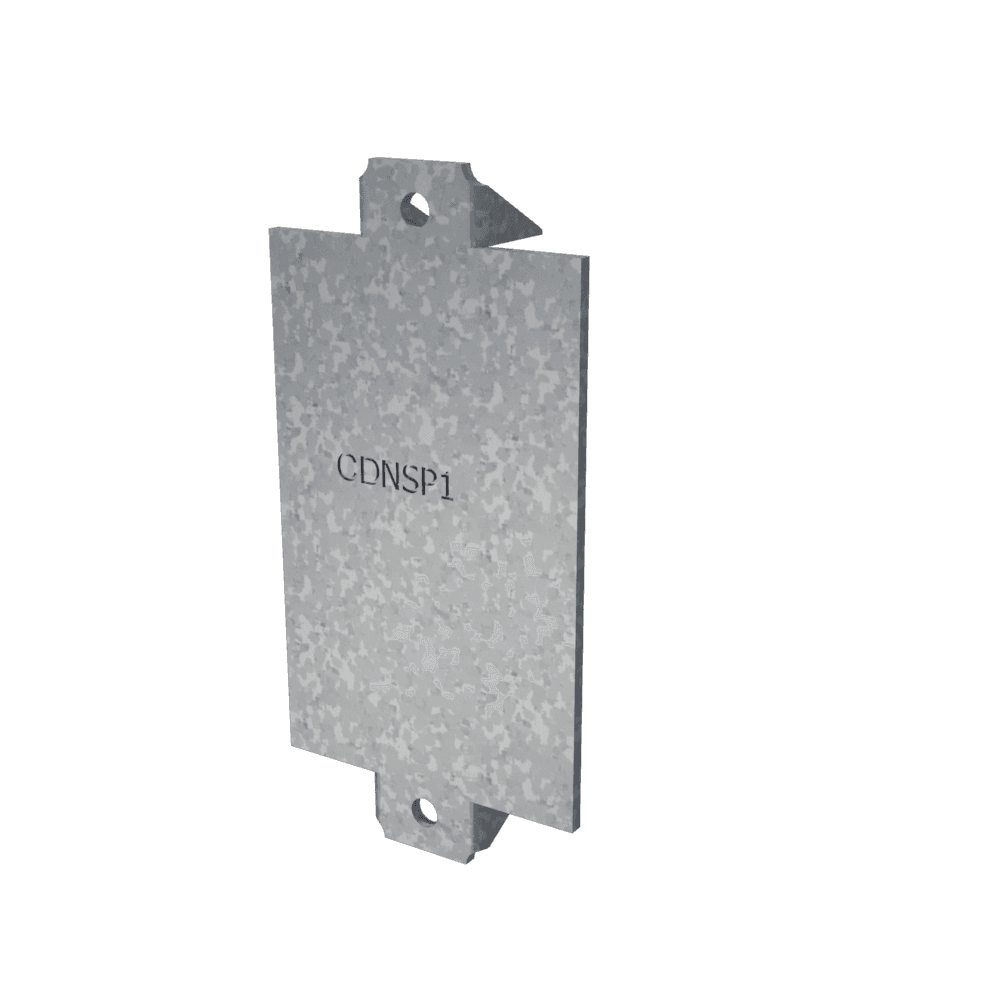

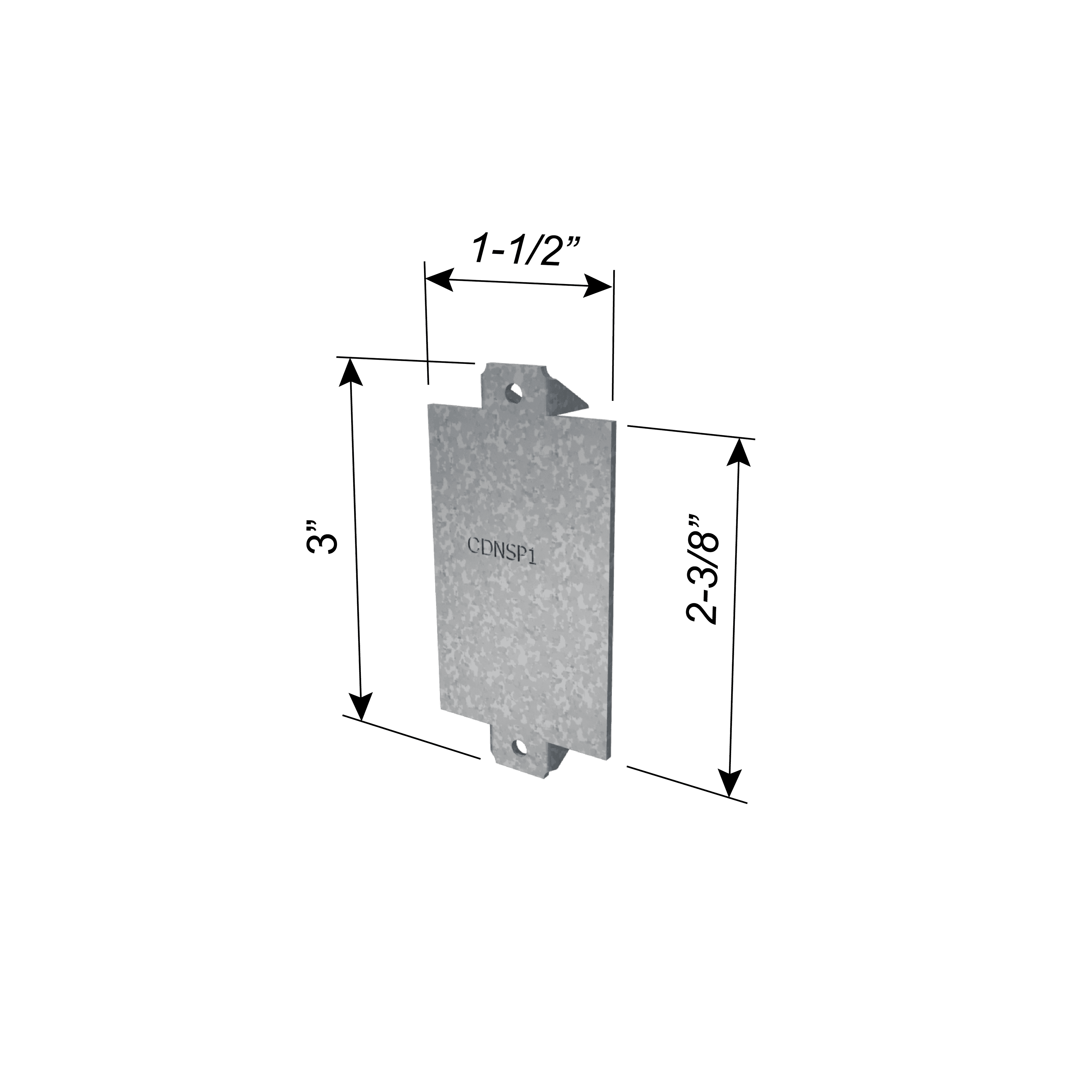

| CDNSP1 | 1-1/2" X 3" |

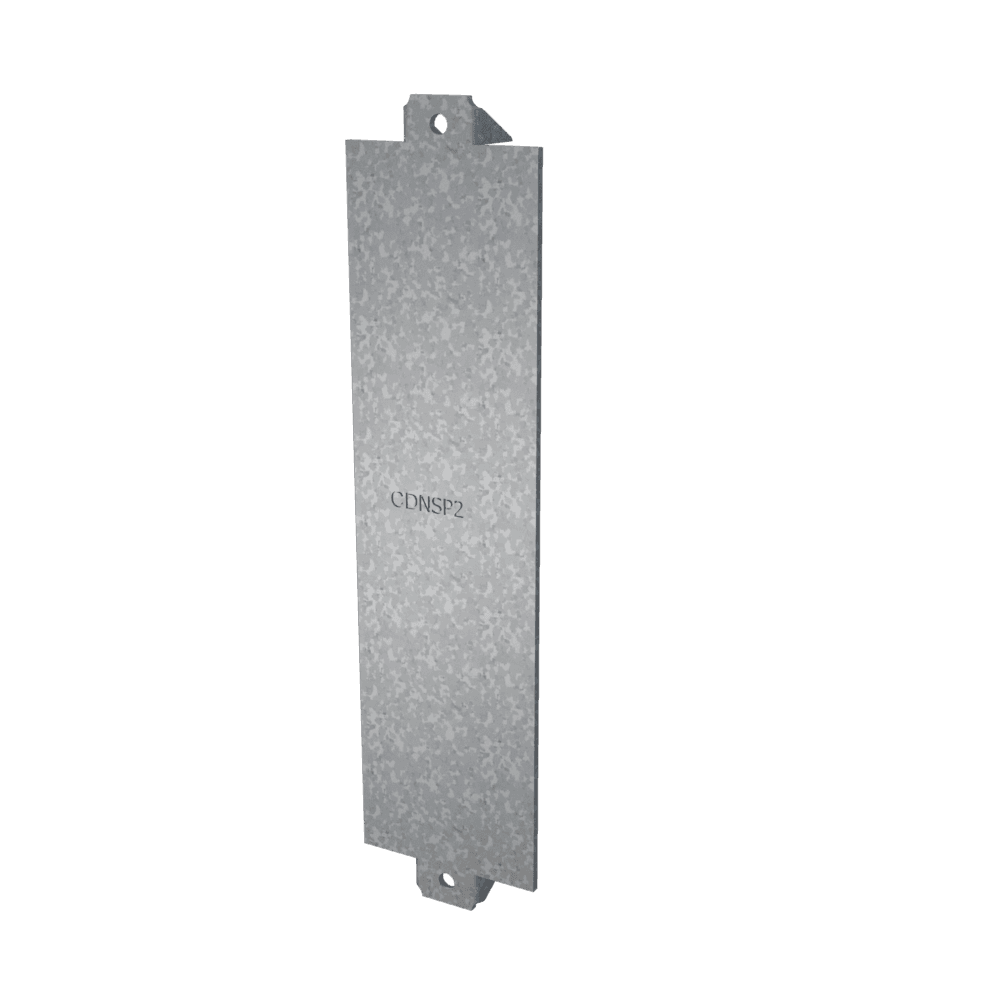

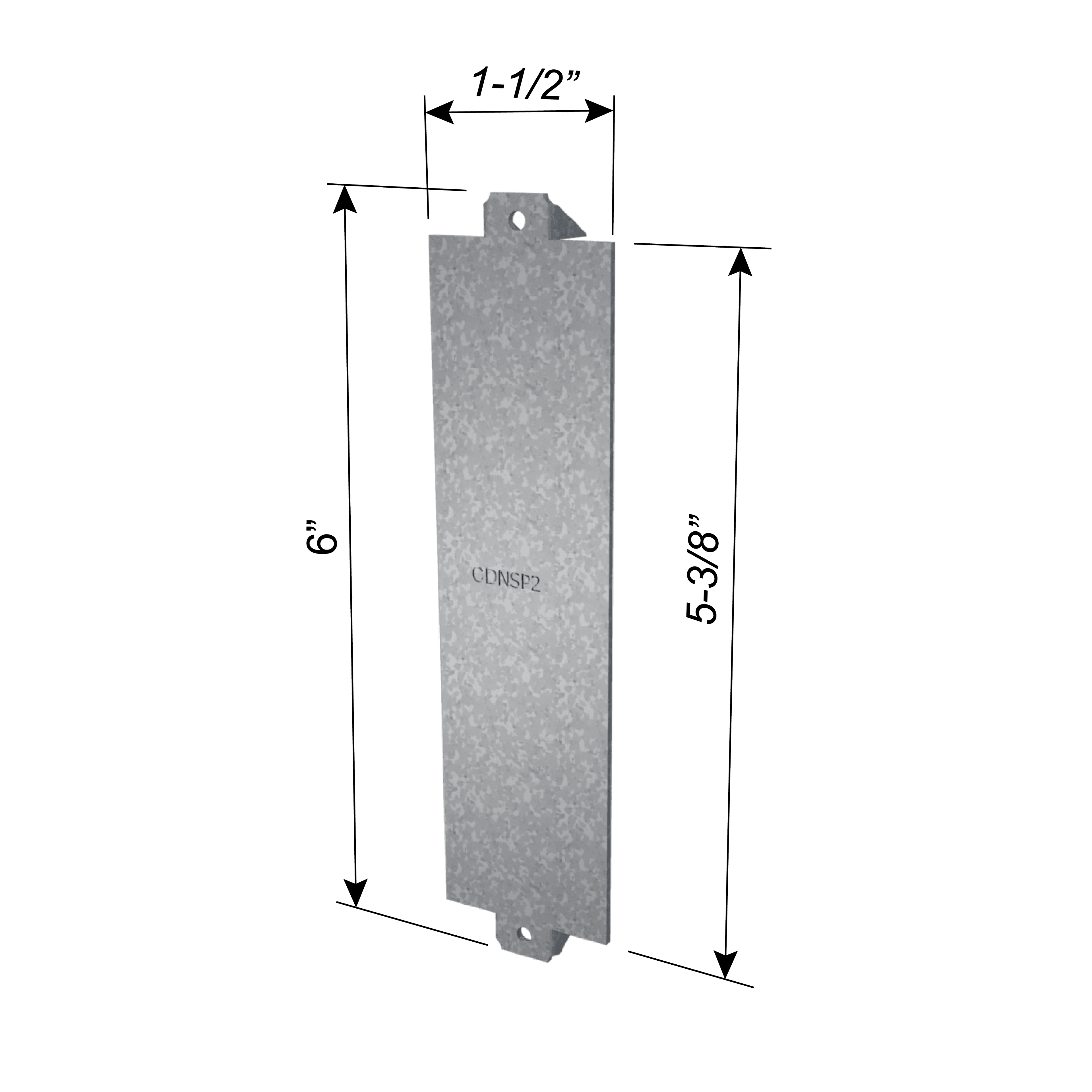

| CDNSP2 | 1-1/2" X 6" |
