Paper-Faced Splayed Corner Bead
High-performance off-angle tape-on bead is ideal for finishing 135° offset corners

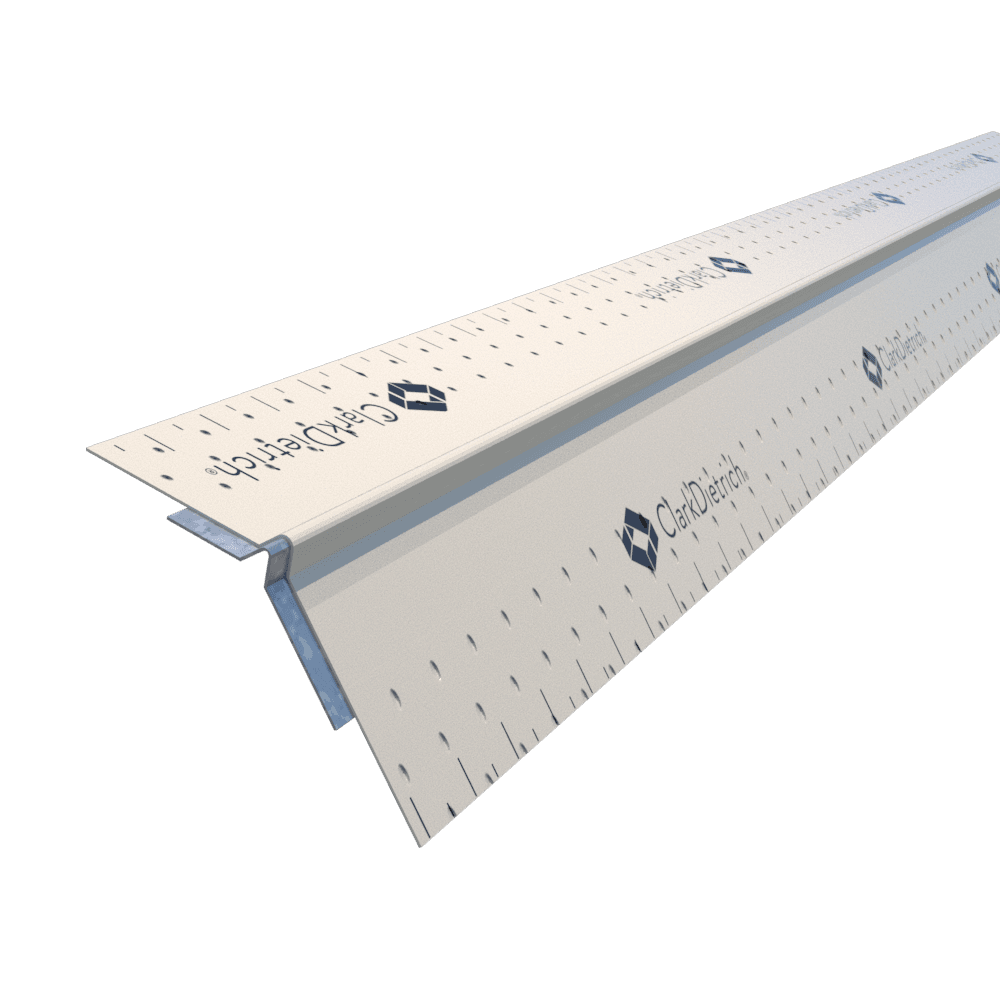

Off-angle tape-on bead, also known as splayed or 135° corner bead, is used to provide a strong, smooth finish for outside off-angle drywall intersections.
Quick Actions:

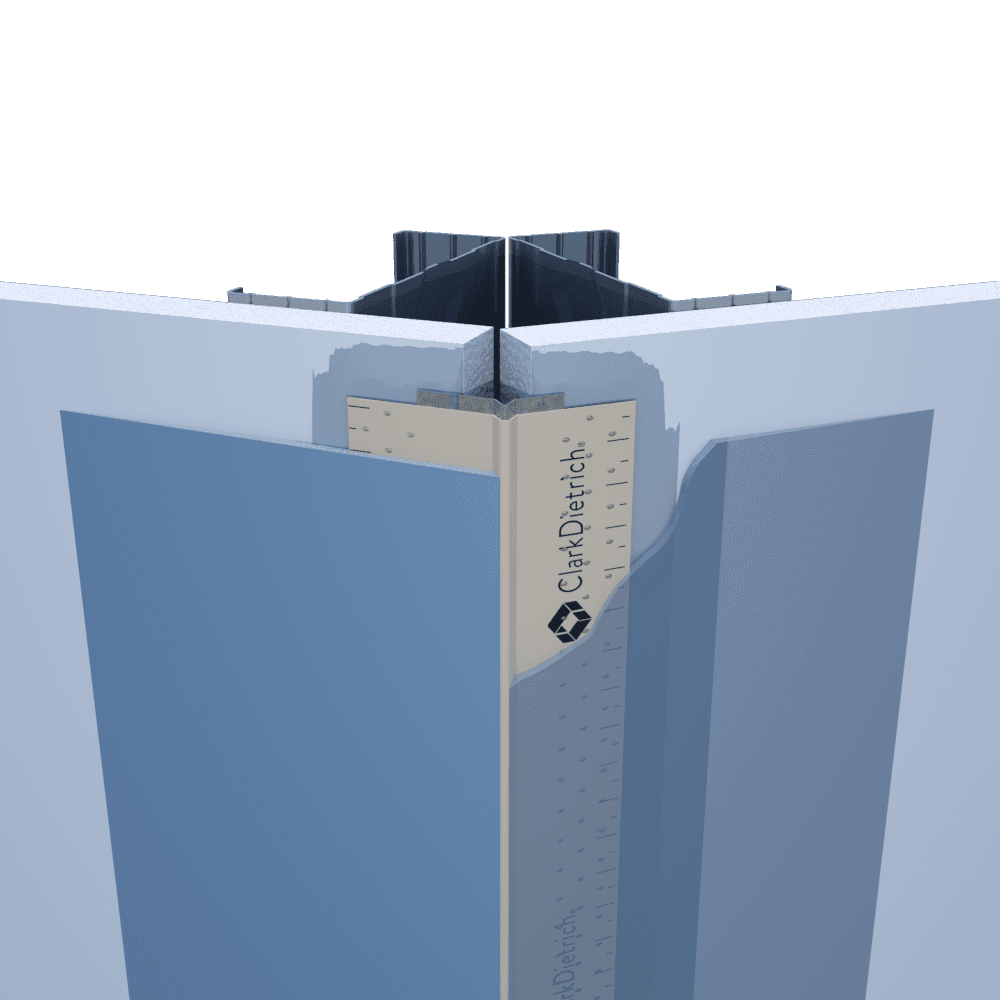

Paper-faced tape-on off-angle bead is applied in the same manner as 90° paper bead. Joint compound is used to embed the paper-faced bead to the wallboard paper. The result is a clean, crisp, durable off-angle corner that will not crack or chip.
- Virtually eliminates costly callbacks
- Impervious to “scuffing” and “fluffing-up”
- Will not be damaged by sanding
- Substantially reduces joint compound consumption and eliminates one finish coat
- Does not require mechanical fastening (no nails, staples, screws or crimps)
- Superior adhesion, bonding and paintability
- Does not require nose coating
- U.S. Patent Nos. 5,613,335 and 5,836,122
Product Data & Ordering Information
| Product code | Style | Dimensions | Pcs./Ctn. | Ctns/Skid | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| CD1-O | Off-Angle | 5/8" | 3/4" | 1/2" | 5/8" | 50 | 40 |
Standard lengths are 8' and 10'. Other lengths available.
Material: 0.0125 galvanized coating
