Post Beam Caps
Post Beam Caps

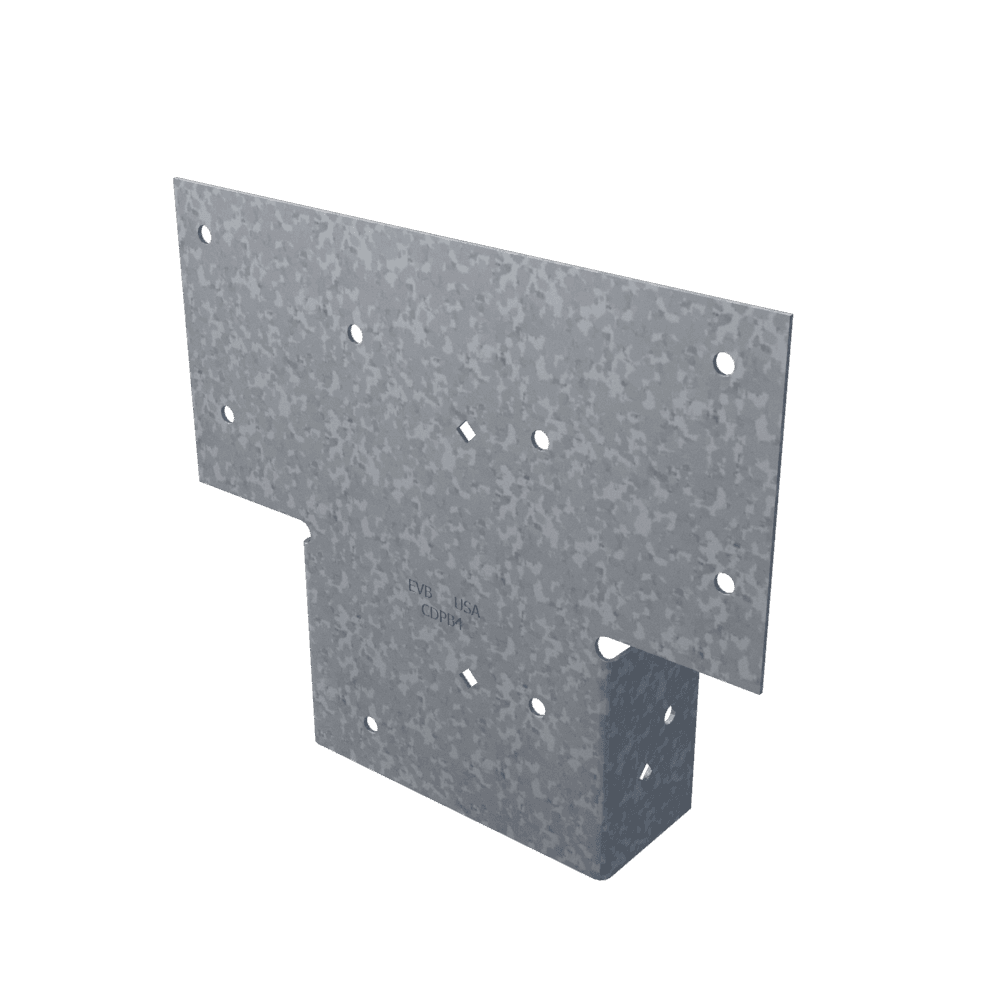

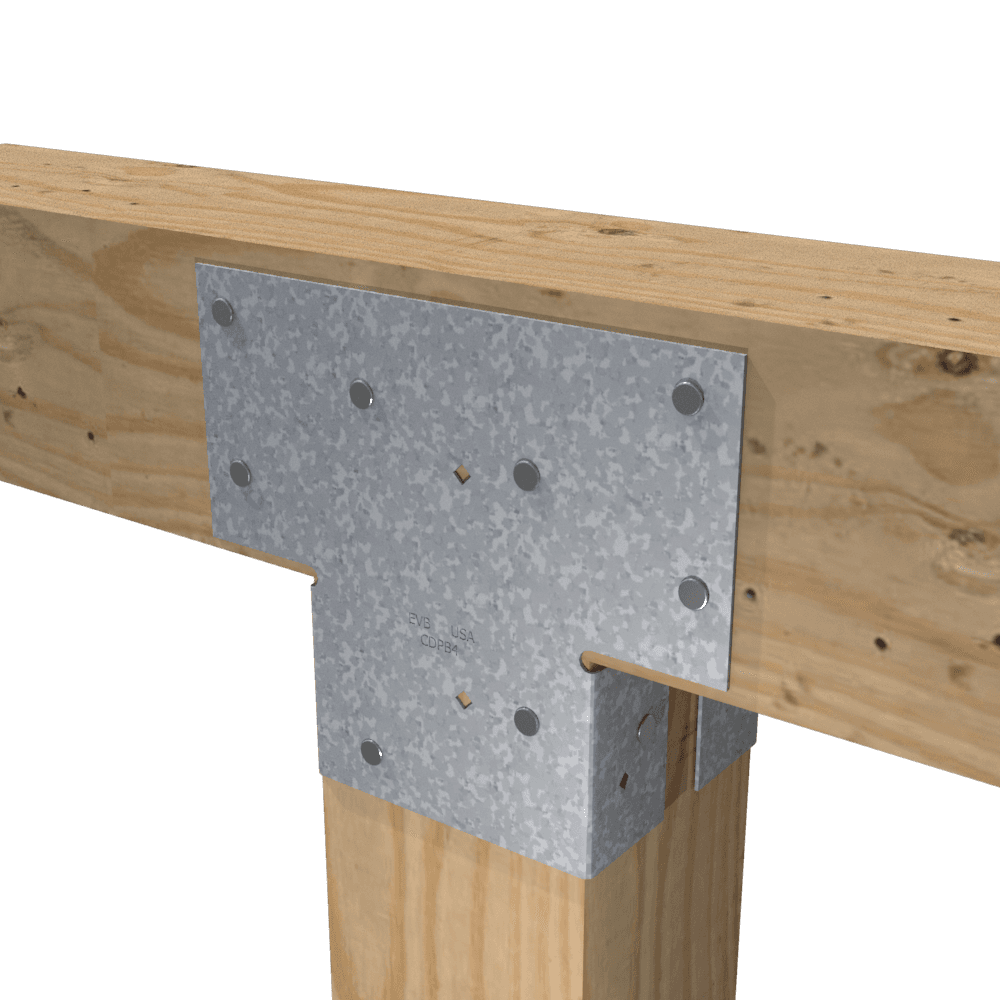

The post beam cap secures wood posts to a wood beam. Eliminates the need for toe-nailing a wood beam to a post or column.
Quick Actions:
The post beam cap secures wood posts to a wood beam. Eliminates the need for toe-nailing a wood beam to a post or column.
Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available upon request)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

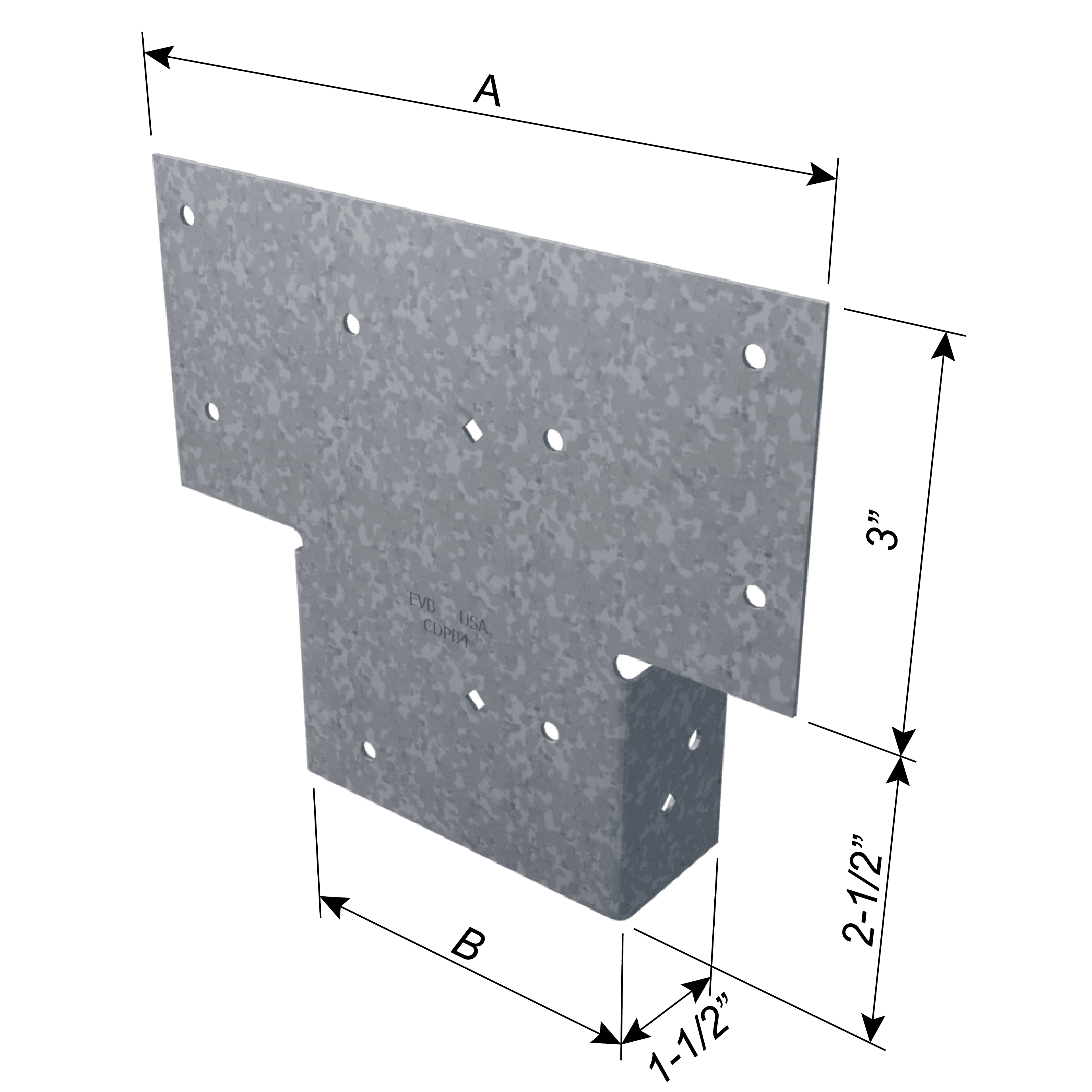

| Product Code | Post Size | Overall Width (A) | Post Width (B) |
|---|---|---|---|
| CDPB4 | 4x | 6-7/16" | 3-9/16" |
- For all technical inquiries regarding residential connectors, please contact Clip Express at 866-638-1908 or clipexpress@clarkdietrich.com.
