Post Caps
Post Caps

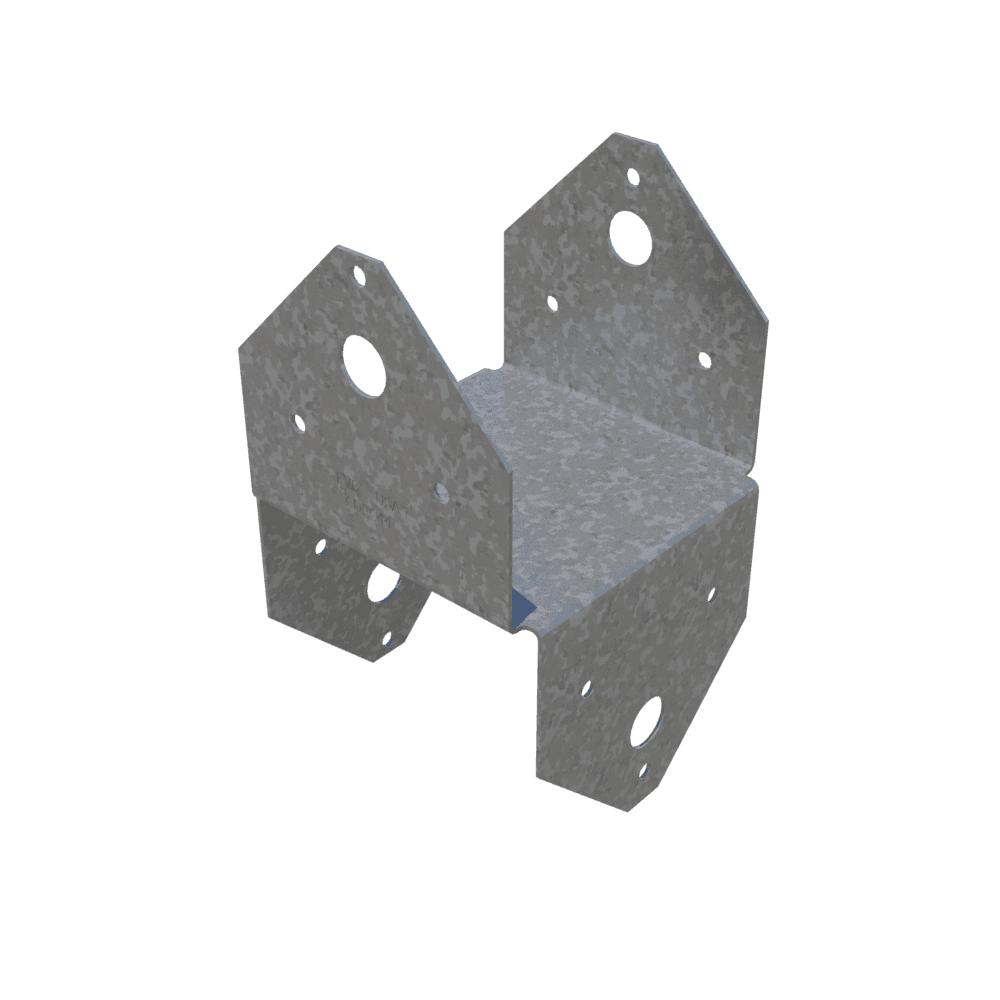

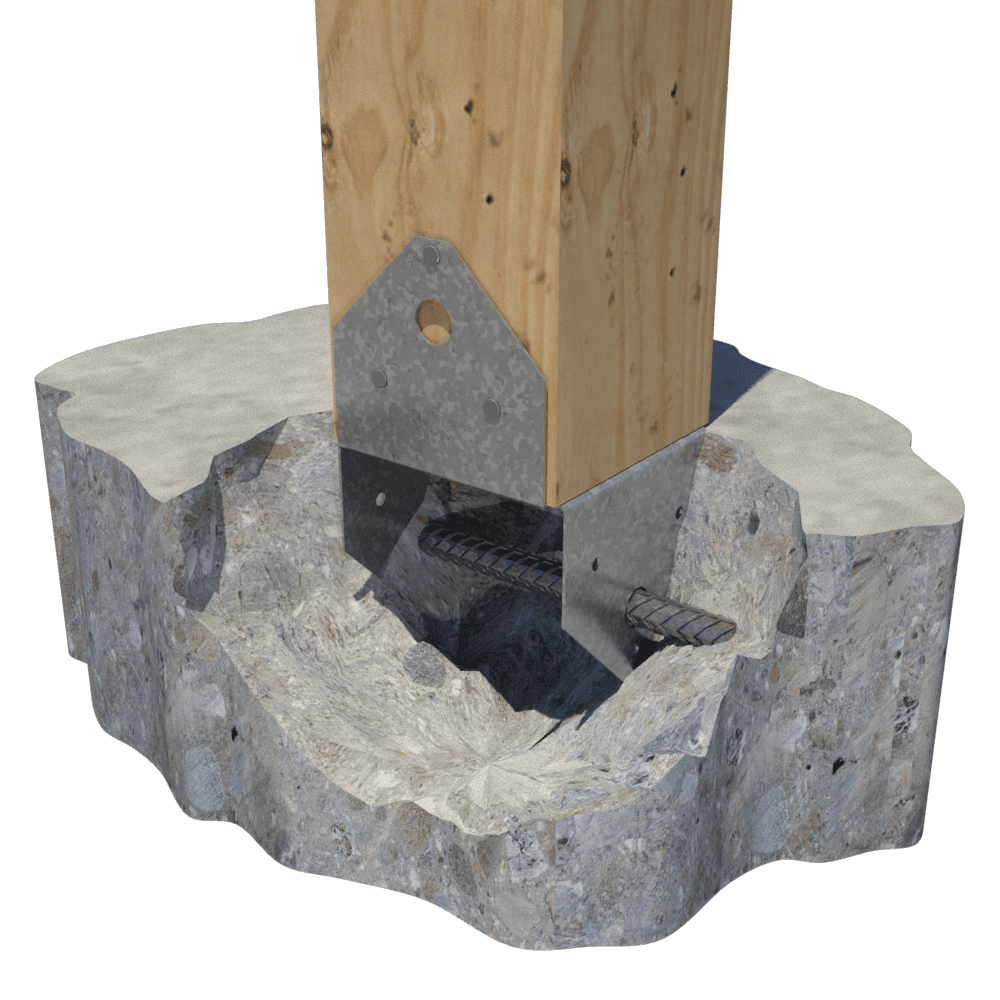

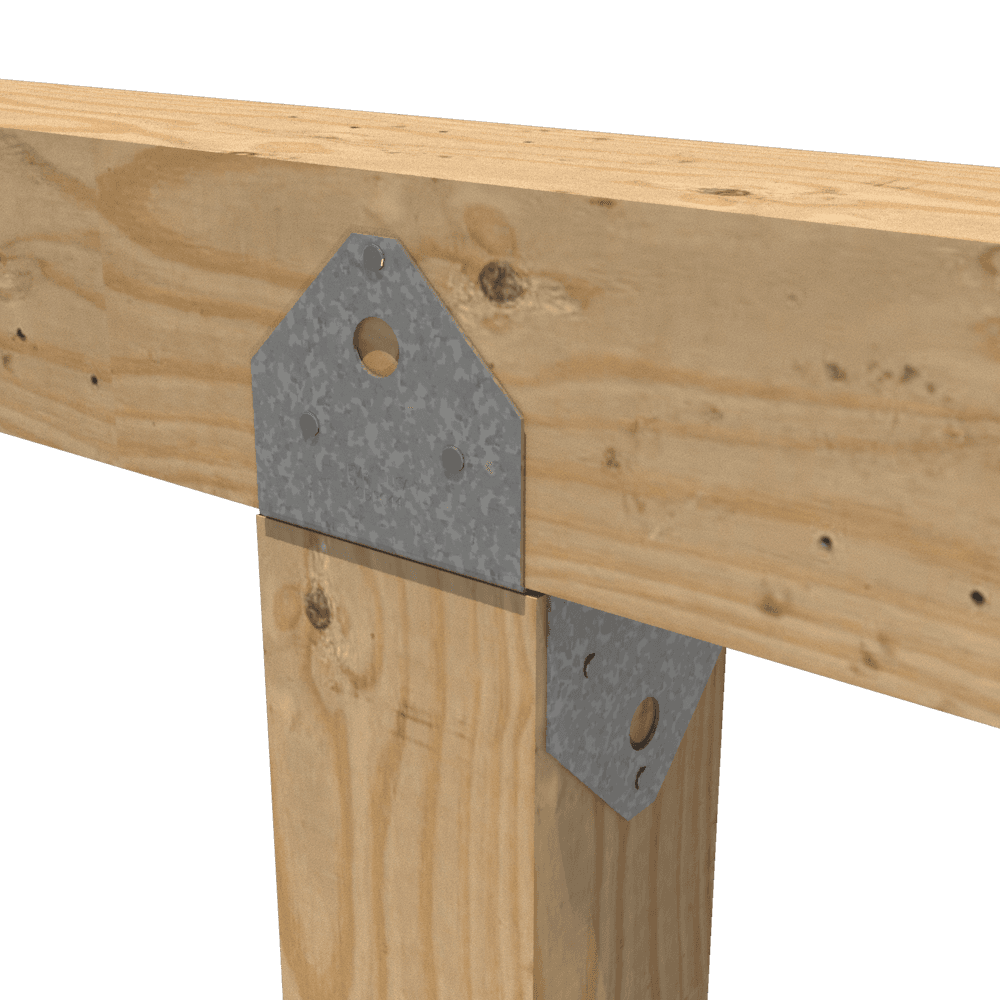

One-piece designed post cap with no spot welds as possible weak points. Acts as both a post cap and post base
Quick Actions:
One-piece designed post cap with no spot welds as possible weak points. Acts as both a post cap and post base.
Material: 18ga (43mil), 0.0451 Design thickness, 0.0428 Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating (G185 available upon request)
Yield Strength: Structural Grade 50 Type H (ST50H), 50ksi (340 MPa)

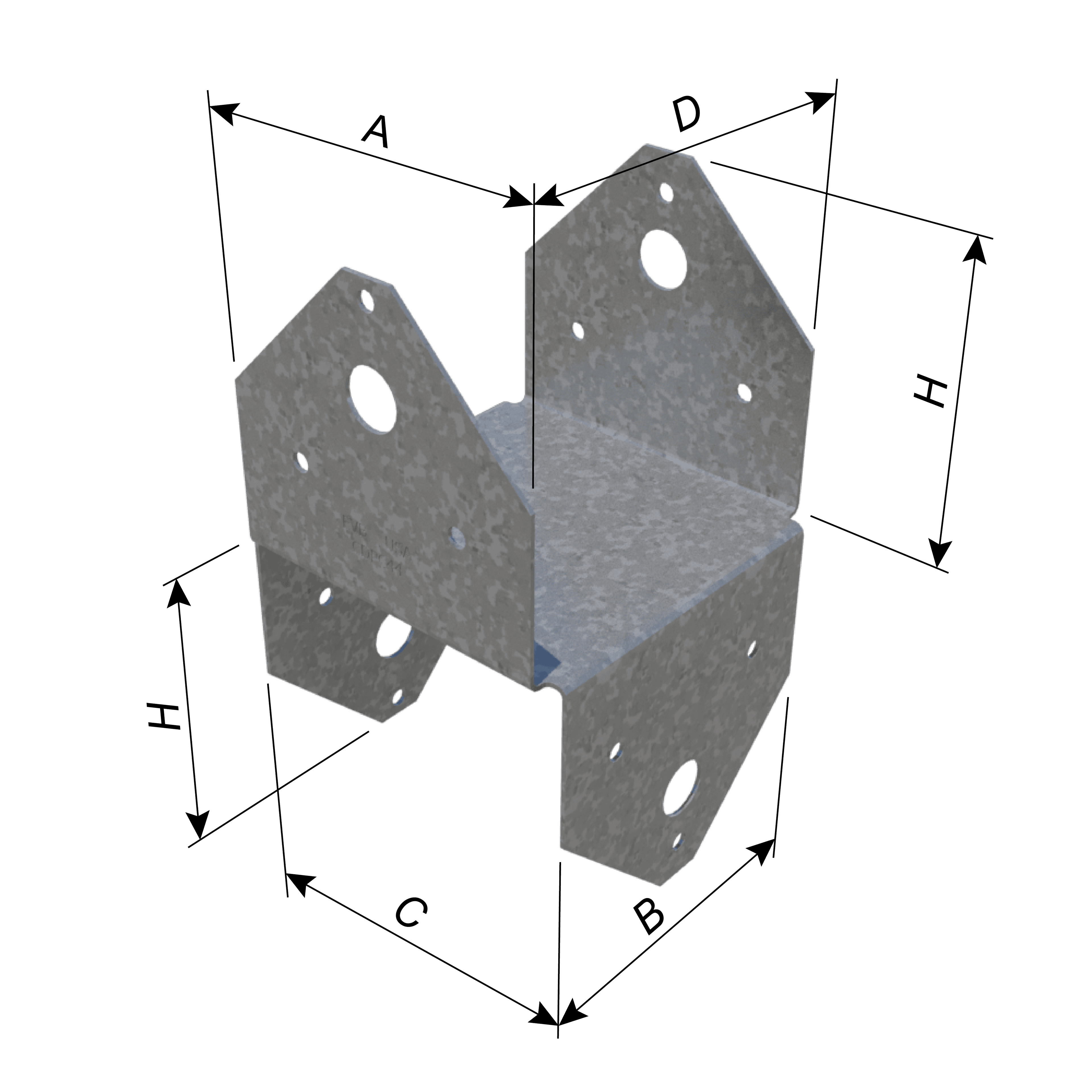

| Product Code | Post Size | (A) | (B) | (C) | (D) | (H) |
|---|---|---|---|---|---|---|
| CDPC44 | 4x4 | 3-1/4" | 3-1/4" | 3-9/16" | 3-9/16" | 3" |
| CDPC66 | 6x6 | 5" | 5" | 5-1/2" | 5-1/2" | 3-3/4" |
