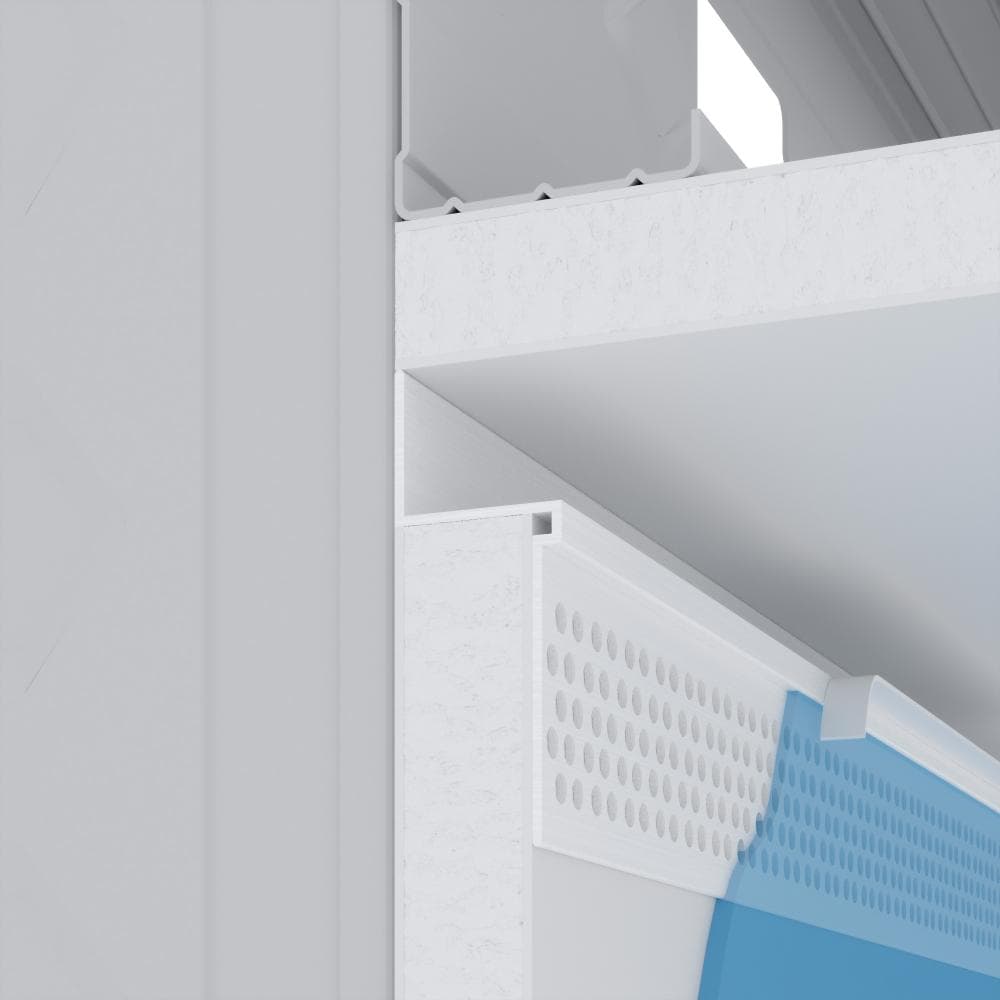

Rip-Bead® Shadow Reveal
Create 3/16" to 1" reveals in drywall & veneer surfaces
Creates edge reveal when butting up to ceilings, base trim and other finished interior components.
Quick Actions:
Features a 5/16" removable leg acts as a guide for taping knife and a protective mask for joint compound application.
Product Data & Ordering Information
| Product code | Board thickness | Reveal | Flange | Length | Pcs./Box |
|---|---|---|---|---|---|
| CTR50-19-10 | *Works with 1/2" or 5/8" | 3/16" | 1-1/8" | 10' | 50 |
| CTR50-38-10 | *Works with 1/2" or 5/8" | 3/8" | 1-1/8" | 10' | 50 |
| CTR50-50-10 | *Works with 1/2" or 5/8" | 1/2" | 1-1/8" | 10' | 50 |
| CTR50-58-10 | *Works with 1/2" or 5/8" | 5/8" | 1-1/8" | 10' | 50 |
| CTR50-75-10 | *Works with 1/2" or 5/8" | 3/4" | 1-1/8" | 10' | 50 |
| CTR50-100-10 | *Works with 1/2" or 5/8" | 1" | 1-1/8" | 10' | 50 |
* Reveal is always 1/2" deep and works with 1/2" or 5/8" board
