Self-Furring Dimple Lath
1/4" self-furring, dimpled, Expanded Steel Plaster and Stucco Base
A self-furring expanded dimpled metal lath ideal for interior and exterior use over sheathing, masonry, and other solid surfaces as required per ASTM C847, ASTM C1780, ASTM C1063. The 1/4" dimpled furring allows for more thorough plaster or stucco embedment into and behind the lath for superior mechanical bonding.
Quick Actions:

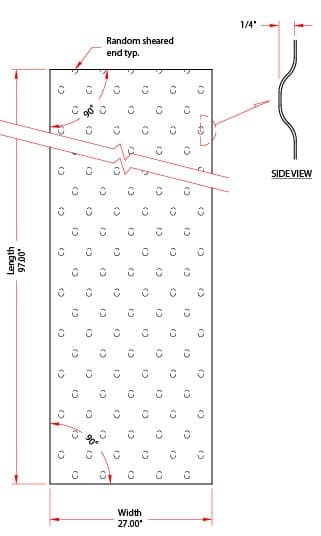

The dimple-patterned, self-furring plaster base is manufactured with evenly spaced indentations that hold the metal lath 1/4" away from the surface to be plastered. This results in an even and thorough embedment of the plaster.
The dimples are spaced every 4"-6" over the rectangular sheet. This lath is ideal for manufactured stone installations per ASTM C1780 or typical plaster applications per ASTM C1063.
2.5# and 3.4# self-furring dimple lath is available with G90 coating with a special order and lead time. Self-furring dimple lath is also available with a 60-Minute Grade-D asphalt paper-backing (APB) weather resistant barrier.
Product Data & Ordering Information
Material: G60 Galvanized Steel
Packaged: 25 bundles or 250 pieces per pallet
| Product Code |
Wt. per Sq. Yd. |
Sheet Size |
Pcs./Bdl | Yds./Bdl. | Yds./Pallet |
|---|---|---|---|---|---|
| LAD | 2.5 lbs. | 27" x 97" | 10 | 20 | 500 |
| 3.4 lbs. | 27" x 97" | 10 | 20 | 500 |
