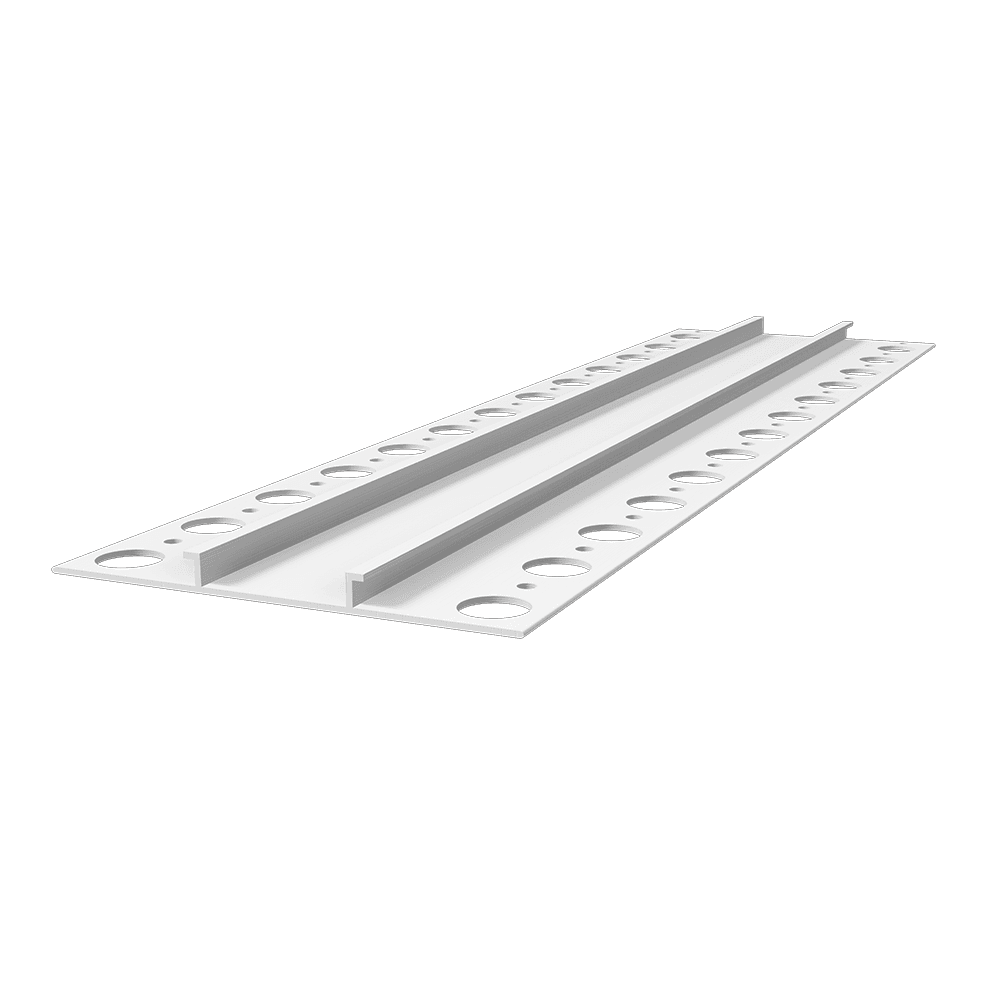

Shallow Channel Reveal - Surface Mount
Creates clear surface channels in exterior wall and ceiling systems
Perforated flanges allow the base coat mixture to easily flow through and bond with the substrate.
Quick Actions:
Designed to be used in surface-mount applications where a shallow reveal is required. Applied before the installation of a rigid substrate, this surface-mounted reveal should not be installed without backing or blocking material behind it.
Caulk all intersections, butt joints, ends and corners at time of installation. Not to be used in lieu of control joints or expansion joints. Factory-fabricated intersections are also available for all ClarkDietrich channel reveals.
Product Data & Ordering Information

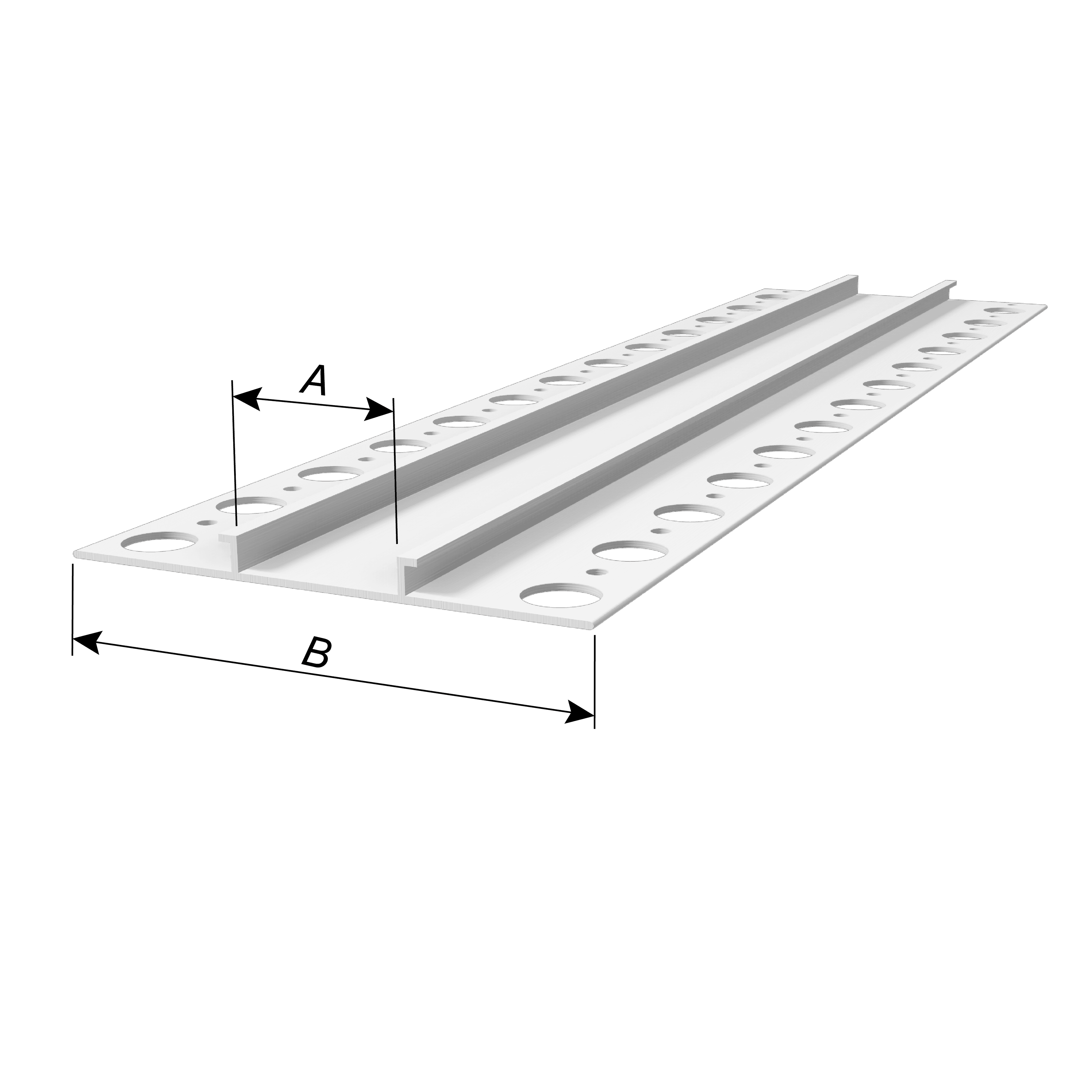

| Product code | Finish thickness | Minimum board thickness | Reveal (A) | Perforated flanges (B) | Pcs./Box |
|---|---|---|---|---|---|
| CS18-50 | 1/8" | All | 1/2" | 2-1/2" | 50 |
| CS18-75 | 1/8" | All | 3/4" | 2-1/2" | 50 |
| CS18-100 | 1/8" | All | 1" | 3-1/4" | 50 |
Note: No return on vertical ground leg.
