Skewable Angle
FOR RIGID AND OFF-ANGLE ATTACHMENTS OF JOIST-TO-JOIST, JOIST-TO-HIP BEAM, OR TO OTHER STRUCTURAL STEEL MEMBERS
ClarkDietrich Skewable Angles are used to make rigid attachments of joist-to- joist or joist-to-other-miscellaneous framing.
Quick Actions:
This clip is ideal for making off-angle connections. It is easily field bent from 0° to 135°.
CAUTION: This angle can only be bent one time.
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
Product Data & Ordering Information

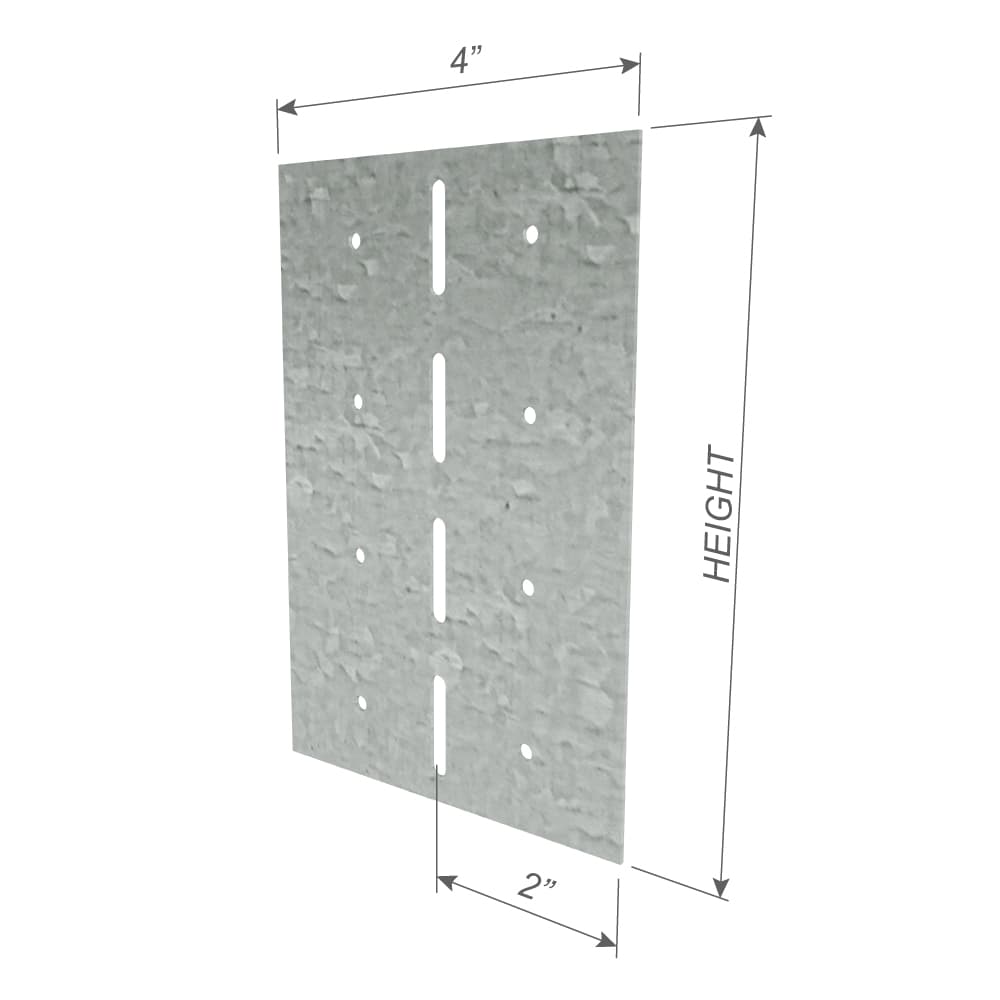

| Product code | Gauge | Mils | Design thickness (in) | Height (in) | Packaging Pcs./Carton |
|---|---|---|---|---|---|
| SA3 | 18 | 43 | 0.0451 | 3" | 100 |
| SA4 | 18 | 43 | 0.0451 | 4-3/8" | 100 |
| SA5 | 18 | 43 | 0.0451 | 5" | 100 |
| SA6 | 18 | 43 | 0.0451 | 6-3/8 | 100 |
| SA7 | 18 | 43 | 0.0451 | 7" | 100 |
| SA9 | 18 | 43 | 0.0451 | 9" | 100 |
Material Structural Grade 50 Type H (ST50H), 50ksi
Coating G90 (Z275) hot-dipped galvanized coating
See submittals for product weights
