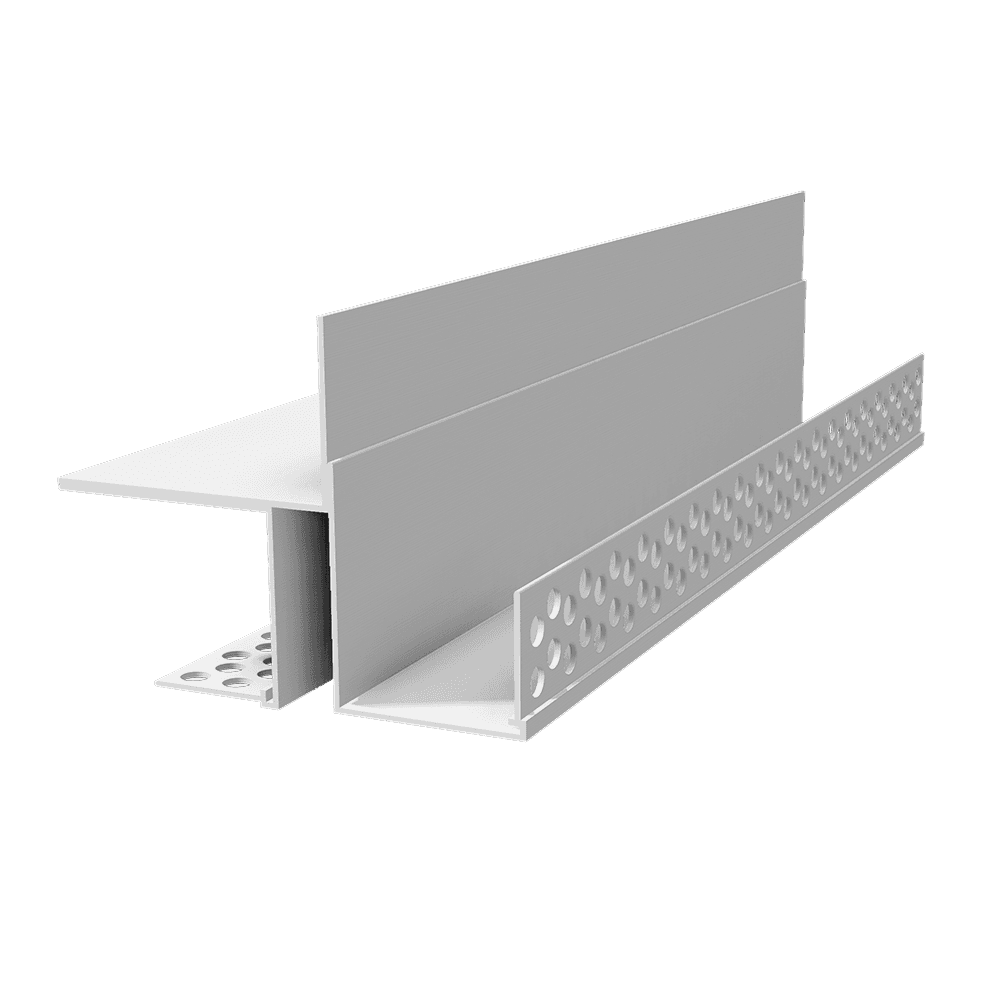

Soffit Drip - Pre-Installed
Designed for exterior soffits where a drip screed and edge reveal need to be combined

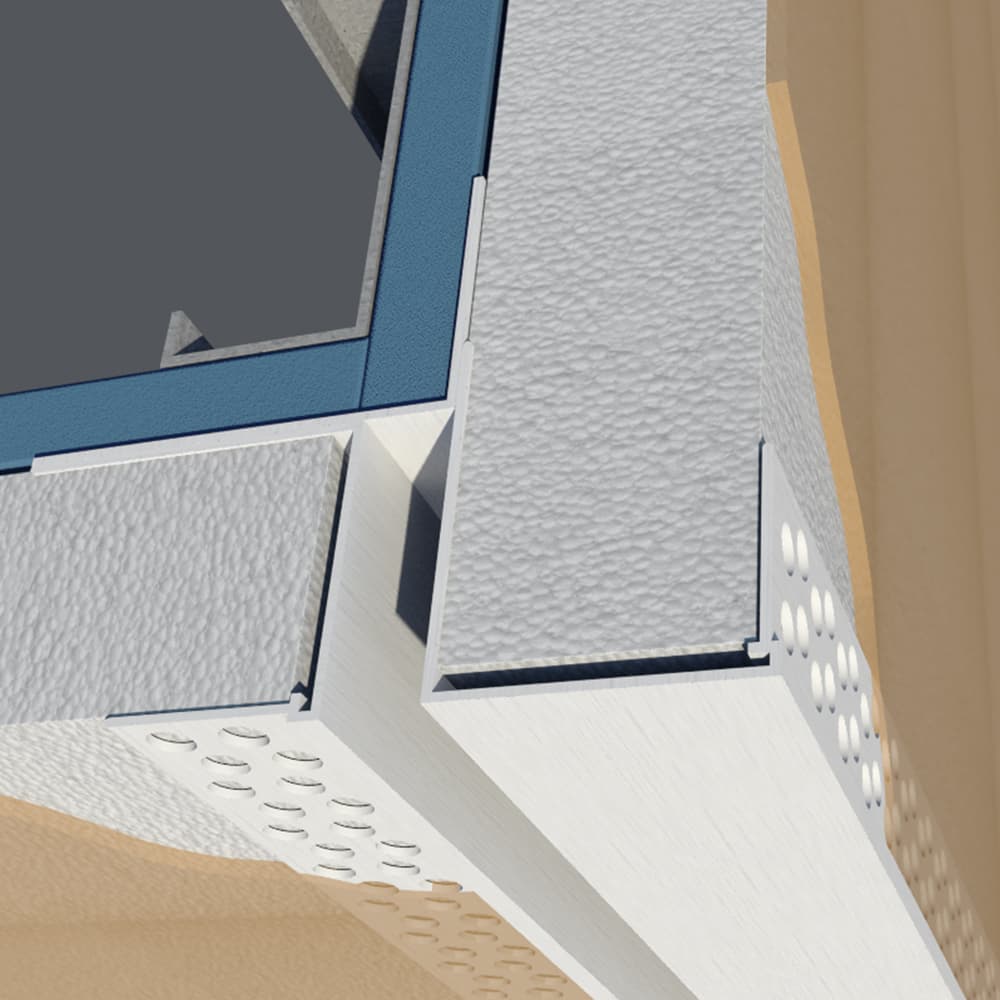

Pre-installed soffit edge reveals with a drip edge to direct moisture away from the installation.
Quick Actions:
Pre-installed soffit edge reveals with a drip edge to direct moisture away from the installation.
Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information

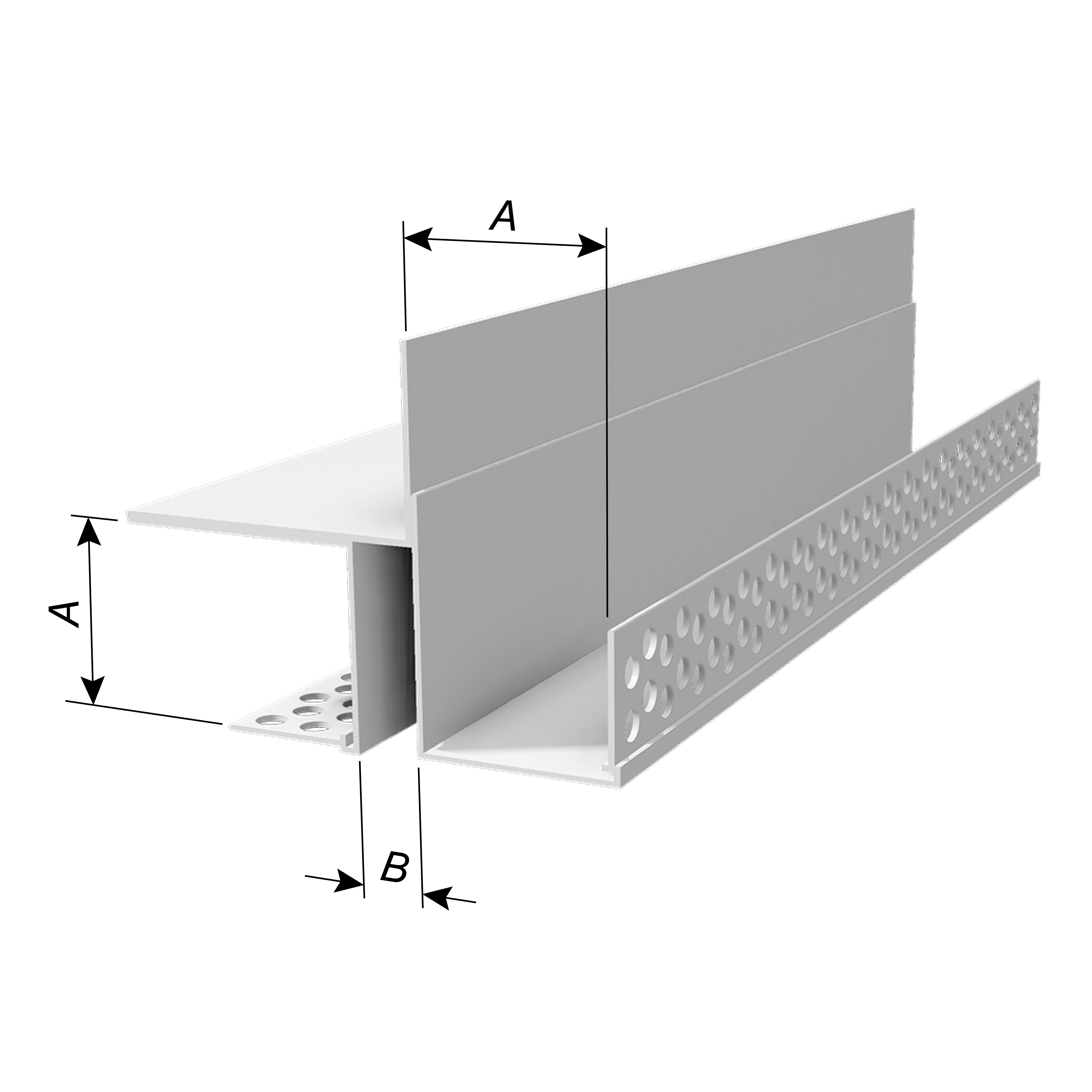

| Product code | Insulation thickness (A) | Reveal (B) | Pcs./Box |
|---|---|---|---|
| DS/DR50 | 1/2" | 1/2" | 15 |
| DS/DR58 | 5/8" | 1/2" | 15 |
| DS/DR75 | 3/4" | 1/2" | 15 |
| DS/DR100 | 1" | 1/2" | 15 |
| DS/DR150 | 1-1/2" | 1/2" | 10 |
| DS/DR200 | 2" | 1/2" | 10 |
| DS/DR250 | 2-1/2" | 1/2" | 10 |
| DS/DR300 | 3" | 1/2" | 10 |
U.S. Patent Numbers: 5,970,671 and 6,134,874
