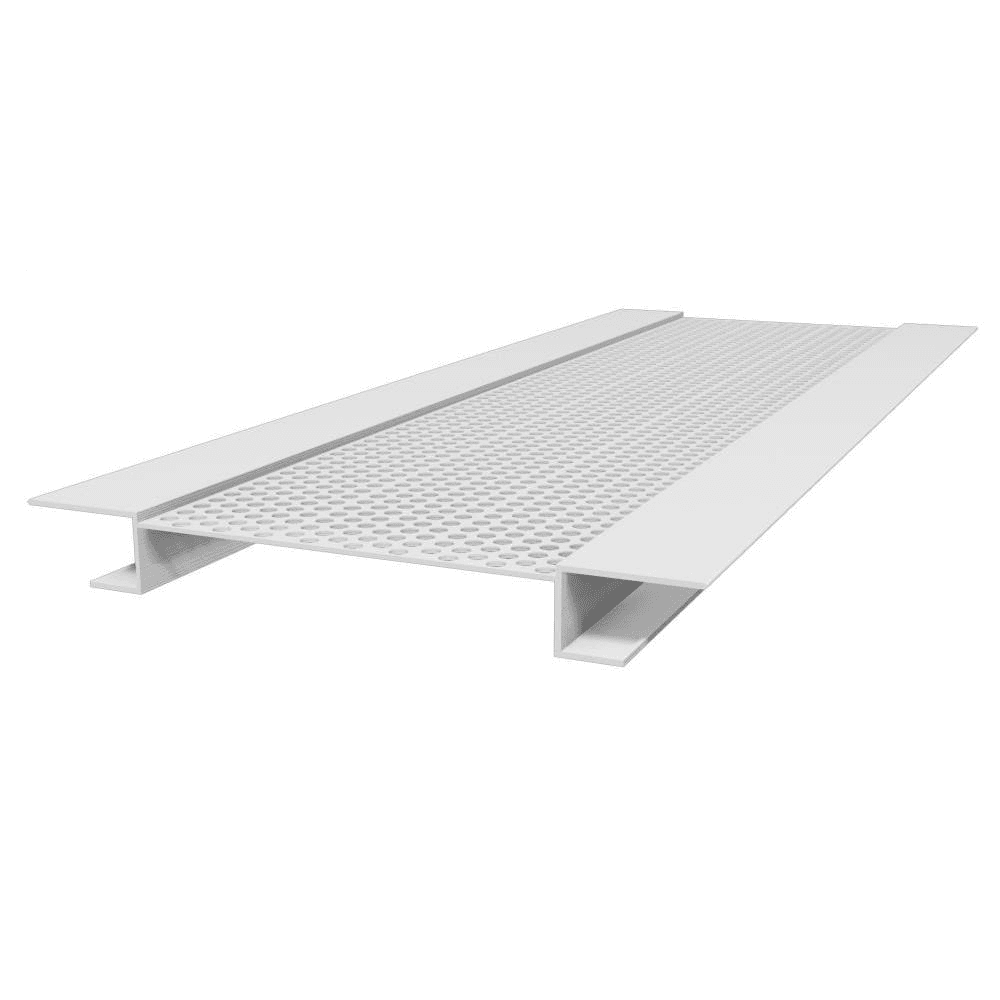

Soffit Vent with J-Flange

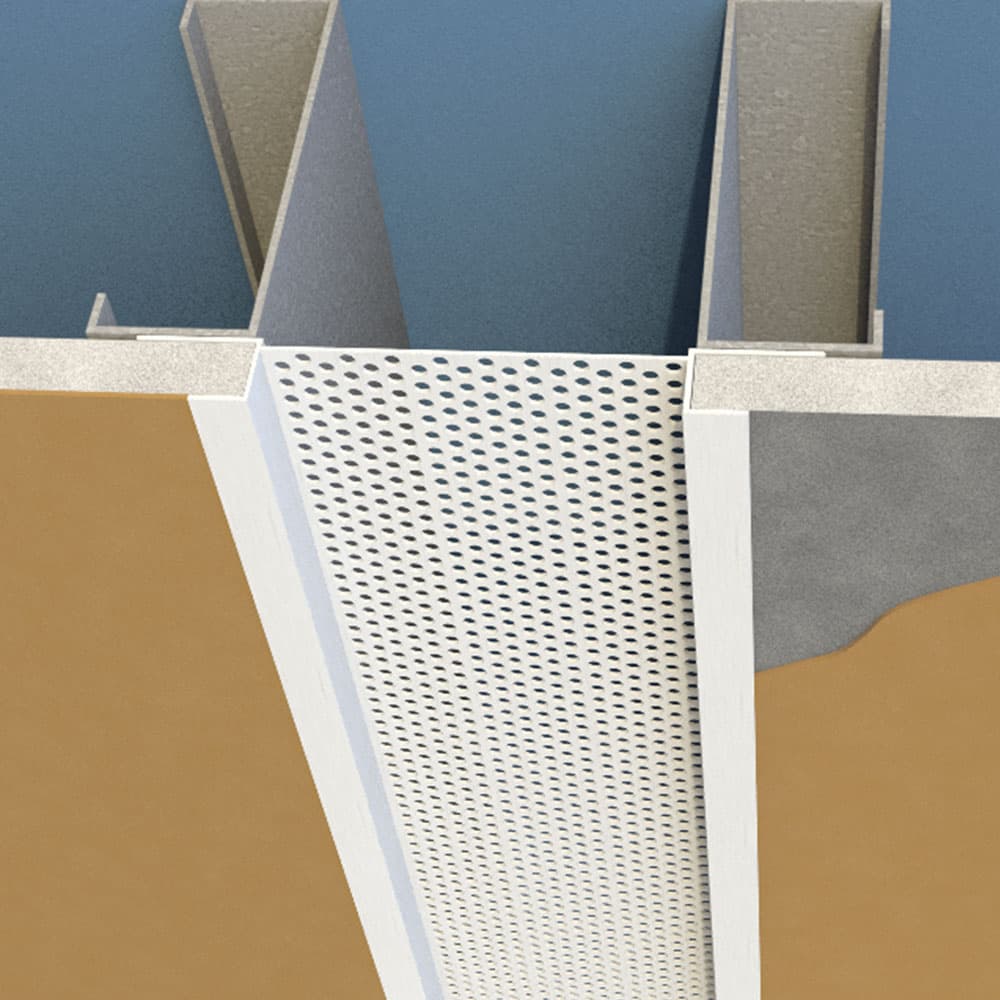

J-bead flanges cover the raw edges of soffit board
One-piece soffit vents provide an economical means for venting soffit areas. Vent clips are provided for proper connection and alignment of the soffit vents.
Quick Actions:
ClarkDietrich one-piece soffit vents provide an economical means for venting soffit areas.
Vent clips are provided for proper connection and alignment of the soffit vents.
Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information
| Product code | Vent width | Board thickness | Overall width | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| CSJ38-100V | 1" | 3/8" | 3" | 4 sq. in. | 20 |
| CSJ50-100V | 1" | 1/2" | 3" | 4 sq. in. | 20 |
| CSJ58-100V | 1" | 5/8" | 3" | 4 sq. in. | 20 |
| CSJ38-150V | 1-1/2" | 3/8" | 3-1/2" | 6 sq. in. | 20 |
| CSJ50-150V | 1-1/2" | 1/2" | 3-1/2" | 6 sq. in. | 20 |
| CSJ58-150V | 1-1/2" | 5/8" | 3-1/2" | 6 sq. in. | 20 |
| CSJ38-200V | 2" | 3/8" | 4" | 8 sq. in. | 20 |
| CSJ50-200V | 2" | 1/2" | 4" | 8 sq. in. | 20 |
| CSJ58-200V | 2" | 5/8" | 4" | 8 sq. in. | 20 |
| CSJ38-300V | 3" | 3/8" | 5" | 15 sq. in. | 20 |
| CSJ50-300V | 3" | 1/2" | 5" | 15 sq. in. | 18 |
| CSJ58-300V | 3" | 5/8" | 5" | 15 sq. in. | 18 |
| CSJ38-400V | 4" | 3/8" | 6" | 16 sq. in. | 20 |
| CSJ50-400V | 4" | 1/2" | 6" | 16 sq. in. | 16 |
| CSJ58-400V | 4" | 5/8" | 6" | 16 sq. in. | 14 |
