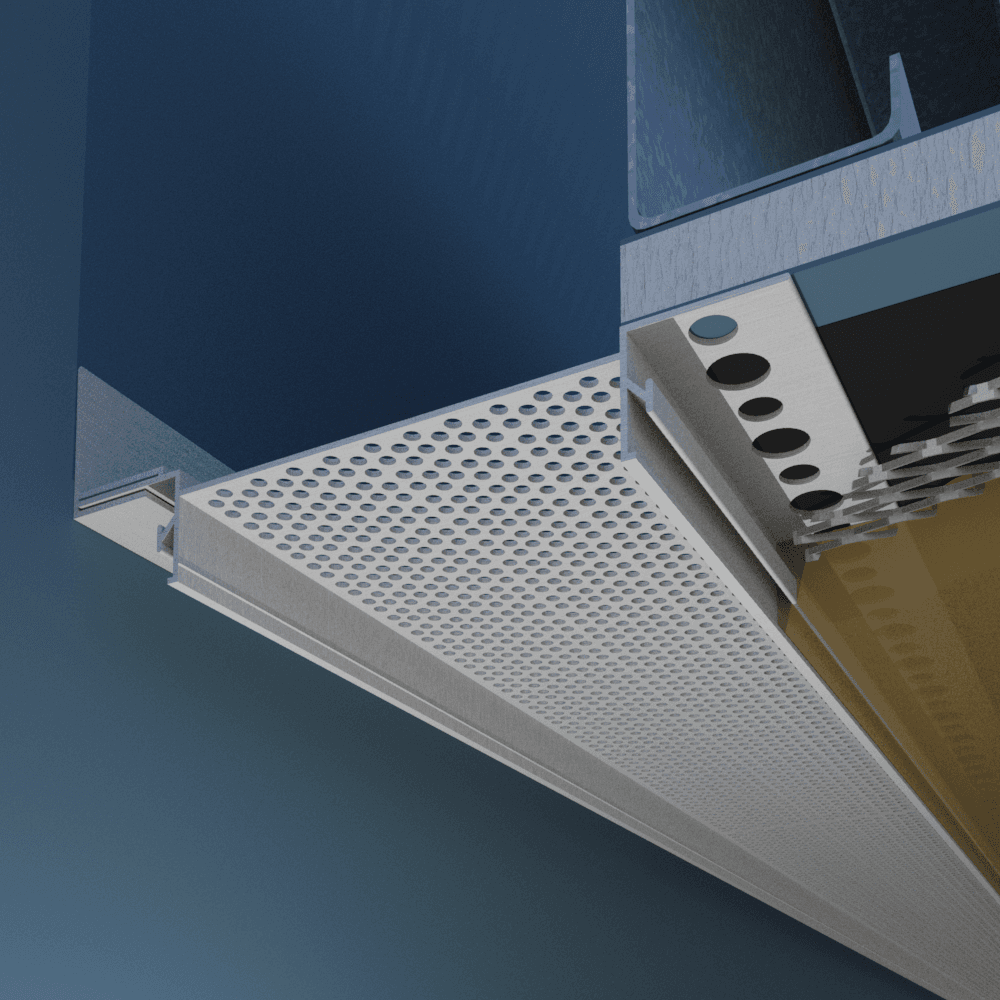

Soffit Vents (One-Piece with Edge Clip)
Continuous one-piece Soffit Vent
Reinforcing rib to key into stucco and plaster. Vertical edge clips are provided for special installations.
Quick Actions:
Continuous one-piece Soffit Vent with reinforcing rib to key into stucco and plaster. Vertical edge clips are provided for special installations. Vent clips are provided to connect the soffit vent and to assist in alignment, with a perforated flange and 1-1/4" vertical flange.
Product Data & Ordering Information
| Product code | Ground | Vent width | Overall width | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| CS50-200VF | 1/2" | 2" | 4" | 8 sq. in | 16 |
| CS58-200VF | 5/8" | 15 | |||
| CS75-200VF | 3/4" | 13 | |||
| CS78-200VF | 7/8" | 12 | |||
| CS100-200VF | 1" | 10 | |||
| CS50-300VF | 1/2" | 3" | 5" | 15 sq. in | 16 |
| CS58-300VF | 5/8" | 15 | |||
| CS75-300VF | 3/4" | 13 | |||
| CS78-300VF | 7/8" | 12 | |||
| CS100-300VF | 1" | 10 | |||
| CS50-400VF | 1/2" | 4" | 6" | 16 sq. in | 17 |
| CS58-400VF | 5/8" | 15 | |||
| CS75-400VF | 3/4" | 12 | |||
| CS78-400VF | 7/8" | 11 | |||
| CS100-400VF | 1" | 10 | |||
| CS50-600VF | 1/2" | 6" | 8" | 18 sq. in | 15 |
| CS58-600VF | 5/8" | 15 | |||
| CS75-600VF | 3/4" | 15 | |||
| CS78-600VF | 7/8" | 15 | |||
| CS100-600VF | 1" | 12 |
Note: Items are made to order, lead time will apply.
Contact ClarkDietrich customer service at 1-800-648-4695.
