Soffit Vents (Three-Piece with Edge Clip)
Continuous three-piece Soffit Vent
For stucco and plaster.
Quick Actions:

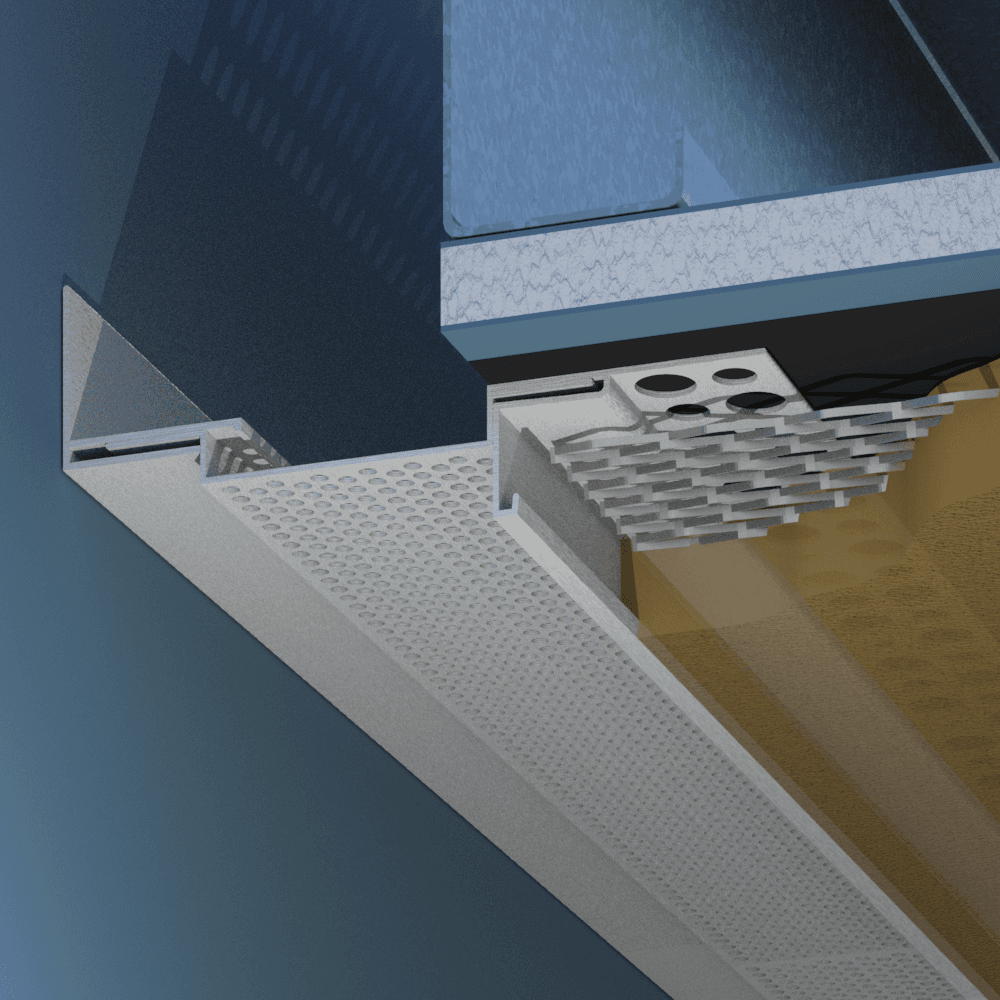

Continuous three-piece soffit vent for stucco and plaster. Vertical edge clips are provided for special installations. Vent clips are provided to connect the soffit vent and to assist in alignment. Three-piece with a clip, a perforated flange, and a 1-1/4" vertical flange.
Product Data & Ordering Information
| Product code | Ground | Vent width | Overall width | Vent Area per LF | Pcs./Box |
|---|---|---|---|---|---|
| SV38-100F | 3/8" | 1" | 4" | 4 sq. in | 15 |
| SV50-100F | 1/2" | 13 | |||
| SV58-100F | 5/8" | 13 | |||
| SV75-100F | 3/4" | 13 | |||
| SV78-100F | 7/8" | 11 | |||
| SV100-100F | 1" | 10 | |||
| SV38-150F | 3/8" | 1-1/2" | 4-1/2" | 6 sq. in | 15 |
| SV50-150F | 1/2" | 13 | |||
| SV58-150F | 5/8" | 13 | |||
| SV75-150F | 3/4" | 13 | |||
| SV78-150F | 7/8" | 11 | |||
| SV100-150F | 1" | 10 | |||
| SV38-200F | 3/8" | 2" | 5" | 8 sq. in | 15 |
| SV50-200F | 1/2" | 13 | |||
| SV58-200F | 5/8" | 13 | |||
| SV75-200F | 3/4" | 13 | |||
| SV78-200F | 7/8" | 9 | |||
| SV100-200F | 1" | 10 | |||
| SV38-300F | 3/8" | 3" | 6" | 15 sq. in | 15 |
| SV50-300F | 1/2" | 10 | |||
| SV58-300F | 5/8" | 11 | |||
| SV75-300F | 3/4" | 11 | |||
| SV78-300F | 7/8" | 10 | |||
| SV100-300F | 1" | 10 | |||
| SV38-400F | 3/8" | 4" | 7" | 16 sq. in. | 13 |
| SV50-400F | 1/2" | 10 | |||
| SV58-400F | 5/8" | 10 | |||
| SV75-400F | 3/4" | 9 | |||
| SV78-400F | 7/8" | 9 | |||
| SV100-400F | 1" | 9 | |||
| SV38-600F | 3/8" | 6" | 9" | 18 sq. in. | 15 |
| SV50-600F | 1/2" | 15 | |||
| SV58-600F | 5/8" | 15 | |||
| SV75-600F | 3/4" | 15 | |||
| SV78-600F | 7/8" | 15 | |||
| SV100-600F | 1" | 15 |
