Starter Strip with Weep Holes in Front
Heavy-duty base support starter strips and perimeter casing beads with weep holes on the front side
Designed with weep holes on the front side to move moisture away from openings in Exterior Insulation Finish Systems (EIFS).
Quick Actions:
Heavy-duty, base support starter strips and perimeter casing beads with weep holes for use in Exterior Insulation Finish Systems (EIFS).
Designed with weep holes on the front side to move moisture away from openings.
Perforated flanges allow the base coat mixture to easily flow through and bond to the substrate. Includes the Keylock™ Splice for connecting multiple sections and to assist in their alignment. Caulk all intersections, butt joints, ends, and corners at the time of installation.
Product Data & Ordering Information

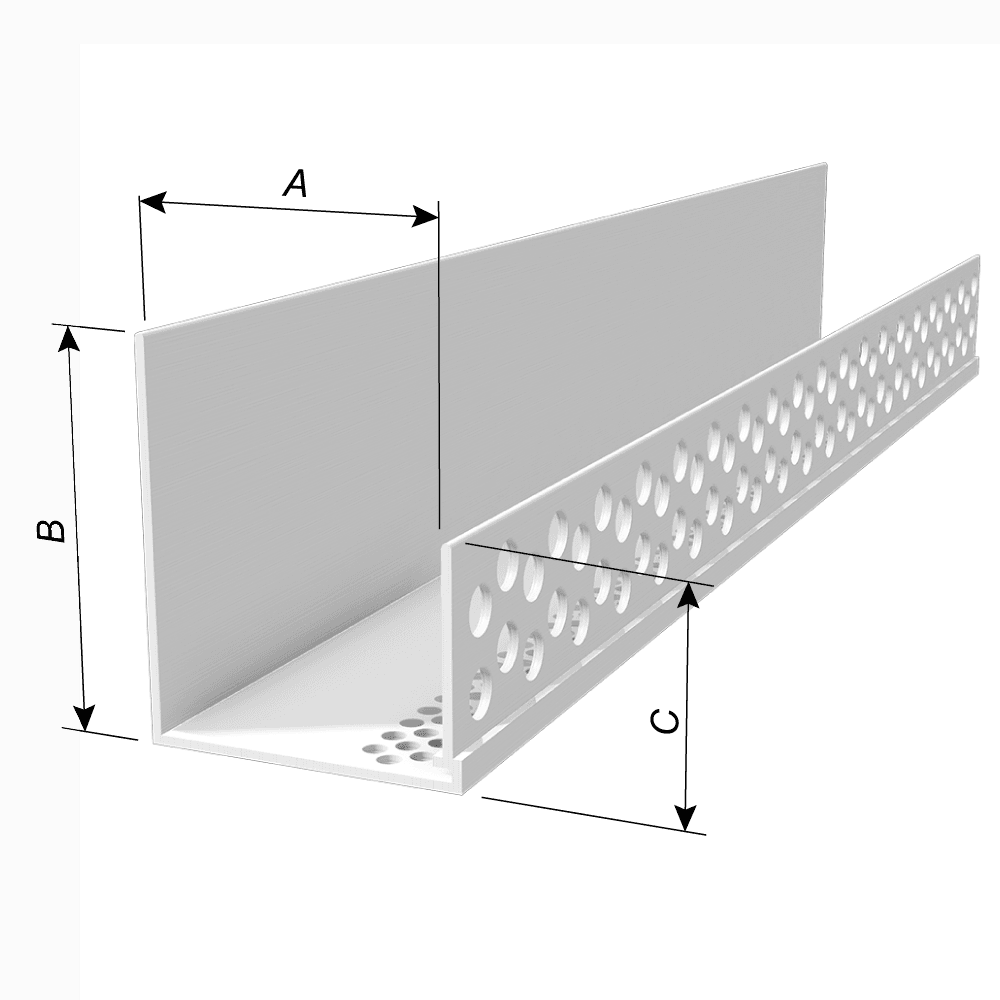

| Product code | Finish thickness | Insulation thickness (A) | Back flange (B) | Perforated flange (C) | Pcs./Box |
|---|---|---|---|---|---|
| CBS75-16WF | 1/16" | 3/4" | 2" | 5/8" | 50 |
| CBS100-16WF | 1/16" | 1" | 2" | 5/8" | 45 |
| CBS150-16WF | 1/16" | 1-1/2" | 2" | 5/8" | 30 |
| CBS200-16WF | 1/16" | 2" | 2" | 5/8" | 20 |
| CBS250-16WF | 1/16" | 2-1/2" | 2" | 5/8" | 20 |
| CBS300-16WF | 1/16" | 3" | 2" | 5/8" | 16 |
| CBS400-16WF | 1/16" | 4" | 2" | 5/8" | 10 |
| CBS75-332WF | 3/32" | 3/4" | 2-1/2" | 5/8" | 35 |
| CBS100-332WF | 3/32" | 1" | 2-1/2" | 5/8" | 30 |
| CBS150-332WF | 3/32" | 1-1/2" | 2-1/2" | 5/8" | 24 |
| CBS200-332WF | 3/32" | 2" | 2-1/2" | 5/8" | 18 |
| CBS250-332WF | 3/32" | 2-1/2" | 2-1/2" | 5/8" | 16 |
| CBS300-332WF | 3/32" | 3" | 2-1/2" | 5/8" | 16 |
| CBS400-332WF | 3/32" | 4" | 2-1/2" | 5/8" | 10 |
U.S. Patent Numbers 5,970,671 and 6,134,847
Notes: If weep holes are required in both the front and the back, change the product code suffix to WW, example CBS200-16WW
