Structural Track
ClarkDietrich Cold-Formed Steel Track

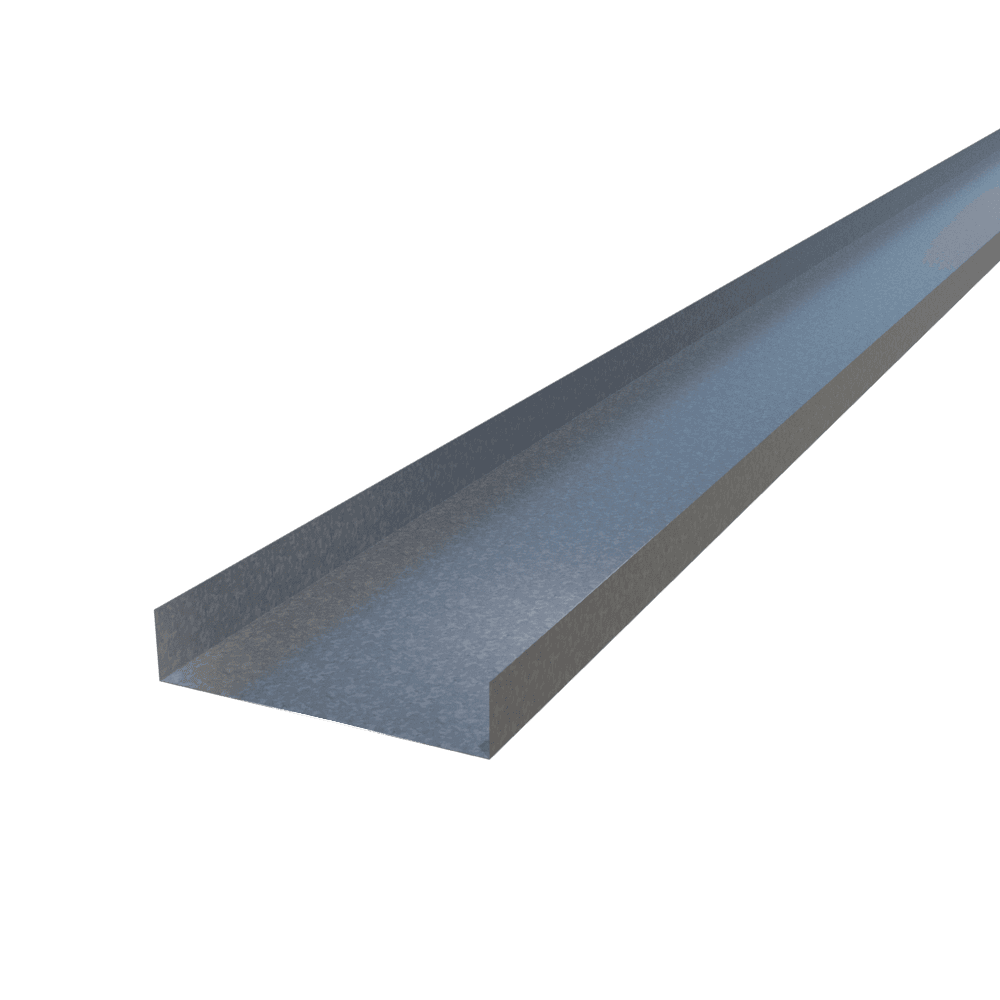

U-shaped channel runners used as the top and bottom tracks to secure wall studs or end support closures for floor joist framing. Structural Steel Track can be used in axial loadbearing walls, curtain walls, tall interior partitions, floor joists and roof truss assemblies.
Quick Actions:
ClarkDietrich tracks are made in a variety of web and leg sizes to meet different applications
- Standard Web Size: 2-1/2”, 3-1/2”, 3-5/8”, 4”, 5-1/2”, 6” (600T), 8”, 10”, 12”, 14”
- Leg heights: 1-1/4”, 1-1/2”, 2” and 3”.
- Thickness: 33 mils (20ga), 43 mils (18ga), 54 mils (16ga), 68 mils (14ga) and 97 mils (12ga).
- 33mil (20ga) and 43mil (18ga) framing products are produced with 33ksi steel.
54mil (16ga), 68mil (14ga) and 97mil (12ga) products are produced with 50ksi steel
unless otherwise noted.
- Standard coating: CP60 (G60, CP90 & G90 available) Per AISI S240
- Standard 10’ lengths. (Custom lengths available)
- Additional member depths of 7-1/4", 9-1/4", 11-1/2", 13-1/2" and 14" are also available.
- All track are color coded for easy identification.

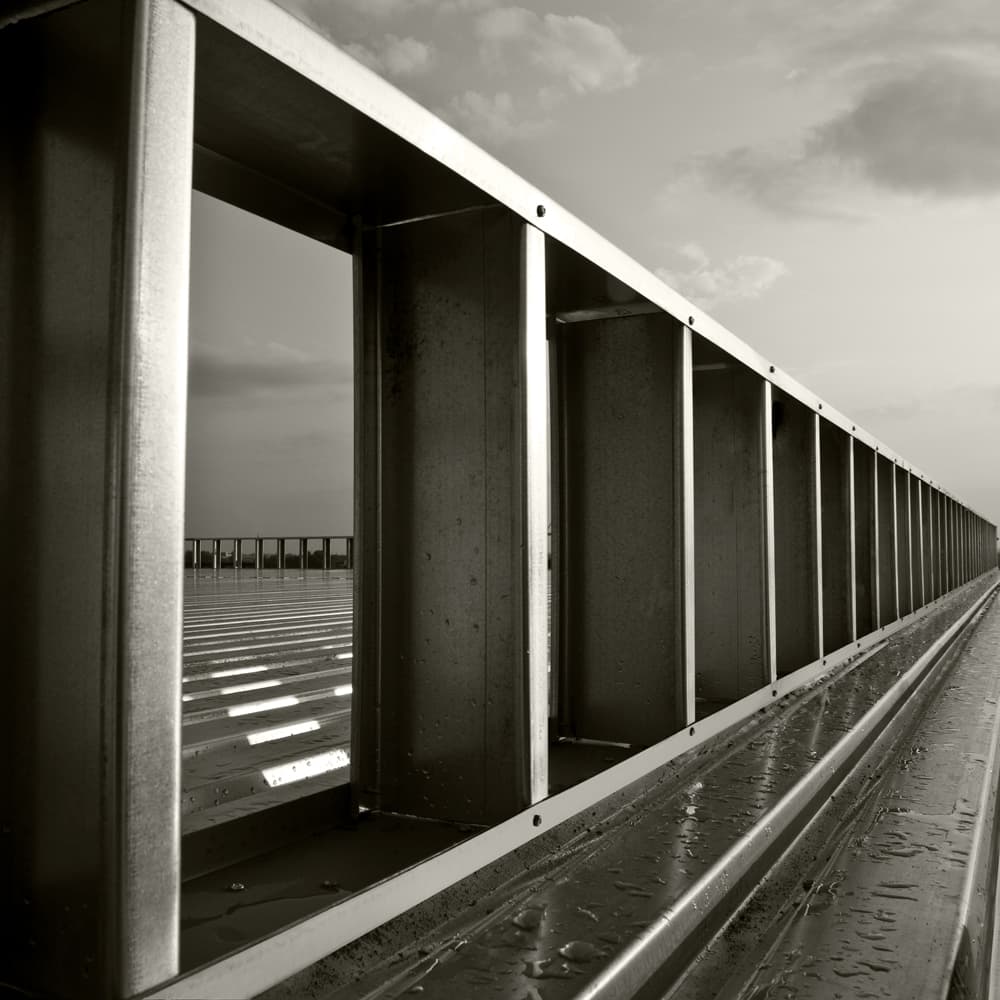

ClarkDietrich structural track is a U-shaped framing component used as top and bottom runners to secure wall studs. Structural track is also used as end support closures for joists at exterior or foundation walls, head and sill plates of wall openings and solid blocking. Track is normally ordered in corresponding size and gauge to the wall studs. Longer leg track is used for deflection conditions or to accommodate uneven or inconsistent floor or ceiling conditions. Slip track for track-over-track assemblies is also available.
See ClarkDietrich's Product Identification sheet for more on how to identify our products.
