Twist Straps (CDLST Series)
TWIST STRAPS

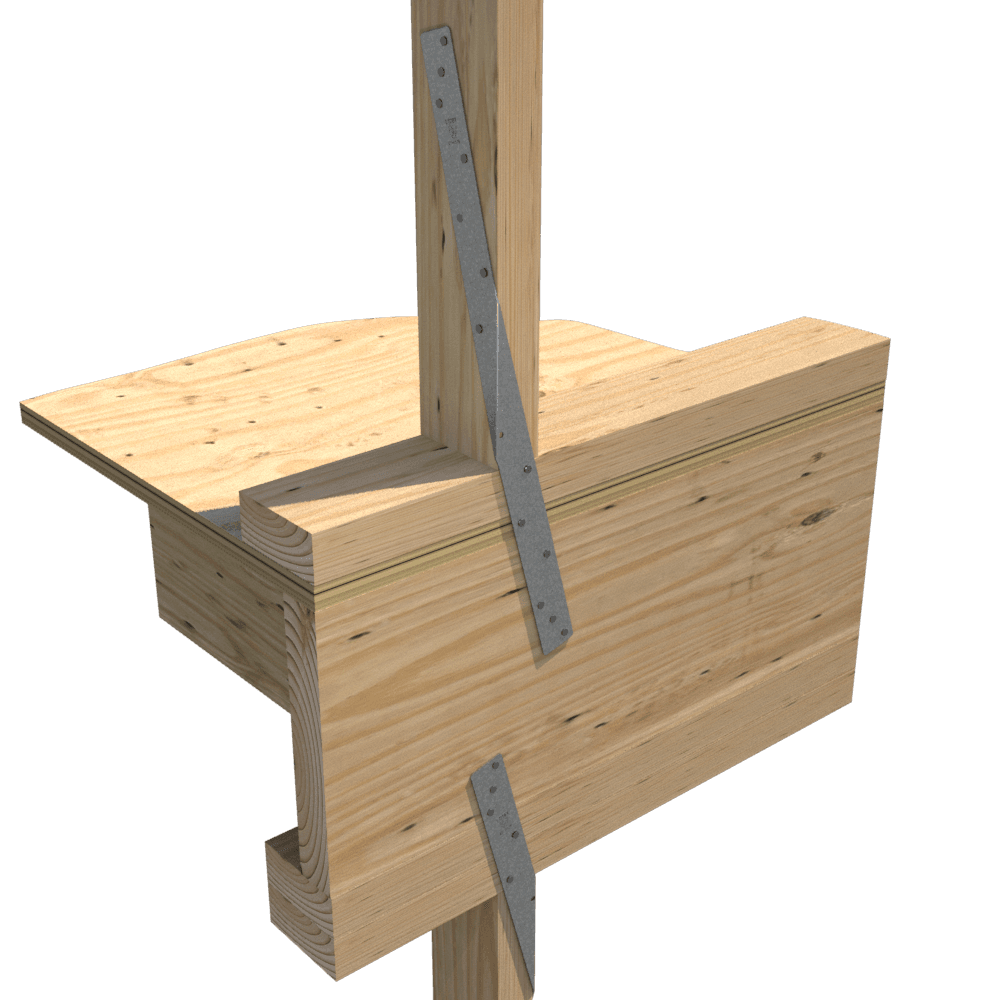

Manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members.
Quick Actions:
Manufactured to resist tension load when attached to solid sawn or structural composite lumber metal plate connected trusses, framing members and wall members.

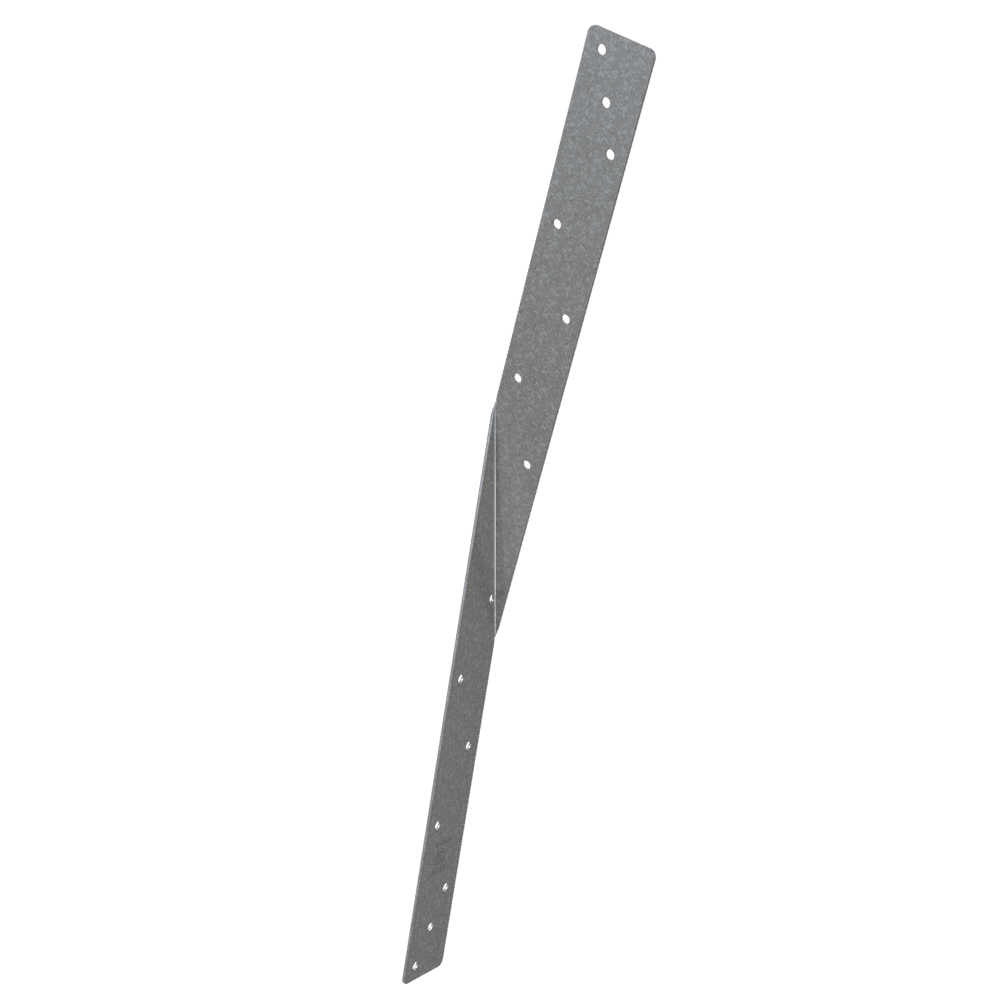

CDLST Twist Straps are 1-1/4" wide and available in lengths from 9-5/8" to 24-5/8". Three holes are located at 3/4" on center, in a diagonal pattern, at each end of the strap. Remaining holes are punched at 1-1/2" on center, in a diagonal pattern. At mid length of each strap is a 3" long section with no holes and a 90 degree bend extending across the width of the strap for 4-5/8".
Material: 20ga (33mil), 0.0346" Design thickness, 0.0329" Minimum thickness
Coating: G90 (Z275) hot-dipped galvanized coating
Yield Strength: Structural Grade 33 Type H (ST33H), 33ksi (227.5 MPa)
- Clip Express Sales at 866-638-1908 or clipexpress@clarkdietrich.com
- Technical Support at 888-437-3244 or support@clarkdietrich.com
| Strap Dimensions (in) | ||
|---|---|---|
| Product Code | W | L |
| CDLS9T | 1-1/4 | 9-5/8 |
| CDLS12T | 1-1/4 | 12-5/8 |
| CDLS15T | 1-1/4 | 15-5/8 |
| CDLS18T | 1-1/4 | 18-5/8 |
| CDLS21T | 1-1/4 | 21-5/8 |
| CDLS24T | 1-1/4 | 24-5/8 |
