Vented Channel Reveal - Surface Mount
Vented Channel Reveals facilitate perimeter air flow to assist in moisture management and temperature control

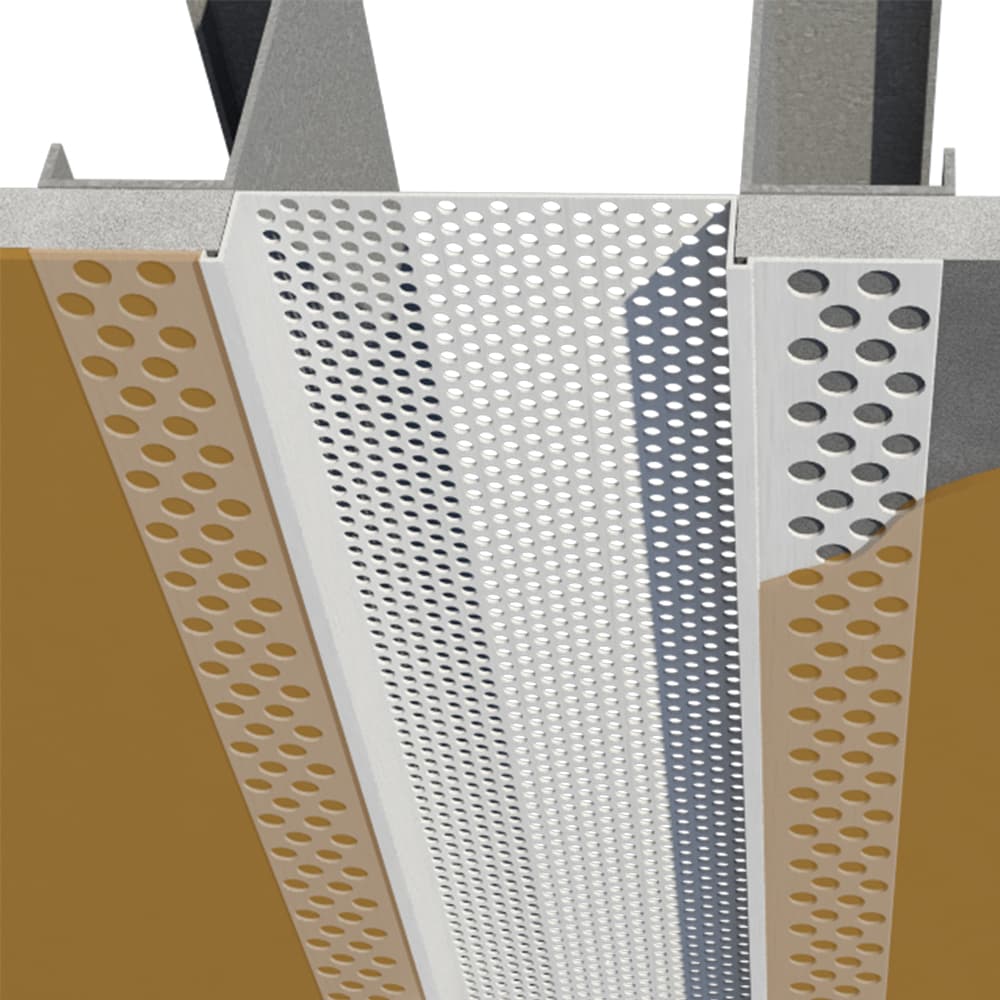

This vent is intended for surface-mount applications. Always use a rigid backing or blocking material behind surface-mounted reveal.
Quick Actions:
Vented channel reveals facilitate perimeter air flow to assist in moisture management and temperature control. This vent is intended for surface-mount applications. Always use a rigid backing or blocking material behind surface-mounted reveal. Perforated flanges allow the base coat mixture to easily flow through and bond with the substrate. Vent clips are provided with vented channel reveals to connect reveal sections and assist in alignment.
Caulk all intersections, butt joints, ends, and corners at the time of installation.
Not to be used in lieu of control joints or expansion joints. Factory fabricated intersections are also available for all ClarkDietrich channel reveals.
Product Data & Ordering Information
| Product code | Finish thickness | Minimum board thickness (A) | Reveal width (B) | Perforated flanges (C) | Pcs./Box |
|---|---|---|---|---|---|
| DCV50-150SE | 1/16" - 3/32" | 1/2" | 1-1/2" | 1-1/8" | 25 |
| DCV50-200SE | 1/16" - 3/32" | 1/2" | 2" | 1-1/8" | 25 |

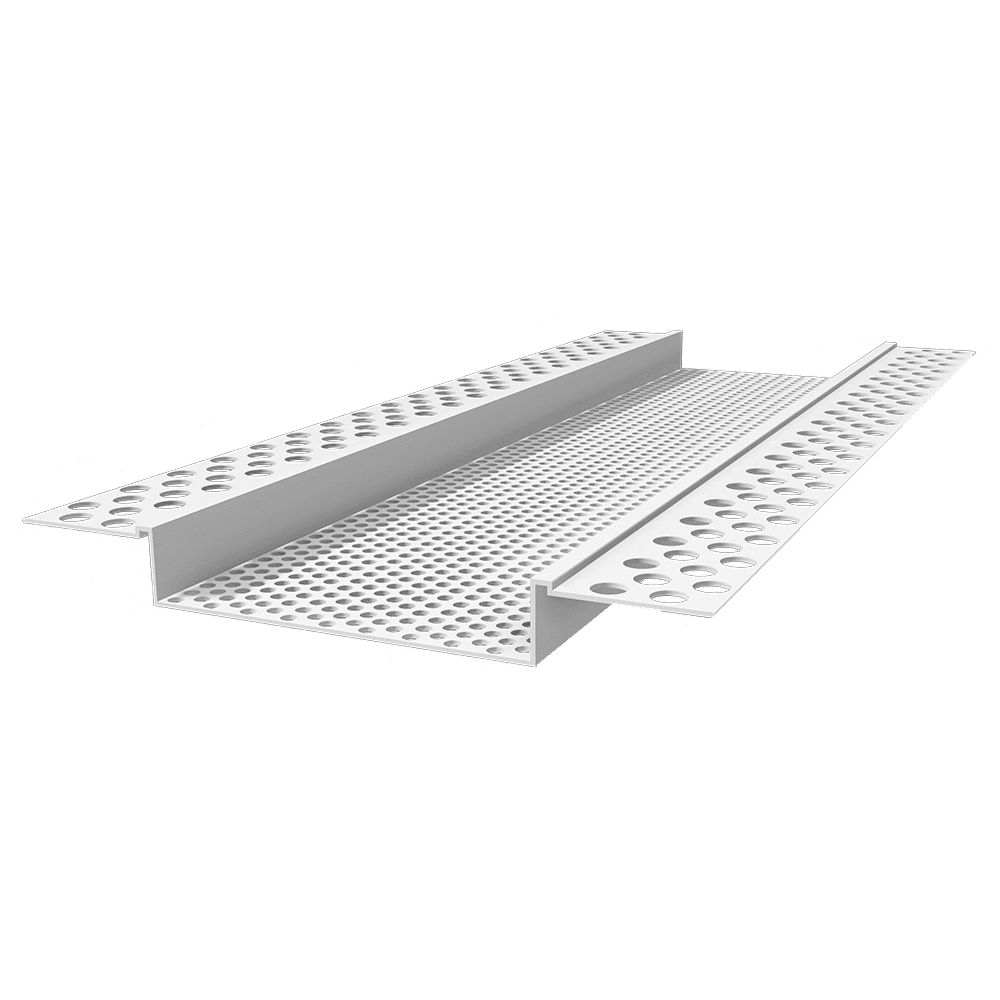

| DCV50-300SE | 1/16" - 3/32" | 1/2" | 3" | 1-1/8" | 20 |
| DCV58-150SE | 1/16" - 3/32" | 5/8" | 1-1/2" | 1-1/8" | 20 |
| DCV58-200SE | 1/16" - 3/32" | 5/8" | 2" | 1-1/8" | 20 |
| DCV58-300SE | 1/16" - 3/32" | 5/8" | 3" | 1-1/8" | 20 |
Notes:
Vented Area: 1-1/2" reveal = 6 sq. in. per LF
2" reveal = 8 sq. in. per LF
3" reveal = 15 sq. in. per LF
