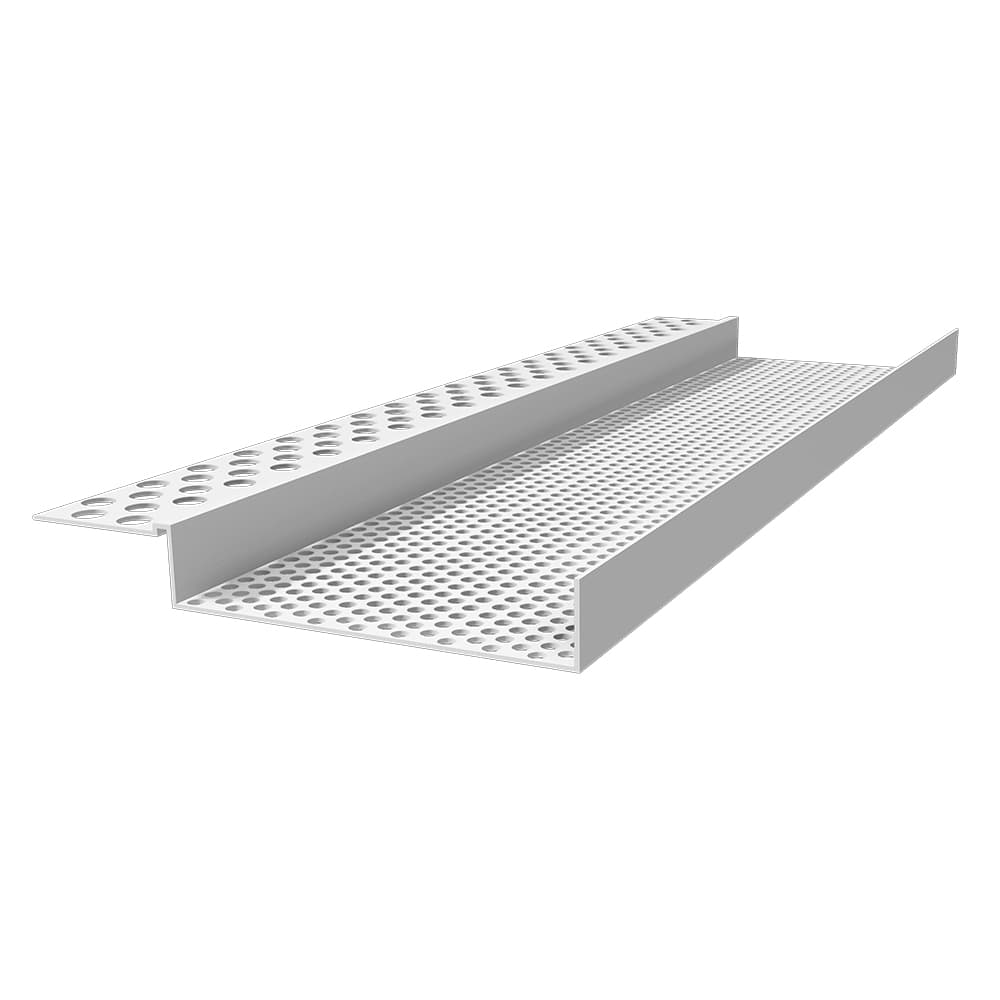

Vented "F" Channel Reveal - Surface Mount
"F" Channel Reveals provide a reveal at the juncture of walls, ceilings, or dissimilar materials
Perforated flanges allow the base coat mixture to easily flow through and bond with the substrate.
Quick Actions:
Designed for surface-mount installations when a vented reveal is required at the juncture of a wall and ceiling. Always use a rigid backing or blocking material behind surface-mounted reveals.
Vent clips are provided with vented channel reveals to connect reveal sections and assist in alignment.
Caulk all intersections, butt joints, ends, and corners at the time of installation. Not to be used in lieu of control joints or expansion joints. Factory-fabricated intersections are also available for all ClarkDietrich channel reveals.
Product Data & Ordering Information
| Product code | Finish thickness | Minimum board thickness | Reveal | Perforated flanges | Pcs./Box |
|---|---|---|---|---|---|
| FDCV50-150SE | 1/16" - 3/32" | 1/2" | 1-1/2" | 1-1/8" | 25 |
| FDCV50-200SE | 1/16" - 3/32" | 1/2" | 2" | 1-1/8" | 25 |
| FDCV50-300SE | 1/16" - 3/32" | 1/2" | 3" | 1-1/8" | 20 |
| FDCV58-150SE | 1/16" - 3/32" | 5/8" | 1-1/2" | 1-1/8" | 20 |
| FDCV58-200SE | 1/16" - 3/32" | 5/8" | 2" | 1-1/8" | 20 |
| FDCV58-300SE | 1/16" - 3/32" | 5/8" | 3" | 1-1/8" | 20 |
Notes:
Vented Area: 1-1/2" reveal = 6 sq. in. per LF
2" reveal = 8 sq. in. per LF
3" reveal = 15 sq. in. per LF
