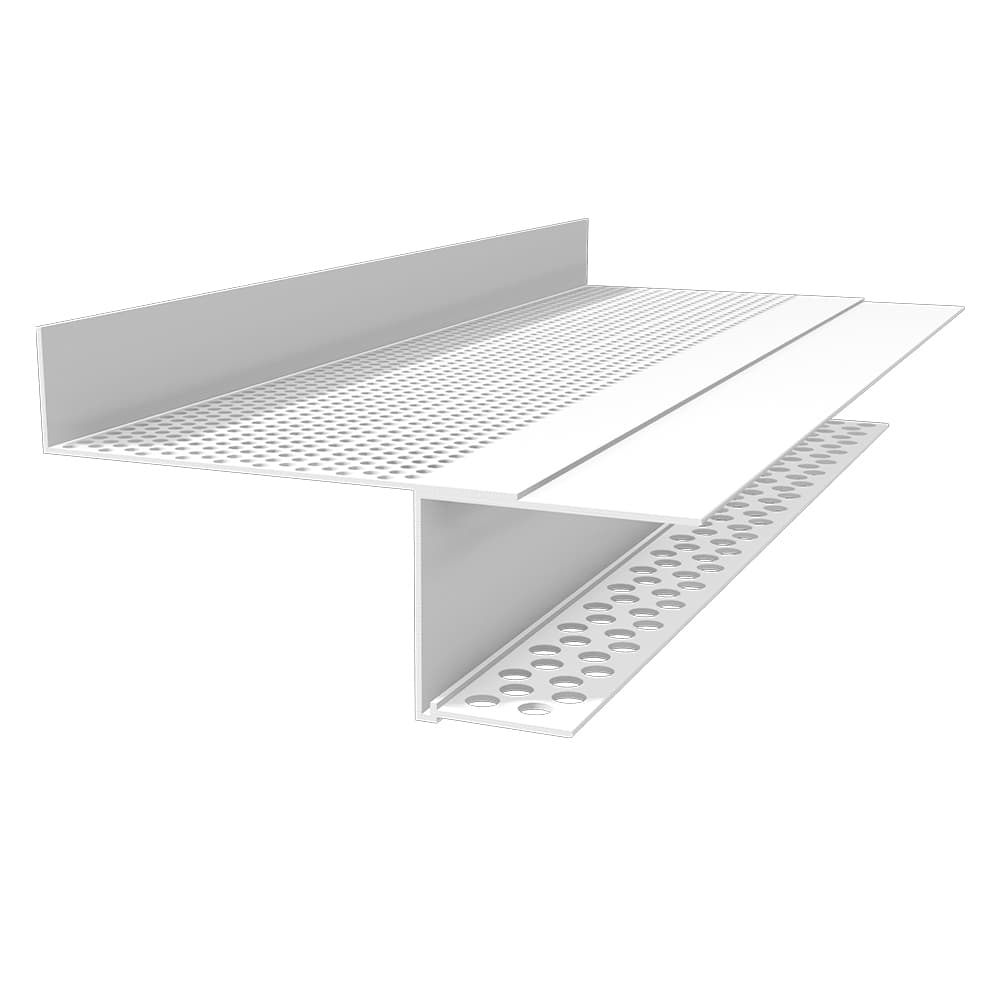

Vented Shadow Reveal
Designed for ceilings when a vented reveal is required at the juncture of a wall and ceiling where horizontal movement may occur
Vent clips are provided to connect reveal sections and to assist in their alignment.
Quick Actions:
Designed for ceilings when a vented reveal is required at the juncture of a wall and ceiling where horizontal movement may occur.
Vent clips are provided to connect reveal sections and to assist in their alignment.
Caulk all intersections, butt joints, ends and corners at time of installation.
Product Data & Ordering Information

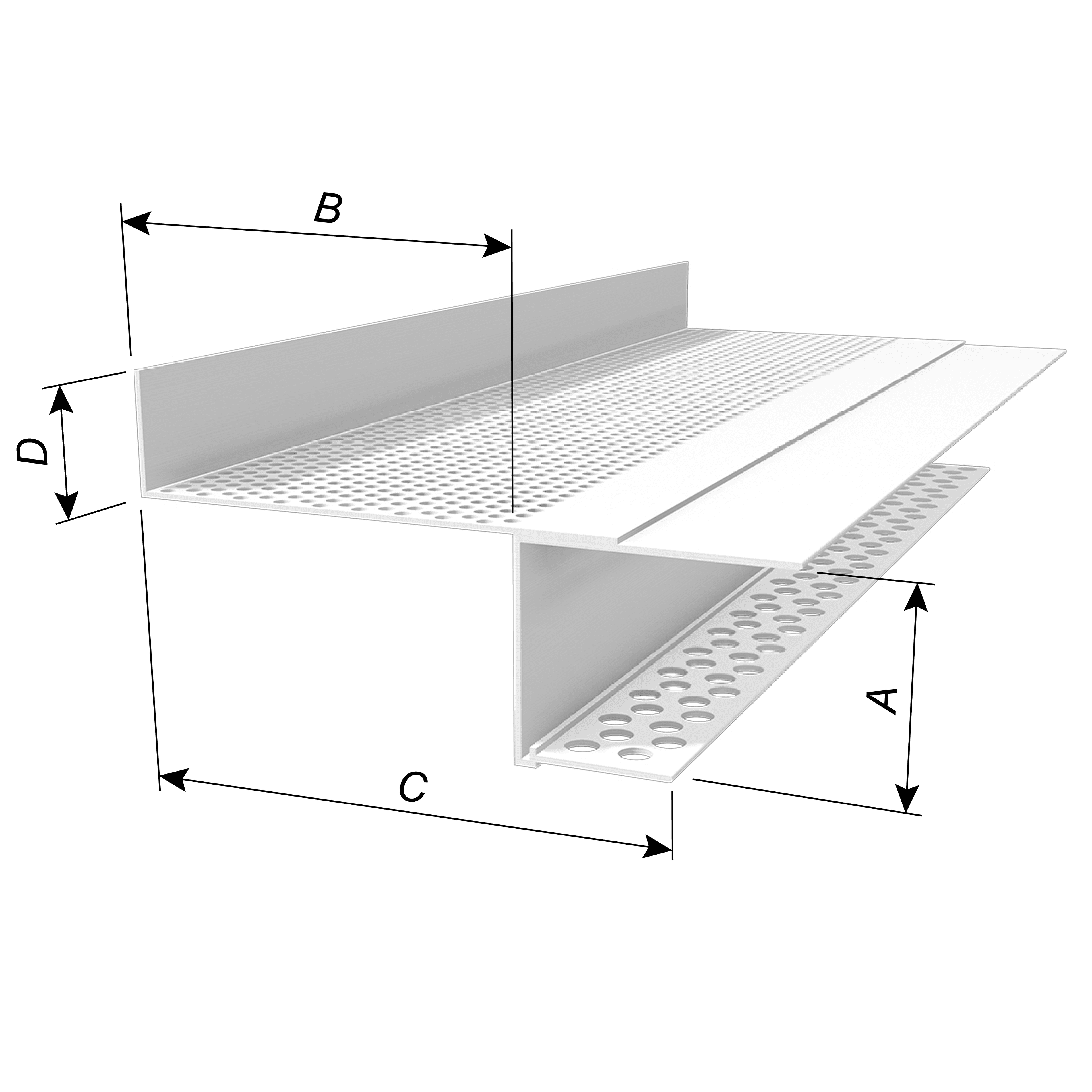

| Product code | Insulation thickness (A) | Vent reveal (B) | Overall width (C) | Vertical leg (D) | Pcs./Box |
|---|---|---|---|---|---|
| DE/RS50-300V | 1/2" | 3" | 5" | 1" | 15 |
| DE/RS58-300V | 5/8" | 3" | 5" | 1" | 15 |
| RS/CBS75-300V | 3/4" | 3" | 5" | 1" | 15 |
| RS/CBS100-300V | 1" | 3" | 5" | 1" | 15 |
| RS/CBS150-300V | 1-1/2" | 3" | 5" | 1" | 10 |
| RS/CBS200-300V | 2" | 3" | 5" | 1" | 10 |
| RS/CBS250-300V | 2-1/2" | 3" | 5" | 1" | 10 |
| RS/CBS300-300V | 3" | 3" | 5" | 1" | 10 |
Vent Area: 12 sq. in. per LF
