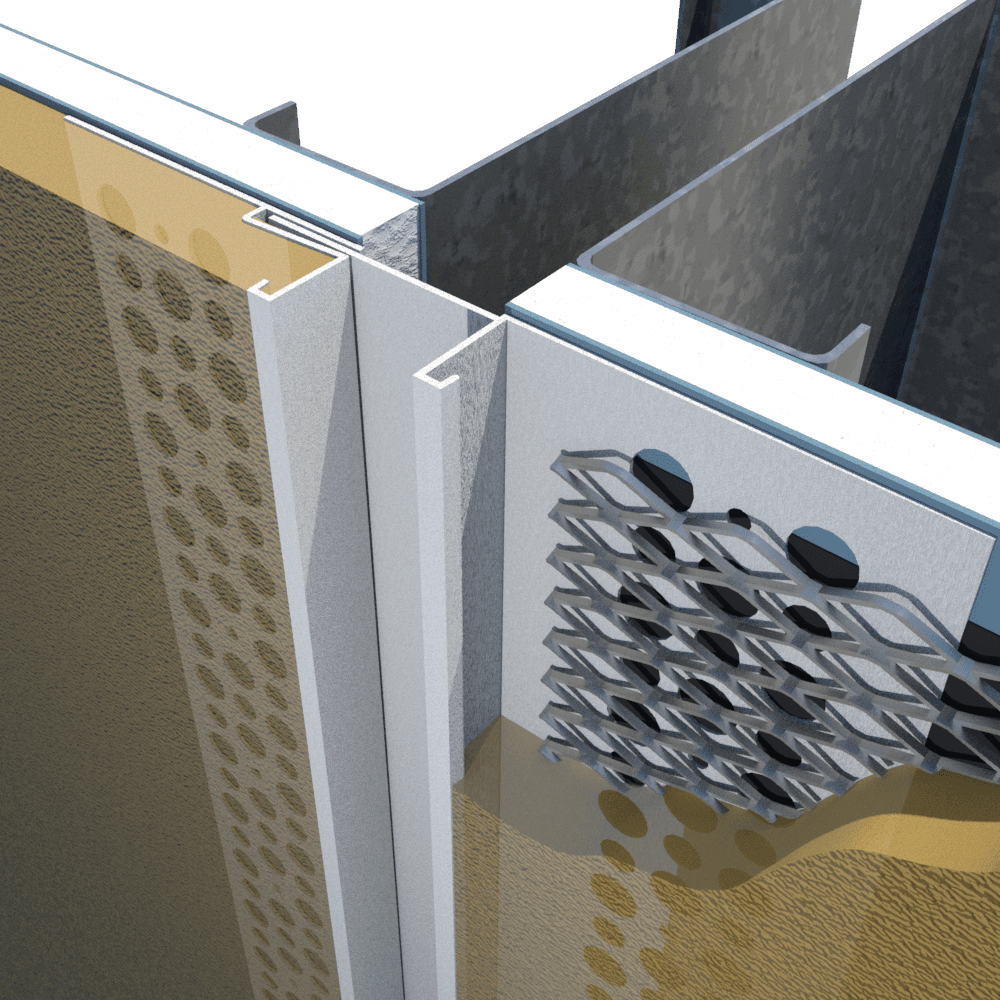

Wide Expansion Joints (Slip Joint)
Designed to relieve stress in wall and ceiling areas
Where excessive horizontal and vertical movements might occur.
Quick Actions:
Designed to relieve stress in wall and ceiling areas, where excessive horizontal and vertical movements might occur. Includes an additional design feature of a reveal.
Product Data & Ordering Information
| Product code | Ground | Overall width | Pcs./Box |
|---|---|---|---|
| 5038-50 | 3/8" | 1/2" reveal (adj. 1/4" to 5/8"), 6" to 6-3/8" overall width, perforated flanges | 18 |
| 5050-50 | 1/2" | 18 | |
| 5058-50 | 5/8" | 18 | |
| 5075-50 | 3/4" | 18 | |
| 5078-50 | 7/8" | 15 | |
| 50100-50 | 1" | 15 | |
| 5038-100 | 3/8" | 1" reveal (adj. 3/4" to 1-1/8"), 6-1/2" to 6-7/8" overall width, perforated flanges | 15 |
| 5050-100 | 1/2" | 15 | |
| 5058-100 | 5/8" | 15 | |
| 5075-100 | 3/4" | 15 | |
| 5078-100 | 7/8" | 12 | |
| 50100-100 | 1" | 12 | |
| 5038-150 | 3/8" | 1-1/2" reveal (adj. 1-1/4" to 1-5/8"), 7" to 7-3/8" overall width, perforated flanges | 12 |
| 5050-150 | 1/2" | 12 | |
| 5058-150 | 5/8" | 12 | |
| 5075-150 | 3/4" | 12 | |
| 5078-150 | 7/8" | 10 | |
| 50100-150 | 1" | 10 |
