Z-Furring Channel
Furring Channel for Walls and Ceilings
Easily accommodates rigid insulation and provides for the attachment of gypsum wallboard, veneer or plaster to the interior of masonry walls.
Quick Actions:

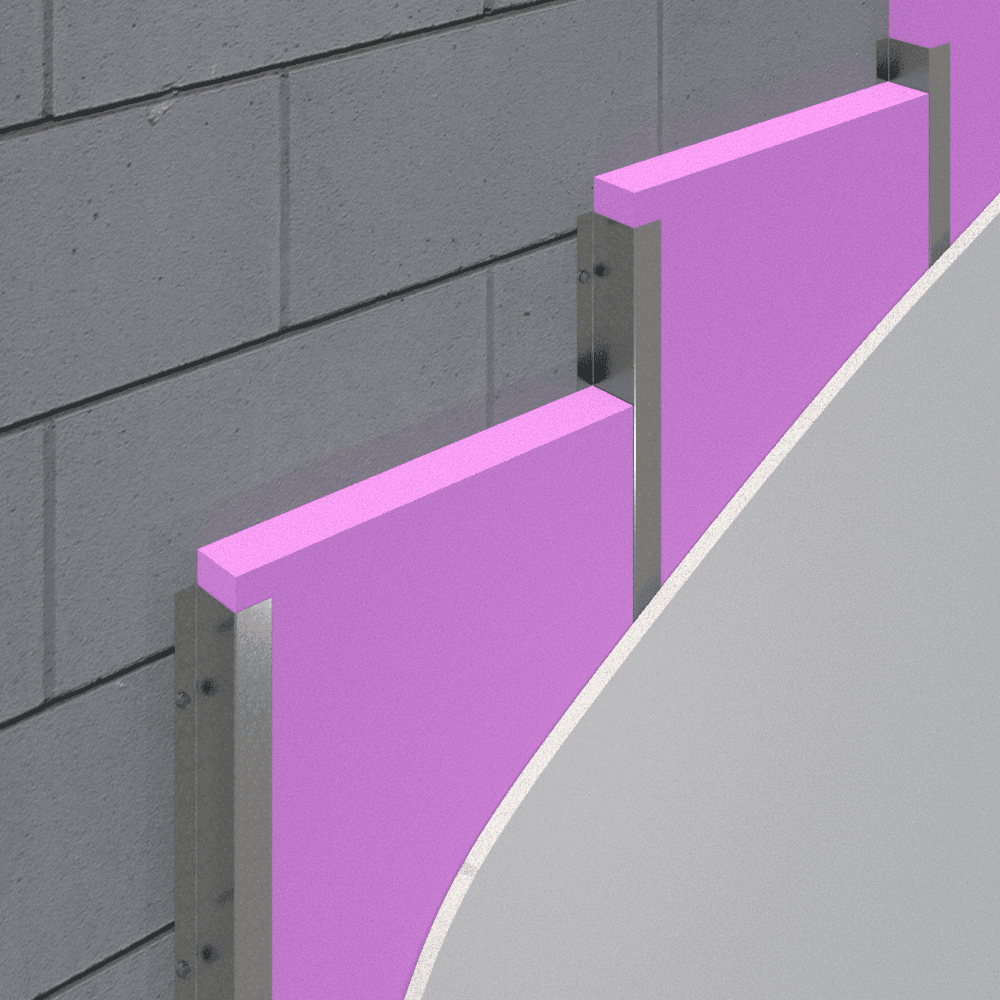

ClarkDietrich Z-furring is used to furr out interior masonry or poured concrete wall substrates and to support rigid polystyrene, mineral, or fiberglass batt insulation while providing a uniform plane for gypsum panel attachment. Z-furring is intended to be installed vertically with the 3/4" flange against the substrate. The type of fastener and spacing will vary based on application. Gypsum wallboard may be installed parallel or perpendicular to the Z-furring. Metal lath should be installed perpendicular to the Z-furring.
- 1-1/4” wide flange for easy screw attachment
- Available in 1”, 1-1/2”, 2”, 2-1/2”, 3" depths and 10’ standard length
- Custom sizes and lengths available
Click on Submittal tab for a link to all of ClarkDietrich's Standard Z-Furring Sizes.
Contact ClarkDietrich Technical Services at 888-437-3244 for custom sizes submittals of Z-Furring.
LOOKING FOR STRUCTUrAL Z-FURRING OR Z-GIRT SOLUTIONS?
VISIT OUR RAINSCREEN SOLUTIONS PAGE
WHAT IS A RAINSCREEN?
A rainscreen is an exterior wall detail where the siding (wall cladding) stands off from the moisture-resistant surface of an air/water barrier applied to the sheathing to create a capillary break and to allow drainage and evaporation. The ventilated air cavity created by the stand-off can be achieved through framing and/or finishing systems. ClarkDietrich offers Rainscreen Solutions for framing applications or finishing systems.
